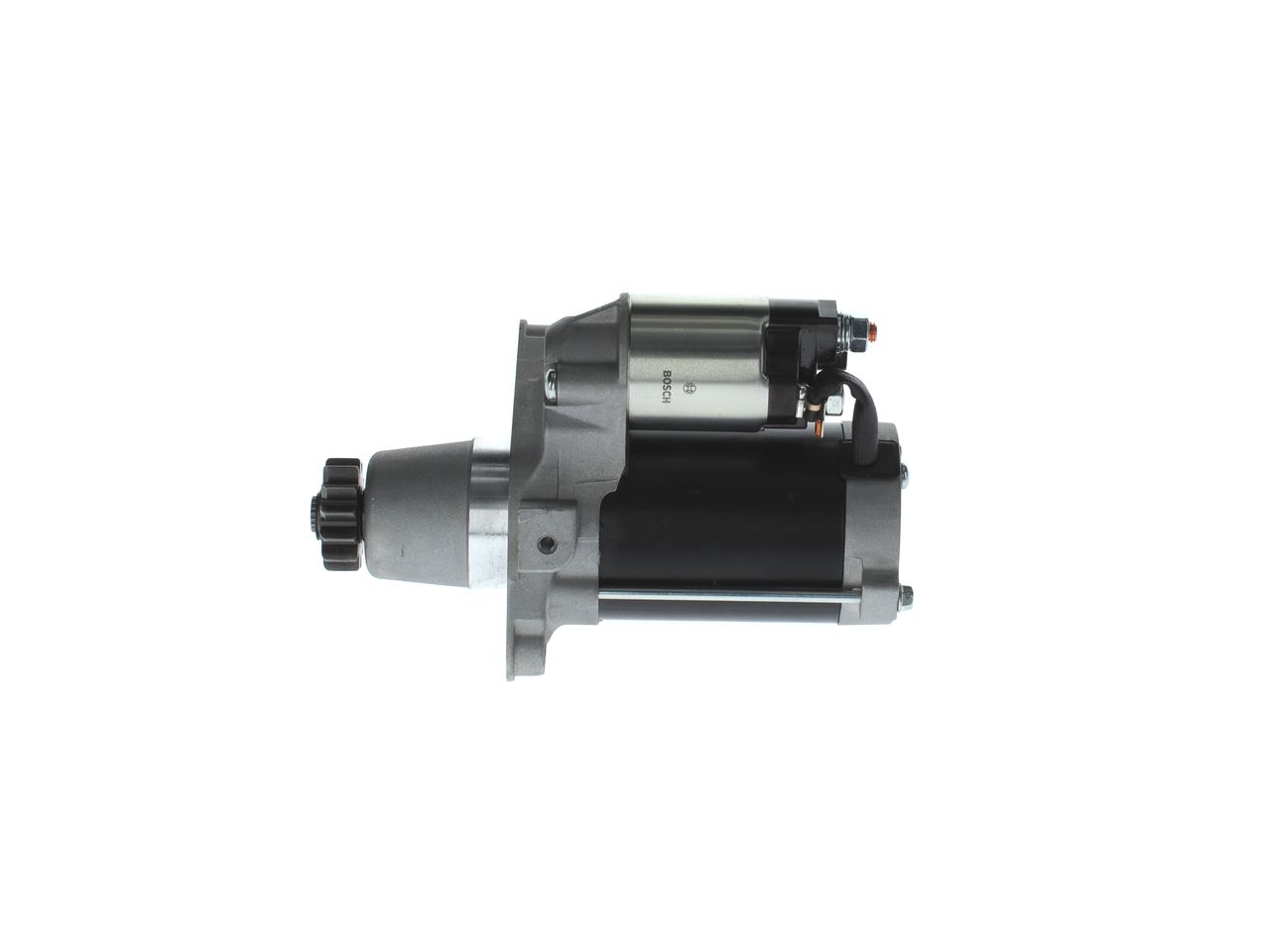

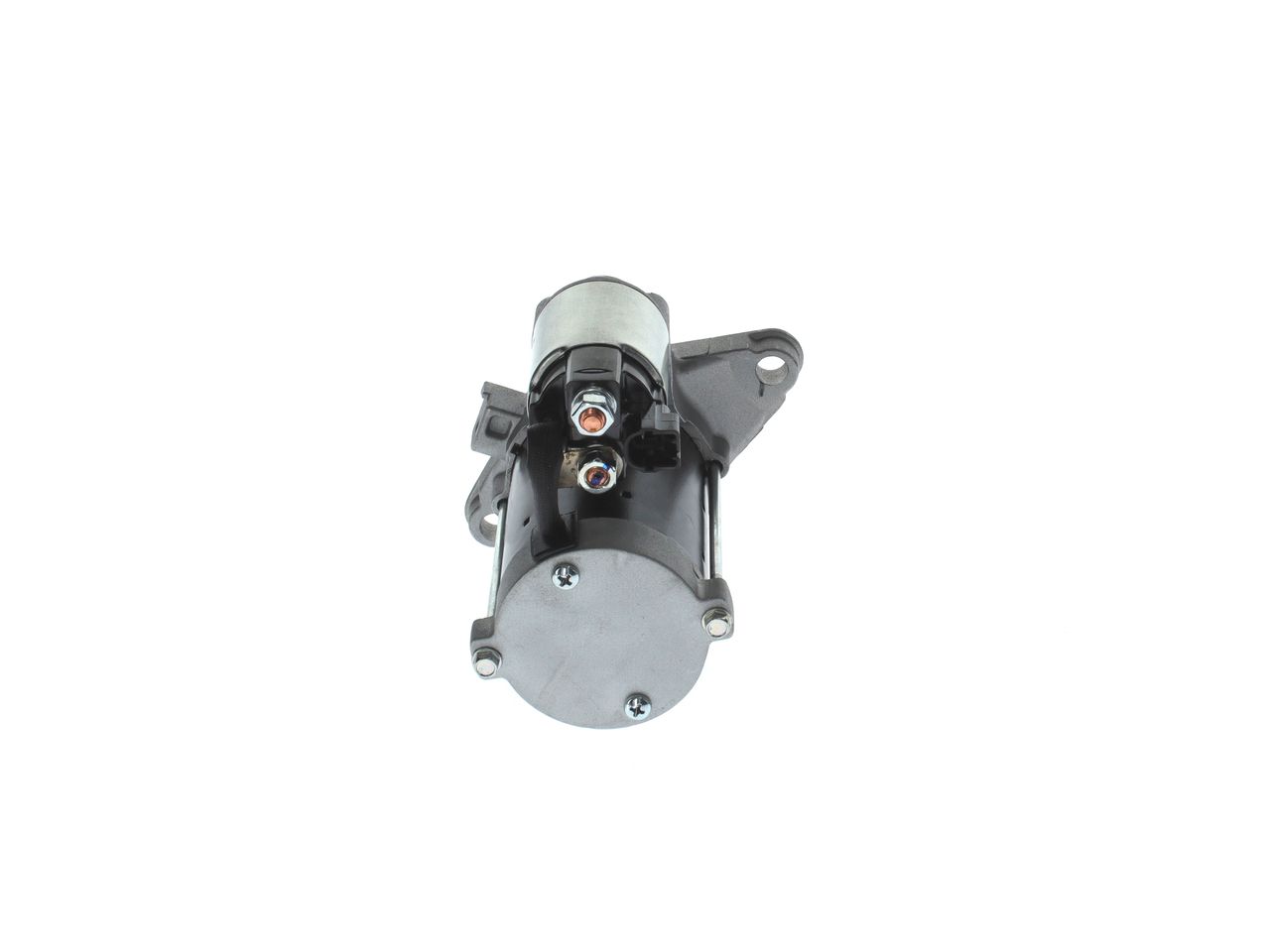

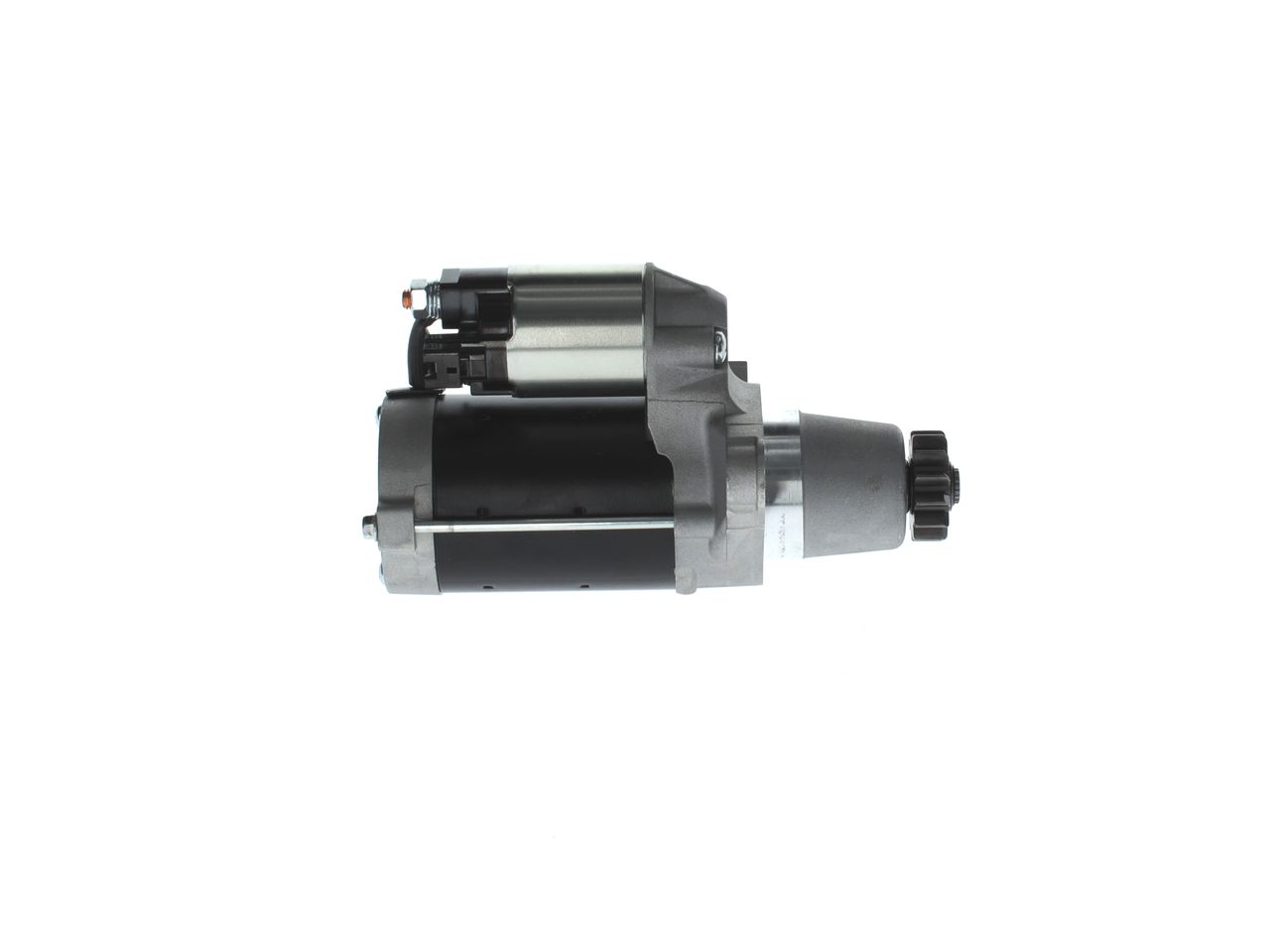

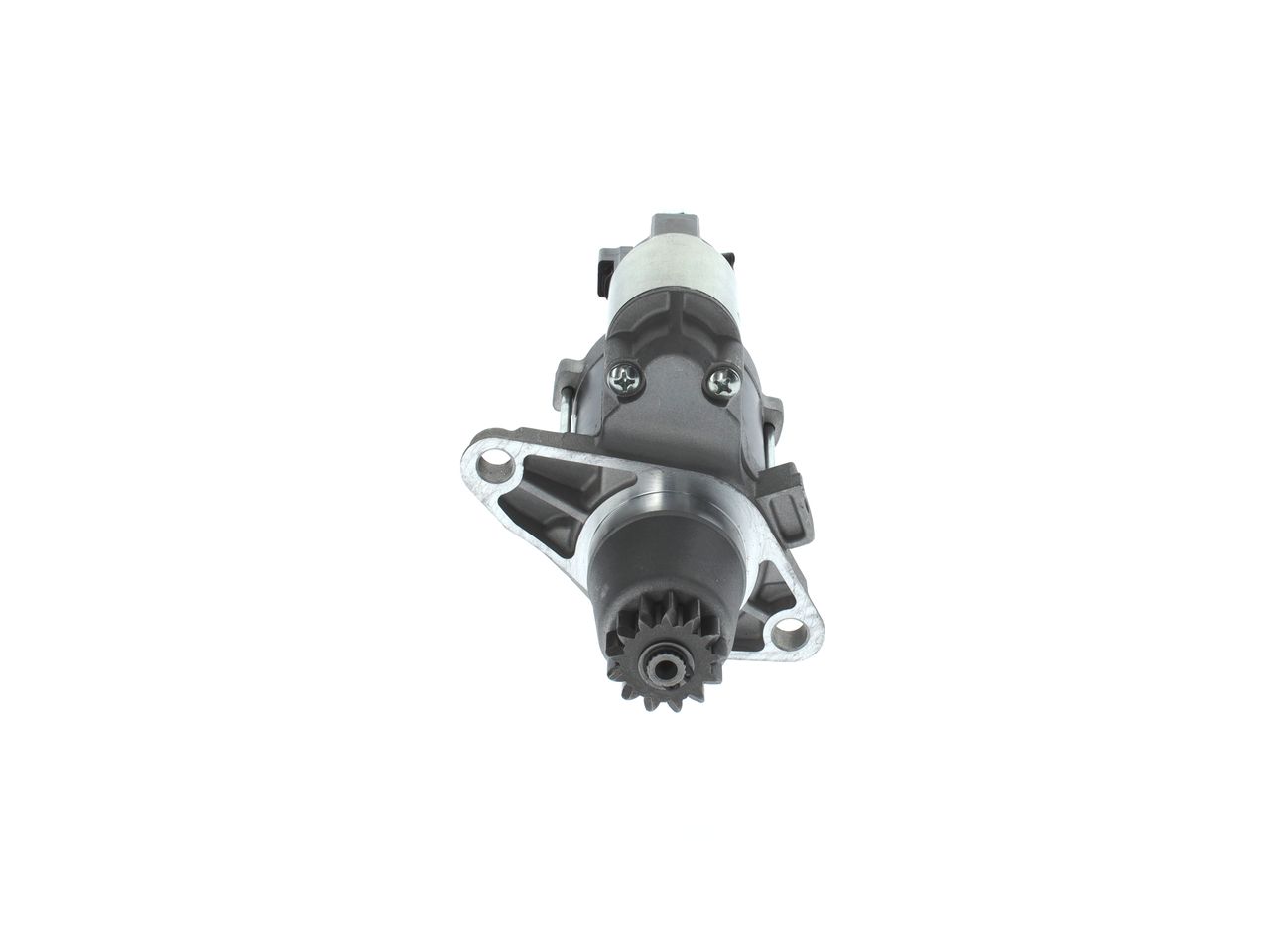

Starter - 1 986 S00 605
Regular price
£10.00
Couldn't load pickup availability
Ready to install and hit the road!
All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!
Voltage [V] :
12
Rated Power [kW] :
1.6
Number of mounting bores :
2
Number of threaded holes :
0
Number of Teeth :
13
Clamp :
30,50
Flange Diameter [mm] :
55
Rotation Direction :
Anticlockwise rotation
Pinion Rest Position [mm] :
66
Bore Diameter [mm] :
11.7
Bore Diameter 2 [mm] :
11.7
Length [mm] :
213
Position/Degree :
links
Mounting Angle [degrees] :
60
Mounting bore angle measurement [degree] :
60
- Vendor BOSCH
- SKU 1 986 S00 605
- LEXUS : 281000A010 28100-0A011-84 28100-0P080-84 2810020021 2810020022 2810028041 2810028072 2810031100 2810031101 2810031102
- TOYOTA : 28100 20020 28100 20021 28100 20022 28100 28040 28100 28041 28100 28042 28100 28050 28100 28051 28100 28052 28100 28053 28100 28060 28100 28061 28100 28062 28100 28070 28100 28071 28100 28072 28100 28080 28100 28081 28100 28082 28100 31100 28100 31101 28100 31102 281000A010 281000A011 281000A01184 281000V011 281000V012
- APEC : ASM1061
- BLUE PRINT : ADT312102, ADT312501, ADT312520
- BOSCH : 0 986 026 080
- Carwood Group : BREF0320986026080, BREF032114037, BREF0321986S00605
- FEBI BILSTEIN : 193423, 193927, 193931
- NAPA : NSM1061
- WAI : 17825N
