An auxiliary battery has a defined electrical role
The second battery may preserve control voltage during engine cranking, supply convenience loads while parked, power safety systems during a main-bus fault or accept energy from a DC-DC converter.
Its role determines whether high cranking current, repeated cycling, long standby or rapid charge acceptance matters most. “Auxiliary” does not define one universal specification.
Common vehicle arrangements
| Arrangement | Auxiliary function | Charging path | Selection focus |
|---|---|---|---|
| Factory support battery | Stabilises modules or stop-start loads. | Controlled relay or DC-DC unit. | Exact OE technology and coding. |
| Dual-battery utility system | Runs equipment without flattening starter battery. | Voltage relay or managed charger. | Cycle life, cable protection and isolation. |
| Camper leisure bank | Supplies habitation loads. | DC-DC, mains charger and possibly solar. | Usable energy, ventilation and installation. |
| 48 V mild hybrid | Supports motor-generator and high-power loads. | 48 V electronics with 12 V conversion. | System-specific safety and service. |
| EV low-voltage battery | Powers controllers/contactors before traction wake. | High-voltage DC-DC converter. | Wake-up strategy and approved chemistry. |
| Emergency/service vehicle bank | Runs radios, lamps and specialist equipment. | Engine, shore or multi-input charging. | Duty cycle and certified conversion design. |
Battery chemistry must match the charger
Nominal voltage does not define charge behaviour
Flooded lead-acid, EFB and AGM batteries use different plate, separator and recombination designs. Lithium systems require a compatible battery-management system and charge limits.
An alternator or DC-DC profile designed for lead-acid can overcharge lithium, while an AGM replacement charged as conventional flooded may remain chronically undercharged.
Lead-acid technology choices
| Technology | Useful characteristic | Typical duty | Critical concern |
|---|---|---|---|
| Flooded starter | High cranking output. | Conventional starting. | Not ideal for deep repetitive cycling. |
| EFB | Improved cycle and charge acceptance. | Selected entry stop-start systems. | Replace with specified equal/better type. |
| AGM | Low internal resistance and spill resistance. | High-demand stop-start/support duty. | Heat and charging calibration. |
| Deep-cycle flooded | Designed for repeated energy removal. | Ventilated leisure/service banks. | Gas, electrolyte and maintenance. |
| Gel lead-acid | Immobilised electrolyte. | Specific cyclic applications. | Charge-voltage sensitivity. |
| Lead-carbon variants | Enhanced partial-state cycling. | Purpose-designed support banks. | Needs documented system compatibility. |
Lithium auxiliary batteries
Lithium iron phosphate can provide high usable energy and low mass, but cell limits differ fundamentally from lead-acid. A battery-management system must control overcharge, deep discharge, temperature and current.
Charging below the permitted cell temperature can damage some lithium chemistry. Confirm alternator protection, DC-DC profile, fusing and any external contactor requirements before conversion.
Capacity and power ratings
Ampere-hours describe charge under stated test conditions, while watt-hours combine nominal voltage and capacity. Cold-cranking current describes short high-power performance, not stored usable leisure energy.
Cycle-life claims depend on depth of discharge, temperature and charge completion. Size from an energy audit with reserve rather than dividing one appliance wattage by nominal voltage alone.
Series and parallel connections
Series batteries raise voltage; parallel batteries raise capacity/current capability. Mixing age, model, chemistry or state of charge causes unequal current and can overwork one unit.
Factory multi-battery systems may not be a simple parallel bank. Relays and sensors can isolate buses, so trace the diagram before any disconnection.
Split-charge relays and smart alternators
Traditional voltage-sensitive relays join batteries when alternator voltage rises. Smart alternators vary output for fuel economy and may drop below the level needed to complete auxiliary charging.
A suitable DC-DC charger can control current and chemistry profile while preserving starter-battery priority. Cable size and alternator thermal capacity still impose limits.
DC-DC converter functions
A converter may step 48 V or traction voltage down to the 12 V bus, or boost variable alternator input for a leisure bank. It can also provide galvanic control, wake logic and fault isolation.
Low auxiliary voltage may result from converter inhibition rather than battery failure. Check enable signals, temperatures, fuses and network data.
Energy-management sensors
A current/voltage sensor on the negative terminal measures charge throughput and helps estimate state of charge. Bypassing it with accessory earths makes energy calculations inaccurate.
Connect chargers and added loads at the designated chassis side of the sensor. Do not move grounds without the wiring specification.
Symptoms and diagnostic direction
| Symptom | Battery-related possibility | System alternative | Priority |
|---|---|---|---|
| Stop-start unavailable | Low charge or ageing support battery. | Temperature, demand or engine condition. | Diagnose, not immediate replacement. |
| Vehicle will not wake | Collapsed low-voltage supply. | DC-DC, fuse, bus or security issue. | High. |
| Battery repeatedly flat | Low capacity or undercharge. | Parasitic draw or charging fault. | Prompt. |
| Swollen/hot case | Internal fault or overcharge. | Wrong charger profile. | Isolate area urgently. |
| Rotten-egg odour | Lead-acid gassing/overcharge. | Charging-system failure. | Ventilate; avoid sparks. |
| Auxiliary loads cut out | Low voltage or BMS protection. | Undersized cable or inverter demand. | Control load and test. |
State of charge and state of health differ
State of charge describes current stored energy; state of health estimates remaining capability relative to new. A sound discharged battery can fail a quick test until properly recharged.
Charge by the correct chemistry profile, allow stabilisation and retest. Repeated deep discharge can cause permanent loss even when open-circuit voltage recovers.
Conductance and load testing
Enter the exact battery rating and technology into compatible equipment. Small support batteries may use ampere-hour or manufacturer-specific test modes rather than a conventional CCA label.
A controlled load test reveals voltage response but must remain within rating and ventilation controls. Do not spark-connect a carbon pile near a recently charged battery.
Charging-system checks
Measure voltage and current through the operating modes specified for the vehicle. A smart system may deliberately show low, high or pulsed values depending on braking, temperature and battery state.
Use scan data to observe commanded converter state and sensor current. One idle-voltage reading cannot prove charging failure.
Parasitic-draw diagnosis
Allow every controlled module to enter sleep
Prepare latches and access so doors can remain logically closed, then monitor current without breaking the circuit. Opening a door or moving a key can restart the sleep timer.
Compare after the exact settling period and use fuse-voltage-drop or data methods to locate the branch. Disconnecting random modules can create misleading wake events.

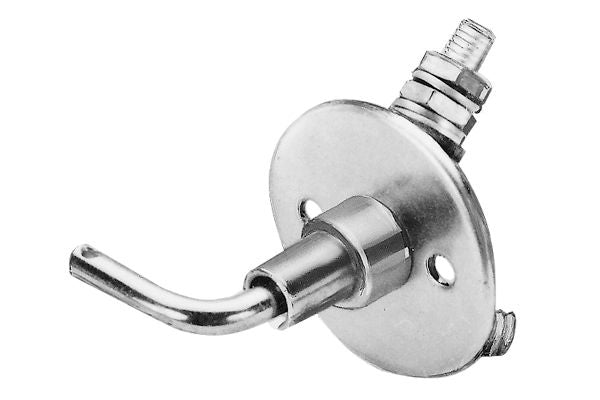

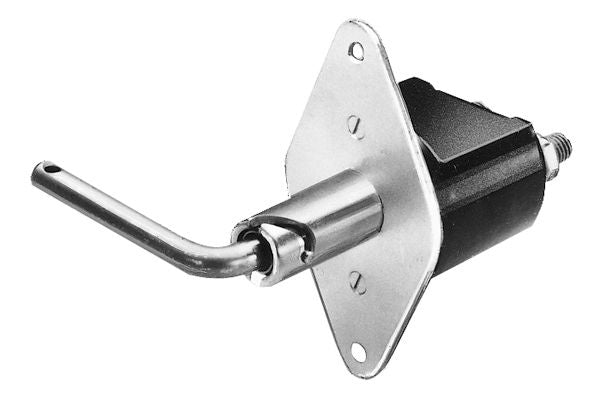

Multiple live sources
| Possible source | Why it can remain energised | Isolation evidence required |
|---|---|---|
| Main starter battery | Direct high-current feed. | Specified terminal safely disconnected. |
| Auxiliary battery | Relay may connect it to shared bus. | Both poles/circuits controlled as instructed. |
| Solar controller | Panel produces voltage in daylight. | PV input isolated by its procedure. |
| Mains charger | Shore power energises DC output. | Unplugged and locked off. |
| Traction DC-DC | Vehicle may wake converter. | High-voltage system made safe by qualified staff. |
| Capacitor/inverter | Stored energy remains after disconnection. | Wait and prove voltage at defined points. |
Short-circuit and explosion hazards
A 12 V battery can release thousands of amps into a tool, melting metal and starting fire. Remove jewellery, cover adjacent positive posts and use insulated protection appropriate to the task.
Hydrogen may accumulate during charging. Ventilate and make the final charger connection away from the battery where the instructions specify.
Electrolyte and damaged cases
Lead-acid electrolyte is corrosive; damaged lithium cells can produce heat and hazardous vapour. Do not tilt, pressurise or attempt to neutralise an unknown leaking pack casually.
Use the product emergency procedure, isolate the area and obtain specialist waste support. A swollen battery must not be charged.
48 V and high-voltage distinctions
Nominal 48 V systems can exceed touch-safe thresholds in operation and deliver intense arc energy. High-voltage traction systems use additional isolation and orange identification.
Low-voltage battery removal can unexpectedly change contactor or brake states. Follow the system sequence and competency rules rather than treating it like a conventional car.
Battery identification checklist
| Attribute | Reason | Evidence |
|---|---|---|
| Nominal voltage | Defines electrical system. | Vehicle and battery label. |
| Chemistry/type | Controls charging and safety. | Exact manufacturer specification. |
| Capacity/power rating | Matches duty and diagnostics. | Ah, Wh, CCA or system code. |
| Case/hold-down | Ensures crash restraint. | Dimensions and foot profile. |
| Polarity/terminal | Prevents reversed or strained cables. | Installed orientation. |
| Vent provision | Routes gas outside enclosed cabin. | Port position and tube diameter. |
Power-support preparation
Some vehicles need regulated support to preserve module state, while others forbid it during battery replacement because the circuit must be dead. Use the model-specific method.
A memory saver connected to the diagnostic socket can leave removed positive leads live. It also needs appropriate current limiting and polarity control.
Removal sequence
Turn off loads, remove keys from the wake zone and wait for shutdown. Isolate chargers, solar inputs and linked batteries in the stated order.
Normally the earth connection is controlled before an exposed positive, but multi-bus systems can specify additional steps. Protect each disconnected cable against spring-back.
Tray, vent and cable inspection
Clean corrosion using the safe battery procedure and inspect the tray for acid damage, loose studs and blocked drain or vent routes. Replace a weakened hold-down.
Cables must reach terminals without tension. A reversed-layout battery can seem connectable while crossing poles or rubbing insulation.
Installing and securing
Lift with appropriate aids, keep the case upright and seat it fully against locating features. Tighten the hold-down to specification before connecting power.
Clean terminal contact faces, fit monitoring sensors in the original order and torque clamps without hammering or levering on posts. Reconnect vent tubes and unused-port plugs correctly.
Registration, coding and reset
Energy-management systems may store battery age, capacity and technology. Registration tells the controller that a new battery is present; coding changes configuration when an approved different specification is installed.
Do not register an old battery to hide a fault. Complete steering, window, clock and diagnostic relearns according to the vehicle procedure.
Commissioning tests
| Check | Expected outcome | Fault clue |
|---|---|---|
| Initial connection | No heat, smoke or uncontrolled load. | Polarity or short-circuit issue. |
| Rest voltage | Plausible for chemistry and charge. | Undercharge or cell fault. |
| Charge current | Correct direction and controlled magnitude. | Sensor, converter or wiring problem. |
| Load operation | Stable voltage within system limits. | High resistance or insufficient capacity. |
| Sleep current | Falls after specified time. | Module wake or parasitic branch. |
| Fault scan | No unresolved energy-system codes. | Registration or circuit issue. |
Added accessories and inverters
Fuse every positive conductor close to its source and size cable for current, length, temperature and installation method. An inverter can draw more than ten times its AC output current from a 12 V bank.
Protect against undervoltage, overload and reverse polarity. Chassis earth paths must be engineered rather than attached to convenient thin sheet.
Maintenance and storage
Keep the battery at an appropriate state of charge with a compatible maintainer during lay-up. Lead-acid sulphates when left low; lithium storage targets vary by manufacturer.
Inspect terminals, vents, hold-downs and cables periodically. Never top up a sealed design or open a battery-management enclosure.
Common mistakes
Errors include matching only physical size, replacing AGM with flooded, attaching accessories on the wrong side of a current sensor and ignoring a failed DC-DC charger.
Other hazards come from disconnecting one of several sources, omitting the vent tube and using an unregulated jump pack as memory support.
UK transport and recycling context
Vehicle batteries must be secured against movement and protected from short circuit. Conversions should meet applicable vehicle-construction, electrical and insurer requirements.
Return spent batteries through authorised recycling. Cover terminals and disclose damaged lithium units because their transport needs specialist handling.
Practical auxiliary-battery FAQs
Q: Is every auxiliary battery a leisure battery?
A: No. Factory support units can serve control and safety functions.
Q: Can AGM be replaced with ordinary flooded lead-acid?
A: Not when the system specifies AGM duty and charging.
Q: Does a fitting case prove compatibility?
A: Chemistry, ratings, venting and energy management must also match.
Q: Why can a second battery still be flat?
A: Charger control, parasitic load or cable resistance may be faulty.
Q: Can one negative terminal make everything safe?
A: Multiple batteries, solar and converters may leave circuits live.
Q: Is stop-start unavailability proof of failure?
A: No. Many temperature and operating conditions inhibit it normally.
Q: Must the new battery be registered?
A: Perform registration or coding whenever the vehicle specifies it.
Q: Can a lithium battery use a lead-acid charger?
A: Only if the battery maker approves the exact charging profile.
Q: Why connect accessories after the current sensor?
A: The controller must measure their charge and discharge current.
Q: May a swollen battery be recharged?
A: No. Isolate it and follow the damaged-battery procedure.
Q: Does a 12 V system present little danger?
A: Its short-circuit current can cause severe burns and fire.
Q: What proves the replacement is working?
A: Correct registration, charging, load voltage and sleep-current behaviour.
Q: How should an old battery be handled?
A: Protect its terminals and use an authorised recycling channel.
