Spirit levels turn gravity into an alignment reference

A conventional spirit level uses a sealed vial containing liquid and a deliberately retained bubble. The inner surface is curved, so gravity draws the liquid down and leaves the bubble at the highest point. Reference marks show the intended central position. In a horizontal vial, a centred bubble indicates that the vial axis is level; a separately installed plumb vial references vertical.

The tool does not know whether the object beneath it is straight, secure or correctly located. It reports only the inclination transmitted through its contact face. Good technique therefore matters as much as vial visibility.

The current collection covers compact and spanning formats

Length changes what the reading represents

A short body can sit on a small high spot, dip or weld bead and report that local feature accurately while misrepresenting the wider assembly. A longer body averages across more of the work and makes a small gradient produce a larger end-height difference. It can, however, bridge a deliberate crown or rest on only two isolated points.

Choose the length to match the surface whose alignment actually matters. Taking several overlapping readings is often more informative than assuming one position tells the entire story.

Vial sensitivity and tool accuracy are related but different

Vial sensitivity describes how readily the bubble moves for a change in angle. Overall accuracy also depends on vial setting, body straightness, working-face condition, temperature and user observation. A lively bubble may reveal small changes yet still be wrong if its vial has shifted. A stable-looking bubble is not evidence of calibration.

Where a task has a stated tolerance, use a level with a declared suitable accuracy and an appropriate verification regime. Do not infer a numerical gradient from unmarked bubble displacement.

Working faces must transfer the surface faithfully

The machined or formed edge of a box level provides the datum. Paint lumps, sealant, rust scale, grit and damaged corners can lift one end. The same applies to the component: a fastener head, cable tie or flexible cover beneath the tool changes the effective plane.

Clean both interfaces without removing protective material from the work. If the surface is rough, establish suitable sound reference points rather than pressing the level until it appears steady.

A reversal test detects many practical errors

Set the level on a stable, repeatable location and allow the bubble to settle. Mark the body's position and note where the bubble sits relative to the lines. Rotate the tool 180 degrees end-for-end, return it to exactly the same footprint and read again. An accurately set horizontal vial should give the corresponding result in both orientations.

This check does not certify every part of the tool, but it can expose a displaced vial, damaged face, debris or an unsuitable test surface before a job relies on the reading.

Apply a disciplined reading sequence

Horizontal, plumb and angled vials have separate jobs

A level vial set parallel to the working face is used for horizontal checks. Plumb vials are installed across the body so that the relevant face can reference vertical. Some tools have a fixed 45-degree or adjustable vial, but no such function should be assumed unless it is visibly present and identified.

Do not use the outer shape of a vial opening as an angle reference. Read the correct vial with the designated working edge against the work.

Compact levels are valuable in restricted assemblies

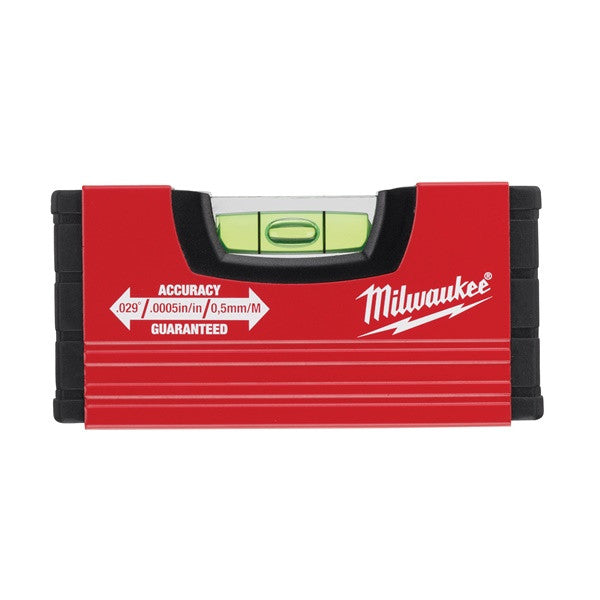

A 10 cm handy level can reach between obstacles, sit on a short mounting flange and support preliminary layout. Its small body is also easier to keep safely within a crowded area. The trade-off is that a tiny datum magnifies the influence of local surface damage and gives little information about twist or alignment farther away.

Repeat compact readings at multiple points and directions. Where possible, confirm the finished assembly with a longer reference or specified measuring method.

Long box levels expose gradients over distance

The 60, 120 and 180 cm sizes in a set allow the datum to scale with the job. A longer span can show that two distant points differ even when each small local patch appears level. It also reduces the temptation to leapfrog a short tool without recording cumulative height change.

Long levels must be supported during transport and storage. Carry them without using the body as a lever, and keep the working edges away from sharp metal that can nick them.

Vehicle work demands safe separation between measuring and supporting

A spirit level may assist with workshop fixtures, storage, equipment installation or specified body and fabrication references. It must never be treated as evidence that a vehicle is safely raised. Axle stands, ramps and lifting platforms require their own rated, manufacturer-defined setup and inspection.

Do not reach or crawl beneath a vehicle solely to centre a bubble. Establish safe support and isolation first, and keep the level clear of moving suspension, steering and lifting mechanisms.

Alignment tasks may require other instruments

Wheel geometry, headlamp aim, chassis dimensions and calibrated workshop equipment generally have dedicated procedures and measuring systems. Floor level alone does not establish vehicle datum because tyre pressure, suspension height, loading and local floor variation all affect the result.

Use the spirit level only where the relevant procedure permits it. A bubble reading is not a substitute for alignment angles, dimensional gauges or certified equipment installation checks.

Common observations have several possible causes

Temperature affects the body, vial and bubble

Moving a cold tool into a warm workshop can cause condensation and temporary dimensional change. Strong sunlight, heaters and hot components create uneven expansion. Vial liquid behaviour and bubble size may also change outside the stated operating conditions.

Allow the level to stabilise when accuracy matters. Never rest it on an exhaust, freshly welded part or other hot surface that can distort the body or damage the vial.

Magnetic holding needs its own precautions

If a particular model has magnets, they can help retain the level on clean ferrous material, but swarf attracted to the face creates error and scratching. Magnetic force is not a fall-arrest system and may be weak on thin, painted or curved components.

Confirm the exact product feature rather than assuming every level is magnetic. Keep fingers clear when offering a strongly held tool to steel and remove collected particles safely.

Inspection should distinguish cosmetic wear from datum damage

Examine the working edges

Look and feel for dents, burrs, embedded particles and worn corners. Do not file a precision face casually; repair can change straightness.

Inspect the vial mount

Reject cracks, leakage, cloudiness, multiple bubbles or any movement between the vial and body.

Challenge the indication

Run a reversal check periodically and after any drop, impact or suspected overload.

Good observation reduces parallax

Position the eye square to the vial so the bubble and both reference lines are seen symmetrically. Reading from a sharp angle can make one gap appear smaller. Use diffuse light that reveals the meniscus without glare and keep coloured fluid visible against the background.

Do not twist the level to improve the view. Change the observer position or use a safe mirror arrangement only if the procedure allows.

Marking and adjustment should be separated

When setting a bracket or fixture, first establish its direction, then secure or mark it without moving the level. Pushing on the body while tightening a fastener can flex the tool and conceal movement. Recheck after final torque because joint settling can alter position.

For gradients such as drainage, use the specified fall measurement rather than deliberately offsetting a bubble by eye.

Multiple-axis checks reveal twist

A surface can be level in one direction and sloped in another. Take readings along and across the relevant plane, and repeat near both ends where the component could twist. A long level laid diagonally may provide additional information but only when it seats consistently.

Record the orientation and tool length when results will guide further work. An unexplained statement that something was “level” is not a reproducible measurement.

Storage protects calibration

Wipe moisture, metal particles and workshop residue from the body. Store the 60, 120 and 180 cm levels in a rack or case that supports them without bowing; do not lean a long level where it can fall or remain loaded at the centre. Protect the 10 cm level from loose heavy tools in a drawer.

A level that has been dropped should be treated as suspect even if the body looks intact. Inspect and reverse-test it before returning it to measurement duty.
