An axle stand replaces hydraulic lift pressure with mechanical support
A jack raises; a stand carries. Load passes from the vehicle support point through the saddle and adjustable column into a wide base and the floor. Mechanical pins, ratchet teeth or fixed structure establish height without depending on a pressurised seal or valve.
Safety depends on every interface: vehicle, saddle, lock, frame and ground.
Stand designs secure their height differently
| Design | Height control | Critical check | Main misuse risk |
|---|---|---|---|

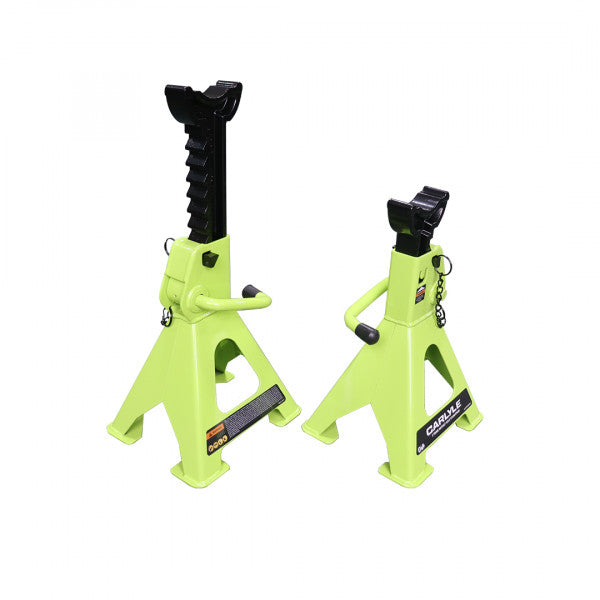

| Ratchet-column stand | Pawl engages shaped column teeth. | Full engagement and secondary lock if fitted. | Pawl resting on a tooth edge. |

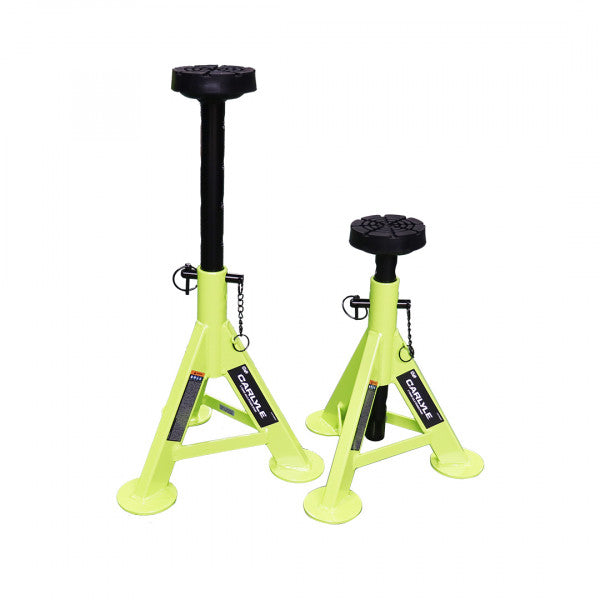

| Pin-adjustable stand | Rated pin passes through aligned holes. | Correct pin, diameter and retainer. | Using a bolt or screwdriver. |
| Fixed-height stand | Non-adjustable welded structure. | Correct height and intact frame. | Adding loose blocks for adjustment. |

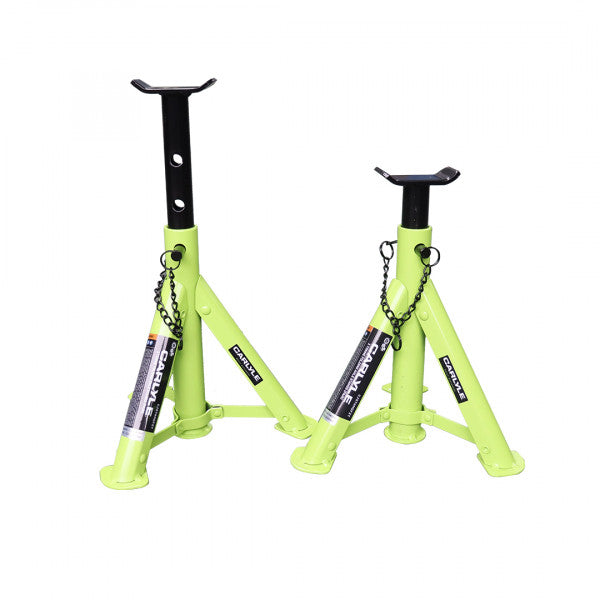

| Folding stand | Legs deploy and lock into load geometry. | Every leg fully open and retained. | Using partly folded or on soft ground. |
| Flat-pad body stand | Fixed/adjustable broad saddle. | Approved body support interface. | Assuming it suits an axle tube. |

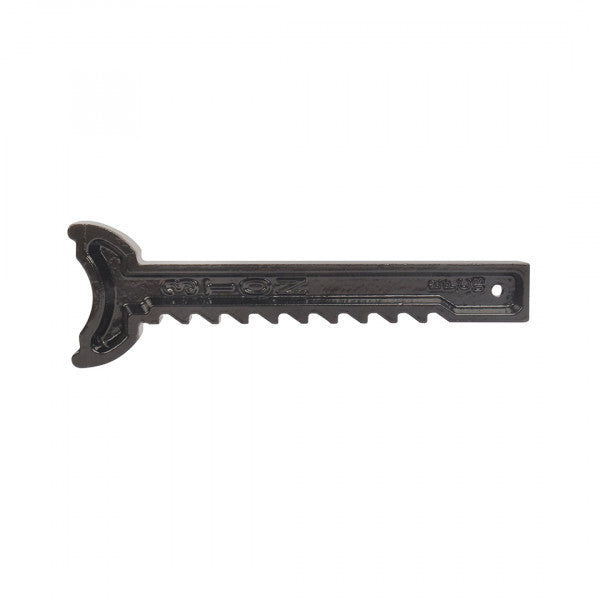

| Replacement column/pin | Restores exact original mechanism. | Model, tooth/hole geometry and rating. | Treating similar dimensions as approval. |
Capacity markings need precise interpretation
A stated tonnage may describe one stand or a matched pair according to the product documentation. Vehicle kerb weight is not the load automatically placed on each support; weight distribution, cargo and the number of support points matter. Removing an engine, axle or battery can shift the centre of gravity substantially.
Use conservative load evidence and ample margin rather than dividing total weight by four without analysis.
Height affects both access and stability
As the column rises, the vehicle's centre of gravity rises and some stand designs offer a smaller resistance to overturning under sideways force. Use the lowest height that gives safe access and complete lock engagement. Both stands on an axle should normally share an intentional, even setup.
Never exceed a marked maximum hole or tooth to gain one extra increment.
Selection begins with support point and floor
| Plan item | Why it matters | Evidence | Wrong choice outcome |
|---|---|---|---|
| Vehicle support point | Must carry static service load. | Handbook/workshop lift diagram. | Crushed sill or structural damage. |
| Actual supported load | Must remain below documented rating. | Axle weights and work plan. | Stand overload. |
| Height range | Must reach without over-extension. | Measured vehicle and stand datums. | No full lock engagement. |
| Saddle profile | Spreads load at the approved point. | Point geometry and rated adaptor. | Slip or local crushing. |
| Base footprint | Controls stability and floor pressure. | Clear hard level work area. | Rocking, sinking or obstruction. |
| Adjustment lock | Must be visible and positively engaged. | Stand instructions and inspection. | Unexpected column drop. |
The floor is part of the support system
Concrete or another suitable hard level surface distributes each foot load. Asphalt can soften, gravel migrates and sloping ground creates side force. Loose boards can split or tilt, especially beneath narrow legs.
Use only a designed load-spreading base system where the stand maker and site assessment permit it; never improvise with stacked timber, bricks or paving slabs.
Vehicle support points differ from jacking points
A central crossmember may be approved for a jack while reinforced sill areas take stands, or vice versa. Some pinch welds require shaped saddles. Suspension points can move as load transfers and may not provide stable static support.
Follow the exact lift/support diagram and preserve access to both sets of locations before raising.
Electric vehicles require exact underbody location
Large traction batteries, coolant plates and high-voltage cables can occupy most of the flat floor. Contact damage may create electrical, thermal or fire risk. Use only marked, documented locations and appropriately trained procedures.
Do not assume a broad battery enclosure spreads stand load safely.
Inspection removes damaged stands before loading
| Area | Inspect for | Reject when | Reason |
|---|---|---|---|
| Base/legs | Flat feet, straight members and full deployment. | Bend, twist, missing retainer or rocking. | Controls stability. |
| Welds/frame | Cracks, corrosion and previous repair. | Crack, deep pitting or unauthorised weld. | Carries full structural load. |
| Column/saddle | Straightness, tooth/hole and contact condition. | Spread holes, worn teeth or distorted saddle. | Maintains height and contact. |
| Pawl/pin | Correct movement, size and engagement. | Incomplete lock, wear or substitute part. | Prevents column descent. |
| Pair identity | Same model, height and rating where paired. | Mismatched geometry or unknown component. | Uneven load sharing. |
| Labels/manual | Rating and adjustment limits legible. | Capacity cannot be verified. | Safe planning impossible. |
Ratchet stands need full tooth and pawl contact
Raise the column through its intended direction and visually confirm the pawl seats into the root of a complete tooth. Engage a secondary lock or pin when supplied. Dirt, paint, burrs and wear can prevent full travel.
Do not lower a loaded ratchet mechanism by lifting or pulling its release lever.
Pin stands need their original load-bearing pin
The pin's diameter, material, heat treatment and usable length determine shear capacity and column location. A high-grade-looking bolt may place threads in shear or lack the correct toughness. Align the holes without lifting the stand by the column and fit any retaining clip.
Never use screwdrivers, drill bits or mixed pins.
Folding stands must form their complete base
All legs must reach their designed stop and locking linkage before load is applied. A folded leg changes the load path and can collapse sideways. Inspect hinges and rivets for looseness and keep floor debris from holding a foot up.
Folding convenience does not make uneven roadside ground suitable for under-vehicle work.
Vehicle preparation prevents rolling and self-levelling
Park on the approved surface, unload unnecessary mass, choose the stated gear or transmission mode and apply the parking brake as the lifting plan requires. Chock wheels remaining on the ground. Disable air suspension, automatic levelling and powered access features according to vehicle data.
Keep occupants out and prevent remote start or charging operations.
Positioning occurs from outside the crush zone
Raise only high enough
Create clearance for the prepared stand without reaching beneath the unsupported vehicle.
Set and lock
Place the saddle at the approved point and confirm feet and mechanism visually.
Transfer slowly
Lower the jack until stands carry load, watching for shift, tilt or saddle movement.
Stability is verified before anyone enters beneath
With the jack unloaded and everyone outside the vehicle envelope, confirm all feet remain flat, saddles fully contact and the vehicle does not rock under the safe verification method. Reposition by raising again; never hammer or kick a loaded stand.
If stability cannot be proven, lower the vehicle and revise the plan.
Work forces can destabilise a sound static setup
Breaker bars, seized fasteners and removing heavy subassemblies create horizontal force and centre-of-gravity change. Orient the stands and work method for expected loads and use additional approved supports where the procedure requires them. Never use a stand as an anvil or push the vehicle sideways.
Reassess before removing engines, gearboxes, axles, traction batteries or major body panels.
The jack is not the primary support after transfer
A hydraulic jack may remain near a lift point as secondary redundancy only when the service plan permits and it does not carry load, block escape or tempt someone to assume it is safe support. The stands and approved points must independently sustain the vehicle.
Never place a body part beneath the vehicle while adjusting the jack.
Removal reverses the controlled sequence
Account for tools and people, refit wheels or structural parts as required and position the jack at its approved point. Raise only enough to unload both stands, remove them without reaching underneath, then lower gradually while monitoring chocks and vehicle movement.
Remove chocks only after the vehicle is fully supported by its wheels and secured.
Replacement components must preserve certification and geometry
A column, pawl or safety pin is safety-critical. Match the manufacturer, stand model, revision, section, hole or tooth pitch and original capacity. Fit it exactly and complete any required inspection or proof test.
Welding, drilling extra holes, shortening columns or mixing stand halves destroys the known rating.
Practical axle-stand FAQs
Q: Can a hydraulic jack support a vehicle during work?
A: No. Transfer it to approved mechanically locked supports.
Q: Is the tonnage always per stand?
A: Not necessarily; read the product's exact rating convention.
Q: Can stands be used on asphalt?
A: Only where a competent assessment and approved system ensure hard stable support.
Q: Are jacking and support points always the same?
A: No. Use the vehicle's separate lift/support instructions.
Q: Can a bolt replace a missing stand pin?
A: No. Fit the exact rated model-specific pin.
Q: May stands from different sets be paired?
A: Avoid mismatched models, heights, geometry or ratings.
Q: Can timber raise a stand beyond its range?
A: Never use loose packing to extend height.
Q: Should a ratchet pawl rest on a tooth tip?
A: No. It must engage fully as designed.
Q: Can I support an EV under its battery case?
A: No. Use only the exact documented lift points.
Q: May a loaded stand be kicked into position?
A: No. Raise again, unload and reposition.
Q: Why reassess after removing a gearbox?
A: The centre of gravity and load on each stand change.
Q: What requires immediate retirement?
A: Cracks, bends, severe corrosion, worn locks, substitutes or unknown rating.
Q: What proves safe support?
A: Approved points, locked rated stands, flat feet and verified stability.
