A spotlight trades beam width for concentrated reach
Optics collect light from a source and direct a large proportion into a relatively narrow angle. Peak intensity can reveal a distant feature while illuminating less of the near foreground.
That concentration also increases dazzle risk if the lamp moves or is misused. Function, mounting and control are inseparable from the lamp itself.
Different products called spotlights
| Functional type | Intended environment | Beam behaviour | Key limitation |
|---|---|---|---|
| Auxiliary road high beam | Unlit roads with main beam. | Approved distance pattern. | Must be controlled to prevent dazzle. |
| Search lamp | Stationary inspection or specialist use. | Movable concentrated pencil beam. | Not normally for sweeping traffic while moving. |
| Off-road rally spot | Closed-course or off-road distance view. | High-intensity narrow output. | Road approval and switching may differ. |
| Work spotlight | Machinery/loading area. | Focused task illumination. | Optics may be unsuitable for public-road driving. |
| Handheld rechargeable spot | Portable inspection/emergency. | User-directed beam. | Battery, heat and secure storage. |
| Combination light bar | Mixed flood and spot zones. | Wide near light plus central reach. | Large load, mounting and approval complexity. |
Spot, pencil and combination patterns
Beam labels describe distribution, not legal status
A pencil beam uses a very tight cone, while a spot adds modest width. Combination optics divide the source between distance and peripheral illumination.
Manufacturers may use terms differently, so compare photometric diagrams and approval markings. A bright central photograph does not show glare outside the image.
Reflectors, lenses and source position
Parabolic and free-form reflectors use a precise focal relationship. Projector optics add shields and lenses, while LED units can assign a small optic to each emitter.
A bulb that sits a few millimetres out of position produces scatter and reduced reach. Use only the source for which the optical assembly was designed and approved.
Light intensity and useful visibility
Lumens quantify total luminous flux, not its direction. Candela represents intensity in a direction, while beam distance claims normally depend on a chosen illuminance threshold.
Atmospheric haze, rain, dirty glass and foreground reflection reduce real contrast. Excess near light makes pupils constrict and can hide objects beyond it.
Source technologies
| Technology | Characteristic | Service need | Selection point |
|---|---|---|---|
| Halogen | Warm replaceable filament source. | Bulb seating, reflector heat and voltage. | Exact cap and rated wattage. |
| High-intensity discharge | Arc source with ballast. | Ignition safety, ballast and warm-up. | Complete compatible approved system. |
| Sealed LED | Compact efficient array. | Heat sink, driver and whole-unit sealing. | Optics and electronics, not LED count. |
| Laser-assisted road lamp | Specialist phosphor-based long range. | Integrated safety control and calibration. | Vehicle-specific approved unit only. |
| Rechargeable portable LED | Independent battery source. | Cell charging, thermal protection and storage. | Runtime at useful output. |
Road approval and identification
Inspect the permanent markings for the approved lamp function, light source and standard. A general CE/UKCA product mark is not the same as road-lighting approval.
Confirm whether a cover is required when the lamp is not in road use and whether the chosen mounting orientation is included. Retain installation documents.
Original-equipment matching
Use VIN, production date, bumper package and original number. Compare side, connector, adjusters, control module and any heated or diagnostic features.
A similar lens may contain different optics for another market. Match the traffic application and any coding requirement.
Accessory electrical design
Add the rated currents of all lamps at system voltage and account for electronic inrush. Confirm alternator and battery margin under the worst simultaneous vehicle loads.
Size conductors by current, length, permissible voltage drop and installation temperature. Protect the main feed near its source and any smaller downstream branch.
Switching arrangements
| Arrangement | Suitable role | Control issue |
|---|---|---|
| Main-beam-triggered relay | Conventional auxiliary road high beam. | Relay coil must not overload monitored circuit. |
| Approved CAN/electronic interface | Networked vehicle lighting. | Correct signal logic and diagnostic compatibility. |
| Independent guarded switch | Stationary work/search function where lawful. | Prevent accidental road activation. |
| OEM body-control output | Factory-integrated spotlight. | Coding, current limit and fault monitoring. |
| Portable internal battery | Handheld use. | Secure charging and transport. |
| Wireless accessory control | Specialist installation. | Fail-safe off state and electromagnetic compliance. |
Relays, fuses and earth paths
A relay allows a light control to command a separate protected power path. Choose contacts for steady and start-up current and mount terminals away from standing water.
Earth cables need the same attention as supply cables. Prepare a rated body point, protect it from corrosion and verify voltage drop with the lamp operating.
Modern vehicle interfaces
Body controllers may pulse lamp circuits, detect current or communicate high-beam state digitally. A simple splice can cause warnings or controller damage.
Use a vehicle-approved sensing interface and preserve sleep current limits. Do not add large resistors simply to suppress a message; they waste energy as heat.
Mechanical support
A narrow beam magnifies tiny bracket movements
A one-degree vibration displaces the spot considerably at distance. Use rigid supports and locking hardware without compromising crash management or corrosion protection.
Check aerodynamic load and the weight of the entire lamp. Flexible grille mesh or bumper skin rarely provides stable support by itself.
Mounting position
Keep mandatory lighting, number plate, cooling air and sensors unobstructed. Paired road lamps may require symmetry and prescribed positioning.
Check bonnet movement, tow access, pedestrian contact and driver sight lines. A roof-mounted source can illuminate the bonnet and create severe foreground reflection.
Aiming a narrow beam
Place the vehicle on a level surface in the specified load and tyre condition. Use suitable aiming equipment or accurately measured target geometry.
Set horizontal and vertical aim, tighten fixings and repeat the measurement because clamping can shift the housing. Never aim by testing towards live traffic.
Fault patterns
| Symptom | Possible cause | Diagnostic evidence |
|---|---|---|
| Narrow spot has rings/scatter | Wrong source position, damaged optic or dirt. | Inspect seating and pattern on target. |
| Beam bounces | Bracket flex or loose adjuster. | Movement/witness marks under controlled load. |
| Output fades hot | LED thermal protection or voltage loss. | Monitor current, voltage and heat sink. |
| Fuse opens | Short, undersized fuse or inrush issue. | Inspect loom and measure current safely. |
| One lamp yellower | Ageing source, voltage drop or reflector. | Swap/test source only where procedure permits. |
| Water pools inside | Crack, seal or breather fault. | Visual inspection after temperature cycle. |
Moisture management
Temperature cycles move air through designed breathers. A short-lived mist differs from droplets, pooling or corrosion that indicates a fault.
Restore caps, gaskets and vents. Drilling drain holes or sealing a breather can worsen contamination and invalidate the optical unit.

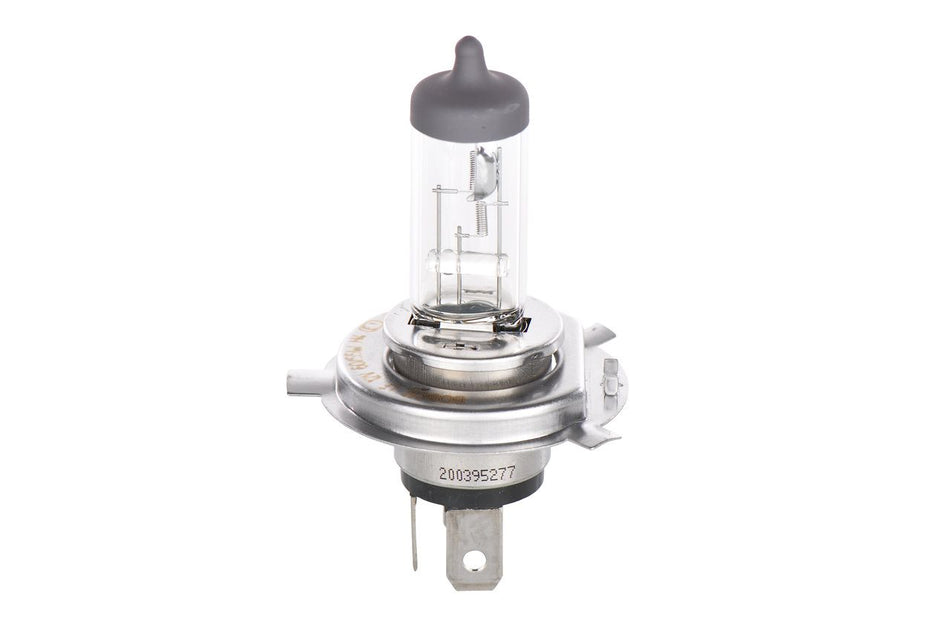

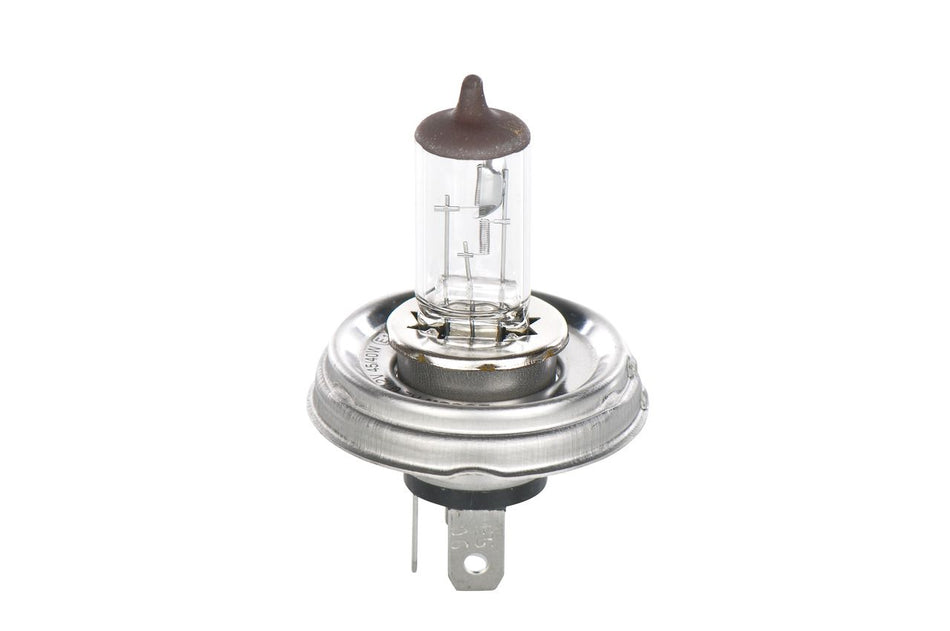

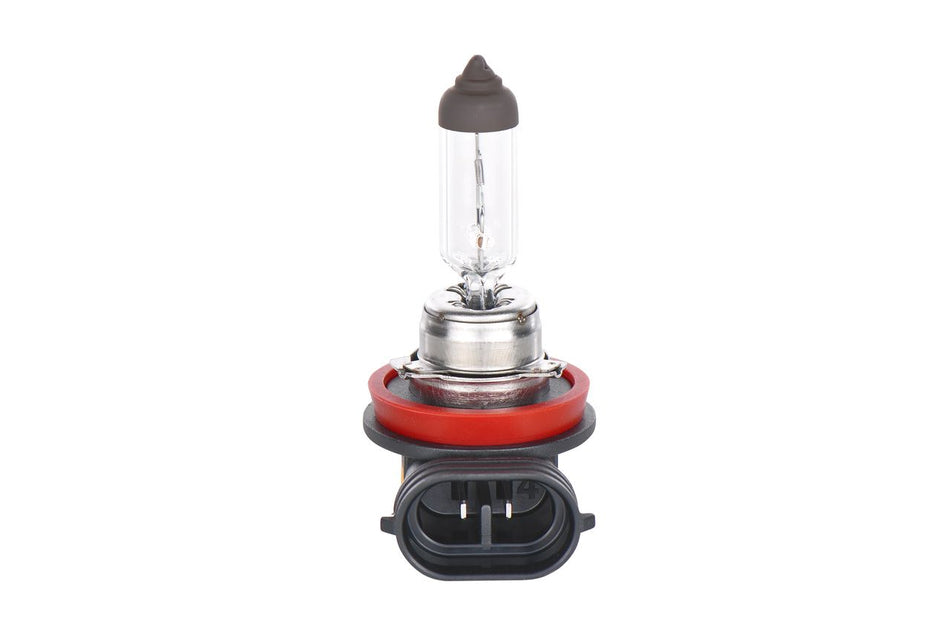

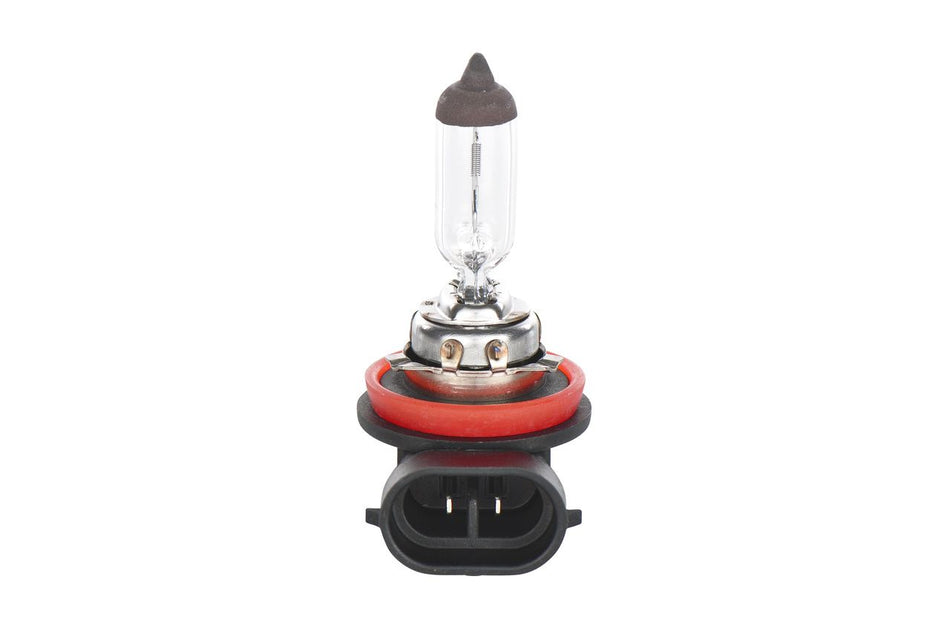

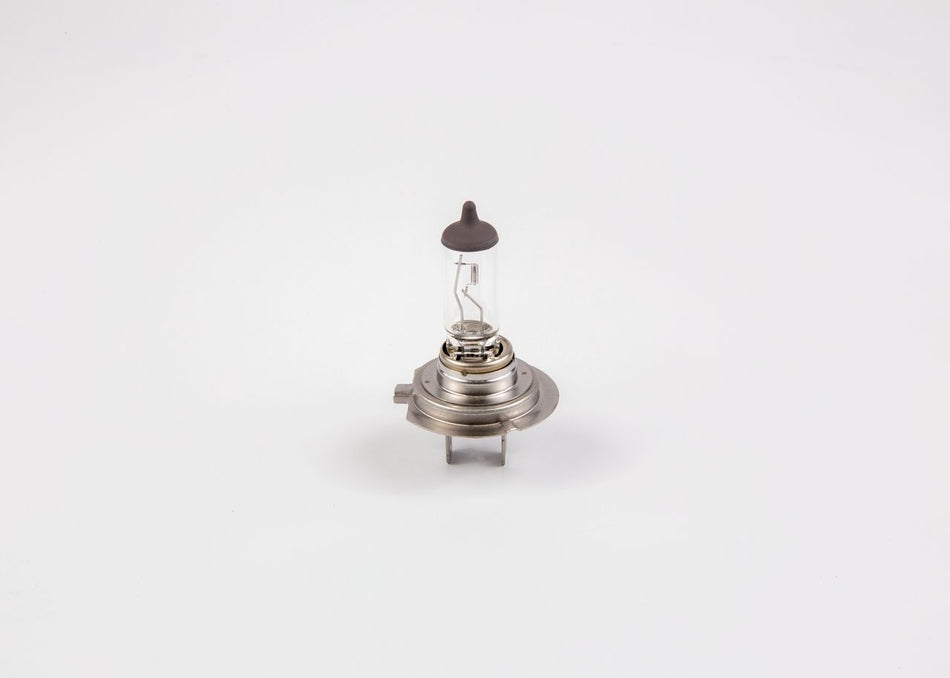

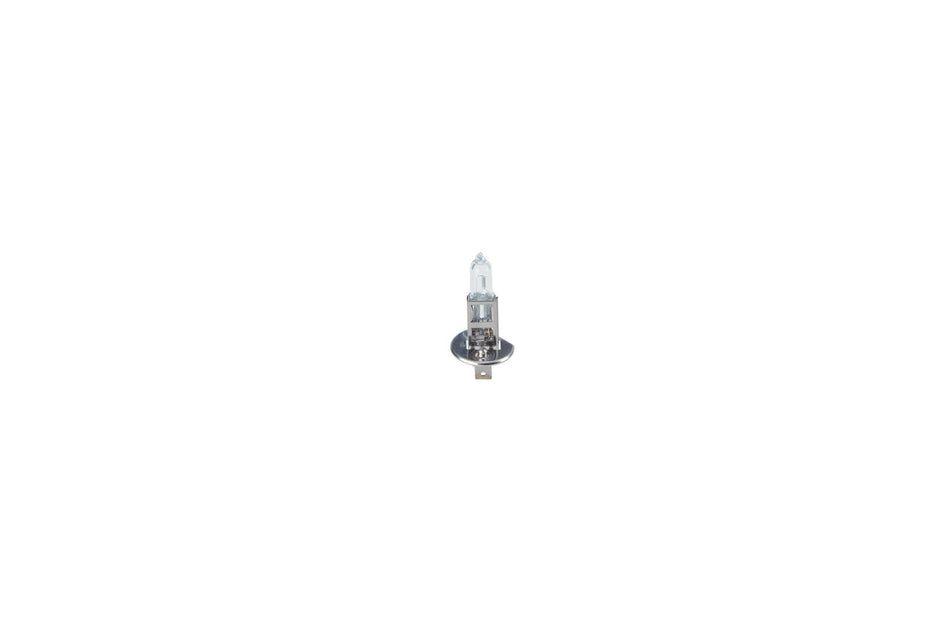

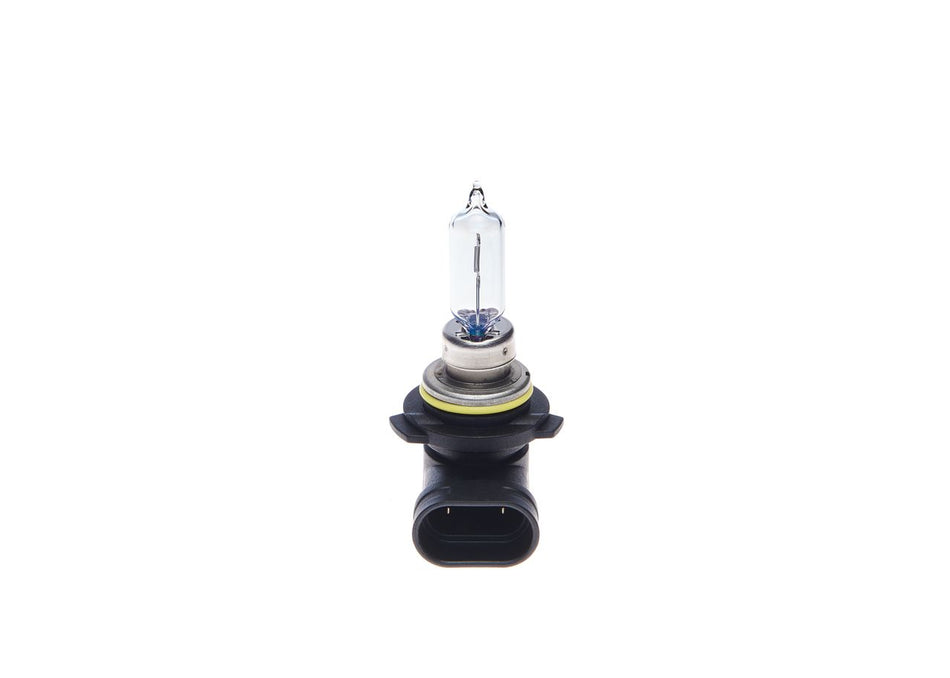

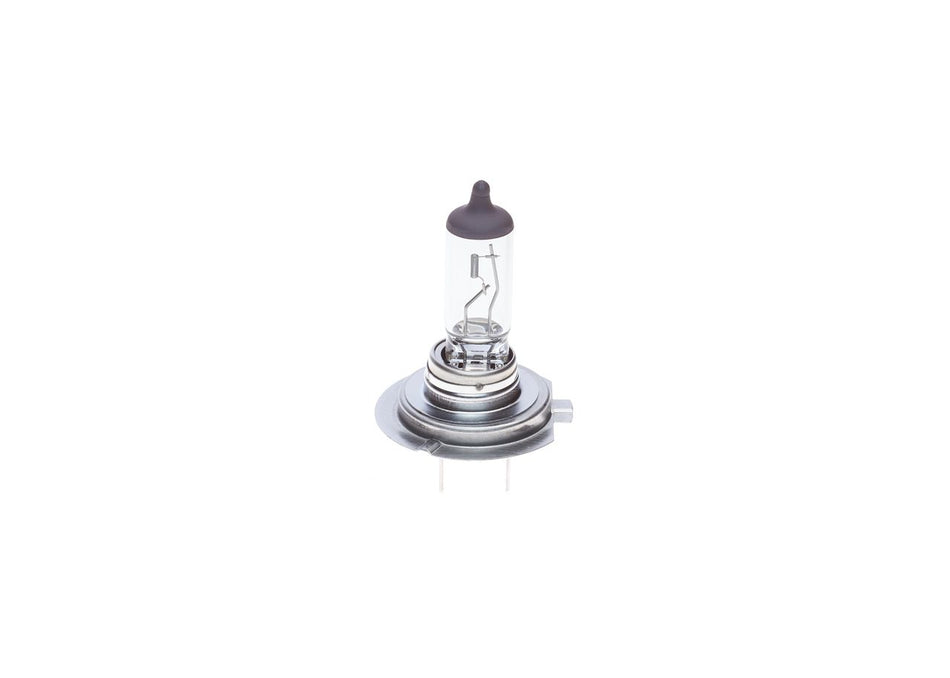

Halogen service
Let the lamp cool, isolate it and fit the specified bulb by its locating tabs. Do not touch quartz with bare skin.
Inspect the holder and cable for heat. Higher-wattage bulbs can damage reflectors and wiring even when the connector fits.
LED heat and driver faults
LED emitters send heat backwards into a sink rather than mainly forwards. Mud, covers or tight trim around fins can force output reduction.
Test supply before condemning a sealed unit. Where driver and lamp are separate, replace only the approved combination and restore thermal interfaces.
Portable spotlight safety
Secure the unit so it cannot become a projectile under braking. Charge from a rated supply on a non-combustible surface and inspect battery swelling or impact damage.
Do not leave a high-output lamp face-down while lit; trapped heat can damage materials. Avoid directing it at eyes, aircraft, drivers or reflective road signs.
Installation verification
Operate every intended mode and confirm rapid extinguishing where the road function requires it. Check dashboard indication and original vehicle lamps.
Measure voltage drop, charging state and terminal temperature during a sustained test. Reinspect aim, connectors and fasteners after the first controlled journey.
Common mistakes
Errors include buying by lumen claim, treating a work light as an approved road lamp, mounting to flexible plastic and running full current through a dashboard switch.
Others are unfused battery feeds, poor earths, dazzle-producing aim, obstructed radiators, improvised source conversions and leaving portable lamps unsecured.
UK road-use and MOT context
Vehicle lighting must preserve mandatory lamp operation, colour, security and visibility, and must not cause undue dazzle. Additional spotlights cannot override those duties.
Use road high beam only when no other road user will be dazzled and follow the current requirements for the exact auxiliary-lamp function, approval, switching and position. Restrict non-road search or work lighting to lawful controlled use.
Practical spotlight FAQs
Q: Is every spotlight legal for road driving?
A: No; verify its approved function and complete installation requirements.
Q: What is the difference between spot and flood?
A: A spot concentrates reach, while a flood distributes light across a wider area.
Q: Do lumens show beam distance?
A: No; total output does not describe directional intensity or optics.
Q: Can a work lamp serve as main beam?
A: Only a lamp approved and installed for that road function is suitable.
Q: Why does the beam shake at distance?
A: Small movement in the bracket or adjuster is magnified by a narrow pattern.
Q: Should an accessory circuit be fused?
A: Yes; protect its cable close to the electrical source.
Q: Can I mount a heavy lamp on grille mesh?
A: Use a support rated for its weight, vibration and aerodynamic load.
Q: Why does LED output fall after several minutes?
A: Thermal protection, driver condition or supply loss may be reducing power.
Q: Is a little mist inside always failure?
A: Persistent water, droplets or corrosion indicate a sealing or venting issue.
Q: Can I fit a higher-wattage bulb?
A: Only the source rating specified for the lamp and circuit should be used.
Q: Must road spotlights follow main beam?
A: Configure them to the current requirements for their approved high-beam function.
Q: Can a portable light remain loose in the cabin?
A: No; secure it against crash and braking forces.
Q: What confirms a sound installation?
A: Correct approval, rigid mounting, protected wiring, lawful control and measured aim.
