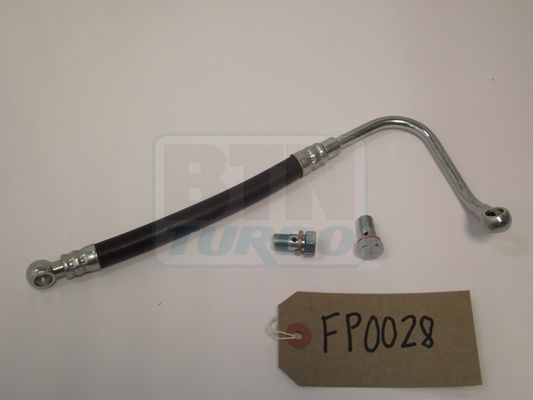

The turbo oil feed pipe supplies a bearing turning at extreme speed and temperature
A turbo shaft can rotate at very high speed while the turbine housing receives exhaust heat. A controlled oil film supports journal/thrust bearings, removes heat and prevents direct metal contact.
Even a short interruption or contaminated supply can damage a new turbocharger.
Feed and return circuits
| Feature | Oil feed | Oil return | Service implication |
|---|---|---|---|
| Driving force | Engine gallery pressure. | Gravity and crankcase pressure difference. | Feed is small/pressurised; return is larger/downhill. |
| Typical position | Top or side of bearing housing. | Bottom of centre housing. | Do not interchange fittings. |
| Bore | Small, sometimes restricted. | Large to avoid pooling. | Kinks affect each circuit differently. |
| Common joint | Banjo, flare or small flange. | Flange, tube and hose. | Different seals and torque. |
| Failure effect | Starvation, leak or excess flow. | Oil backs up and smokes/leaks. | Both must be diagnosed together. |
| Cleaning policy | Often renew after failure/coking. | Inspect/renew for blockage or damage. | Follow turbo warranty/repair matrix. |
Oil pressure, flow and restriction
Pressure at the engine gallery creates flow through the pipe, fittings and bearing. Some ball-bearing or engine arrangements use a calibrated restrictor to avoid excessive oil in the centre housing. Other turbos rely on the line's designed bore.
Adding a generic restrictor can starve bearings; removing one can overwhelm seals and return capacity.
Heat and oil coking
Small internal passages are vulnerable to oxidised oil deposits
Exhaust heat, poor oil, extended intervals and abrupt shutdown after high load can bake residue in the line or banjo screen. Deposits reduce flow before the outside looks damaged.
Use approved oil and cooling/shutdown practices; replace questionable small-bore pipes.
Pipe constructions
Rigid formed metal controls route and heat exposure; a short flexible section absorbs engine/turbo movement. Braided aftermarket lines need verified inner hose, fittings, pressure, temperature and restrictor design.
A cosmetic braid does not prove compatibility or cleanliness.
Application-matching details
| Check | Possible variation | Risk if wrong |
|---|---|---|
| Engine/turbo code | Oil demand, gallery source and housing port. | Wrong flow or fitting. |
| Banjo bolt | Drilling, restriction, screen and thread. | Starvation, leak or component damage. |
| Pipe route | Manifold, emissions and engine-mount layout. | Heat, rubbing or fatigue. |
| End seal | Crush washers, O-ring, flare or gasket. | External leak or blocked port. |
| Bracket position | Vibration-control points. | Cracked pipe/fitting. |
| Heat shielding | Sleeve, stand-off and reflective shield. | Coking and hose degradation. |
| Supersession | Updated bore, screen or routing. | Repeat failure if obsolete layout reused. |
Symptoms and competing causes
| Symptom | Feed-pipe possibility | Alternative | Evidence |
|---|---|---|---|
| Turbo whine/bearing noise | Restricted contaminated feed. | Foreign object, overspeed or bearing age. | Oil circuit and turbo inspection. |
| Oil at feed union | Washer, crack or loose fitting. | Leak from cam cover above. | Clean and find first fresh wet point. |
| Blue smoke | Excess/restricted-control flow possible. | Blocked return, crankcase pressure, engine/turbo wear. | Both oil circuits and pressure tests. |
| Repeat turbo failure | Old line contains carbon/metal. | Root oil, intake, exhaust or calibration fault. | Full failure analysis. |
| Low engine oil pressure | Major feed leak contributes. | Pump, pickup, bearings or oil condition. | Calibrated gallery pressure test. |
| Burning-oil smell/smoke | Pipe leaks onto turbine/exhaust. | Return, cover or sump leak. | Stop and inspect cold due fire risk. |
Root causes before replacing the turbo
Record oil pressure, level, grade, maintenance history and contamination. Inspect intake filtration/hoses, exhaust restriction, boost control and crankcase ventilation. A turbo is often damaged by another system.
Preserve failed parts and oil/filter evidence rather than cleaning everything immediately.
Engine oil pressure testing
Use a calibrated gauge at the specified gallery under cold and hot idle/raised-speed conditions. Turbo supply cannot be healthy if the engine gallery is below limit.
Stop for unsafe pressure or mechanical noise. Do not run an open turbo feed to judge spray.
Controlled feed-flow tests
Some manufacturers specify collecting oil through a fitted test adaptor during cranking or timed idle. Use only that method, contain oil and disable starting as required. Generic bucket tests risk fire, mess and engine damage.
Pressure and volume both matter; compare with exact time, temperature and rpm.
Oil filter and pickup
A restricted pickup, incorrect filter, failed bypass or delayed drain-back can starve the turbo. Inspect sludge and cut open the filter using a contamination-safe tool if failure analysis requires.
Metal particles demand engine-wide assessment, not just a new line.
Banjo filters and screens
Some engines use a small screen in a banjo bolt; others have updates to remove or revise it. Follow the current engine/turbo bulletin. Drilling, discarding or adding a screen without instruction changes protection and flow.
Replace a non-cleanable restricted bolt with the exact part.
Crankcase pressure and oil return
High crankcase pressure opposes gravity return and pushes oil through turbo seals, even with a perfect feed. Measure ventilation pressure and ensure the return falls continuously without coking or crushed hose.
Diagnose feed, bearing housing, return and breather as one oil circuit.
Turbo bearing condition
Check compressor/turbine wheel contact, shaft play by the turbo maker's method and evidence of overheated oil. Some journal bearings have perceptible dry radial movement that centres when oil pressure builds; generic “any play is bad” rules mislead.
Never spin a dry turbo with compressed air.
Removal preparation
Allow full cooling, disconnect battery systems as required and raise/support the vehicle safely. Clean around both unions. Drain or contain oil and remove heat shields without bending the pipe.
Cap open gallery and turbo ports with clean approved plugs.
Removing banjo and flare fittings
Use a line spanner or correct socket and counter-hold adaptors so the turbo housing is not stressed. Keep track of washer order and banjo orientation. A hollow bolt can snap if corroded or overtightened.
Do not reuse deformed crush washers.
Deciding whether to clean or renew
After turbo failure, many procedures require a new feed line because carbon and metal cannot be proven removed from its bore. Solvent and compressed air may move debris into hidden restrictions or damage a liner.
Follow the engine/turbo supplier's replacement matrix and current technical bulletins.
Inspecting the engine gallery source
Remove old sealant, sludge and particles without pushing them into the engine. Check adaptor threads and sealing face. If a filter housing is damaged or cracked, repair it rather than overtightening the new pipe.
Use lint-free caps and tools appropriate for lubricating systems.
New-line cleanliness
Keep protective caps fitted until installation. Do not place the line on a dirty bench or blow it with unknown shop air. Verify no shipping plug remains and that restrictors are the documented size.
Flush only if the supplier specifies the fluid and method.
Seals and tightening
Fit new copper/aluminium washers, O-rings or formed seals as specified. Align a banjo so its bore intersects bolt drillings and the pipe rests without torsion. Start threads by hand.
Torque while counter-holding; sealant or tape can block the passage and is normally prohibited.
Routing, brackets and heat shields
Use every factory stand-off and clip. Ensure clearance through engine movement from manifold, EGR, belts and sharp covers. Refit insulation in its intended direction without compressing a flexible hose.
A pipe held under spring tension will fatigue at a fitting.
Turbocharger priming
Fill the clean bearing-housing oil inlet with specified engine oil while rotating the shaft gently by hand if instructed. Reconnect the line, disable fuel/ignition and crank in timed intervals until pressure is established.
Do not start and rev a dry replacement to “bring oil through”.
First start and leak check
Start at idle, confirm oil pressure immediately and inspect from a safe distance. Use lighting or an approved leak method; fittings and turbine housing heat rapidly. Stop for leakage, smoke or abnormal noise.
After cooling, recheck oil level, union area, brackets and heat shields.
Oil quality and service
Use the exact viscosity and approval, and observe severe-duty intervals where applicable. Allow oil temperature to stabilise under high load and follow vehicle shutdown guidance. Fix injector, cooling or ventilation faults that degrade oil.
Additives cannot clean a blocked feed safely once flow is compromised.
UK roadworthiness and urgency
Oil leaking onto a hot turbo/exhaust can ignite; a pipe contacting steering or belts can fail suddenly. Stop for visible leakage, burning smoke, low-pressure warning or severe turbo noise.
Oil leaks, smoke and emissions consequences may affect UK MOT inspection, but fire and engine protection require immediate repair.
Common mistakes
- Confusing the small feed pipe with the large return.
- Reusing a contaminated line after turbo failure.
- Removing or adding a restrictor without technical data.
- Testing flow by running an open pipe in the engine bay.
- Reusing crush washers or adding thread tape.
- Forcing the pipe into alignment and omitting brackets.
- Starting a replacement turbo without priming.
- Ignoring crankcase pressure and the oil-return path.
Practical turbo-oil-feed-pipe FAQs
Q: Is the oil feed the same as the return?
A: No; the feed is pressurised and small, while the return is larger and gravity-led.
Q: Why can the line block?
A: Heat, degraded oil, sludge and debris can coke its small bore.
Q: Does every turbo need a restrictor?
A: No; use only the exact engine/turbo design.
Q: Can the old feed be flushed after turbo failure?
A: Renew it whenever the repair policy requires because cleanliness may be unprovable.
Q: Are banjo bolts interchangeable?
A: No; drilling, thread, restriction and screens differ.
Q: Must crush washers be replaced?
A: Fit new specified sealing washers each time required.
Q: Can low engine oil pressure damage the turbo?
A: Yes; verify the main gallery before blaming the line alone.
Q: Why check the oil return?
A: A blocked return makes oil back up and smoke/leak.
Q: Can the turbo be spun with compressed air?
A: No; dry overspeed can damage bearings.
Q: How is a new turbo primed?
A: Pre-oil and build engine pressure by its documented procedure.
Q: Is a small feed leak safe?
A: No; it can starve the turbo and ignite on exhaust heat.
Q: Why refit every bracket?
A: Correct support prevents vibration fatigue and heat contact.
Q: What verifies repair?
A: Immediate pressure, dry unions and normal turbo operation through heat cycles.
