A trolley jack converts hydraulic pressure into lifting force
Handle movement drives a small pump piston, sending oil through check valves into the lifting ram. The ram rotates a lifting arm and raises the saddle through an arc. Opening the release valve lets oil return to the reservoir so the arm lowers under the load.
The frame, hydraulics, wheels and saddle form one rated system; changing any of them can alter safe behaviour.
Complete jacks and service parts need different checks
| Item | Function | Critical match | Unsafe assumption |
|---|---|---|---|

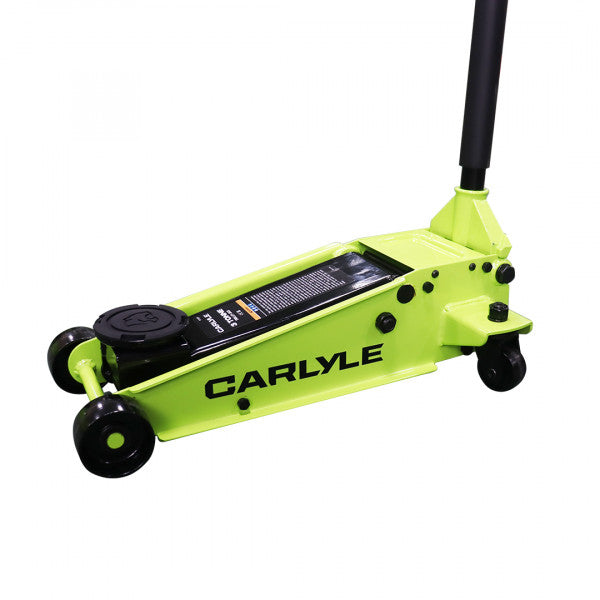

| Complete standard jack | Raises vehicles within stated range. | Capacity, lift height and reach. | All vehicles expose the same points. |

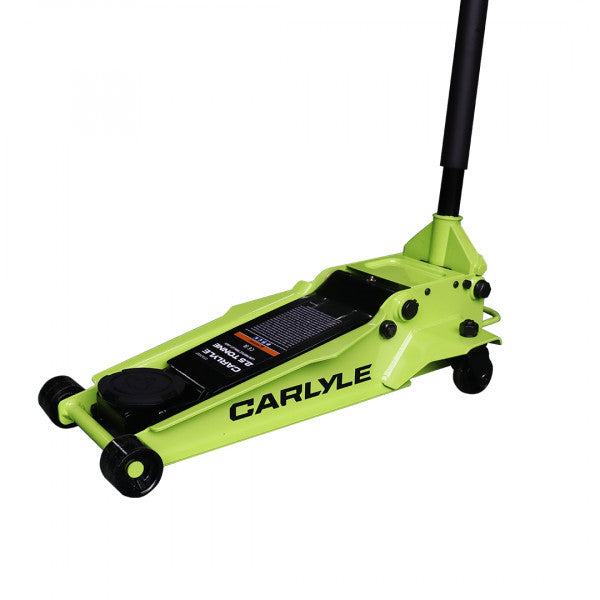

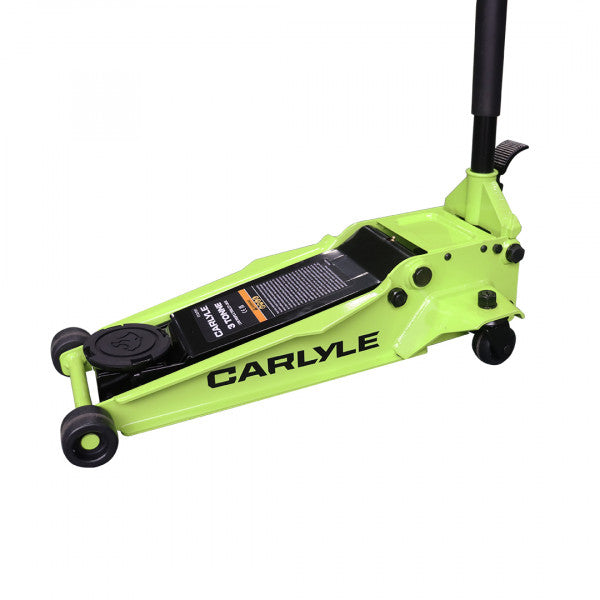

| Low-profile jack | Enters beneath low clearance. | Closed height plus chassis reach. | Low saddle always reaches crossmember. |

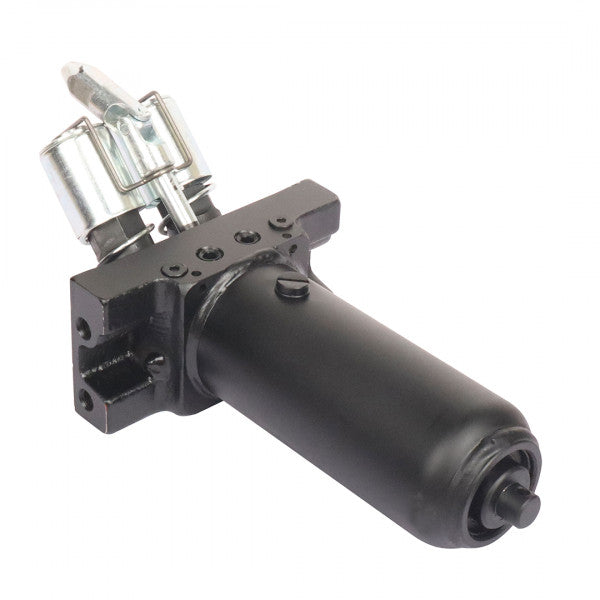

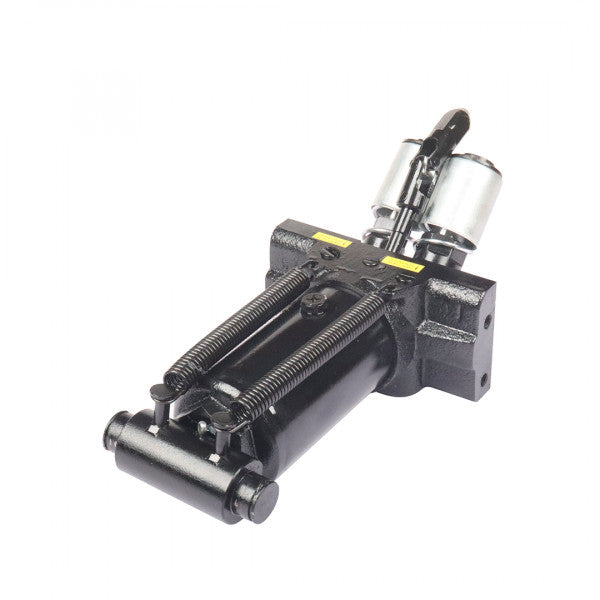

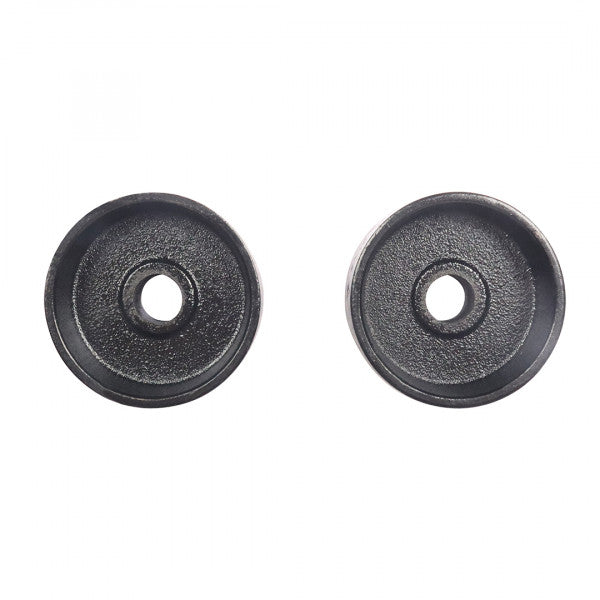

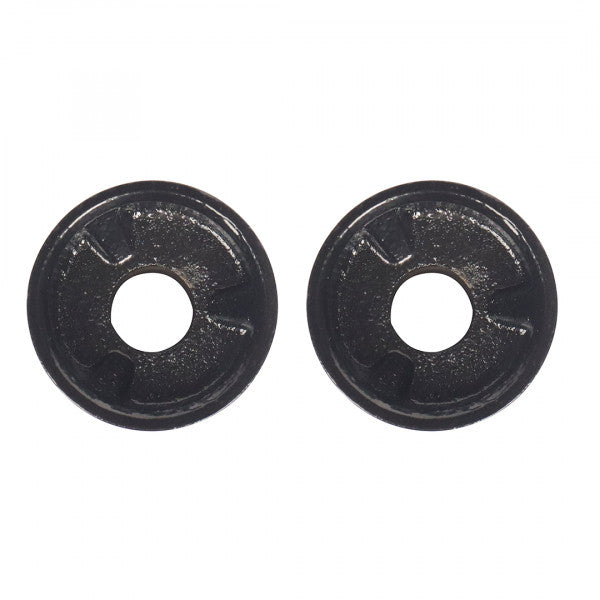

| Hydraulic pump unit | Creates and controls oil pressure. | Exact jack model, bore and mounting. | Similar casting means interchangeability. |
| Front wheel/caster | Supports and permits jack movement. | Diameter, width, axle and rating. | Any workshop wheel can carry the load. |

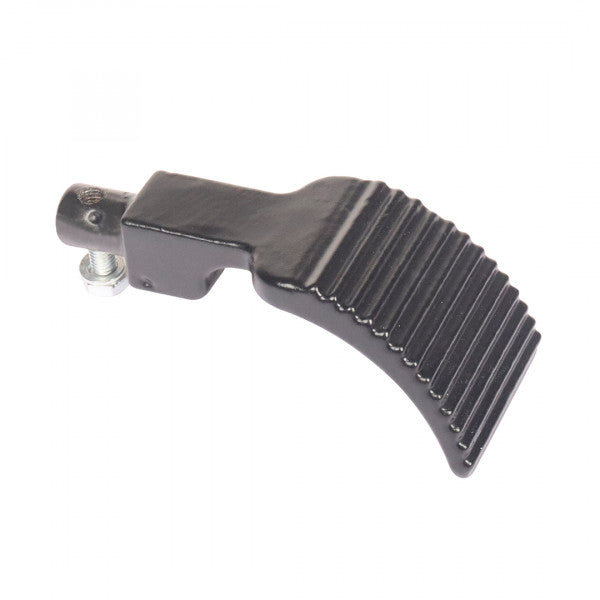

| Foot pedal | Provides rapid unloaded saddle approach. | Linkage and designated jack model. | It is a high-force lifting control. |
| Saddle pad/adaptor | Interfaces with approved vehicle point. | Retention, shape and load rating. | Loose rubber blocks are equivalent. |
Rated capacity is not the vehicle's total weight
Lifting one end or corner places an uneven share of vehicle mass on the jack, influenced by engine location, cargo and slope. Use known axle weights or conservative evidence and select ample rated margin. The vehicle may also shift as suspension hangs and fluids move.
Never infer safe capacity because the jack lifted a similar vehicle once.
Lift range must cover entry, contact and stand placement
Closed height determines whether the saddle can enter, but the chassis and arm must reach the actual lift point without contacting bodywork. Maximum height must raise the vehicle enough to position stands at their designated locations while leaving safe hydraulic travel.
Driving onto improvised timber to create clearance introduces slip and crush risks; use only an approved staged method.
Selection should be based on the complete lift plan
| Plan item | Why it matters | Evidence | Mismatch consequence |
|---|---|---|---|
| Vehicle lift point | Must accept saddle load without damage. | Vehicle handbook/workshop data. | Crushed sill, battery or underbody. |
| Applied load | Must remain below jack rating. | Axle data and load state. | Structural or hydraulic overload. |
| Ground surface | Wheels need hard level support. | Physical inspection. | Sinking, rolling or side load. |
| Entry/reach | Saddle must centre on point. | Measured height and horizontal distance. | Off-centre contact. |
| Stand locations | Need free, structurally approved areas. | Support-point diagram. | No safe transfer route. |
| Vehicle restraint | Controls rolling during lift. | Transmission, brake and chock procedure. | Vehicle moves off saddle. |
The jack must roll as the arm rises
Because the arm describes an arc, the saddle's horizontal position changes relative to the frame. On a trolley jack, wheels accommodate that movement. A stone, soft asphalt, drain or wall blocking the wheels can instead drag the saddle across the lift point and create side load.
Clear the floor and align the jack so its expected movement remains unobstructed.
Hydraulic oil transmits force and lubricates the mechanism
The specified oil needs appropriate viscosity, seal compatibility and air-release behaviour. Brake fluid, engine oil or random power-steering fluid can damage seals or alter valve response. A low level or trapped air causes incomplete lift, spongy motion or lost travel.
Service only by the jack manual with the ram lowered and unit safely depressurised.
Leakage and creeping are rejection signs
External wetness, a handle that rises by itself, a saddle that sinks under the pre-use test or a release valve that cannot control descent indicate a fault. Wiping oil away does not restore hydraulic integrity. Remove the jack from service and repair with traceable model-specific parts or replace it.
Never work under a load to locate a leak.
Pre-use inspection catches structural faults
| Area | Check | Reject for | Why |
|---|---|---|---|
| Frame/lifting arm | Straight, complete and free of cracked welds. | Bend, crack or severe corrosion. | Carries primary load. |
| Saddle | Secure, rotates only as designed. | Missing pad, damage or excessive play. | Maintains contact. |
| Wheels/casters | All present, free and correctly retained. | Flat, seized, loose or mismatched wheel. | Allows arm-arc movement. |
| Handle/release | Locks and controls gradual descent. | Crack, loose joint or erratic valve. | Operator control. |
| Hydraulics | Dry, responsive and holds test load. | Leak, air symptoms or creep. | Maintains lifting pressure. |
| Labels/manual | Capacity and model remain identifiable. | Unknown rating or unauthorised alteration. | Prevents safe selection. |
Vehicle preparation controls unintended movement
Unload unnecessary cargo, park on hard level ground, select the stated gear or transmission position and apply the parking brake as appropriate to the lift plan. Chock wheels that remain on the floor on both relevant sides. Disable self-levelling or air suspension where the vehicle procedure requires it.
Keep occupants out and prevent anyone entering or rocking the vehicle.
Electric vehicles add underfloor hazards
High-voltage batteries often occupy areas mistaken for broad lifting surfaces. Use only the marked lift points and the EV service procedure. Inspect for underbody damage before positioning equipment, and do not lift or support on a battery case, coolant line or high-voltage cable.
Escalate any damaged high-voltage enclosure to appropriately trained personnel.
Safe lifting begins with square saddle contact
Approach unloaded
Roll the jack into position and raise the saddle until it just touches the approved point.
Confirm alignment
Check from safe angles that the saddle is centred and the frame can roll.
Lift while observing
Pump smoothly and stop for tilt, creaking, sinking or contact movement.
Axle stands carry the vehicle during work
Place correctly rated matched stands at the manufacturer's support points without reaching beneath an unsupported vehicle. Raise the columns equally where the plan requires it and lock their mechanisms fully. Lower the jack slowly until the vehicle is settled and verify stability from outside the crush zone.
The hydraulic jack may remain as non-load-bearing secondary protection only if it does not obstruct work or create a false support assumption.
No part of a person enters beneath a jack-only load
A hydraulic seal, valve, wheel or lift point can fail without warning. This rule includes reaching for a stand, checking an undertray or placing a hand beneath a tyre. Prepare the stand positions and controls before lifting so transfer occurs from outside the danger area.
Never rely on the lifting handle, a closed valve or a verbal promise that the jack is new.
Lowering is a separate controlled operation
Clear tools and people, raise slightly to unload the stands, remove them from outside the vehicle envelope and confirm wheels cannot roll. Open the release valve gradually with a firm grip. Watch that the saddle remains located and the vehicle does not catch on equipment.
After tyres touch down, continue lowering until the saddle is free before moving the jack.
Replacement parts preserve the original design
Match the jack model, serial or production revision, component dimensions, fasteners and rated specification. Wheels determine frame height and movement; pump units determine pressure and valve control. Fit only documented spares and complete the maker's load-free and proof-test requirements.
A repair that raises capacity or changes geometry without engineering approval invalidates the known rating.
Maintenance keeps contaminants out of hydraulics
Store the jack lowered, clean pivot points and lubricate only where specified. Keep the pump filler area clean and do not overfill. Inspect after transport or impact and prevent handles or heavy objects bending the release linkage.
Formal workshop inspection records should identify model, rating, defects and repairs.
Practical trolley-jack FAQs
Q: Can a trolley jack support a vehicle while I work?
A: No. Transfer the vehicle to correctly rated approved supports.
Q: Is vehicle kerb weight enough to select capacity?
A: No. Consider actual load distribution and use ample rated margin.
Q: Does low profile guarantee the jack will reach?
A: No. Check chassis length, saddle position and the true lift point.
Q: Why must trolley wheels be free?
A: The frame rolls as the lifting arm moves through its arc.
Q: Can brake fluid top up the jack?
A: No. Use only the hydraulic fluid specified for that model.
Q: Is slight hydraulic creep acceptable?
A: Remove a creeping jack from service.
Q: Can I place timber between saddle and vehicle?
A: Use only an approved retained adaptor for the lift point.
Q: May I lift on an EV battery case?
A: Never; use the vehicle's defined lifting locations.
Q: Can I reach under briefly to position a stand?
A: No body part should enter under a jack-only load.
Q: Are replacement jack wheels universal?
A: No. Diameter, axle, width, geometry and rating must match.
Q: Should the release valve be tightened hard?
A: Close it only by the model instructions; overtightening can damage it.
Q: What requires immediate retirement?
A: Cracks, bends, leaks, missing wheels, unknown rating or failure to hold.
Q: What proves a safe lift?
A: Approved points, stable ground, correct load, stands carrying weight and verified stability.
