A ratchet converts a small working arc into continuous progress
The driven gear locks against a pawl during the power stroke and passes beneath it during return. Repetition rotates the fastener without lifting the tool away.
This saves time in confined areas but adds an internal mechanism between hand and fastener. That mechanism needs correct loading and maintenance.
Ratchet-wrench formats
| Format | Fastener interface | Useful feature | Primary limitation |
|---|---|---|---|
| Square-drive ratchet | Interchangeable sockets/accessories. | Broad size and extension choice. | Stack height and drive rating. |
| Ratcheting ring spanner | Fixed-size ring. | Thin access and quick use. | One size; ring cannot pass some studs. |
| Open-end ratcheting spanner | Special moving jaw profile. | Works where a ring cannot fit. | Specific fastener geometry and lower contact. |
| Flex-head wrench | Socket or ring on pivot. | Approaches angled/recessed fasteners. | Pivot load and pinch movement. |

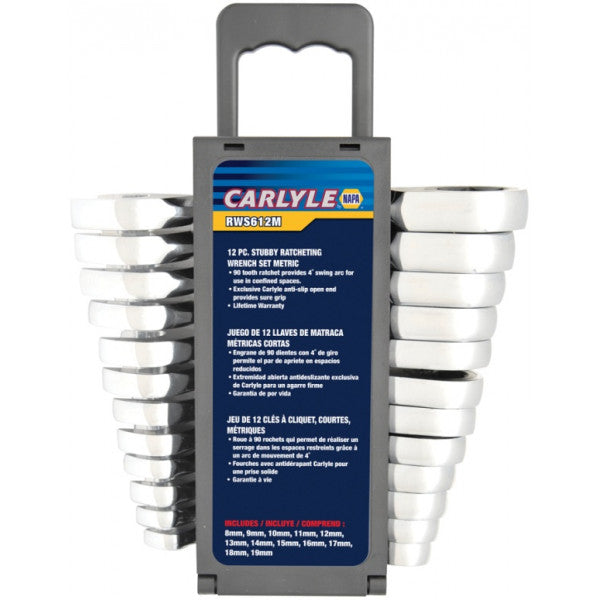

| Stubby/palm ratchet | Usually square drive. | Fits very short clearance. | Low leverage and hand clearance. |
| Powered ratchet | Square drive with air/electric motor. | Rapid rundown. | Reaction, pinch and rated breakaway torque. |
Pawl and gear operation
Full tooth engagement is essential before load
A selector moves the pawl so its working face locks for clockwise or anticlockwise torque. Some designs use dual pawls or sealed compact cartridges.
If dirt, worn springs or viscous grease prevent the pawl seating, the tool can release suddenly. A single skipped tooth justifies inspection rather than continued force.
Tooth count and swing arc
A 72-tooth gear moves five degrees per tooth; other counts create different nominal return arcs. Pawl design can produce an effective engagement finer than the gear count.
Fine action helps near obstacles, but the number alone does not establish maximum torque. Handle, head, pawl width and material govern the complete rating.
Drive size and system strength
Square drives distribute torque through the socket tang. Common sizes serve progressively different fastener ranges, but quality and application remain important.
Using reducers to place a large handle on a tiny socket can overload the smaller drive or fastener. Work to the lowest-rated element in the stack.
Fastener profiles
| Profile | Engagement | Best practice | Risk |
|---|---|---|---|
| Six-point hex | Broad flats on standard hex. | Use for high load and vulnerable heads. | Wrong size still rounds corners. |
| Twelve-point | More angular entry positions. | Useful for specified bi-hex fasteners. | Less tolerant of damaged hex under high load. |
| External Torx/spline | Purpose-shaped lobes or splines. | Match exact named profile and size. | Similar-looking substitutions damage it. |
| Flare-nut profile | Nearly closed ring around pipe. | Use dedicated wrench on hydraulic unions. | Ordinary open end can spread. |
| Deep socket | Reaches nut on projecting stud. | Ensure full internal engagement. | Bottoming on stud gives false seating. |
| Pass-through system | Hollow drive around long stud. | Use only matching sockets/handle. | Proprietary interfaces may not mix. |
Metric and imperial sizing
A near-fitting alternative can feel acceptable until load forces contact onto two corners. Select the marked exact size and clean rust or paint from the head.
Measure ambiguous fasteners and identify the thread system from service data. Do not hammer an undersized ratcheting ring onto a corroded nut.
Offsets, flex heads and reach
Offset rings clear knuckles and adjacent castings but change the direction of hand force relative to the fastener. Keep the head square to prevent side loading.
A flex joint improves approach but can fold unexpectedly when pushed. Lock it where available and pull with fingers clear of the hinge.
Extensions and universal joints
Socket extensions reach recessed bolts while wobble or universal joints accommodate modest angular misalignment. Each adds flexibility and potential side load.
Support long stacks with the free hand away from pinch points. Universal joints are not intended to run at extreme angles under heavy breakaway force.
Crowfoot and torque considerations
A crowfoot can move the effective lever length when aligned with a torque wrench. Calculations depend on orientation and measured centres.
At ninety degrees, effective length can remain approximately unchanged under the specified geometry; otherwise apply the correct formula. Never guess on a safety-critical union.
Selecting a wrench for the task
| Task condition | Preferred characteristic | Avoid |
|---|---|---|
| Severely seized bolt | Six-point socket and suitable breaker tool. | Shock-loading a fine ratchet. |
| Restricted swing | Fine-action compact head. | Working pawl only partially engaged. |
| Long projecting stud | Deep or pass-through system. | Socket bottoming before nut contact. |
| Brake/fuel union | Purpose-made flare-nut wrench. | Standard open-end ratchet. |
| Final critical tightening | Calibrated torque/angle equipment. | Estimating from ratchet handle feel. |
| Live electrical vicinity | Certified insulated tool and isolation process. | Plastic-dipped ordinary wrench. |
Breaking fasteners free
Clean the head, seat a six-point socket and apply compatible penetrant where suitable. Use a breaker bar within component and tool limits for high breakaway torque.
Heat is not a casual escalation on vehicles because fuel, seals, high-strength steel and coatings may be nearby. Follow a controlled repair method.
Pulling rather than pushing
Pulling often gives better balance and reduces injury if the fastener releases. Position the body so the hand moves into clear space.
Where pushing is unavoidable, use an open palm and keep joints away from sharp flanges. Never straddle an unstable vehicle or pull against unsupported weight.
Powered ratchets
Reaction torque arrives before the user can reposition
An air or cordless ratchet spins fasteners quickly but can trap fingers as the head reacts against structure. Start with clearance and a controlled grip.
Use it for rundown within rating, then apply final torque separately. Do not operate it on a cross-threaded fastener or use hand force beyond its manual-overload allowance.
Inspection before use
| Component | Check | Reject/repair condition |
|---|---|---|
| Gear and pawl | Positive action in both directions. | Skip, dead spot or unintended reversal. |
| Selector | Detent holds commanded direction. | Loose lever or ambiguous position. |
| Square drive | Edges, ball detent and retention. | Twist, crack or socket will not retain. |
| Handle | Straight, uncracked and clean grip. | Bend, deep corrosion or heat damage. |
| Flex joint | Controlled friction/lock and no play. | Crack, loose pin or unexpected flop. |
| Socket/ring | Correct size with unworn corners. | Spread, split or rounded engagement. |
Cleaning and lubrication
Brush external dirt away before it enters the head. Follow the manufacturer’s procedure for sealed, serviceable or replaceable mechanisms.
Use the specified light oil or grease quantity. Too much heavy lubricant can slow the pawl, while solvent can remove essential protection or attack seals.
Ratchet repair kits
A genuine matched kit may include gear, pawl, spring, selector and cover. Compare handle model and production version before dismantling.
Inspect the head cavity for deformation; new internals cannot correct a spread housing. Function-test progressively after assembly before returning to full load.
Torque and clamp load
Fastener torque mainly overcomes thread and under-head friction, leaving only a portion to create preload. Lubrication, coatings and reused threads change that relationship.
Use specified preparation, sequence and replacement rules. A click felt in a ratchet mechanism has no calibrated relationship to fastener torque.
Impact-tool compatibility
Chrome hand sockets can fracture under repeated impact. Use purpose-rated impact sockets, pins and rings with an impact wrench.
A hand ratchet is not an impact input accessory. Keep its square drive out of powered hammering systems and never strike the handle.
Common mistakes
Errors include using approximate sizes, adding a pipe, standing on the handle, pushing towards sharp metal and relying on the ratchet to break every seized bolt.
Others are packing the head with thick grease, ignoring a skipped tooth, using reducers to overload a small drive and estimating final torque by feel.
Storage and accountability
Store ratchets dry with matching sockets organised by size. Do not leave them on a battery, engine cover or under a vehicle where they can cause a short or be forgotten.
Inspect tool-control inventories after critical work. A missing socket in an intake, wheel or high-voltage enclosure can create severe damage.
Practical ratchet-wrench FAQs
Q: Does a higher tooth count mean a stronger ratchet?
A: No; it mainly reduces return arc, while complete design determines strength.
Q: Can I add a pipe to the handle?
A: No; use a suitably rated breaker tool for extra leverage.
Q: Why is a six-point socket useful?
A: It gives broad flat contact and resists rounding under high load.
Q: Are metric and imperial sizes interchangeable?
A: No; a near fit concentrates load on fastener corners.
Q: Can a ratchet set final torque by feel?
A: Use calibrated torque or angle equipment where a specification applies.
Q: What should I do if the pawl skips?
A: Stop using the tool and inspect or repair it correctly.
Q: May I use a chrome socket on an impact wrench?
A: No; use purpose-rated impact sockets and retainers.
Q: Does a flex head reduce strength?
A: Its pivot introduces a rated joint, so follow the tool’s loading limits.
Q: Why pull the wrench where possible?
A: It often improves balance and hand safety if the fastener releases.
Q: Can any grease service the ratchet head?
A: Use only the type and small quantity specified for that mechanism.
Q: Is a plastic-coated tool electrically insulated?
A: Only a properly certified and inspected insulated tool provides that rating.
Q: When should I use a powered ratchet?
A: For rapid controlled rundown with adequate reaction and pinch clearance.
Q: What confirms a sound wrench?
A: Correct size, positive pawl action, intact drive and appropriate load rating.
