An O-ring seals by controlled deformation
The ring is larger than the groove depth, so assembly squeezes its cross-section between surfaces. System pressure then pushes elastomer towards the clearance gap, increasing contact on the pressure side.
Too little squeeze leaks; too much raises friction, heat and compression set. Groove dimensions and surface finish are therefore part of the seal.
Common elastomer families
| Material family | Useful characteristics | Common automotive context | Key limitation |
|---|---|---|---|
| NBR/nitrile | Good mineral-oil/fuel performance in suitable grades. | Engine oil, older fuel and general hydraulics. | Ozone/heat and modern-fuel limits vary. |
| HNBR | Improved heat, strength and refrigerant-oil compatibility. | Air conditioning and selected engine seals. | Not universal for brake/coolant chemistry. |
| FKM/fluorocarbon | High heat and broad oil/fuel resistance. | Fuel injection, turbo and hot oil areas. | Poor low-temperature/chemical fit in some fluids. |
| EPDM | Water, glycol and brake-fluid compatibility in approved grades. | Cooling and glycol brake systems. | Mineral oil and fuel can swell it. |
| Silicone | Wide temperature flexibility. | Static specialist seals. | Low tear/abrasion resistance and fluid limits. |
| Specialist/PTFE energised | Aggressive fluid, pressure or low friction. | Direct injection, transmission and refrigerant systems. | Dedicated sizing and installation tools. |
Colour is not identification
Dyes vary between manufacturers and applications

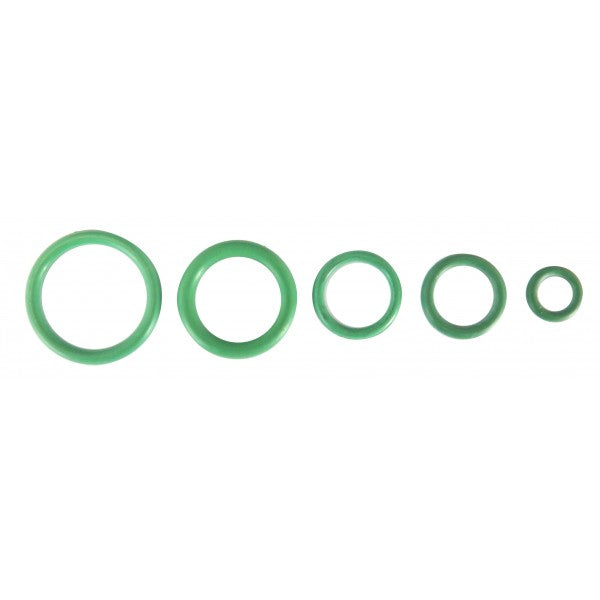

Green rings are often associated with air conditioning, brown with fluorocarbon and black with nitrile, but none is a guaranteed standard. Different compounds can share a colour.
Use the component part number, material specification and approved kit. Never infer compatibility from appearance.
Application comparison
| System | Fluid/condition | Selection concern | Safety control |
|---|---|---|---|
| Fuel injection | Petrol, ethanol blends or diesel under pressure. | Fuel grade, temperature and extrusion. | Depressurise; injection/fire hazard. |
| Air conditioning | Refrigerant and compressor oil. | Refrigerant generation and oil compatibility. | Professional recovery; frostbite/high pressure. |
| Cooling | Water/glycol and inhibitors. | EPDM grade and hot compression set. | Open only when cold/depressurised. |
| Brakes | Glycol or mineral hydraulic fluid. | Exact fluid family; no cross-use. | Safety-critical cleanliness and bleeding. |
| Engine oil | Hot lubricant and additives. | Heat, pressure and housing groove. | Prime and verify oil pressure. |
| Intake/vacuum | Air, oil mist and boost. | Permeation and temperature. | Leak affects fuelling/boost. |
Sizing terminology
An O-ring is defined by inside diameter and cross-section, commonly metric or an inch-series standard. A used ring can be swollen, stretched or flattened and is not an accurate gauge.
Measure the clean groove and consult the component specification. A slightly thicker ring is not an upgrade; it may prevent assembly or cut during insertion.
Hardness and pressure
Hardness is often expressed as Shore A. Softer compounds conform at low pressure but extrude more easily; harder compounds resist gaps but need proper surfaces and squeeze.
High-pressure designs may use a backup ring. Do not omit it or reverse its orientation.
Static and dynamic sealing
A static flange compresses the ring and then remains still. A dynamic piston, rotating shaft or quick connector adds sliding friction, surface-speed and wear requirements. A compound suitable for a stationary coolant flange may abrade rapidly in a moving hydraulic valve.
Dynamic grooves control squeeze more carefully and need specified surface finish and lubrication. Do not substitute a general static ring into a moving application.
Extrusion gaps and backup rings
Pressure pushes elastomer towards clearance between mating parts. If the gap is too large, the edge extrudes and is bitten away. Wear, incorrect machining or loose bearings can create the gap after service.
A harder ring or backup washer helps only when designed into the assembly. Adding one changes groove fill and may prevent full joint closure.
Temperature cycling and compression set
Repeated hot and cold cycles expand the housing and fluid while ageing the elastomer. Compression set leaves a permanently flattened cross-section that no longer follows contraction during cooling.
Choose the application-approved temperature grade and correct the local overheat cause. Heat shields, coolant flow and exhaust clearance can matter more than installing a nominally “higher temperature” material.
Permeation and micro-leakage
Gas and refrigerant molecules can diffuse through elastomer even without a visible path. Compound choice and surface area determine acceptable permeation; adding clamp force does not eliminate it.
Use the specified electronic or pressure-decay test sensitivity. Soap solution is unsuitable for many fluids and may contaminate electrical or oxygen-sensitive systems.
Failure evidence
| Appearance | Likely mechanism | Corrective direction |
|---|---|---|
| Flat permanent sides | Compression set from heat/age/material. | Correct compound and temperature cause. |
| Spiral/circumferential cut | Twist or rolling during assembly/motion. | Lubrication, lead-in and installation method. |
| Nibbled edge | Extrusion into pressure clearance. | Gap, hardness, pressure and backup ring. |
| Swollen/soft | Chemical incompatibility. | Identify fluid and approved elastomer. |
| Hard/cracked | Heat, ozone or ageing. | Temperature protection and material. |
| Single nick | Sharp thread, burr or tool damage. | Repair surface/use protective sleeve. |
Mating-surface inspection
Look for corrosion, scratches across the sealing path, burrs, oval bores and cracked plastic. A new ring cannot bridge a deep channel reliably.
Measure distortion against limits. Do not polish away groove dimensions or fill damage with general sealant.
Depressurisation
Follow the exact system method. Fuel rails and hydraulic accumulators can retain pressure after shutdown; refrigerant must be recovered, not vented.
Any suspected high-pressure fluid injection through skin is a medical emergency, even when the mark looks small.
Clean removal
Use a plastic, brass or specified pick without gouging the groove. Cut a hard ring only away from the component surface and account for every fragment.
Do not reuse a removed seal. Deformation and microscopic damage may be invisible.
Preparation controls
| Stage | Control | Purpose |
|---|---|---|
| Identify | Confirm part and fluid specification. | Prevents incompatible material. |
| Clean | Use lint-free approved materials. | Stops particles crossing seal. |
| Inspect | Check groove, lead-in and retainer. | Prevents repeat cutting/leak. |
| Protect | Cover threads and sharp ports. | Avoids nicks. |
| Lubricate | Use named fluid/assembly aid. | Reduces twist without chemical risk. |
| Position | Seat in correct groove without roll. | Maintains designed squeeze. |
Lubrication compatibility
Clean system fluid is often used, but not always. Brake seals may require the approved brake assembly fluid; air-conditioning rings use compatible compressor oil; some seals install dry.
Petroleum grease on EPDM can cause swelling. Silicone grease is not automatically acceptable for oxygen sensors, fuel or painted assemblies.
Stretch and twist control
Stretch uniformly only enough to pass the installation feature. Do not pull one point into a long thin loop. Allow recovery time where the procedure specifies.
After placing, run a blunt approved tool around accessible grooves to release twist, without scratching the ring.
PTFE and direct-injection seals
Some rings that look like O-rings are PTFE sealing bands. They require expansion cones and staged sizing sleeves, cannot be installed like elastic rubber and have strict time limits.
Replace any creased or over-expanded seal. Improvised pliers damage the injector and seal.
Joint assembly
Align pipes squarely and push through the lead-in without rocking across threads. Confirm positive retainer engagement and natural hose routing.
Bolted flanges must be tightened evenly to specified torque. Overtightening distorts plastic and extrudes seals.
Pressure and leak verification
Prime and pressurise through the approved method while personnel remain clear. Use dye, electronic detector, smoke or gauges only where system guidance permits.
Inspect cold and after full temperature cycling. Do not tighten a leaking connection beyond specification; depressurise and find the damage.
Storage and shelf life
Keep seals sealed, labelled and away from sunlight, ozone-producing motors, heat and chemicals. Mixed open bins destroy traceability and collect abrasive dust.
Observe shelf-life and packaging instructions. Do not hang rings stretched over hooks.
Common mistakes
Errors include choosing by colour, measuring a swollen old ring, using a thicker substitute, installing dry against instructions, adding universal grease and reusing a ring.
Do not use RTV to supplement a dynamic O-ring groove or wrap it with thread tape.
UK safety and environmental context
Leaks of fuel, brake fluid, oil, coolant or refrigerant create serious safety and environmental risks and can affect MOT. Repair the surface and pressure cause, not just the visible seal.
Recover fluids and refrigerants through authorised routes and keep them separated.
Practical automotive O-ring FAQs
Q: Can an O-ring be chosen by colour?
A: No. Colour is not a universal material code.
Q: Is a used ring accurate for sizing?
A: No. It may be swollen, stretched or flattened.
Q: Can a slightly thicker ring seal better?
A: No. It can be cut or over-compressed.
Q: Are brake and oil O-rings interchangeable?
A: No. Their elastomers often have opposite fluid compatibility.
Q: Should every O-ring be greased?
A: No. Use only the specified lubricant or dry method.
Q: Can a removed ring be reused?
A: No. Fit a new approved seal.
Q: What causes a spiral cut?
A: The ring likely twisted or rolled during assembly.
Q: Does a new ring repair a scratched bore?
A: No. Restore or replace the damaged component.
Q: Can refrigerant be released to change a seal?
A: No. It requires legal professional recovery.
Q: Are PTFE injector seals ordinary O-rings?
A: No. They need dedicated expansion and sizing tools.
Q: May a leak be checked by hand?
A: Never on a pressurised system.
Q: How should O-rings be stored?
A: Sealed, labelled, unstretched and away from heat, light and ozone.
Q: What proves a seal repair?
A: Correct pressure/function with no leakage through temperature cycles.
