The gear linkage translates cabin movement into selector travel
A remote gear lever rarely acts directly on the gearbox. Rods, bell cranks, ball joints or Bowden cables redirect fore-aft and cross-gate movement to selector shafts. Their lengths and pivot ratios determine how far and in which direction the gearbox lever moves.
Small wear at several joints can add into substantial lost motion at the driver's hand.
Collection components serve different points in the load path
| Component | Function | Critical match | Typical failure |
|---|---|---|---|
| Shift rod | Transfers push/pull or rotational movement. | Length, bends, ends and phase. | Bending, worn bush or corrosion. |
| Control cable | Moves through a retained flexible sheath. | Travel, end fittings and bracket. | Seizure, stretch or broken strands. |
| Ball head/socket | Allows angular movement at a joint. | Ball diameter, thread and retention. | Play or socket detachment. |
| Universal joint | Transmits rotation through an angle. | Yoke, spline/shaft and phase. | Free play or seizure. |
| Lever/bell crank | Changes direction and movement ratio. | Pivot position and orientation. | Loose pivot or wrong clocking. |
| Bracket | Fixes cable sheath or pivot location. | Mounting plane and stiffness. | Crack, loose bolts or distortion. |
Rod and cable systems behave differently

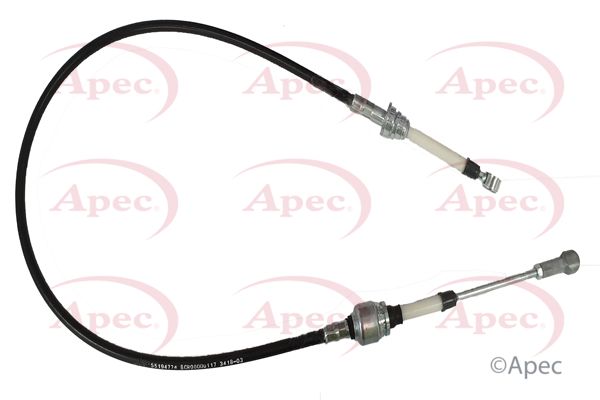

Rigid rods transmit movement precisely but need aligned pivots and clear paths through cab or powertrain movement. Cables tolerate relative motion and curved routes, yet depend on a firmly retained outer sheath. A loose cable bracket absorbs travel that should move the selector.
Do not replace a cable route with sharp bends or clamp the sheath where it must flex.
Cross-gate and fore-aft channels must remain coordinated
One movement commonly selects a gate while another engages the chosen gear. If their neutral references differ, the lever may reach first and second but not reverse, or select two adjacent gates ambiguously. Springs in the lever or gearbox can provide centring.
Adjustment requires both channels locked at their specified neutral datums.
Fitment starts with gearbox and vehicle architecture
| Identifier | Why it matters | Evidence | Mismatch result |
|---|---|---|---|
| VIN/chassis and build date | Locates linkage running changes. | Vehicle build record. | Wrong cable end or bracket. |
| Gearbox code | Defines selector shaft and shift pattern. | Unit plate and catalogue. | Incorrect travel or orientation. |
| Cab/body/steering side | Changes routing and rod geometry. | Application data. | Interference or insufficient reach. |
| Linkage position | Separates gate, engagement and relay parts. | Exploded diagram. | Correct-looking wrong component. |
| Dimensions/end fittings | Controls attachment and movement ratio. | Exact reference/approved measurement. | Lost travel or detachment. |
| Adjustment method | Sets neutral and complete engagement. | Current service procedure. | Gear clash or jumping out. |
Powertrain mounts influence linkage alignment
The engine and gearbox move under torque. Worn mounts can pull rods through an angle, stretch cables or cause a gear to disengage even when the linkage is adjusted correctly at rest. Check mount condition and loaded movement before compensating with rod length.
An adjustment cannot safely correct a collapsed mounting.
Ball joints need secure articulation without free play
A ball head permits angular movement while transmitting push or pull. The socket, spring clip or threaded connection must retain through the complete range. Wear can show as powder, oval movement or a socket that lifts from the ball.
Renew the specified retainer and never secure a worn joint with wire or cable ties.
Cable faults can change with temperature and position
Corroded or frayed inner strands can bind more strongly on bends, while exhaust heat can soften liners and boots. Disconnect each end by the service method and compare inner movement with sheath retention. A cable that feels free unloaded may still buckle or drag under selector force.
Lubricate only if the cable design provides an approved method; sealed liners can swell or trap grit.
Symptoms require linkage and gearbox evidence
| Symptom | Possible linkage cause | Also inspect | Response |
|---|---|---|---|
| Large lever free play | Worn ball heads, bushes or pivot. | Gearbox selector-shaft play. | Trace each joint under movement. |
| One gate unavailable | Cross-gate cable/rod adjustment. | Internal detent or selector fork. | Do not force the lever. |
| All gears difficult when running | Linkage travel may be incomplete. | Clutch release and gearbox oil. | Test stopped versus running. |
| Gear jumps out | Mount movement or incomplete engagement. | Synchro hub, fork and internal wear. | Avoid continued driving. |
| Selection changes over bumps | Loose bracket or moving powertrain. | Mounts and cab pivots. | Inspect security immediately. |
| Lever will not centre | Binding cable or centring spring. | Gearbox detents and trim obstruction. | Disconnect in controlled stages. |
Clutch drag can imitate a gear linkage fault
If selection is easy with the engine stopped but difficult or noisy while running, the clutch may not fully disconnect. Check hydraulic travel, cable adjustment, release bearing and pilot bearing as relevant. Reverse and first often reveal drag first because synchronisation differs.
Do not lengthen linkage travel to overcome a clutch that continues driving the input shaft.
Gearbox lubricant affects selection quality
Low level, wrong viscosity or an incompatible friction formulation can slow synchronisers and create notchiness, especially cold. Identify and repair leakage, then use the exact gearbox approval and level procedure. Fluid colour alone does not identify compatibility.
External linkage repair will not restore worn synchroniser cones or damaged shift forks.
Safe diagnosis controls rolling and pinch points
Chock wheels, apply the correct parking state and support a raised vehicle on rated equipment. Changing selector position can release park or engage drive. Use a trained assistant with clear commands and keep hands away from exposed levers whenever power is available.
Never run driven wheels unsupported or enter beneath a raised cab without its approved safety prop.
Record the original geometry before dismantling
Mark neutral references
Place the gearbox and cabin lever in the stated position and photograph alignment marks.
Label every end and retainer
Record washers, clips, bracket holes, cable routing and heat shields.
Measure only approved datums
Note exposed thread or rod length where the procedure uses it, without copying a prior error blindly.
Removal should not transmit force into the gearbox
Release clips with the correct tool and support rods and cables rather than levering on selector shafts. Hold threaded ball heads at their flats so a joint is not twisted apart. Do not hammer a gearbox lever or use its casing as a pry point.
Cap exposed cable ends and keep dirt from selector seals.
Bracket and pivot condition establishes movement accuracy
Clean and inspect mounting faces, bushes, threads and welded brackets for cracking or elongation. A new cable in a flexible bracket still loses travel. Check pivot sleeves for the stated lubrication and confirm the lever cannot contact trim, exhaust or driveline parts.
Repair structural damage before adjustment.
Installation preserves routing and articulation
Lay cables through original clips with smooth radii and heat protection. Fit rods in their correct phase and ball heads to the specified depth. Use new locking clips, prevailing-torque nuts and single-use fasteners where required.
Move the powertrain or cab through its safe expected range and check that nothing becomes taut or contacts a rotating shaft.
Neutral locking makes adjustment repeatable
Use the proper lever pin, gearbox datum or diagnostic neutral procedure. Set cable ends or rods without preload, then release locks in the stated order. Some self-adjusting ends must be opened and closed once; others are not reusable.
Do not choose an adjustment by counting visible threads alone.
Static testing precedes any engine-running test
With the engine off and vehicle secured, select every forward ratio and reverse repeatedly, checking positive detents, centring and complete return. Watch the gearbox lever and verify no rod bottoms against a stop. Then test with the engine running in a controlled ventilated setting.
Stop for gear clash, unintended movement, incomplete engagement or a lever that binds.
Road verification checks load and temperature
Drive progressively in a safe area, using every ratio without forcing shifts. Check cold and warm operation, overrun, acceleration and mount movement. Reinspect clips, brackets and cable clearance afterward.
A gear that disengages or cannot be selected reliably makes normal road use unsafe.
Practical gear-linkage FAQs
Q: Is this always one complete kit?
A: No. The collection includes individual rods, cables, joints, levers and brackets.
Q: Can linkage be chosen from gearbox type alone?
A: No. Cab, body, steering side and build date can alter routing.
Q: Why does a loose cable bracket matter?
A: The sheath moves and absorbs travel intended for the selector.
Q: Can a ball socket be held on with wire?
A: No. Replace worn joints and their correct retainers.
Q: Should a sealed shift cable be lubricated?
A: Only if its instructions provide an approved method.
Q: Why are gears easier with the engine stopped?
A: Clutch drag or a rotating gearbox input may be involved.
Q: Can adjustment correct worn engine mounts?
A: No. Restore the mounting geometry first.
Q: Is thread count a reliable adjustment method?
A: Use the specified neutral-locking procedure and datums.
Q: Can a cable with one stiff spot be reused?
A: Binding or damaged cable requires replacement.
Q: Why keep heat shields?
A: Exhaust heat can damage liners, boots and lubricant.
Q: What requires immediate shutdown?
A: Unintended movement, gear clash, detachment or a gear that jumps out.
Q: Should every gear be tested before road use?
A: Yes, first stopped and then under controlled running conditions.
Q: What proves a complete repair?
A: Secure parts, correct neutral adjustment and reliable engagement of every ratio.
