The pulley guides the belt; the tensioner assembly controls force
A pulley bearing supports rotation and its face defines the belt path. The tensioner arm, spring and damper determine how hard and how steadily the belt is pressed against accessory pulleys.
Replacing only the roller is appropriate only when the rest of the tensioner meets wear, alignment and damping limits.
Pulley and tensioner roles
| Part | Role | Common failure | Replacement decision |
|---|---|---|---|

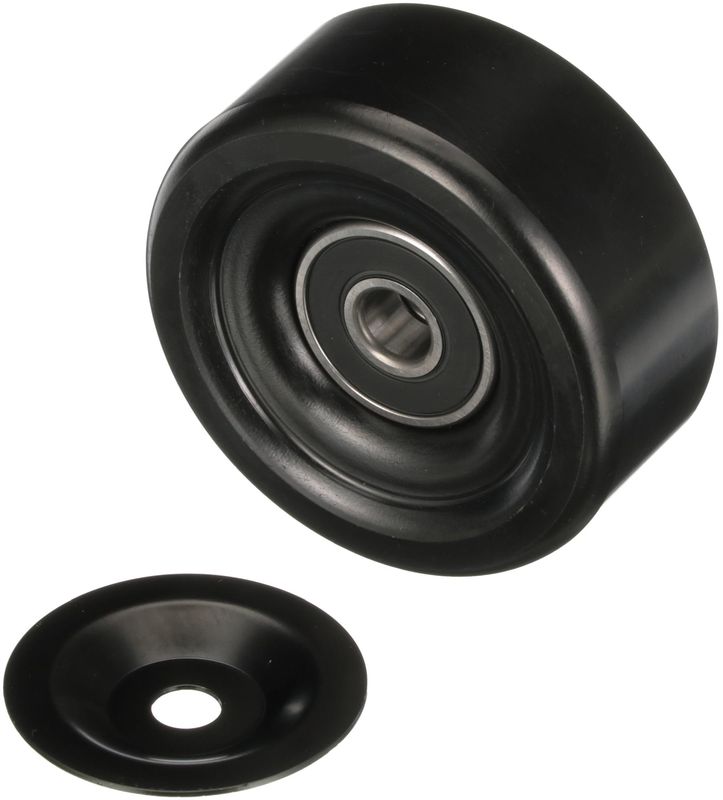

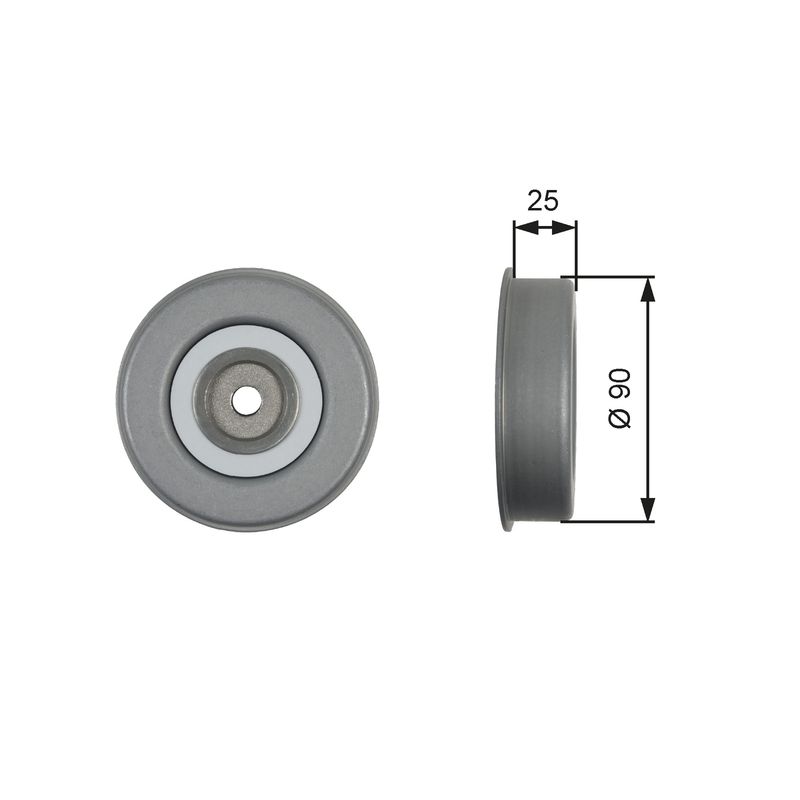

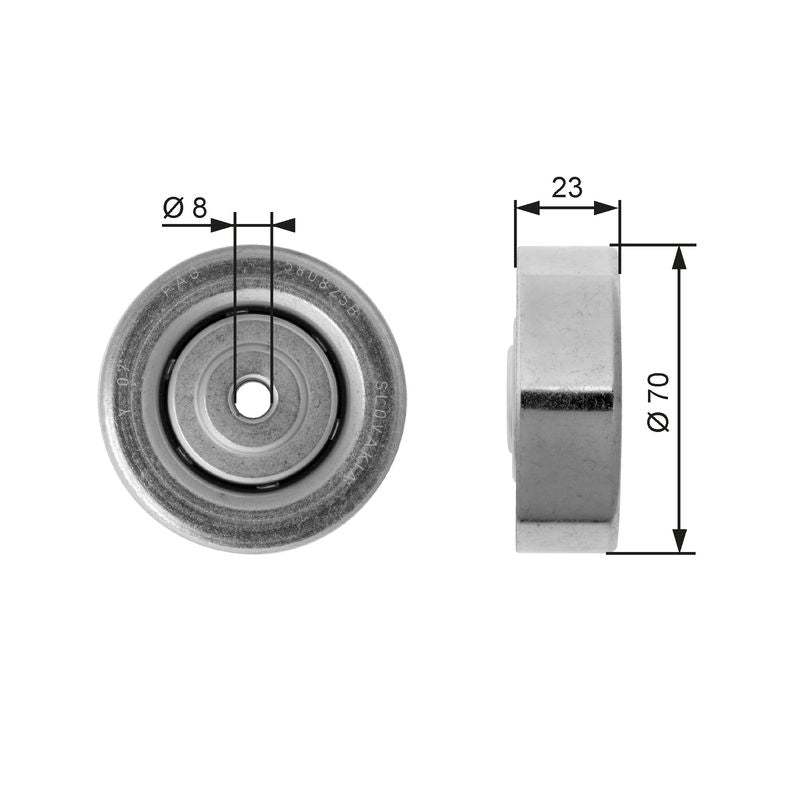

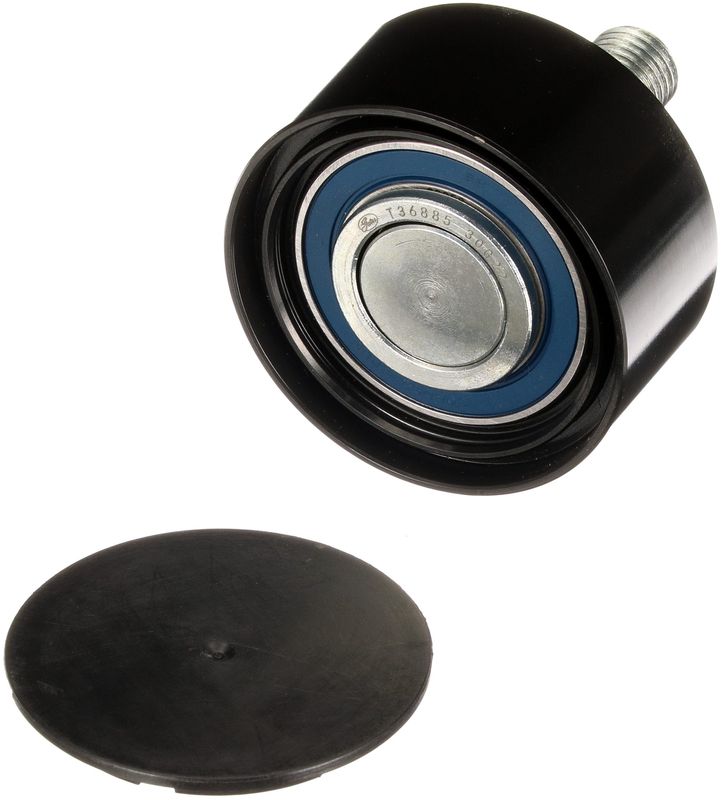

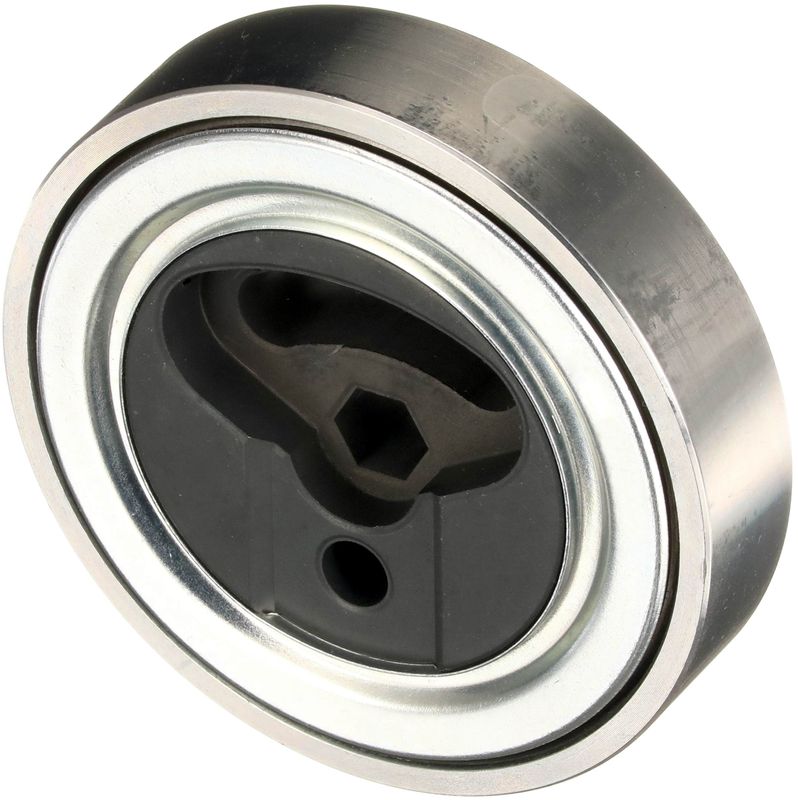

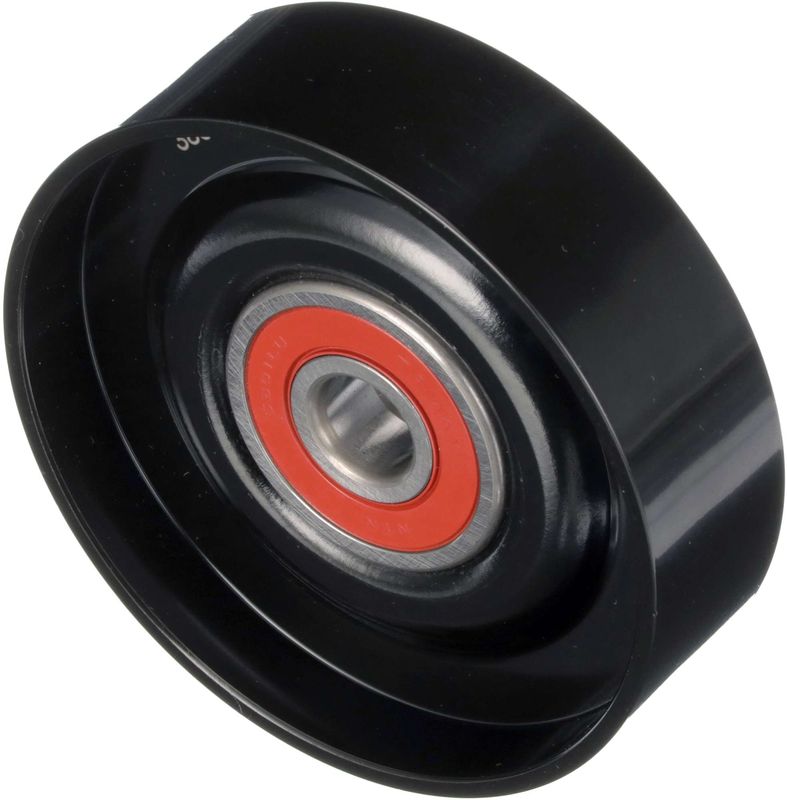

| Smooth tensioner pulley | Runs on belt back while arm applies tension. | Bearing wear, face damage or heat. | Pulley-only if arm/spring/damper sound and serviceable. |

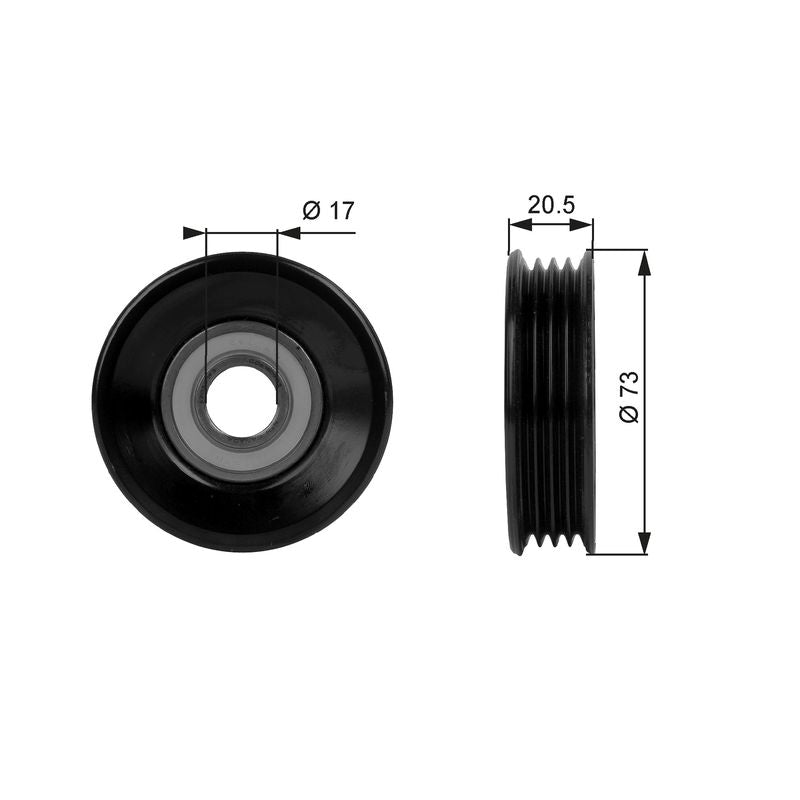

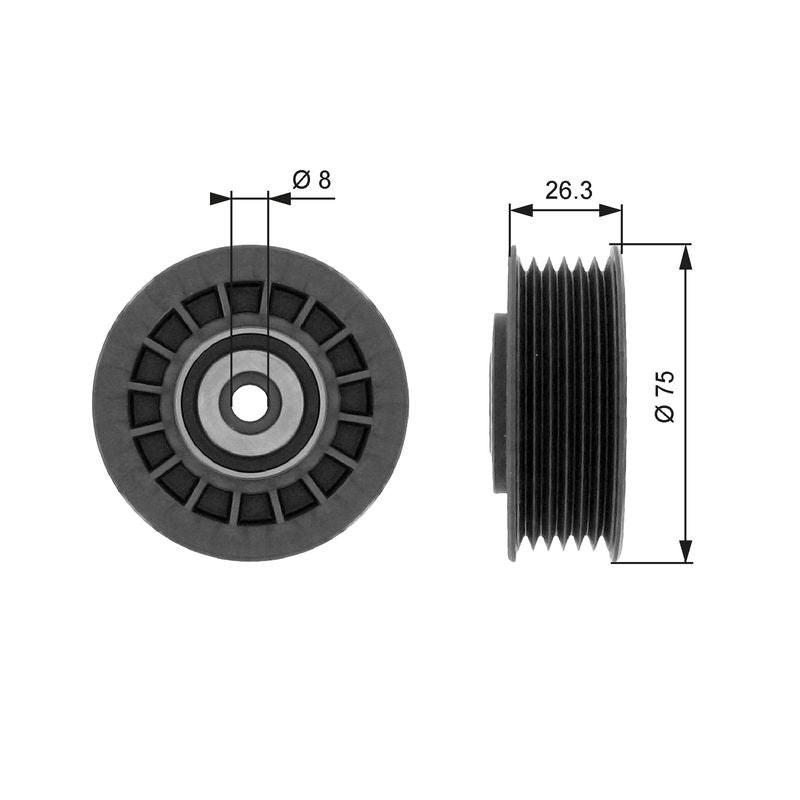

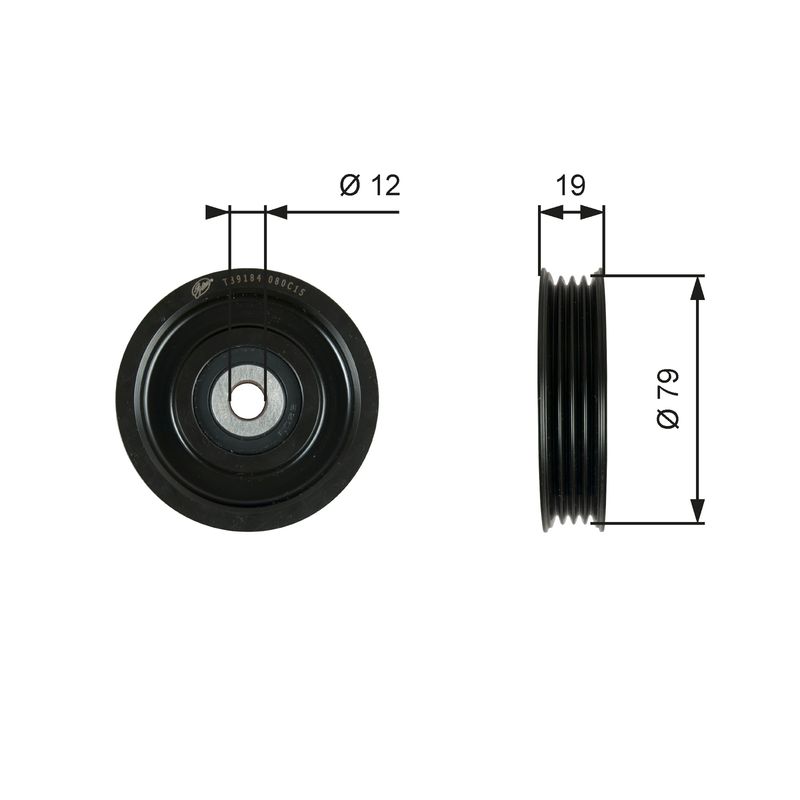

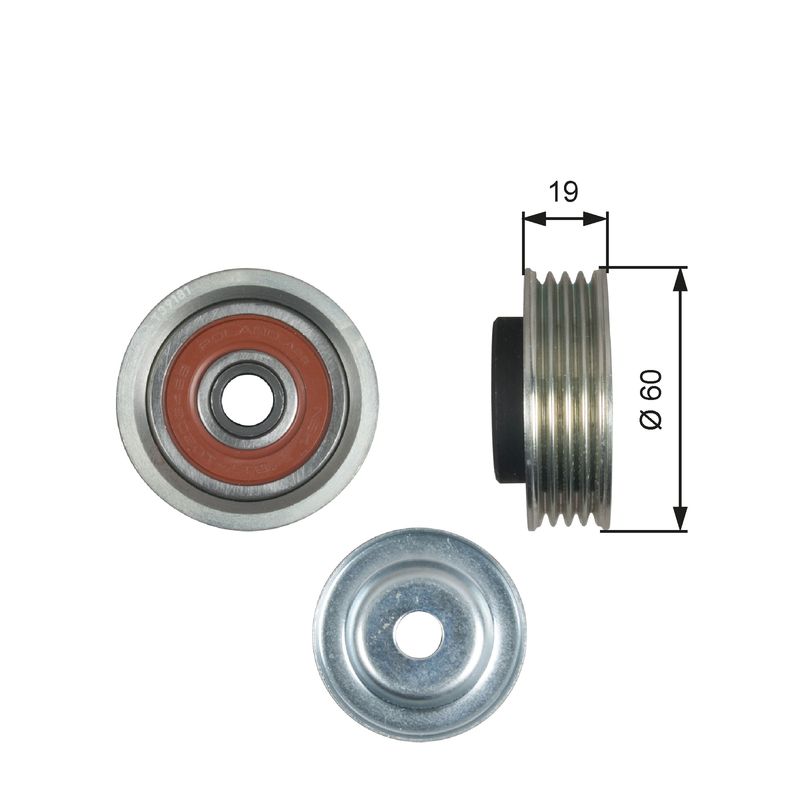

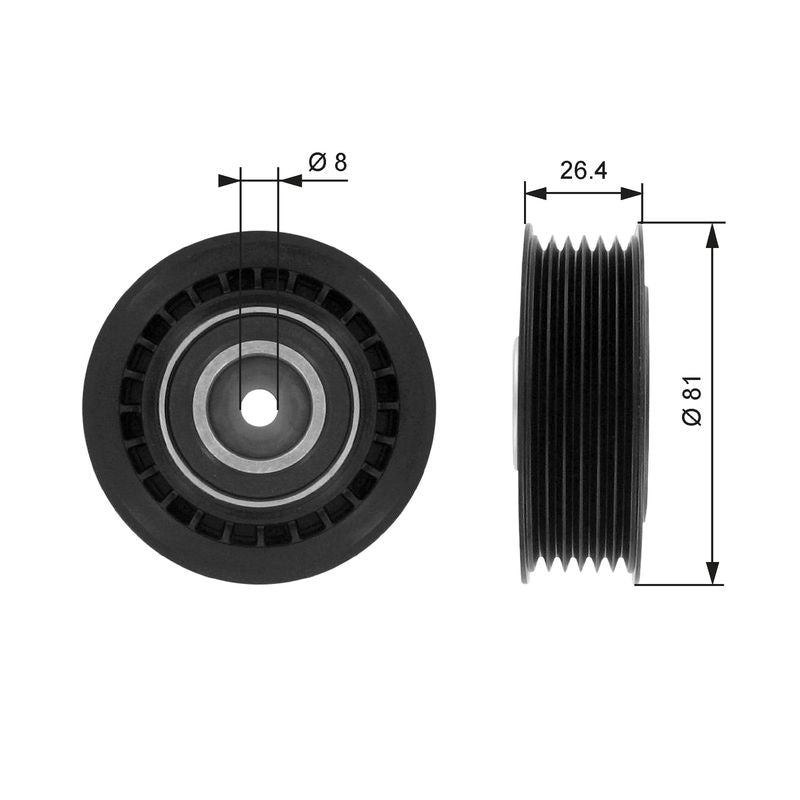

| Grooved tensioner pulley | Runs on ribbed belt side. | Groove wear, embedded debris and bearing. | Match rib profile and offset. |
| Fixed idler | Changes belt wrap/path without applying tension. | Bearing, mounting or face wear. | Do not confuse with tensioner roller. |

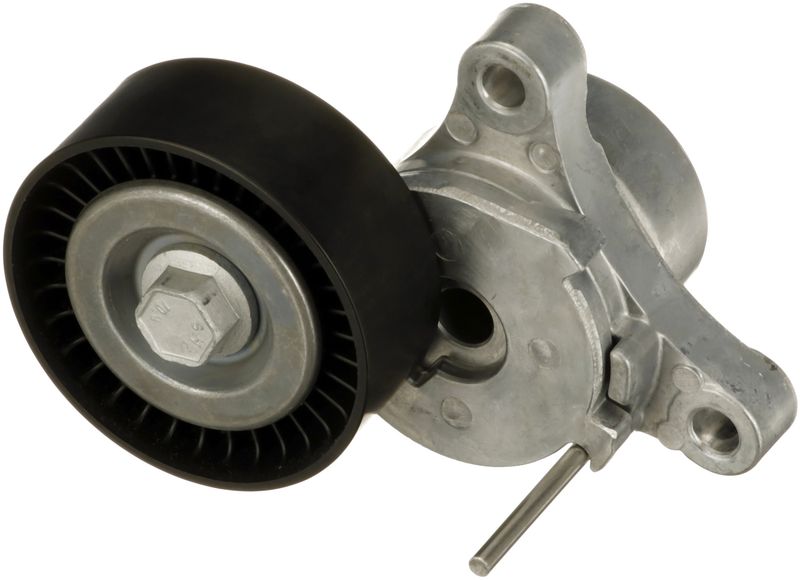

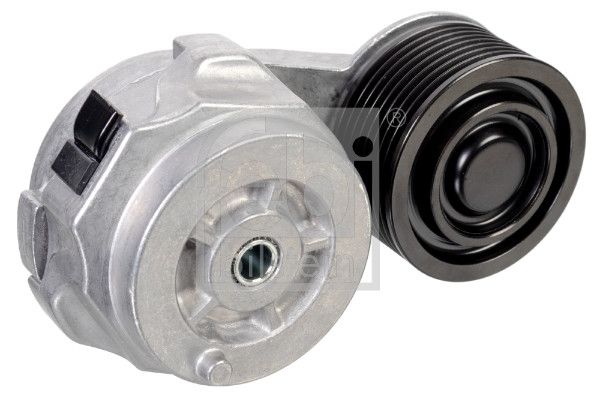

| Automatic tensioner | Spring arm and damper control belt force. | Weak/broken spring, pivot play or damping loss. | Complete assembly often required. |

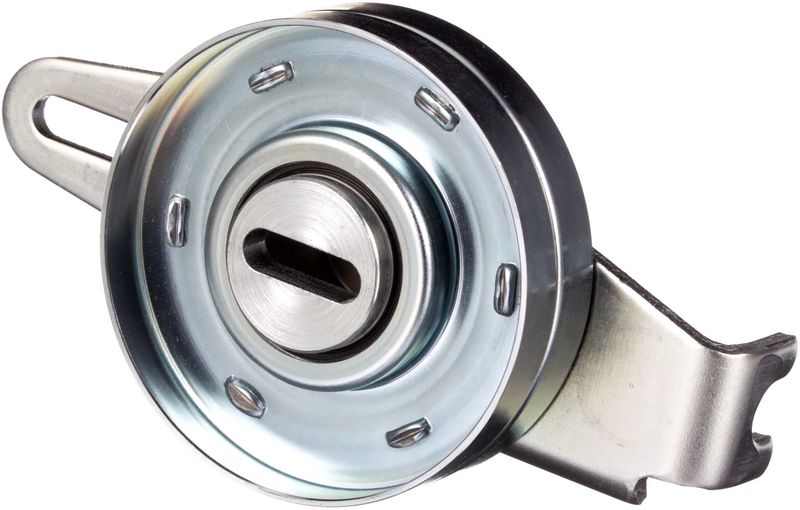

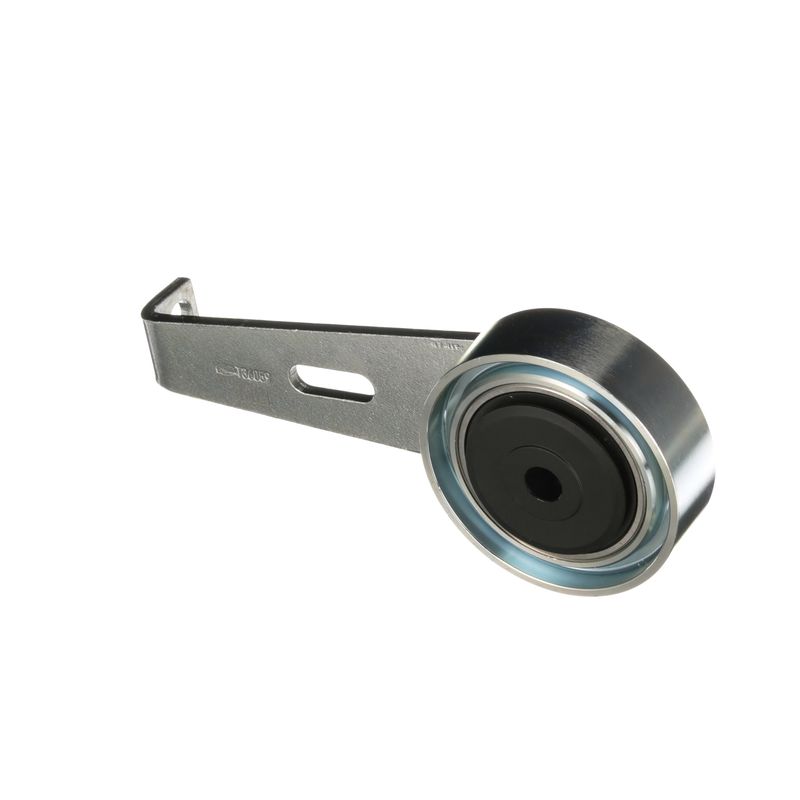

| Manual tensioner | Adjuster sets accessory position/tension. | Thread, bracket or locking fault. | Set by measured tension/deflection. |
| Overrunning alternator pulley | Decouples alternator inertia. | Seized/freewheeling clutch. | Can imitate tensioner flutter. |

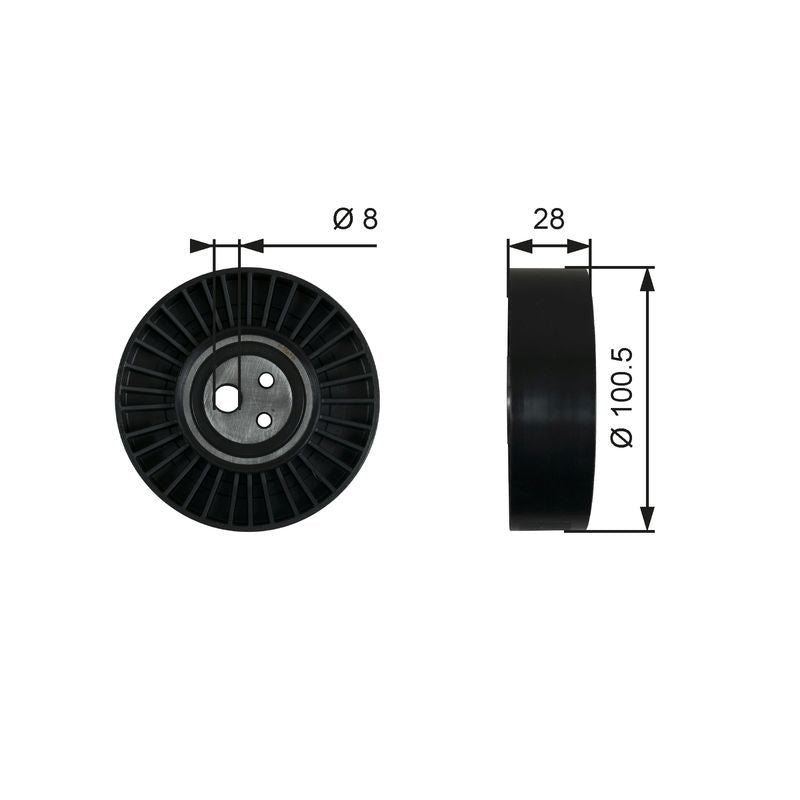

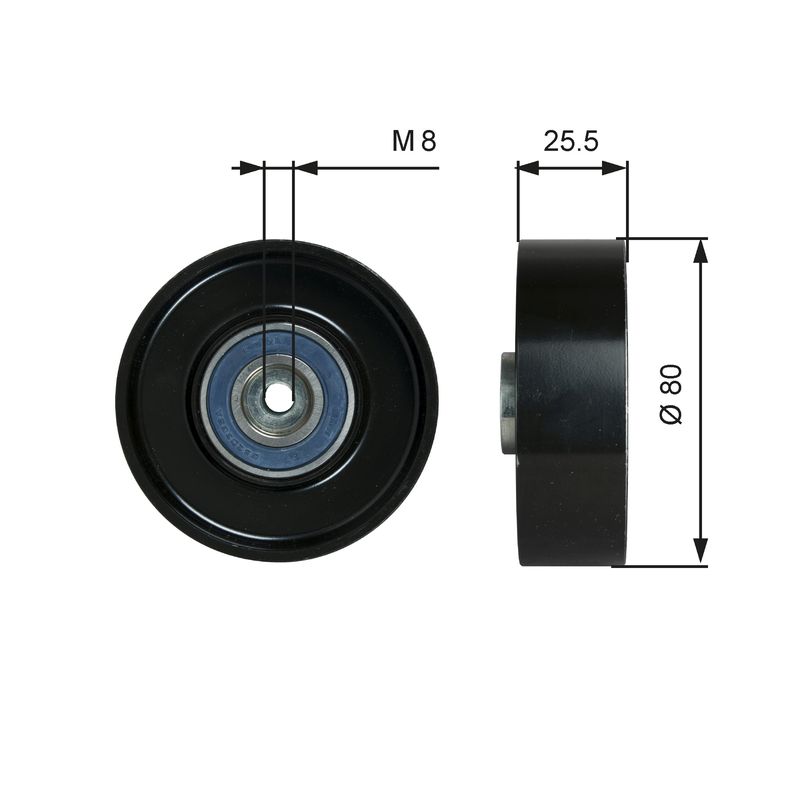

Fitment details
| Detail | Confirm | Consequence if wrong |
|---|---|---|

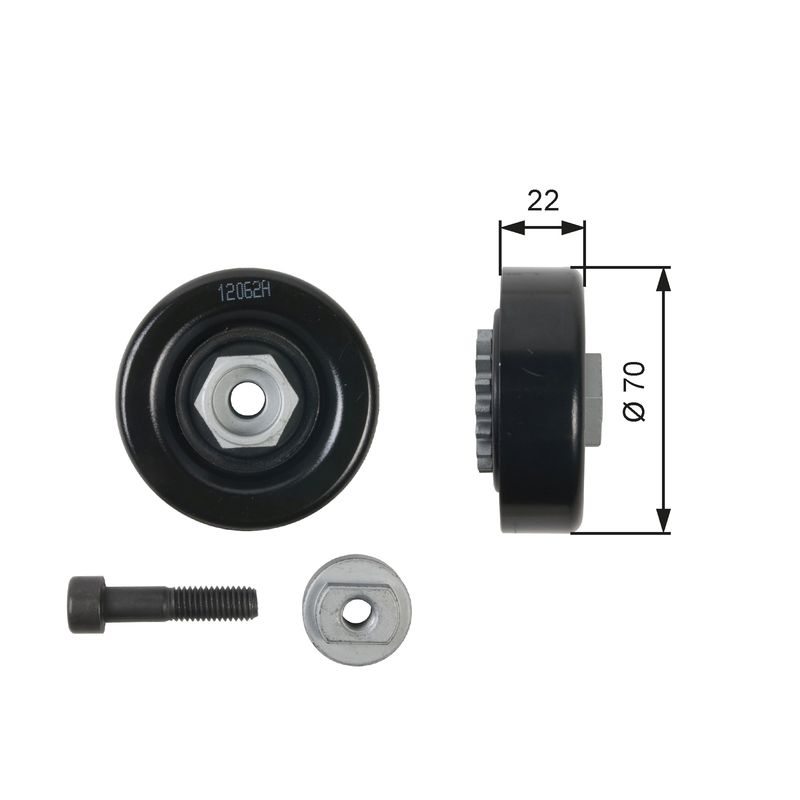

| Diameter | Running diameter and clearance. | Changed tensioner position/speed/wrap. |
| Width | Belt coverage and guide shoulders. | Edge contact or unsupported ribs. |
| Face | Smooth or correct groove count/profile. | Belt damage and noise. |
| Bearing/bore | Bolt/shaft fit and load rating. | Play, seizure or impossible clamp. |

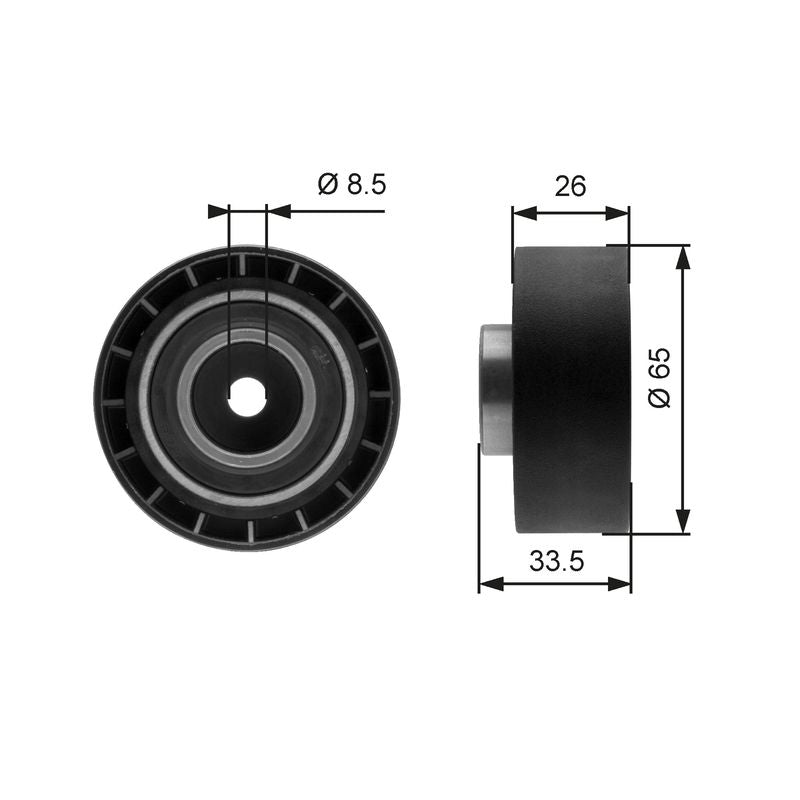

| Offset | Face position relative to mounting plane. | Belt misalignment. |
| Spacers/shoulders | Order and orientation. | Bearing side-load or loose pulley. |
| Fastener | Thread direction, grade and reuse rule. | Release or incorrect clamp. |

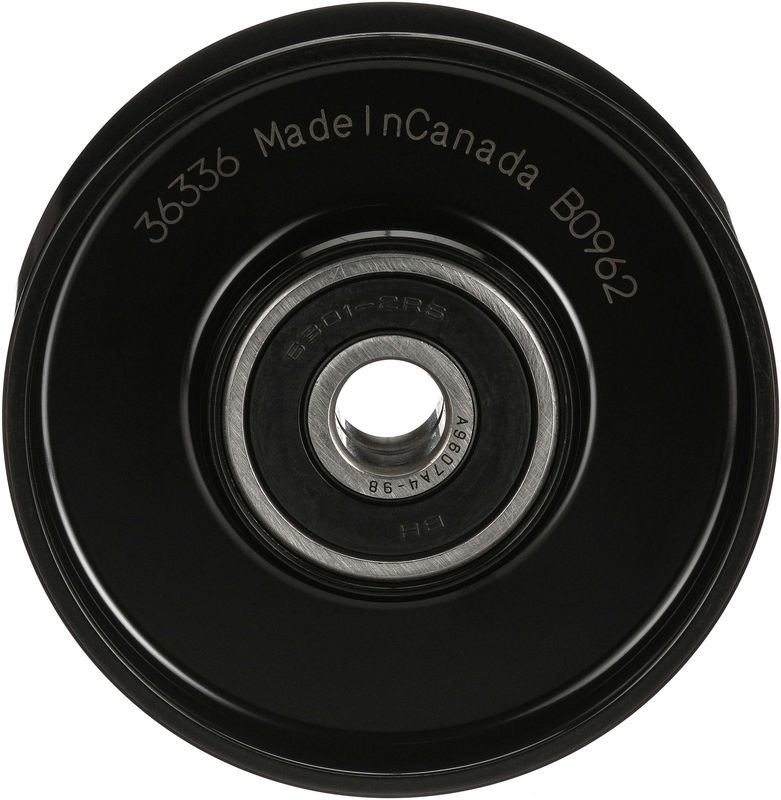

Bearing construction and sealing
Most pulleys use a sealed-for-life rolling bearing with grease selected for speed and under-bonnet temperature. Seals exclude water and dust while limiting drag. The bearing is not normally improved by prising seals out and adding grease.
Heat discolouration, roughness, play or grease escape requires replacement. A quiet unloaded hand spin does not fully reproduce belt load.

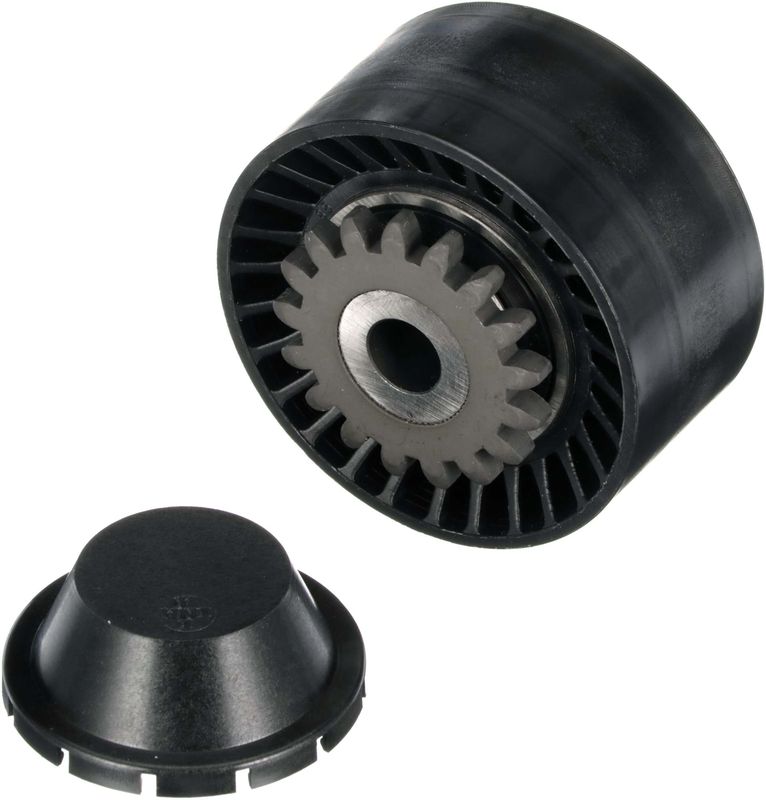

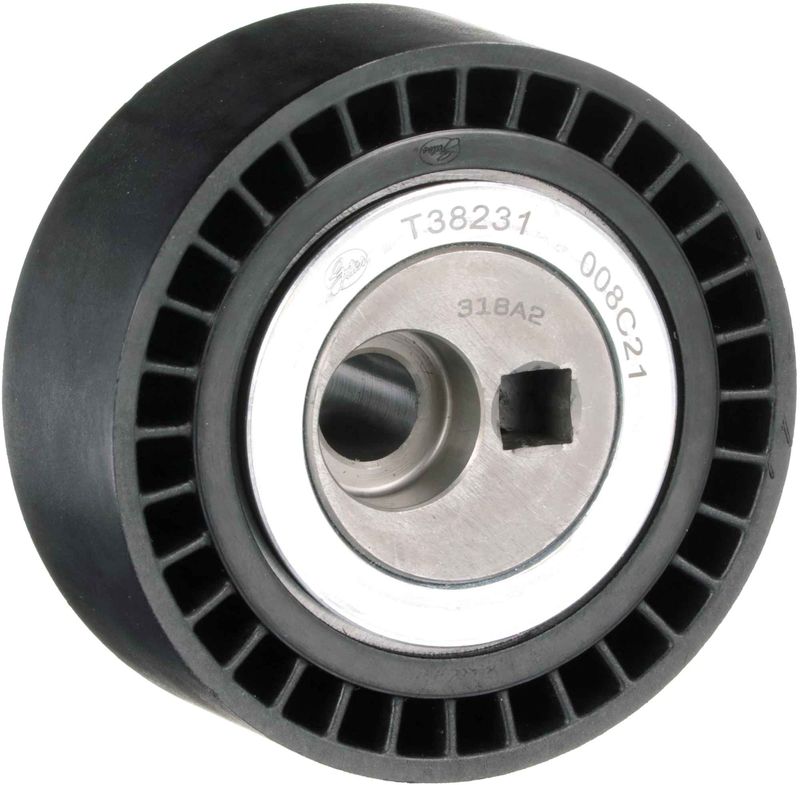

Plastic and steel pulley faces

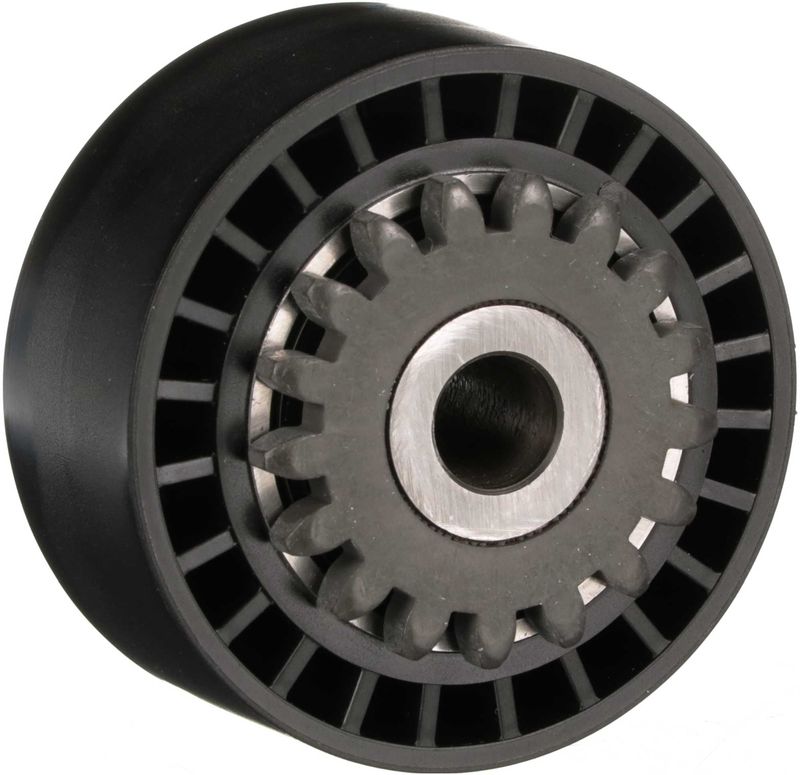

Engineered polymer pulleys reduce mass and can incorporate precise grooves; steel provides impact and heat resistance. Either can fail from bearing heat, misalignment or debris. Inspect plastic for radial cracks and steel for corrosion scale.
Do not machine a groove or press a random bearing into a non-serviceable pulley.

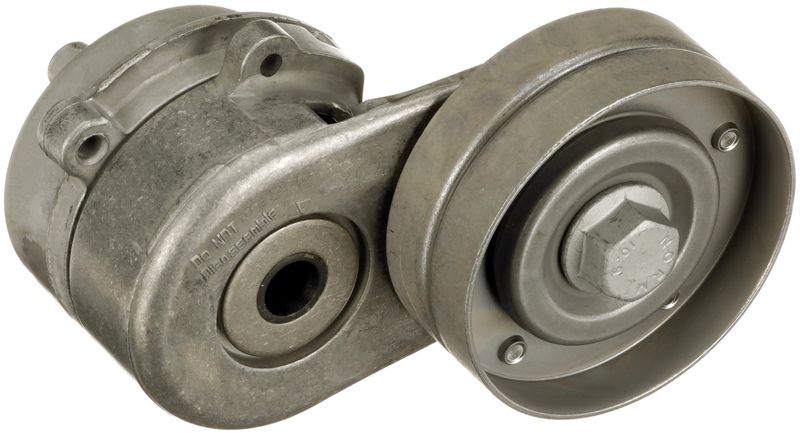

Automatic-tensioner dynamics
The crankshaft delivers torsional pulses and accessories change torque rapidly. A damping element prevents the arm oscillating. If the alternator clutch seizes, the tensioner may jump even though its spring remains strong.
Observe arm movement from a safe position using service limits. Excess travel, stop contact or blur needs root-cause diagnosis.
Tensioner index marks and belt length
Some automatic units have an indicator showing whether the installed belt places the arm within its working window. An arm near either stop can indicate the wrong belt length, a missing pulley, routing error or excessive belt wear. The marks are read with the engine stopped and belt settled.
A longer belt may appear easier to fit but reduces wrap and spring force; a shorter belt can overload bearings and hold the arm at its stop. Use the exact application length and account for pulley diameter revisions.
Pivot play and stop damage
Grip the unloaded arm only after spring force is safely controlled and check lateral movement against the service limit. A worn pivot tilts the pulley even when its own bearing is new. Bright marks on cast stops show repeated impact from lost damping or drive pulses.
Do not weld or peen a stop. Replace the assembly and diagnose the excitation source.
Noise and wear patterns
| Evidence | Possible cause | Next check |
|---|---|---|
| Rumble/grind | Pulley or accessory bearing. | Isolate belt and feel/listen to each component. |
| Rhythmic chirp | Misalignment, damaged ribs or pulley face. | Laser/straightedge alignment and belt inspection. |
| Squeal under load | Slip from tension, contamination or seized accessory. | Spring position, belt and accessory torque. |
| Frayed one edge | Offset, bent bracket or wrong routing. | All pulley planes and spacers. |
| Belt flutter | Damper/spring, alternator clutch or crank damper. | Dynamic observation and component tests. |
| Black dust | Slip, misalignment or groove wear. | Belt material loss and heat source. |
| Polished pulley rim | Belt tracking off-centre. | Offset, pivot play and pulley tilt. |
Test with the belt removed
Record routing and release tension safely. Spin pulleys slowly, feeling for roughness, binding and play. Check accessories for expected clutch action and resistance. Do not run the engine without the belt unless the manufacturer provides a controlled test; coolant pump or other critical functions may be lost.
Keep a removed belt clean and preserve direction if it will be reused.
Alignment measurement
Use a suitable straightedge or laser across known pulley datums. Check angular and parallel offset. A pulley can look aligned from above but be tilted by a worn tensioner pivot.
Inspect brackets, dowels, accessory mounts and crankshaft damper movement. Do not add washers as improvised alignment shims unless specified.
Inspect the V-ribbed belt
Look for rib cracking/loss, glazing, edge cord exposure, contamination and missing sections. Modern EPDM belts can wear by material loss without obvious cracking, so use the specified wear gauge.
Oil/coolant leaks must be repaired; cleaning a contaminated belt rarely restores predictable friction.
Alternator overrunning pulley
Many systems use a one-way clutch or decoupler to absorb alternator inertia. Test its lock/free direction and spring function with the specified tool. A seized pulley causes tensioner flutter and belt noise; one that freewheels both ways may stop charging.
Replace with correct protective cap and torque, not an ordinary solid pulley unless the engine was designed for it.
Crankshaft damper and accessory loads
A separating rubber crank damper shifts belt alignment and increases vibration. Air-conditioning compressor seizure, water-pump tightness or power-steering overload can overheat the tensioner pulley.
Inspect every driven component before fitting a new roller after a belt failure.
Safe tension release
Use the designed tool point
Fit the correct socket, square drive or dedicated tool fully. Apply controlled force in the stated direction. Some tensioners have limited travel and cast stops that break if over-rotated.
Keep clear of stored spring energy
Never pin a tensioner with a drill bit or improvised fastener. Use the specified retaining pin only where designed, and release it after the belt is routed.
Pulley removal and installation
Confirm whether the centre bolt has a conventional or reverse thread. Hold the arm with the approved counterhold, not against its end stop. Preserve spacer order and inspect the mounting shoulder.
Tighten with a torque wrench while avoiding bearing rotation where specified. A one-use bolt or pre-applied threadlock must be renewed.
Belt routing and seating
Follow the under-bonnet diagram or service data. Route around all fixed pulleys, leaving an accessible smooth pulley last where the procedure states. Inspect every rib at every grooved pulley before releasing tension slowly.
One rib riding on a flange can shred the belt within seconds.
Initial run and verification
Turn the crank by hand if specified and recheck seating. Refit guards and remove tools. Start from a safe position, watching tracking and tensioner motion without leaning into the drive.
Switch electrical and air-conditioning loads as permitted to observe response. Stop for wander, dust, noise or contact.
Failure consequences and urgency
A seized roller can throw or melt the belt. Depending on layout this can stop the water pump, alternator or hydraulic steering pump. Some engines can draw shredded belt through the crank seal into the timing drive.
Stop promptly for charging, overheating or steering warnings and recover rather than risking engine damage.
Practical V-ribbed-tensioner-pulley FAQs
Q: Is a pulley the same as a complete tensioner?
A: No. The complete unit also includes arm, spring, pivot and often damping.
Q: Can a smooth pulley replace a grooved one?
A: No. They contact different belt surfaces and must match the routing.
Q: Why does a new pulley still squeal?
A: Check belt, alignment, tensioner spring/damper, alternator clutch and accessories.
Q: Should a sealed bearing be regreased?
A: Normally no. Replace a rough, loose or heat-damaged pulley.
Q: Can washers correct pulley offset?
A: Only factory-specified spacers; improvised shims can side-load the bearing or release.
Q: Why does the tensioner arm jump?
A: A failed damper/spring, seized alternator clutch, crank damper or accessory load may cause it.
Q: Can the engine run briefly without the belt?
A: Only under a specified test; critical coolant, charging or steering functions may stop.
Q: Is hand-spinning enough to prove a bearing?
A: It helps, but load, temperature and speed can reveal faults not felt by hand.
Q: Must the belt direction be preserved?
A: Mark and refit in the same direction where reuse is permitted.
Q: Should the belt be changed with the pulley?
A: Inspect condition/contamination and follow interval/repair guidance; do not automatically reuse a damaged belt.
Q: What causes fraying on one edge?
A: Misalignment, wrong offset/routing, bracket distortion or pivot play.
Q: Are pulley bolts reusable?
A: Follow engine data; some are one-use or carry specified thread treatment.
Q: What proves correct repair?
A: Correct seating/alignment, secure torque, stable arm motion, quiet operation and normal accessory functions.
