A spanner succeeds by fitting the fastener before force is applied
Jaw or ring geometry transfers hand force into contact pressure on the flats of a fastener. Clearance between tool and head permits assembly, but excessive clearance moves load towards corners and promotes rounding.
Size, profile, wall thickness and access determine which spanner can apply useful torque without slipping or fouling.
Common spanner forms
| Form | Best use | Strength | Limitation |
|---|---|---|---|
| Open-ended | Fasteners with side-only access. | Quick engagement around pipes/shafts. | Contacts fewer flats and can spread. |
| Six-point ring | High-load hex fasteners. | Broad flat contact and strong profile. | Needs enough clearance to pass over head. |
| Twelve-point ring | Restricted swing and bi-hex heads. | Fine 30-degree indexing. | Less forgiving on damaged small heads. |

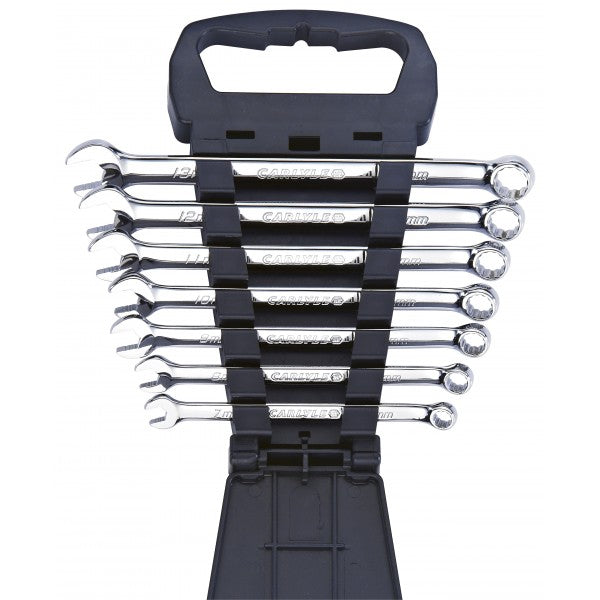

| Combination | General work with open and ring ends. | Two access options in one size. | Ends cannot be used simultaneously. |
| Flare-nut | Brake, fuel and hydraulic unions. | Nearly closed ring supports fitting. | Must pass over the pipe. |
| Ratcheting ring | Fast run-down with limited swing. | No need to lift after each stroke. | Mechanism has direction and load limits. |
Size systems
Metric sizes are measured across flats in millimetres. Inch AF sizes are fractional inches. Whitworth and British Standard systems name tools from historic bolt conventions rather than simply matching the marked dimension.
Do not substitute by visual similarity. Markings can be hard to read under dirt; clean and verify with the fastener data or a gauge.
Six-point and twelve-point engagement
Indexing convenience trades against contact geometry
A six-point ring surrounds a hex head with robust wall sections and is usually preferred for stubborn fasteners. A twelve-point ring engages at twice as many angular positions and is required for genuine bi-hex fasteners.
Both require the exact size. A worn twelve-point profile on a corroded hex is particularly prone to climbing over corners.
Open-jaw offset
Many open ends are angled around 15 degrees to the handle. Flipping the spanner offers a different approach in a restricted slot, allowing incremental rotation even without a ratchet.
Force should remain aligned with the fastener flats. Sideways twisting spreads the jaw and can bend the handle.

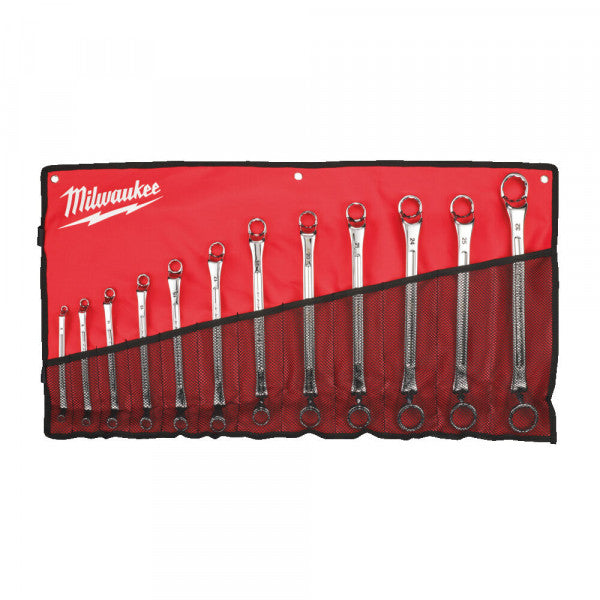

Ring offset and obstruction patterns
Offset rings clear raised components or recess around a bolt head. Deep-offset, half-moon and starter patterns reach specific obstructions, but their geometry changes hand position and reaction.
Ensure the offset does not press on wiring, hose or a brittle casting when load is applied.

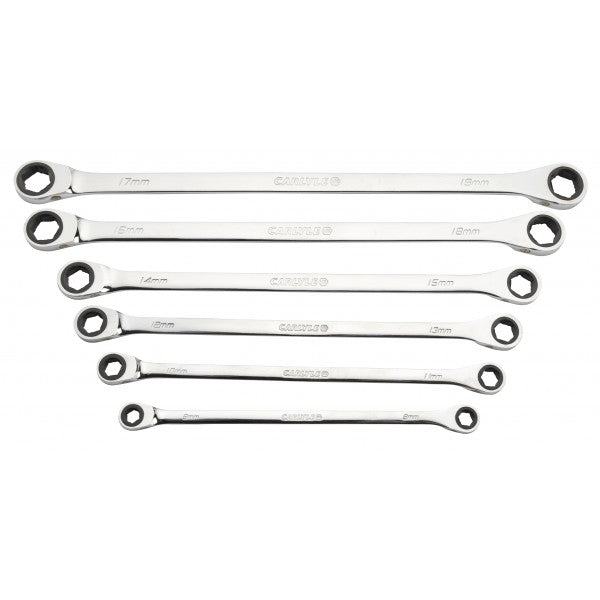

Ratcheting mechanisms
Fine-tooth ratchets need a small return angle, while coarser teeth can be more robust. Reversible levers and flip-over patterns determine direction. Flex heads require a reliable friction or locking joint.
Use a fixed ring or specified breaker tool for initial release when the ratchet's rating or fastener condition is uncertain.

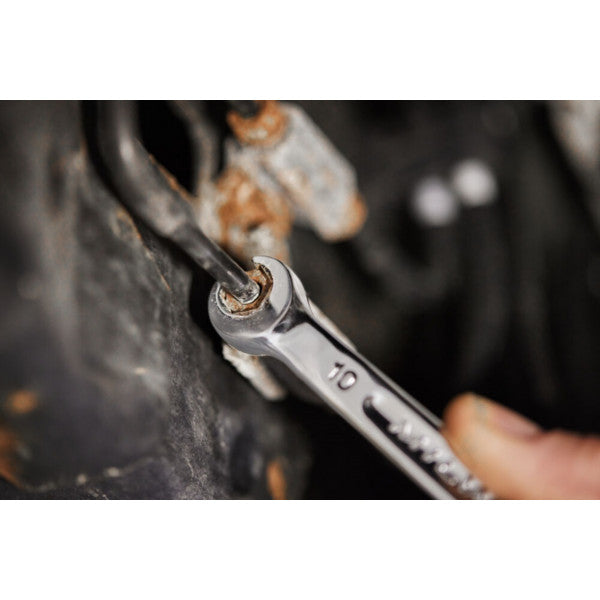

Flare-nut and pipe spanners
A slot admits the pipe but the near-ring wraps more flats than an open jaw. This reduces deformation of soft brake or fuel unions. The tool must sit square and the pipe must not prevent full depth.
Clean corrosion and support the mating hose or component. If the union begins to round or twists the pipe, stop and reassess.
Adjustable spanners
The fixed jaw should take the principal force, with the movable jaw trailing so load does not force it open. Close the screw snugly around clean flats and recheck after repositioning.
An adjustable is not a universal substitute for an exact ring on high torque. Worn guides or jaw play increase rounding risk.
Materials and finish
Quality spanners use alloy steel with controlled forging and heat treatment. Chrome plating resists corrosion but can flake after abuse. Industrial black finishes may suit impact-adjacent environments but do not imply a striking rating.
Soft comfort grips add insulation from temperature and pressure, not electrical certification. Only marked insulated tools form part of a voltage-rated system.
Choose for the task
Identify fastener system, head profile, torque, access, surrounding pipework and required final control. Prefer a fully enclosing profile for high load. Select adequate handle length without creating uncontrolled leverage.
For crowfoot or open-end torque adaptors, match square drive and effective centre distance as well as jaw size.
Condition findings
| Finding | Effect | Action |
|---|---|---|
| Spread open jaws | Reduced flat contact and slip. | Remove from service. |
| Rounded ring lobes | Tool climbs over fastener corners. | Replace, not grind. |
| Skipping ratchet | Sudden loss of hand support. | Quarantine for approved service/replacement. |
| Bent handle | Material has yielded under overload. | Do not straighten for reuse. |
| Flaking chrome | Sharp edges and possible underlying crack. | Inspect and retire if damaged. |
| Loose flex-head pivot | Head changes angle under force. | Service only by specified method. |
Prepare the fastener
Brush loose corrosion without damaging surrounding finishes and remove packed dirt from the flats. Select a penetrant compatible with nearby seals and allow time. Heat requires component-specific fire, fuel and material controls.
Identify left-hand threads, locking tabs, prevailing-torque nuts and one-time hardware before increasing force.
Body position and pull direction
Where possible, pull rather than push so a slip does not drive knuckles into the work. Keep feet stable and plan the path if the fastener suddenly releases. Pulling is not always feasible; the essential point is controlled body alignment and clearance.
Keep the spanner fully seated and in the fastener plane. Do not cock it to clear an obstruction.
Breaking stubborn fasteners
Use the strongest correct profile and support adjacent parts. Apply force smoothly. Shock loading an ordinary spanner with a hammer can initiate cracks and eject the tool.
Use a purpose-made striking spanner only within its instruction, with an appropriate hammer and exclusion zone.
Extensions and extra leverage
A pipe over a handle multiplies bending stress beyond the design and can slip. Linking two spanners by their rings or jaws creates unstable contact and side load.
Choose a rated longer spanner or other correct drive tool. Respect the fastener, component and tool torque limits.
Torque adaptors
An in-line crowfoot extends a torque wrench's effective lever, so the wrench setting must be calculated from the specified centre distances. At a true 90-degree orientation, some procedures require no length correction.
Follow the torque-tool manufacturer's formula and maintain the orientation while pulling. Offset or hand position changes can invalidate the calculation.
Safe-use controls
| Stage | Control | Failure prevented |
|---|---|---|
| Identify | Exact size, profile, thread and torque known. | Rounded fastener and wrong direction. |
| Inspect | Jaws, ring, handle and mechanism sound. | Tool release or fracture. |
| Seat | Full flat contact with tool square. | Corner loading. |
| Position | Stable stance and knuckle escape path. | Impact injury after release. |
| Load | Smooth in-plane force within rating. | Jaw spread and bent handle. |
| Tighten | Specified torque/angle with correct adaptor maths. | Wrong clamp load. |
| Store | Clean, dry and sorted by size/system. | Corrosion and wrong-tool selection. |
Hydraulic and brake fittings
Use a flare-nut profile early, before an open jaw damages the union. Counterhold the mating part with another exact spanner so torque does not travel into hose or pipe.
Replace a rounded or corroded union and any twisted pipe. Leaks in brake or fuel systems require their full safety and pressure test.
Electrical and hybrid work
Ordinary chrome spanners conduct electricity. High-voltage isolation, proving dead and certified insulated tools require trained procedures. A plastic-dipped handle is not proof of protection.
Remove loose metal tools and jewellery around batteries, where a short circuit can deliver extremely high current.
Cleaning and storage
Wipe chemicals and moisture promptly. Clean ratcheting heads without flooding incompatible solvent into the mechanism; lubricate only as specified. Do not polish away size or safety markings.
Use racks or trays that make missing tools visible and separate metric from inch sizes. Dry storage prevents corrosion beneath damaged plating.
Common mistakes
- Using the closest metric size on an inch fastener.
- Starting high breakaway torque with a fine ratcheting ring.
- Applying an open end only halfway onto the flats.
- Loading an adjustable spanner against its movable jaw.
- Extending a handle with pipe or interlocking two spanners.
- Striking a tool not marked for striking.
- Ignoring crowfoot effective length during torque work.
- Treating a dipped handle as certified electrical insulation.
Practical spanner FAQs
Q: Can a near-size spanner be used?
A: No; select the exact measurement system and size.
Q: When is a six-point ring preferable?
A: For high load on a standard hex where access permits.
Q: What is a flare-nut spanner for?
A: It supports hydraulic unions while passing over their pipes.
Q: Which way should an adjustable spanner face?
A: Arrange the fixed jaw to carry the main force.
Q: Can a ratchet ring release a seized nut?
A: Use a stronger fixed profile if its rating is uncertain.
Q: May a pipe extend the handle?
A: No; use a rated tool designed for the required leverage.
Q: Can a bent spanner be straightened?
A: No; yielded material is no longer trustworthy.
Q: Why pull rather than push?
A: It can reduce knuckle injury if the tool releases.
Q: Does a crowfoot change torque output?
A: It can, depending on effective length and orientation.
Q: Can chrome spanners be hammered?
A: Only a purpose-made marked striking tool should be struck.
Q: Are rubber-grip spanners electrically safe?
A: Only certified voltage-rated tools provide electrical protection.
Q: Why counterhold a pipe fitting?
A: It prevents torque twisting the hose or hard line.
Q: What confirms correct tool choice?
A: Exact fit, suitable profile, adequate access and sufficient rating.
