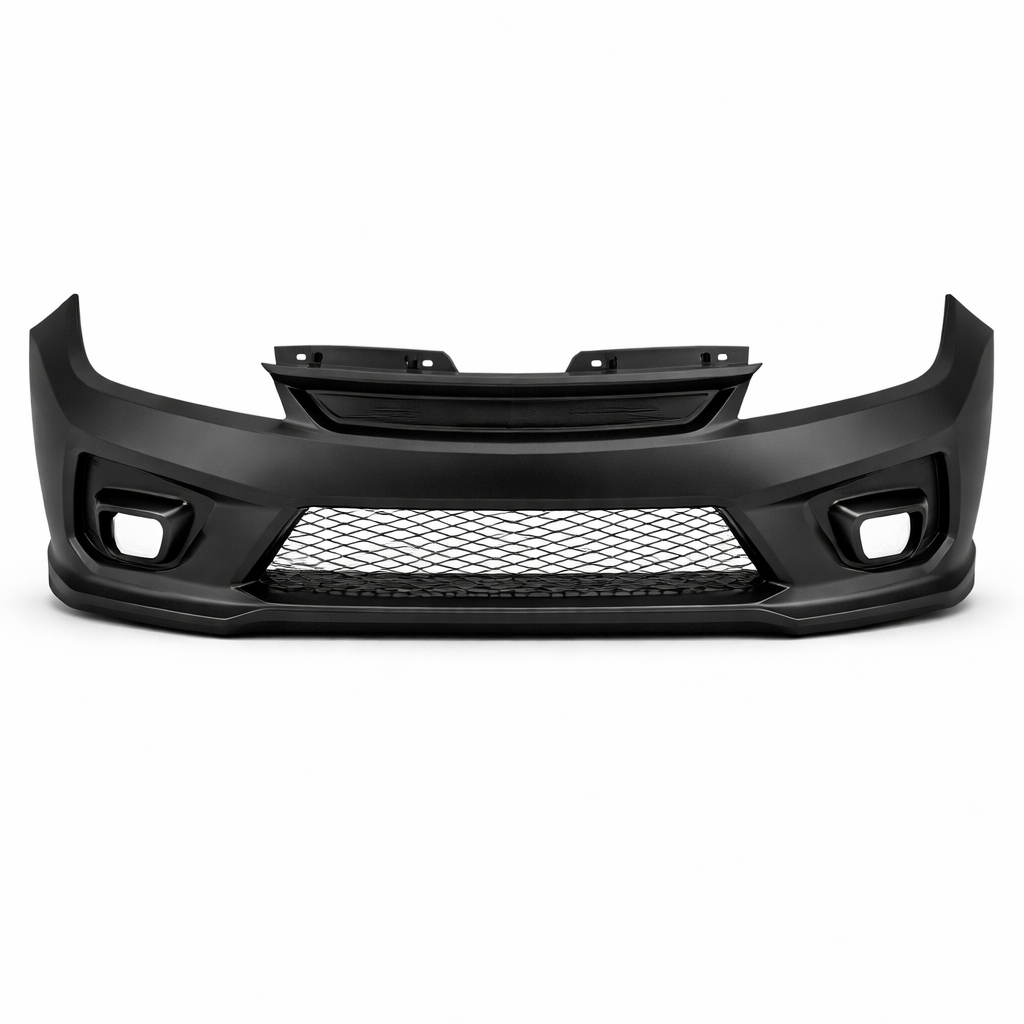

A bumper is a layered energy-management system
The outer cover provides aerodynamics, styling and low-speed contact resilience. An absorber spreads energy into a metal or composite beam, while crash boxes connect that beam to strong body rails and deform in a designed sequence.
These parts are not interchangeable cosmetic trim. Material, shape and mounting determine how loads reach the body and how sensors view the road.
Main bumper components
| Component | Role | Inspection focus |
|---|---|---|
| Cover/fascia | Exterior surface, airflow and minor-contact resilience. | Cracks, torn tabs, distortion and equipment openings. |
| Energy absorber | Compresses in lower-energy impact. | Permanent crush, missing sections and correct orientation. |
| Reinforcement beam | Distributes impact across vehicle structure. | Bending, cracks, corrosion and prohibited repairs. |
| Crash box | Controlled deformation between beam and rail. | Folds, elongation and fastener-seat damage. |
| Side guide/bracket | Locates cover to wing or quarter panel. | Broken clips and panel-gap control. |
| Lower grille/duct | Feeds radiator, brakes or intercooler. | Blockage and missing seals. |
| Harness/sensor carrier | Positions parking and assistance hardware. | Angle, clips, corrosion and calibration. |
Cover materials
Polypropylene blends
Widely used for flexibility and impact resistance. Surface energy is low, so refinishing needs correct cleaning and adhesion promotion.
ABS and PC blends
Provide rigidity and detail but use different repair and solvent limits. Identify moulded material marks before welding or bonding.
Composite panels
Fibre-reinforced parts may crack beneath paint and need resin-compatible structural repair. Dust requires controlled extraction and PPE.
Textured finishes
Unpainted grain is moulded into the surface. Sanding and heat repair alter texture, so replacement or specialist restoration may be preferable.
Exact fitment checks
| Check | Possible variation | Why it matters |
|---|---|---|
| Front/rear and body | Hatch, saloon, estate, van or sport model. | Overall shape and mounting differ. |
| Build date/facelift | Lamps, grilles and body lines change. | Similar panels may not align. |
| Parking sensors | None, different count, size or angled holders. | Beam direction depends on holder geometry. |
| Radar/camera | Mount, transmission window and grille material. | Wrong paint or structure can block signals. |
| Lighting/washers | Fog lamps, DRLs and headlamp jets. | Openings and brackets must match. |
| Cooling package | Radiator, intercooler and brake ducts. | Airflow seals and apertures vary. |
| Exhaust/tow equipment | Rear outlets, diffuser and tow-bar cut. | Heat and clearance requirements differ. |
| Part scope | Bare cover, primed assembly or complete module. | Clarifies transfer parts and refinishing. |

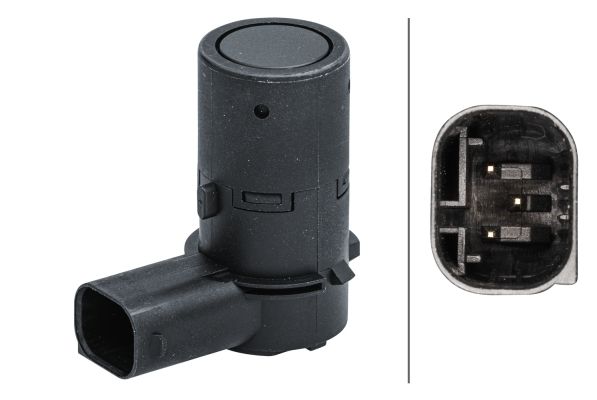

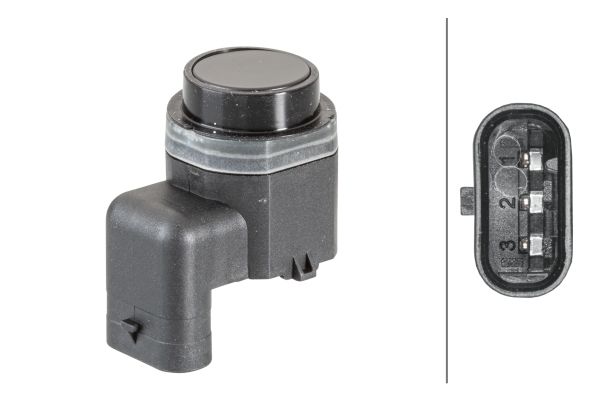

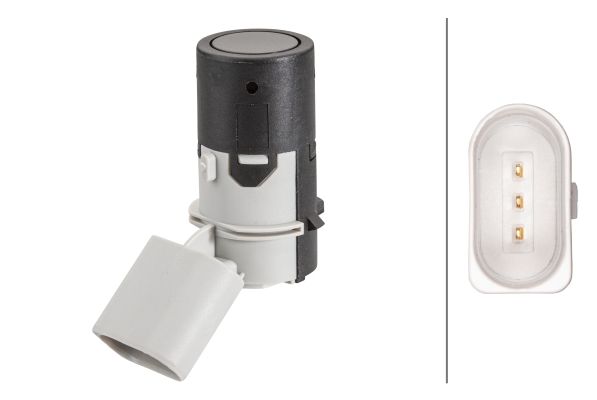

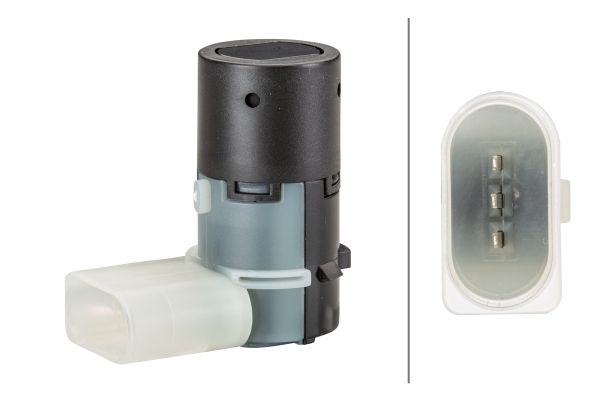

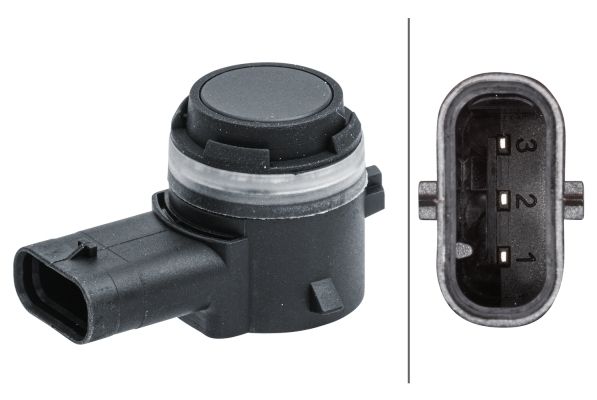

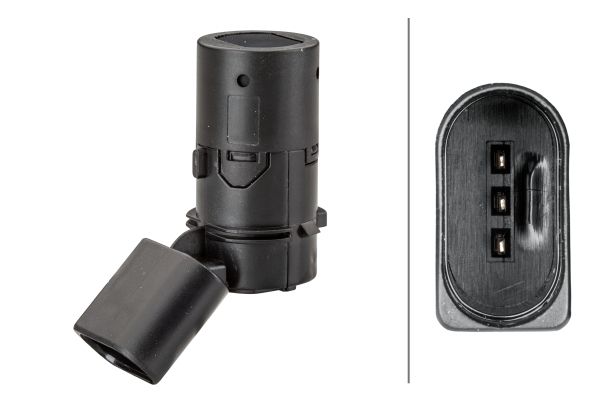

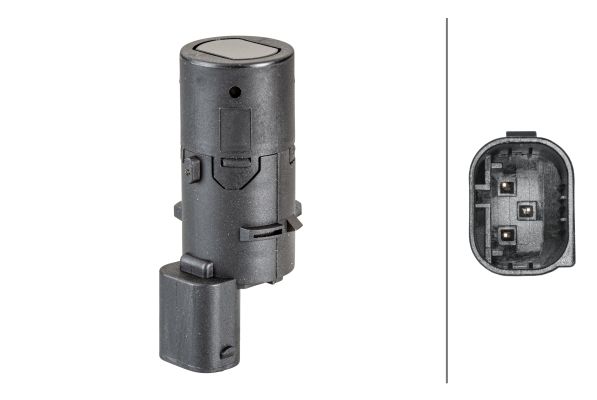

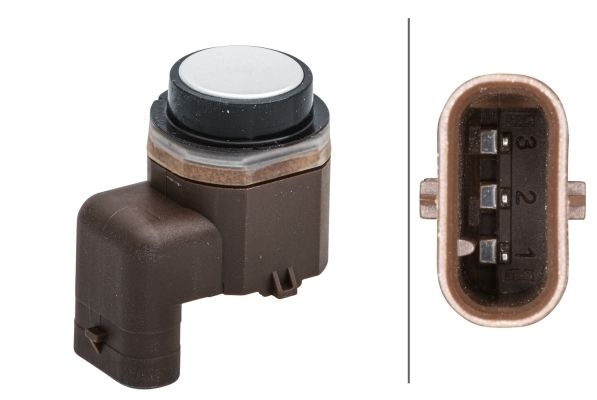

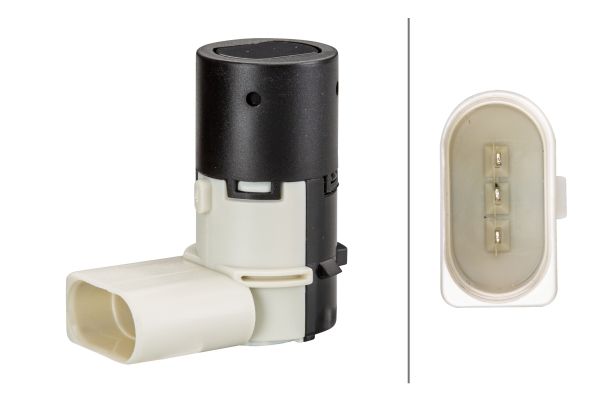

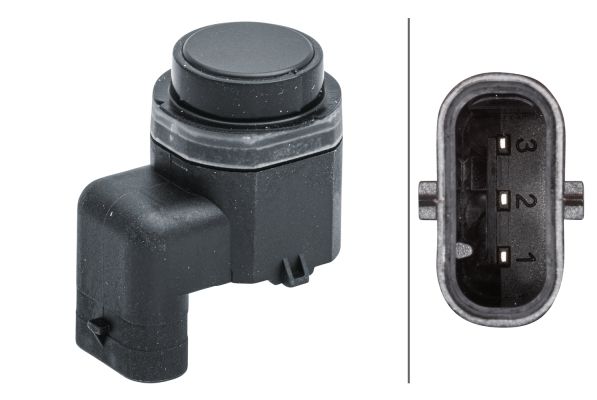

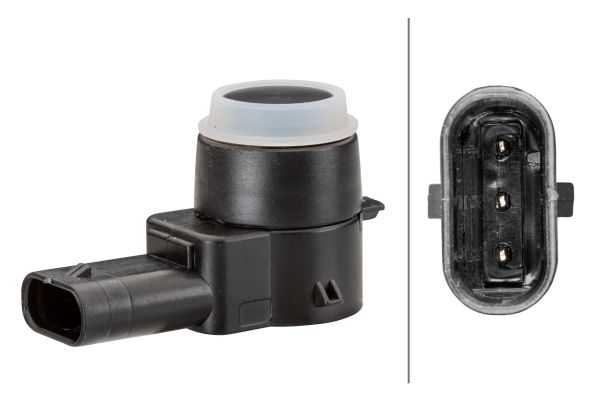

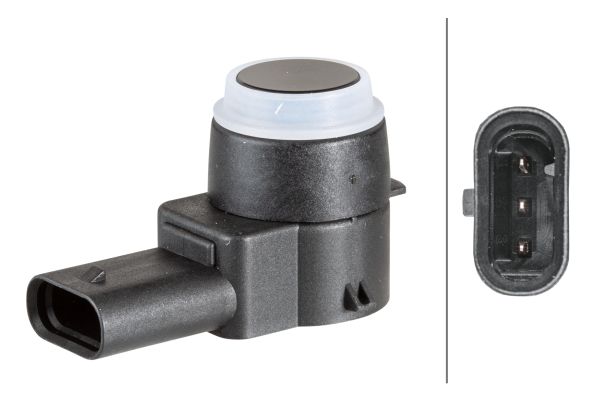

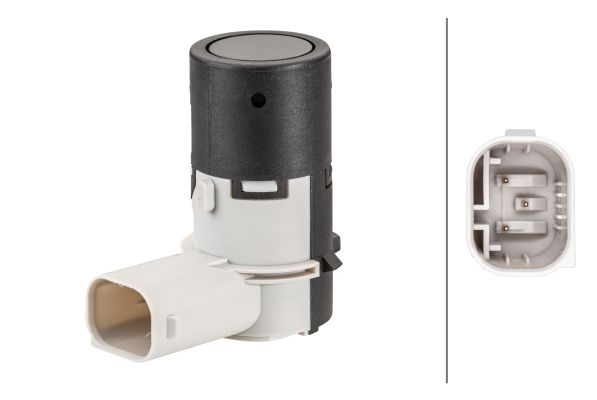

Parking sensors and holders

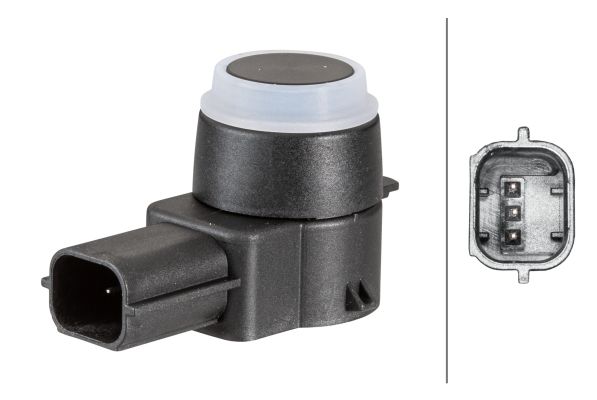

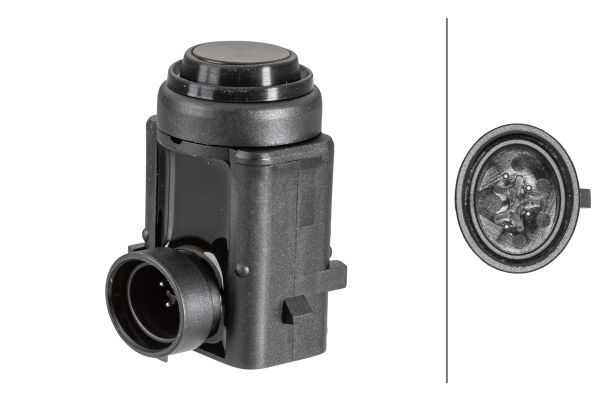

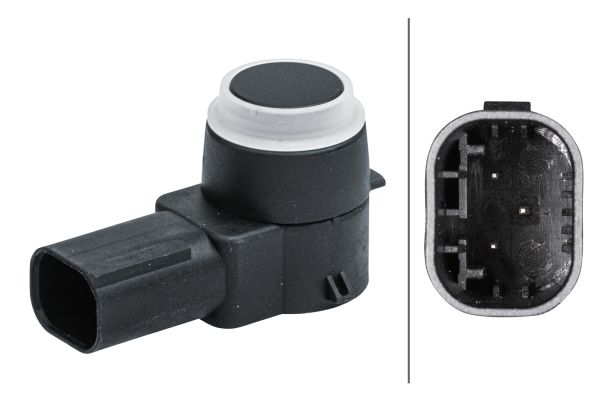

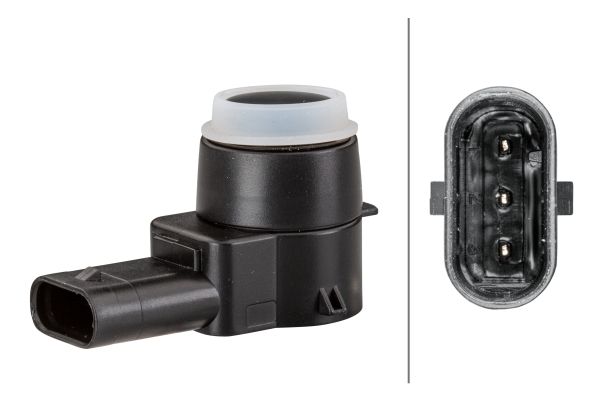

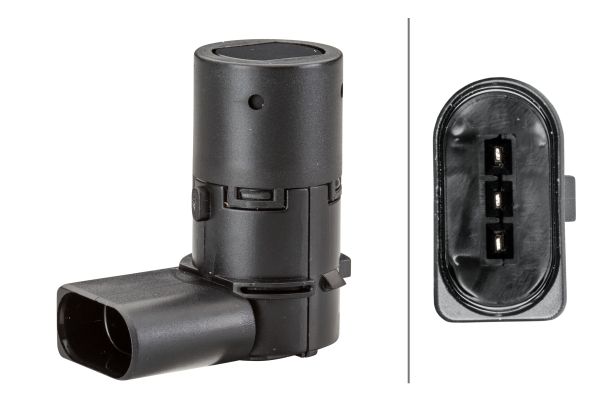

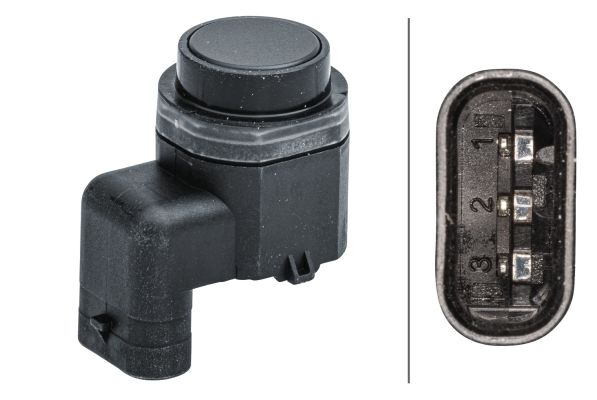

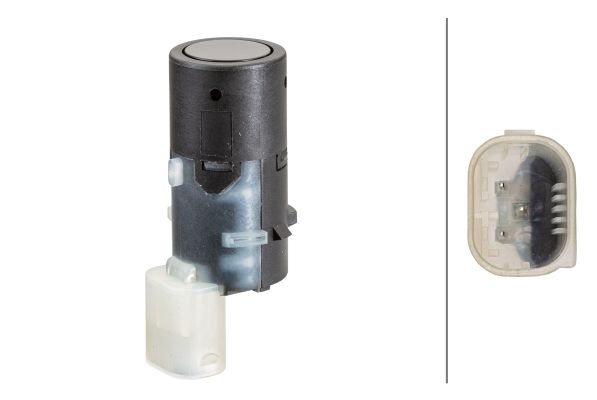

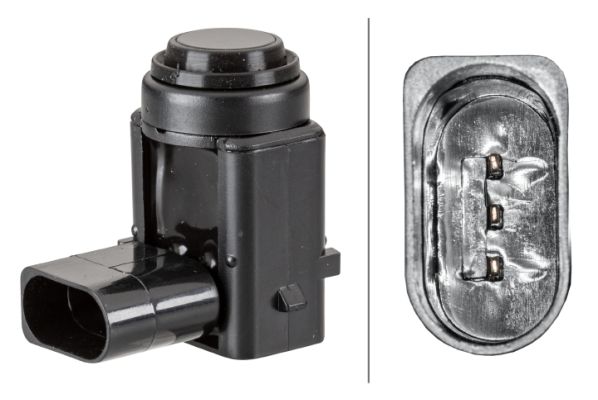

Ultrasonic sensors sit at a designed height and angle. Holders are often side- and position-specific; gluing one flat into a curved bumper creates false readings. Preserve decoupling rings and orientation marks.
Paint film over the sensing face must remain within system limits. Heavy filler or multiple refinishes change acoustic behaviour. Diagnose wiring and scan data before replacing a sensor.
Radar, cameras and signal transmission
Forward radar may sit behind a grille emblem or designated bumper zone whose thickness, material and coating are controlled. Metallic filler, unsuitable paint or a non-approved badge can attenuate or reflect radio waves.
A camera mount fixes its field of view. Any change to bracket, bumper position or ride height can require calibration. Do not file mounts to make an image appear level.
Pedestrian-protection systems
Some front bumpers include pressure tubes, acceleration sensors, deformable lower structures or active-bonnet triggers. Their routing and crush characteristics are safety-critical. A seemingly empty foam piece may be designed for leg-impact performance.
Follow post-impact replacement rules and diagnostic procedures. Do not bypass sensors or reuse deployed pyrotechnic devices.
Impact assessment
| Finding | Possible hidden damage | Required check |
|---|---|---|
| Scuffed cover only | Absorber or bracket may still be compressed. | Remove/inspect where impact energy warrants. |
| Uneven panel gaps | Side guide, beam or body rail movement. | Measure mounting points and structure. |
| Cover springs back | Beam can remain bent behind it. | Inspect reinforcement directly. |
| Sensor warnings | Holder angle, harness or calibration altered. | Scan and inspect before parts replacement. |
| Boot/bonnet alignment changed | Rear/front body structure moved. | Professional dimensional assessment. |
| White stress marks in plastic | Material yielded or cracked internally. | Assess repairability by polymer and location. |
| Crushed foam | Energy absorber spent. | Replace; do not reshape with heat. |
Repairability of plastic covers
Small non-structural cracks and torn tabs may accept plastic welding, hot stapling plus reinforcement, or adhesive repair when approved for the polymer and location. Clean both sides and restore shape before reinforcement.
Repairs near radar zones, sensor holders, sharp edges or heavily stressed mounts need stricter limits. Excess filler adds weight and cracks with flex. Replace a cover that cannot retain equipment or meet finish and safety requirements.
Reinforcement beams and crash boxes
High-strength steel, aluminium and composite beams use specific heat treatment and crush behaviour. Straightening, drilling or welding changes performance. Follow manufacturer repair methods and replace components identified as non-repairable.
Use new structural bolts where specified and inspect threaded body rails. Torque sequence and clamp condition affect load transfer.
Cooling and aerodynamic seals
Foam and plastic ducts force air through heat exchangers rather than around them. Missing seals can reduce cooling at load even though the grille opening looks clear. Active grille shutters need free travel and calibration.
Undertrays control airflow and protect wiring. Restore every clip and fastener so panels cannot detach at speed.
Removal and installation
- Record panel gaps, sensor functions, codes and camera/radar status.
- Move the vehicle to a safe level area and isolate systems as specified.
- Protect wings, lamps, tailgate/bonnet and painted edges.
- Remove wheel-liner, undertray, grille and upper fasteners in sequence.
- Support the cover before releasing side guides.
- Disconnect lamps, washers, sensors and harness retainers individually.
- Inspect absorber, beam, crash boxes, guides and body dimensions.
- Compare moulded references, openings, material and equipment mounts.
- Transfer sound components with new seals and clips where required.
- Offer the cover without force, then set side guides and gaps.
- Torque structural and trim fasteners to their distinct specifications.
- Test, code and calibrate every affected safety and lighting function.
Refinishing a bumper cover
Identify polymer, remove mould release, wax and silicone, and use compatible cleaner and adhesion promoter. Flexible plastics need a coating system designed for their movement. Cure temperatures must remain safe for the material and embedded electronics.
Keep paint thickness controlled over parking sensors and radar zones. Remove sensors where instructed rather than masking heavy edges around them.
Tow bars, towing eyes and access covers
A tow-bar installation may use an approved template cut in the lower valance. Random cutting weakens tabs and leaves sharp edges. Removable tow-bar mechanisms require specified clearance and heat protection.
The threaded towing-eye receiver belongs to structural hardware behind the cover; the small flap merely provides access. Confirm the receiver was not damaged in impact.
Common mistakes
- Selecting a cover by outline while ignoring sensor and cooling options.
- Assuming a cover that springs back means no hidden crash damage.
- Gluing parking-sensor holders at the wrong angle.
- Using metallic filler or excess paint in a radar transmission zone.
- Heat-straightening an energy absorber or reinforcement beam.
- Letting the cover hang from its wiring or washer hoses.
- Omitting ducts, foam seals, undertrays and small retainers.
- Skipping ADAS calibration after mount or alignment change.
UK MOT and road-safety relevance
A bumper must not be insecure, likely to detach or present dangerous sharp edges. Required lamps, number plates, sensors tied to warning systems and body structure may also affect the MOT result.
Cosmetic appearance is not proof of crash performance. Restore hidden structural and assistance components using current repair data and inform the insurer where collision repair or modification requires it.
Practical bumper FAQs
Q: Is the bumper cover the whole bumper?
A: No. Absorber, beam, crash boxes, brackets and sensors sit behind it.
Q: Can a cracked plastic bumper be repaired?
A: Sometimes, using a material- and location-approved process.
Q: Why do two identical-looking covers differ?
A: Build date, trim, sensor, radar, lamp and cooling openings can vary.
Q: Are parking-sensor holes universal?
A: No. Size, position, angle and holder geometry are application-specific.
Q: Can a radar work through any bumper?
A: No. Material, thickness, paint and mounting zone must be approved.
Q: Does the bumper need calibration?
A: Radar or camera systems may require it after replacement or alignment change.
Q: Can compressed absorber foam be reused?
A: No, replace energy-absorbing material that has permanently crushed.
Q: Can a bent reinforcement bar be straightened?
A: Only if explicit manufacturer repair data permits it; many require replacement.
Q: Why does the new bumper gap look wrong?
A: Check side guides, hidden damage, part variant and mounting sequence.
Q: Can I paint over parking sensors?
A: Only within the sensor maker's approved coating type and film thickness.
Q: Are bumper clips important?
A: Yes. Missing retainers cause movement, gaps and possible detachment.
Q: What should be checked after a low-speed impact?
A: Cover, absorber, beam, crash boxes, wiring, sensors and body alignment.
Q: Can a damaged bumper fail the MOT?
A: Yes, if insecure, dangerous, structurally defective or affecting required equipment.
