A speaker is an electromechanical load and an acoustic system
Current through the voice coil creates a magnetic force that moves the cone. The surround and spider centre it, while the door, dashboard or enclosure controls the air behind it.
Frequency response depends on driver, mounting, cabin reflections, crossover and equalisation. Replacing one element without considering the system can make sound worse.
Vehicle speaker types
| Type | Frequency role | Typical location | Service concern |
|---|---|---|---|

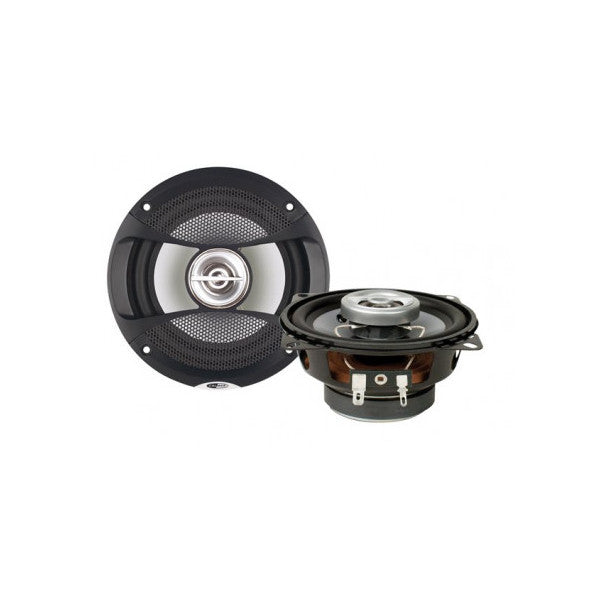

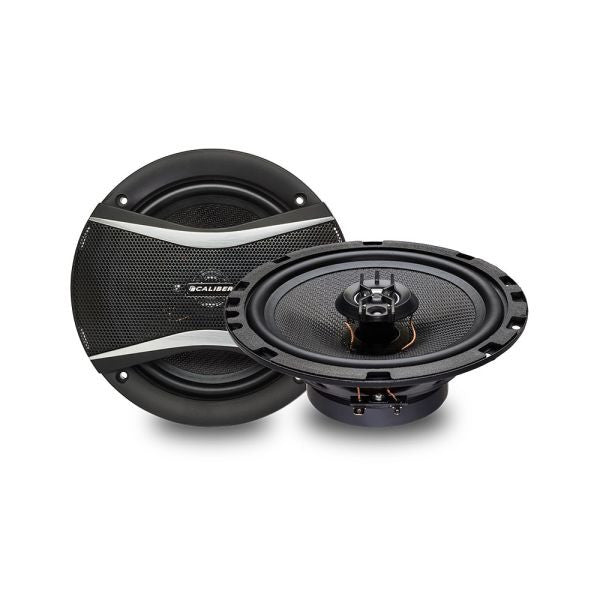

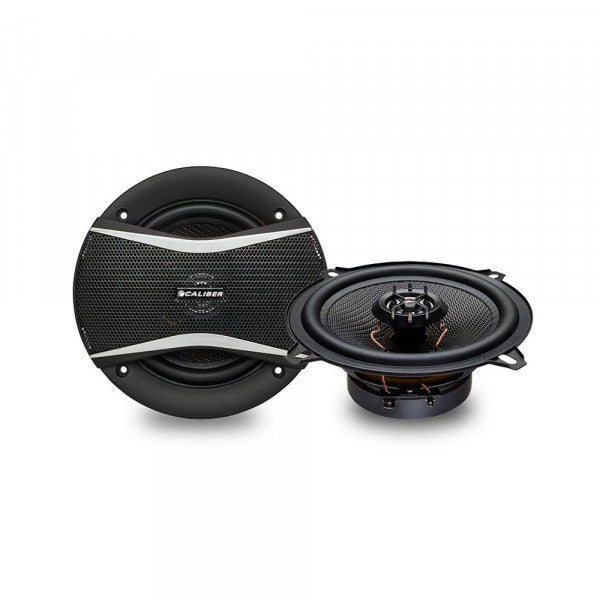

| Full-range/coaxial | Broad range from one assembly. | Doors/rear panels. | Depth, grille and integrated tweeter clearance. |
| Mid-bass/woofer | Low and lower-mid frequencies. | Door or side panel. | Door sealing and excursion clearance. |
| Tweeter | High frequencies. | A-pillar, sail panel or dash. | Crossover, polarity and aiming. |
| Centre channel | DSP image/voice content. | Top dashboard. | Airbag/sun sensor proximity. |
| Subwoofer | Low bass. | Boot, under-seat or spare-wheel well. | Enclosure volume and current demand. |
| Exciter/headrest driver | Localised sound or panel excitation. | Seat/headlining/panel. | Restraint and structural integration. |
Electrical matching
Nominal impedance is not a constant resistance
A speaker labelled 2, 4 or 8 ohms varies with frequency. The amplifier is designed for a minimum load and channel topology. Too low a load raises current and heat; too high reduces available output.
Do not infer impedance from a simple DC reading alone, although coil resistance can help identify an open circuit. Use system data and driver specification.
Selection checklist
| Parameter | Why it matters | Mismatch result |
|---|---|---|
| Impedance | Sets amplifier current/load. | Protection, overheating or low level. |
| Sensitivity | Output for given power. | One channel much quieter/louder. |
| Power handling | Thermal and excursion limits. | Coil or suspension damage. |
| Depth/magnet | Clearance to glass/regulator. | Mechanical contact. |
| Mount/seal | Rigid baffle and air separation. | Rattle and weak bass. |
| Crossover/DSP | Protects driver and shapes response. | Harsh balance or over-excursion. |
Factory amplified systems
Premium systems may amplify each driver separately and apply time alignment, active crossover, protection and noise compensation. The speaker can have multiple terminals or an identification circuit.
Replacing it with a passive coaxial unit can put two amplifier channels in conflict. Identify the exact audio option and wiring.
Cone, surround and voice-coil materials
Paper composites can be light and well damped but need moisture treatment; polypropylene resists water; metal or fibre cones trade stiffness against resonances. Rubber and foam surrounds age differently under heat, UV and ozone.
Material marketing does not predict system sound alone. Cone mass, motor strength, suspension and crossover are designed together, so a visually more exotic driver can be less suitable for the factory amplifier.
Door volume and acoustic sealing
A door speaker normally uses the inner door cavity as a large, imperfect enclosure. The mounting gasket separates front and rear waves; gaps let them cancel at bass frequencies.
Drainage and pressure equalisation must remain open despite acoustic sealing. Do not fill the door with foam or cover crash-access apertures contrary to body and restraint instructions.
Speaker efficiency and cabin gain
Sensitivity is measured under stated voltage, distance and acoustic conditions, which may differ between products. A low-impedance driver tested at the same voltage receives more electrical power, making comparisons misleading.
The small vehicle cabin reinforces some bass frequencies and creates seat-dependent peaks. Evaluate matched channels and DSP rather than judging a loose speaker on a workbench.
Symptoms and diagnosis
| Symptom | Speaker cause | Other cause | Test direction |
|---|---|---|---|
| No sound one location | Open coil/terminal. | Amplifier, coding or hinge wire. | Channel command, continuity and known load. |
| Buzz on bass | Torn surround, loose dust cap. | Door card, harness or loose fastener. | Frequency sweep/listening probe. |
| Distortion all channels | Unlikely all speakers at once. | Source clipping, amplifier supply or EQ. | Signal and supply analysis. |
| Weak bass | Polarity reversal or air leak. | DSP setting or enclosure. | Polarity and baffle seal. |
| Intermittent with door | Connector possible. | Broken hinge harness. | Voltage/signal while moving door safely. |
| Wet/corroded cone | Water damage. | Door membrane/drain fault. | Correct leak before replacement. |
Listening tests
Use known clean mono speech, pink noise or a controlled frequency sweep at modest volume. Isolate channels with fade/balance without driving a tweeter below its crossover.
Human hearing localises rattles poorly in a cabin. Press trim only with fingers clear of airbags and moving parts, or use acoustic diagnostic tools.
Electrical tests
Power down before resistance checks and disconnect the speaker from the amplifier. An infinite reading suggests an open coil; near-zero may indicate a short, but expected DC values vary.
Do not use a battery “pop” test on tweeters, amplified modules or unknown wiring. It can damage drivers and electronics.
Amplifier output topology
Many automotive amplifiers use bridge-tied outputs where both speaker wires are driven. Neither is chassis earth. Grounding one side can destroy the amplifier.
Oscilloscope and dummy-load testing needs rated equipment and audio expertise. Never short channels together for a mono speaker.
Power ratings
Continuous/RMS-like thermal ratings are more useful than inflated peak numbers, but standards differ. A high-rated speaker can still be destroyed by clipped low-power output or frequencies below its safe range.
Clean gain structure, crossover and enclosure protect the driver. Do not choose solely by the largest watt figure.
Preparation and restraint safety
| Area | Hazard | Control |
|---|---|---|
| Door trim | Side airbag and sharp edges. | Power down and follow panel procedure. |
| A-pillar | Curtain airbag/tether. | Use exact clip and routing data. |
| Under seat | Seat airbag, occupancy wiring and movement. | Isolate and secure seat position. |
| Dashboard | Passenger airbag, sun/safety sensors. | Do not alter deployment path. |
| EV/hybrid | High-voltage and active sound modules. | Observe isolation and configuration. |
Door-panel removal
Locate hidden fasteners and release clips close to their bases. Support the panel and disconnect cables/connectors rather than hanging it by them.
Restore one-time clips. A loose door card creates rattles that can be mistaken for speaker failure.
Moisture management
Water normally passes the outer glass seal and drains through the door. The speaker needs a water-resistant cone or shield and a sealed mounting ring without blocking drains.
Repair torn moisture membranes. Do not enclose a driver in a plastic bag that prevents cone movement or traps condensation.
Adapters and mounting depth
Use a rigid moisture-resistant adapter with correct bolt pattern. Lower the window carefully by the service method and confirm glass/regulator clearance through full travel.
Do not drill an intrusion beam or leave sharp screws near wiring. Seal the baffle face so front and rear acoustic waves do not cancel.
Polarity and phase
Maintain marked positive/negative connections across channels. Reversed polarity does not normally harm a speaker, but opposing cones cancel bass and distort imaging.
Factory wiring colours are not universal. Use diagrams or a safe polarity tool.
Crossovers
A passive crossover divides frequencies with capacitors and inductors; an active DSP divides them before amplification. Tweeters need high-pass protection.
Do not add a passive crossover to actively filtered channels without design analysis. Combined impedance can change amplifier load.
Sound deadening and modifications
Controlled damping can reduce panel resonance, but material must be flame-resistant, securely bonded and clear of drains, airbags and window mechanisms.
Excess mass changes door hinges and crash behaviour. Do not cover service holes or identification labels indiscriminately.
Installation verification
| Check | Pass condition | Failure prevented |
|---|---|---|
| Mount | Rigid, sealed and no panel stress. | Rattle/weak bass. |
| Clearance | Glass and regulator move freely. | Broken glass/speaker. |
| Wiring | Locked, protected and away from movement. | Intermittent short. |
| Polarity | Correct across all channels. | Acoustic cancellation. |
| System functions | Chimes, calls, navigation and audio work. | Lost safety alerts. |
| Fault memory | No recurrent amplifier/network codes. | Hidden mismatch. |
Commissioning
Begin at low volume with flat settings, then test frequency range and channels. Listen for mechanical contact and amplifier protection.
Perform DSP coding or calibration where required using correct microphones and stable voltage. Avoid hearing-damaging levels.
Common mistakes
Errors include choosing by diameter, ignoring impedance, reversing one channel, leaving an air leak, drilling door structure and testing unknown wires with a battery.
Do not bypass factory warning-chime speakers or mount equipment in airbag deployment zones.
UK safety and legal context
Audio must not prevent the driver hearing warnings or emergency vehicles. Installation must preserve airbags, door structure, visibility and electrical safety.
Secure amplifiers and subwoofers against crash loads and fuse added power circuits close to the supply by approved design.
Practical vehicle-speaker FAQs
Q: Can speakers be chosen by diameter?
A: No. Impedance, depth, mounting and system tuning must match.
Q: Is a 4-ohm speaker always standard?
A: No. Factory systems often use different impedances.
Q: Does a higher watt rating make it louder?
A: Not alone; sensitivity and amplifier power matter.
Q: Can either speaker wire be earthed?
A: No. Many amplifiers drive both wires.
Q: Why is bass weak after replacement?
A: Reversed polarity or a leaking mount is common.
Q: Can a battery pop-test any speaker?
A: No. It can damage tweeters or electronics.
Q: Must the door membrane be restored?
A: Yes. It manages water and protects the cabin.
Q: Can speaker screws enter a door beam?
A: No. Preserve structural and window clearances.
Q: Does distortion always mean a blown driver?
A: No. Amplifier clipping and trim rattles can mimic it.
Q: Are factory premium speakers direct replacements?
A: Often they require exact low-impedance/DSP-compatible parts.
Q: Must warning chimes be tested?
A: Yes. They may share the audio system.
Q: Can any damping material go inside a door?
A: No. It must preserve drains, airbags and mechanisms.
Q: What proves a correct installation?
A: Balanced clean sound, full vehicle functions and no faults or rattles.
