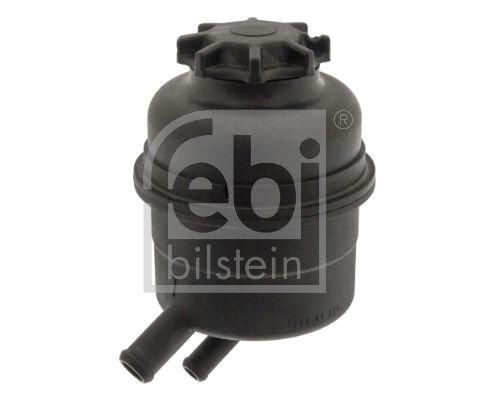

The reservoir supports flow, cooling and air separation
In a hydraulic power-steering system, the pump draws fluid from the reservoir and sends it under pressure to a control valve in the steering gear or rack. The valve directs assistance to the side that reduces steering effort, after which the fluid returns at low pressure. The reservoir holds enough reserve volume for this circulation, manages thermal expansion and allows entrained air to rise out before the fluid re-enters the pump.
Although it appears passive, its port geometry matters. A correctly positioned return inlet reduces turbulence near the pump outlet, while an adequate feed passage prevents suction restriction. Some reservoirs incorporate a screen or filter which is not intended to be removed. If that element becomes restricted, the pump can whine and cavitate even though the level looks correct.
Steering layouts determine the correct component
| System layout | Reservoir arrangement | Power source | Important identification point |
|---|---|---|---|
| Belt-driven hydraulic | Remote or pump-mounted tank | Engine-driven vane pump | Engine, pump and hose-port specification |
| Electro-hydraulic | Often integrated with an electric pump | High-current electric motor | Pump assembly reference and approved fluid |
| Hydraulic central system | May share supply with other functions | Engine or electric hydraulic pump | Whole-system fluid and circuit design |
| Electric power steering | No hydraulic reservoir | Column or rack motor | Do not fit hydraulic parts to an EPS diagnosis |
Confirm that the vehicle actually uses hydraulic fluid. An electric power-steering warning lamp does not prove there is a reservoir, and an electro-hydraulic pump may operate with the engine stopped. Treat automatic operation and high-current wiring as additional hazards.
Fitment is more specific than the container shape
Use the VIN and production data, then compare the original part number, moulded markings, cap type, brackets and ports. Feed and return stubs can have different internal diameters even where their outside shape is close. The reservoir must sit at the designed height and orientation so the pump remains flooded and the level marks are meaningful.
| Match point | What to compare | Risk if incorrect |
|---|---|---|
| Outlet and return ports | Diameter, angle, spacing and connection style | Restriction, leakage or reversed hose routing |
| Capacity and baffles | Original volume and internal construction | Foaming or inadequate expansion space |
| Mounting | Bracket holes, locating pegs and installed angle | Stress cracks or inaccurate level |
| Cap and vent | Thread, seal, dipstick and pressure/vent design | Contamination, leakage or pressure imbalance |
| Materials | Vehicle application and stated fluid compatibility | Swelling, softening or brittle failure |
| Included parts | Cap, grommets, filter, clips and bracket | Unplanned reuse of damaged components |
Fluid specification is a hard boundary
The vehicle handbook or repair data defines the required product through a standard, manufacturer approval or exact part specification. Descriptions such as “power-steering fluid”, “ATF” or “hydraulic oil” are too broad on their own. A vehicle may require a particular automatic-transmission-fluid approval, a dedicated power-steering product or a low-viscosity central-hydraulic fluid designed for a wide temperature range.
Do not select by colour. Dyes vary between brands and darken with use, while incompatible fluids can share a colour. Never add a universal treatment or leak-stopping additive unless the vehicle manufacturer explicitly approves it. Additives can alter friction, viscosity, filter flow and seal behaviour.
Contamination control begins before the cap opens
Clean around the filler neck, cap and hose joints so grit cannot enter. Use unopened or correctly stored fluid and dedicated clean equipment. Lint, brake-cleaner residue, water or particles small enough to pass casual inspection can damage pump and control-valve surfaces. Cap lines promptly during replacement and do not use a workshop drain tray as a source of refill fluid.
Keep product families separate
Funnels, syringes and transfer bottles should be identified for the fluid they carry. Cross-contamination from a tool previously used for brake fluid, coolant or a different hydraulic product can be more damaging than the small volume suggests.
Level must be read under the specified conditions
Some systems use separate hot and cold marks; others specify an engine-running or engine-stopped check with wheels pointing straight ahead. The difference accounts for expansion and circuit fill. Park on level ground and follow the stated temperature procedure. Do not assume that filling to the highest visible line is correct.
Overfilling reduces the air space needed for expansion and can push aerated fluid through the vent. Underfilling exposes the pump feed and draws air during cornering or steering movement. In either case, clean the exterior and establish the true source rather than repeatedly changing the level.
Foam and noise point towards an inlet problem
A pump whine accompanied by milky or bubbly fluid suggests aeration or cavitation. Air can enter through a loose clip, hardened suction hose, damaged reservoir outlet seal or low fluid level without producing an obvious outward leak, because the feed side operates below atmospheric pressure. A restricted integral filter can also starve the pump.
Do not continue holding the steering at full lock to “clear” the noise. At full lock the relief valve operates, fluid temperature rises quickly and the pump experiences high load. Use the correct bleeding sequence and stop if aeration persists.
Symptoms require system-level diagnosis
| Observation | Reservoir-related possibility | Other causes to investigate | Urgency |
|---|---|---|---|
| Wet tank or bracket | Crack, cap seal or port leak | Hose leak or fluid carried from elsewhere | Identify promptly; do not allow level to fall |
| Whine when turning | Low level, restricted filter or suction air | Pump wear, belt slip or incorrect fluid | Stop if assistance changes or foam develops |
| Heavy steering | Starved pump feed | Pump, rack, belt, voltage or mechanical joint fault | Safety-critical; diagnose before driving |
| Fluid expelled from cap | Overfill, blocked vent or return turbulence | Severe aeration or overheating | Allow cooling and correct the cause |
| Dark debris in fluid | Filter loading or reservoir degradation | Pump, hose or rack wear | Assess the whole circuit for contamination |
| Assistance varies with temperature | Restriction or unsuitable fluid | Pump clearances, belt or electrical supply | Test cold and hot to repair data |
The reservoir material records heat and age
Translucent engineering plastic permits level viewing but can discolour, become brittle or develop crazing near stressed mouldings. Rubber grommets harden and hoses lose elasticity after years of heat and oil exposure. Metal reservoirs can corrode internally if water enters or externally where brackets trap moisture.
Replace a tank with cracks, distorted ports, insecure mountings or damaged sealing surfaces. Adhesive repair is unsuitable because fluid compatibility, vibration and under-bonnet temperature cannot be assured. Do not lever against a plastic neck when releasing a hardened hose.
Inspect the complete return and feed path
Before fitting a new reservoir, check the suction hose for softness, internal collapse and air-leaking joints. Inspect the return line for kinks and poor repairs. Confirm brackets do not transmit abnormal stress and that adjacent components have not rubbed through the body. If the old fluid contains metal or elastomer fragments, investigate pump and rack damage rather than treating the reservoir as the only failed item.
Flushing must follow manufacturer instructions
There is no universal flushing method. Some procedures circulate fresh fluid through a disconnected return while preventing the pump from running dry; others require specialist equipment or component replacement after contamination. Mixing old and new specifications in an improvised flush can worsen the condition. Dispose of recovered oil through an authorised waste stream.
If the reservoir contains a non-replaceable filter, cleaning it with solvent or compressed air may damage the medium or drive contamination further into it. Replace the approved assembly when the service information calls for renewal.
Removal controls pressure, heat and automatic operation
Park securely, centre the steering and let the fluid cool. Follow the vehicle’s battery procedure, particularly where an electro-hydraulic pump can start when a door opens or the ignition wakes. High-voltage vehicles require their defined isolation method; a 12-volt disconnection alone does not make every circuit safe.
Relieve only by the prescribed procedure. Low-pressure hoses can still release hot oil, and pressure pipes must never be loosened as an informal test. Protect belts, tyres, brakes and painted surfaces from spilled fluid, then clean any contamination immediately with a compatible method.
Installation preserves hose bore and reservoir orientation
Prepare the sealing points
Remove old seal fragments without scratching spigots. Renew specified O-rings, grommets and clips, lubricating only with the approved fluid where instructed.
Route without restriction
Seat each hose fully, maintain its natural bend radius and restore heat shields and clips. A kink on the large pump-feed line can mimic a failed pump.
Support the tank correctly
Tighten fasteners to specified torque and avoid twisting the body into alignment. Confirm the cap is accessible and the tank does not contact moving or hot parts.
Bleeding removes air without overheating the pump
Fill to the specified initial level, then use the exact engine-off and engine-running steering sequence in the repair data. Many procedures begin with the front wheels safely unloaded and move the steering slowly without dwelling at the stops. Maintain the level so the outlet never uncovers. Electro-hydraulic systems may require a diagnostic routine.
Pause when foam forms and allow bubbles to separate. Persistent aeration means a leak, restriction or incorrect procedure remains. It is not solved by rapidly cycling the wheel. Recheck the final level at the required temperature after the fluid clears.
Post-repair verification covers assistance and containment
| Check | Method | Acceptable result |
|---|---|---|
| Static leakage | Inspect cap, seams, ports and hoses after cleaning | All joints dry |
| Fluid condition | Observe at specified level and temperature | Clear of foam and foreign particles |
| Pump sound | Turn smoothly through the normal range | No persistent whine or groan |
| Assistance | Check parking effort and controlled road response | Consistent, predictable steering |
| Hose security | Inspect under movement and normal pressure | No kinks, chafe or seepage |
| Final level | Repeat the stated hot/cold procedure | Within the correct marked range |
Steering safety and roadworthiness take priority
A power-steering reservoir is not judged simply by its appearance. Insecure mounting, serious leakage, a warning indication or steering that is rough, excessively heavy or likely to fail can affect roadworthiness. The UK MOT inspection considers steering condition, operation and fluid leaks in their wider safety context; passing a previous test is not evidence that a developing fault is safe today.
If assistance disappears, steering binds, a hose releases fluid rapidly or oil reaches a hot exhaust, stop safely and switch off. The steering may remain mechanically connected but require much greater force. Recovery and correct diagnosis are safer than attempting to continue.
Practical power-steering reservoir FAQs
Q: Can I choose a reservoir by its shape?
A: No. Match the VIN application, pump, ports, mounting, capacity and original reference.
Q: Is fluid colour enough to identify the correct product?
A: No. Use the exact specification or approval stated for the vehicle.
Q: Can automatic-transmission fluid replace power-steering fluid?
A: Only when the manufacturer explicitly specifies that exact ATF approval.
Q: Why does the fluid look foamy?
A: Low level, a suction-side air leak, restriction or an unsuitable bleeding method may be aerating it.
Q: Does a whining pump always need replacement?
A: No. First check specification, level, inlet restriction, aeration, belt drive and hose condition.
Q: Can an integral reservoir filter be washed?
A: Not unless the manufacturer provides a specific service procedure; many require reservoir replacement.
Q: Should I fill to the maximum mark when cold?
A: Only if that matches the stated cold-level method for the vehicle.
Q: Why must full lock be avoided during bleeding?
A: The relief valve loads the pump and heats the fluid rapidly.
Q: Can a cracked plastic tank be glued?
A: No reliable safety repair can be assumed under heat, vibration and fluid exposure.
Q: Must hardened hoses be changed with the tank?
A: Replace any hose or seal that cannot make a sound, unrestricted and airtight connection.
Q: What needs immediate attention?
A: Sudden heavy steering, binding, rapid fluid loss, smoke or oil reaching hot components.
Q: What proves the repair is complete?
A: Correct clear fluid level, dry joints, secure routing and consistent quiet assistance through all checks.
