Automatic transmission filter

An automatic transmission filter removes clutch material, fine metal and other debris from the hydraulic fluid before it reaches pumps, valves, solenoids, bearings and friction elements. Depending on the gearbox, it may be a replaceable strainer inside the sump, a cartridge in the casing, an external inline filter or a permanent element built into a plastic oil pan.

Select by registration or VIN, exact gearbox code, build date, drive type and manufacturer service specification. Vehicles with the same engine can use different conventional automatics, dual-clutch transmissions or continuously variable transmissions, each requiring different filters, seals, procedures and fluids. Match the inlet neck, pickup depth, bolt pattern, connector clearance and whether the kit includes a pan gasket, O-ring, drain plug, magnets, screws or a complete integrated sump.

Filtration and fluid condition are linked. Use only the exact transmission-fluid specification approved for the gearbox; colour or a broad label such as “ATF” is not enough. Incorrect friction characteristics or viscosity can cause harsh engagement, clutch slip, shudder, overheating and valve-body faults. Fluid level is commonly set with the vehicle level, the engine running and oil within a specified temperature window, using scan data or a suitable thermometer.

A blocked pickup can cause pump noise, delayed drive, pressure loss or slipping, but replacing a filter cannot repair worn clutches, a damaged pump or contaminated valve body. Heavy metallic debris, burnt fluid or friction material in the pan requires diagnosis before refilling. Do not flush an unknown or failing gearbox indiscriminately; follow the transmission manufacturer's service method and assess what the removed fluid reveals.

Automatic transmissions are heavy and hot. Support the vehicle securely, allow exhaust components to cool, wear eye protection and capture fluid in a clean container. Cleanliness is critical: lint, sealant fragments and dirt introduced during service can block small hydraulic passages. Tighten plastic pans and valve-body-adjacent fasteners in the specified pattern and torque, replace single-use hardware where required, then verify level, leaks, shift quality, adaptations and fault codes. Compatible automatic transmission filters and service parts are listed below.

Your Current Vehicle

Select Your Vehicle

Clean fluid protects a precision hydraulic control system

An automatic gearbox uses fluid as lubricant, coolant, hydraulic working medium and, in many designs, the medium through which engine torque is transferred. Small passages meter pressure to clutches and brakes with tight clearances. The filter limits recirculation of particles that would accelerate wear or hold a control valve open.

The element is only one part of fluid management. Magnets collect ferrous wear, the sump allows heavier material to settle, and the cooler controls temperature. Correct servicing therefore includes inspection and cleaning rather than merely exchanging a component.

Transmission types and their filtration needs

Transmission	How it transfers drive	Filtration consideration
Torque-converter automatic	Planetary gears, hydraulic clutches and a torque converter.	Usually a sump pickup; some use an integrated pan.
Wet dual-clutch	Two hydraulically controlled multi-plate clutches.	May use internal and externally accessible filters.
Dry dual-clutch	Dry friction clutches with electrohydraulic or electromechanical control.	Lubrication and actuator circuits can have separate requirements.
Belt or chain CVT	Variable pulleys connected by a belt or chain.	Highly specification-sensitive fluid and fine pressure control.
Hybrid transaxle	Motor-generators and gearing, sometimes without normal shift clutches.	Do not assume a conventional automatic filter or ATF applies.

Filter and sump designs

Internal suction strainer

A flat filter sits above the sump and seals into the pump or valve body with an inlet neck. Its depth is critical: too high can uncover during acceleration, while too low can restrict flow against the pan.

Integrated plastic pan

The filter, pickup and moulded sump form one service assembly. A separate element cannot be substituted. The pan can warp or crack if fasteners are tightened unevenly or beyond the specified low torque.

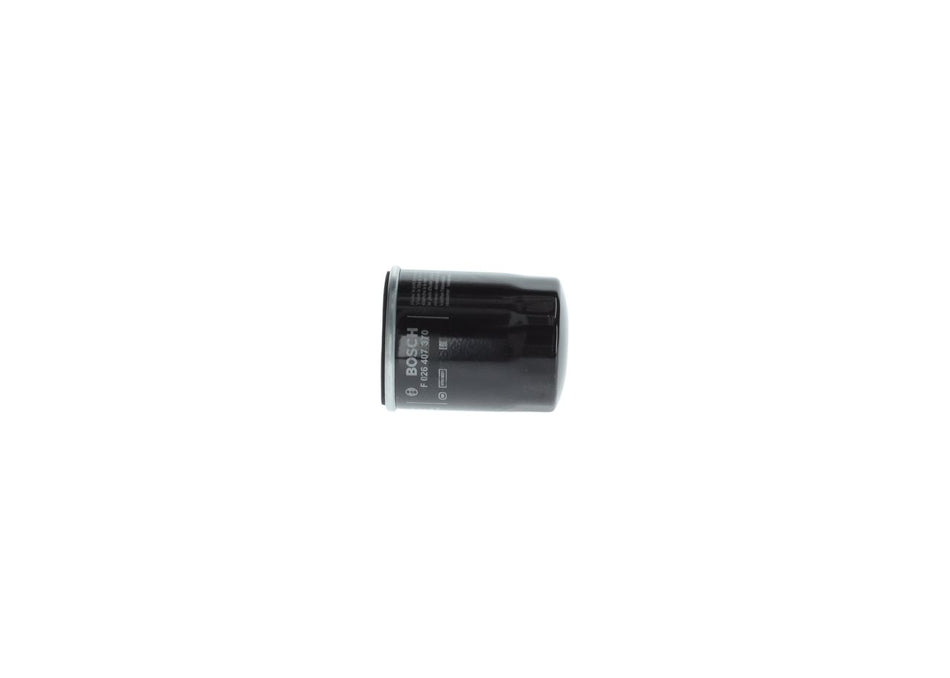

Cartridge and external filter

Some gearboxes provide a replaceable cartridge or spin-on unit. Others use an auxiliary cooler-line filter. Flow direction, bypass calibration and pressure rating matter; a generic engine-oil filter is not a safe substitute.

Non-routine internal element

A transmission described as sealed may still have fluid and internal filtration, but accessing the filter can require gearbox removal or separation. “Lifetime” does not mean that any filter can be reached during ordinary maintenance.

Exact identification before ordering

Check	Why it varies	Risk if wrong
Gearbox code	Several transmissions can share an engine and body.	Filter shape and service fluid may be entirely different.
Production date	Valve body, pan and pickup revisions occur mid-model.	Neck, bolts or sealing face may not match.
Drive layout	Front-, rear- and all-wheel-drive variants use different cases.	Sump clearance and capacity change.
Pan material	Steel pan with separate filter or plastic integrated assembly.	Wrong kit omits the required service part.
Connector and standpipe	Pass-through seals and level tubes are design-specific.	Leaks or incorrect level can result.
Fluid approval	Clutch materials and hydraulic calibration differ.	Shift quality and durability can be compromised.
Hardware policy	Some screws, plugs and seals are single-use.	Reused parts may leak or give false torque.

What the filter captures

Normal operation produces a small quantity of friction dust and microscopic metallic wear. The element traps material above its effective pore size, while magnets attract ferrous particles. A thin grey paste on a magnet can be consistent with accumulated fine wear; flakes, chips, needle rollers or large quantities of fibrous material are not routine findings.

Seal fragments, failed torque-converter lining and debris from a cooler can continue circulating after a major failure. Replacing the filter without addressing the source and cleaning or replacing contaminated circuits risks rapid repeat damage.

Flow, restriction and bypass behaviour

The pump must receive an uninterrupted supply at cold start, high engine speed and during cornering. A filter medium that is too restrictive, collapsed or loaded with debris can cause cavitation. Aerated fluid does not transmit pressure consistently and may produce whining, delayed engagement or flare between ratios.

Some filters include bypass provisions so that flow continues under excessive differential pressure. The calibration is part of the transmission design. Fitting an element based only on external dimensions can change restriction and bypass behaviour even if it physically bolts into place.

Transmission fluid is a calibrated component

Automatic transmission fluids contain carefully balanced base oils and additives for viscosity control, friction behaviour, oxidation resistance, anti-wear protection, corrosion control and seal compatibility. CVT and dual-clutch fluids are not interchangeable with conventional ATF unless the transmission manufacturer explicitly approves the same product.

Use the exact published approval or part specification, not colour. Dye is an identifier, not a performance standard, and fluid darkens with use. Mixing unknown fluids can create an unverified blend even where both containers carry broad compatibility language.

Service interval and operating conditions

Follow the gearbox or vehicle schedule and any severe-use guidance. Towing, repeated short journeys, mountain driving, high ambient temperature, track use and sustained urban operation can increase heat and clutch activity. A previous repair or uncertain history also changes the diagnostic context.

There is no universal mileage at which every filter should be changed. Some are routine service items; others are replaced only when the pan is removed. Record the gearbox code, fluid specification, quantity drained, temperature procedure and parts used so the next service has reliable evidence.

Drain-and-fill, pan service and flushing

Method	What it achieves	Limitation
Drain and refill	Renews the fluid that leaves through the drain point.	Fluid remains in converter, cooler and passages.
Pan and filter service	Allows filter renewal, magnet cleaning and debris inspection.	Still does not exchange all system fluid.
Repeated drain and refill	Progressively increases the proportion of renewed fluid.	Must follow approved sequence and level method.
Machine exchange	Can replace a larger fluid proportion.	Not appropriate for every gearbox or failing unit.
Repair flush	Cleans specified cooler and line circuits after failure.	Some contaminated coolers cannot be cleaned reliably.

Aggressive flushing is not a cure for existing slip, burnt clutches or pressure faults. On a neglected transmission, obtain diagnostic advice before selecting a method. The condition of the old fluid and debris should inform the decision rather than being discarded unexamined.

Safe service sequence

Confirm transmission identity, service information, fluid approval, capacities, torques and level procedure.
Road-test if safe, scan all relevant modules and note existing shift symptoms before disturbing the system.
Raise the vehicle level on correctly rated supports and allow hot exhaust and fluid to cool to a manageable temperature.
Clean around plugs and pan. Verify the fill plug can be opened before draining where access permits.
Measure and inspect drained fluid in a clean container, then lower the pan without spilling debris.
Photograph deposits, clean magnets and sealing surfaces, and avoid scratching aluminium.
Remove the filter carefully so retained fluid does not enter eyes. Ensure old neck seals and O-rings are removed.
Lubricate new seals with the approved fluid, seat the filter fully and install the pan with the specified sequence and torque.
Fill initially by the manufacturer's method, start the engine if instructed and circulate through selected positions while maintaining safety.
Set the final level at the prescribed temperature and operating state, then check leaks, codes and road behaviour.

Sealing, torque and cleanliness

Some pans use moulded rubber gaskets; others use a specified sealant. Adding sealant to a gasket without instruction can make it slide or squeeze material into the sump. Excess sealant can detach and obstruct hydraulic passages.

Transmission pans are easily distorted. Start every fastener by hand and use a calibrated low-range torque wrench where required. Clean tools, lint-free materials and capped fluid containers reduce the chance of introducing contamination.

Symptoms and what they may mean

Symptom	Possible connection	Response
Delayed engagement	Low level, drain-back, restriction, pump or clutch wear.	Check level correctly and diagnose pressure; do not assume filter alone.
Whine that changes with speed	Pump cavitation, aeration or bearing wear.	Stop if severe and inspect level, leaks and pickup sealing.
Flare or slip	Insufficient apply pressure or worn friction elements.	Avoid heavy load; scan and diagnose promptly.
Harsh shifts	Fluid issue, adaptation, solenoid or valve-body fault.	Verify specification and codes before replacing parts.
Shudder	Converter clutch, CVT, fluid or driveline issue.	Identify exact operating condition and obtain diagnosis.
Leak after service	Seal displaced, pan warped, plug or level excessive.	Stop and correct before fluid loss damages the unit.
Burnt smell and black fluid	Overheating or friction-element damage.	Investigate internal condition; a routine filter service may be insufficient.

Level setting and temperature

Many modern gearboxes have no dipstick. A standpipe or level plug establishes height only when the vehicle is level, the pump is operating and the fluid is within a defined temperature range. Fluid expands substantially as it warms, so guessing by the amount drained can leave the unit under- or overfilled.

Read temperature from the correct transmission data parameter when specified. Engine coolant temperature is not a substitute. If the temperature passes the permitted window, allow the system to cool and repeat the check rather than rushing.

Adaptation and post-service checks

Do not reset shift adaptations automatically. Learned values can provide diagnostic information, and some transmissions require a guided relearn only after particular work. Follow the manufacturer's instruction and use a capable scan tool.

After service, inspect during idle and after a controlled road test. Confirm normal engagement, shifts, converter lock-up, temperature and absence of leaks. Recheck undertrays because trapped fluid can look like a new leak later.

Automatic transmission filter FAQs

Q: Does every automatic transmission have a replaceable filter?
A: No. Some are routine internal or external items, while others are integrated or inaccessible without major dismantling.

Q: Can I identify the filter from the engine size?
A: Not reliably; use the exact gearbox code, VIN, build date and drive configuration.

Q: Is all red ATF interchangeable?
A: No. Colour does not define friction performance, viscosity or manufacturer approval.

Q: Should I replace the pan with the filter?
A: Yes where the filter is moulded into the pan; otherwise inspect whether the separate pan is serviceable.

Q: Will a new filter cure slipping?
A: It may correct restriction in a confirmed case, but it cannot restore worn clutches or a damaged pump.

Q: Is a little material on the magnet normal?
A: Fine grey paste can accumulate, but chips, fragments or heavy debris require investigation.

Q: Can I reuse the old filter seal?
A: No. Renew the specified O-ring or neck seal and make sure the old one is removed.

Q: Why must the vehicle be level?
A: Many overflow level systems depend on a horizontal sump to establish the correct fluid height.

Q: Why is fluid temperature important?
A: Fluid expands as it heats, so the prescribed window makes the level check repeatable.

Q: Should I flush a high-mileage gearbox?
A: Not without considering its condition, history and the manufacturer's approved method.

Q: Can I use gasket sealant as extra protection?
A: Only when instructed; excess or incompatible sealant can cause leaks and internal contamination.

Q: Do transmission adaptations need resetting after a service?
A: Not routinely; reset or relearn only when the manufacturer specifies it for the work performed.

Q: What makes a transmission leak urgent?
A: Rapid loss, slipping, delayed drive, warning messages or fluid reaching hot exhaust parts require immediate attention.
