A hose starts with its service medium
Flexible appearance is not a specification. A hose is an engineered combination of inner tube, reinforcement, outer cover and end interface. Each layer is selected for a medium, pressure range, temperature, movement and environment. A product intended for workshop air can soften in fuel; a general coolant hose can collapse under vacuum; and a fuel-rated tube may still be unsuitable for submerged, high-pressure or modern blend service.
Before removing anything, identify both ends of the circuit and consult the system diagram. Record the fluid or gas, normal and peak pressure, possible vacuum, continuous and short-term temperature, pulse frequency and external exposures. If the circuit cannot be positively identified, make it safe and stop.
Hose families in a mixed collection
| Family | Typical role | Selection priority |
|---|---|---|
| Moulded coolant hose | Carries hot coolant around engine, radiator or heater circuits. | Vehicle shape, branches, coolant chemistry, pressure and heat. |
| Vent/breather hose | Routes air, vapour or crankcase gases. | Oil mist, vacuum, permeation, collapse and emissions-system layout. |

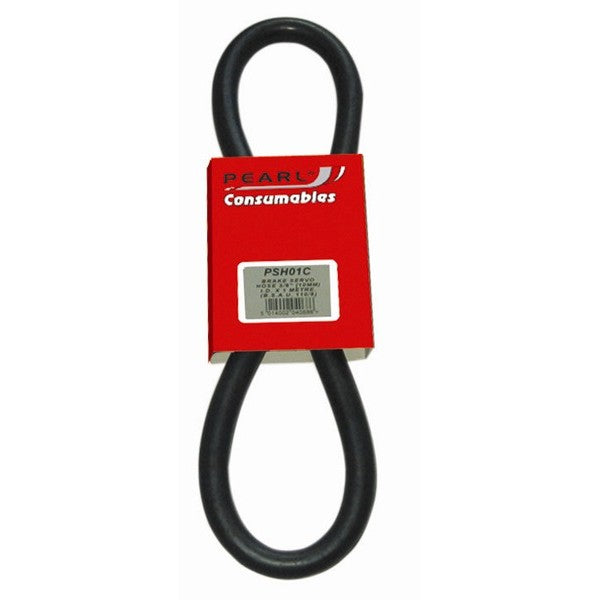

| Vacuum/service hose | Transfers pressure difference or a specified service fluid. | Wall stability, leak tightness, medium and response time. |
| General formed automotive hose | Provides a shaped connection around vehicle packaging. | Exact application, bend orientation, end diameters and nearby heat. |
| Workshop pneumatic hose | Supplies compressed air to a compatible tool. | Working pressure, bore, coupling, flexibility and oil/environment resistance. |
| Air hose reel | Stores and manages a retractable or hand-wound air hose. | Hose rating plus swivel, stop, mount, guide and retraction forces. |
Pressure, vacuum and temperature must be considered together
Working pressure is the maximum permitted continuous or cyclic service value under stated conditions. Burst pressure is a destructive threshold used in design validation; it is not an operating target. Temperature can reduce pressure capability, accelerate ageing and change flexibility. Pressure spikes from valve closure, pump pulsation or tool demand may exceed a gauge's average reading.
Vacuum loads the wall in the opposite direction and can flatten a hose with inadequate reinforcement or an excessively tight bend. Suction service also draws air through small defects that may not release liquid when the system is stopped. Use application-specific limits and derating data.
| Published value | Correct meaning | Frequent mistake |
|---|---|---|
| Working pressure | Permitted duty for a stated hose, medium and temperature. | Applying it unchanged at a higher temperature. |
| Burst pressure | Test failure threshold under defined conditions. | Using it as a safe continuous pressure. |
| Temperature range | Material capability, often dependent on fluid and time. | Considering only fluid temperature, not exhaust radiant heat. |
| Minimum bend radius | Smallest supported bend without harmful deformation. | Forcing a shorter radius because the hose physically bends. |
| Nominal bore | Approximate internal flow size. | Assuming it defines outside diameter or fitting series. |
| Impulse/cycle rating | Resistance to repeated pressure changes under a stated test. | Assuming static pressure evidence covers severe pulsation. |
How hose layers perform
Inner tube or liner
The liner contacts the medium and controls chemical compatibility, permeation and cleanliness. Swelling narrows flow and loosens reinforcement; extraction can embrittle it. Refrigerant, fuel and food/respiratory air duties may impose specific liner and cleanliness requirements not satisfied by a generic elastomer.
Reinforcement
Textile braid, spiral yarn or metal wire carries pressure load and controls expansion. Reinforcement angle affects flexibility and dimensional stability. Once exposed by abrasion or corrosion, rated strength may be compromised even if the liner has not yet leaked.
Outer cover
The cover resists ozone, weather, oil splash, abrasion and heat. External resistance does not prove internal compatibility. Sleeves and guards add local protection but can trap contamination or conceal wear if they are not inspected.
Material families and compatibility
| Material family | Typical strengths | Selection caution |
|---|---|---|
| EPDM | Often selected for coolant, water, ozone and weather resistance. | Generally unsuitable for petroleum oil/fuel unless specifically compounded. |
| NBR/nitrile | Useful resistance to many mineral oils and fuels. | Exact blend, temperature, ozone and permeation approval still matter. |
| FKM | High-temperature and chemical capability in selected duties. | Cost, low-temperature behaviour and exact fluid grade vary. |
| Silicone | Wide temperature capability and flexible coolant constructions. | Fuel/oil permeation, liner requirement and clamp technique need confirmation. |
| PTFE-lined | Low chemical reactivity and temperature capability. | Bend, conductive grade and end-fitting assembly are application-specific. |
| Polyurethane/PVC | Common lightweight choices for specified pneumatic duties. | Pressure, temperature, plasticiser, kink and chemical limits differ greatly. |
These are tendencies, not approvals. Compounds, reinforcement and liner construction vary within each family. Consult the hose manufacturer's compatibility chart and the equipment specification for the exact fluid concentration and temperature.
Automotive formed-hose identification
Moulded bends preserve internal area while navigating tight engine bays. Compare the complete reference, vehicle VIN, engine code, production date, transmission and optional equipment. Lay old and new hoses in the same relaxed orientation, noting that an aged hose may have taken a permanent set. Check each end ID, branch angle, restrictor, internal spring, protective sleeve and quick-connector seat.
Do not trim a formed hose unless the product and repair information provide trimming marks or permission. Shortening can place a bend against a spigot, remove a reinforced end or pull the hose tight as the engine moves. Transferring an internal restrictor or heat sleeve without instruction can also change system operation.

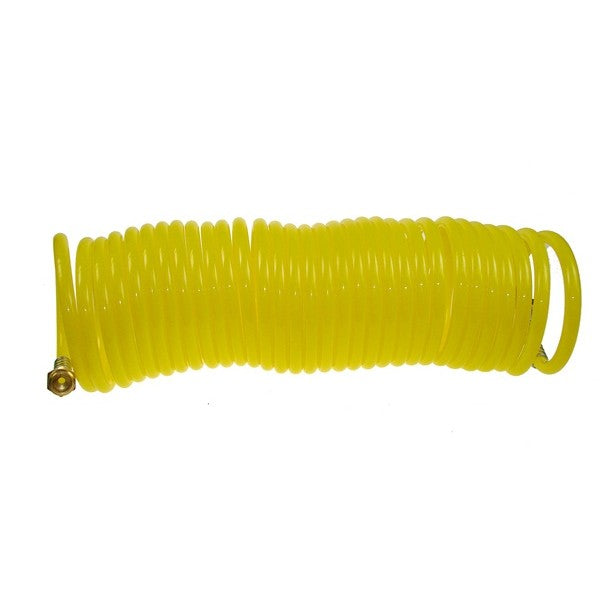

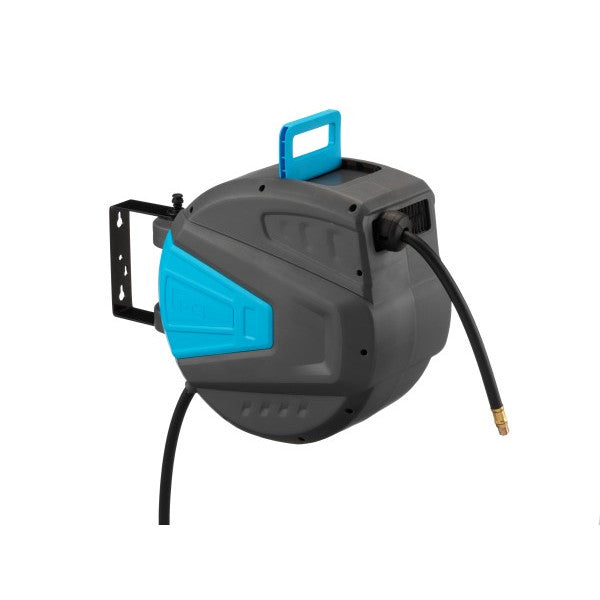

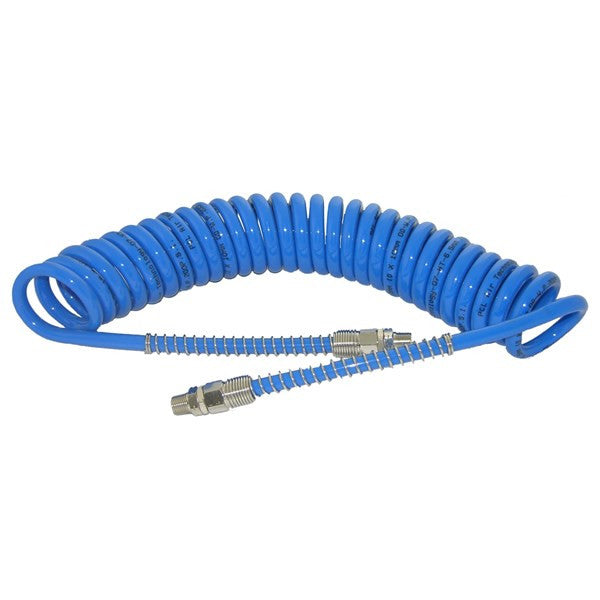

Workshop air hose and reels
Air-tool performance depends on delivered flow, not compressor pressure alone. Long small-bore hose, restrictive couplings, filters and swivels cause pressure drop while the tool is running. Correct this by selecting adequate flow capacity, not by raising regulator pressure beyond the tool or hose limit.
A reel must be fixed to a structure capable of the pull and retraction loads. Position it so the hose leaves through the guide rather than rubbing an edge. A damaged ratchet, uncontrolled spring return or worn swivel requires isolation and repair. Guide the hose back under control; never let a spring reel accelerate a metal coupling towards people or vehicles.
Routing and connection design
- Maintain the documented minimum bend radius without flattening or twisting.
- Allow engine, axle, steering and body movement across their full range.
- Keep away from exhausts, turbochargers, belts, fans, sharp seams and electrical arcs.
- Use supports that locate without crushing or cutting the cover.
- Leave suitable slack at fittings while preventing loops from snagging.
- Match spigot finish, bead, clamp type and insertion depth.
- Use only specified seals and compatible assembly lubricant.
- Protect hot or abrasive zones with approved guards rather than improvised wrapping.
Inspection while the system is safe
- Identify the medium and follow its isolation, cooling and depressurisation procedure.
- Clean enough surface contamination to expose the cover without damaging it.
- Look for cracks, glazing, cuts, bulges, blisters, exposed braid and flattened sections.
- Flex only as allowed; microcracks may open on an aged hose.
- Inspect behind clamps, at bend tangents and where supports contact the cover.
- Check fittings for corrosion, movement, wetness, staining and extruded seals.
- Trace protective sleeves because they can hide abrasion.
- After repair, use the specified pressure, vacuum or leak test—not bare hands.
Fault symptoms and urgency
| Symptom | Possible hose-related cause | Response |
|---|---|---|
| Coolant smell/steam | Split hose, porous cover, loose joint or cooling-system overpressure. | Stop safely; never open a hot pressurised cooling system. |
| Fuel odour/wetness | Incompatible hose, permeation, cracked liner or fitting leak. | Switch off ignition sources and arrange immediate repair. |
| Unstable idle/control | Vacuum hose leak, collapse or incorrect branch routing. | Verify diagram and leak-test using an approved method. |
| Bulge or blister | Layer separation, chemical attack or overpressure. | Isolate; do not puncture or continue operation. |
| Hissing workshop hose | Cut, failed coupling, swivel or loose push-fit joint. | Close supply and vent before touching the area. |
| Pin-hole jet | High-pressure fatigue or abrasion. | Keep hands away; fluid injection can be a medical emergency. |
Fluids, cleanliness and disposal
Cap open lines immediately. Debris introduced during repair can block valves, damage pumps or impair bearings. Refrigerant work requires suitable recovery equipment and competent handling; coolant, fuel and oil must be captured rather than discharged. A replacement hose may require system flushing when the old liner has degraded internally.
Use only the specified refill fluid, concentration, lubricant or air-treatment method. Mixing coolants based on colour alone is unreliable. Oxygen, breathing air and combustible-gas systems need purpose-approved, contamination-controlled equipment beyond general workshop hose.
Replacement, testing and maintenance
After isolation, release clips without damaging spigots and prevent residual fluid reaching skin or the environment. Clean sealing surfaces, replace prescribed O-rings and clips, and fit the hose in its relaxed moulded orientation. Tighten clamps to the system method; overtightening can cut the cover or distort a plastic neck.
Refill, bleed or repressurise gradually while observing from a safe position. Cycle temperature and movement where the service procedure requires it, then recheck routing and joints. Inspection interval depends on medium, environment, hours, age and maker guidance; appearance alone cannot establish remaining pressure life.
Common mistakes and upgrades
- Buying hose by bore without checking the medium and pressure.
- Using burst pressure as a working target.
- Replacing a moulded bend with kinked straight hose.
- Letting a protective sleeve hide active chafing.
- Using fuel hose for coolant, or air hose for fuel, without explicit approval.
- Mixing incompatible quick-coupling profiles.
- Overtightening a worm-drive clip on a fragile plastic outlet.
- Searching for a high-pressure leak with fingers.
- Allowing a retractable reel to snap its coupling back uncontrolled.
An upgrade may improve abrasion, heat or impulse capability only when its dimensions, flexibility, fittings and approvals remain correct. Metal braid can transmit vibration or hide liner deterioration; silicone may require a compatible liner and clamp. Re-engineering a safety-critical circuit needs competent approval, not a material chosen from reputation.
UK MOT, pressure systems and workshop safety
MOT assessment can capture the consequences of hose defects in braking, steering, fuel, emissions, suspension and other systems. A leak that creates fire, control or environmental risk needs action regardless of test timing. Modifying emissions or safety systems can also create legal and insurance consequences.
Compressed-air installations and certain associated vessels may fall under UK pressure-system duties. Employers should have safe operating limits, maintenance and examination arrangements proportionate to the system. Isolate stored energy, wear suitable eye protection and keep compressed air away from the body.
Hose FAQs
Q: Can any rubber hose carry coolant?
A: No. The liner, reinforcement, temperature and coolant chemistry must be approved for the application.
Q: Is fuel hose suitable for engine oil?
A: Not automatically; confirm the exact oil, temperature, pressure and hose specification.
Q: What is the difference between bore and outside diameter?
A: Bore describes the flow passage; outside diameter includes wall and reinforcement and may control fitting choice.
Q: May burst pressure be used for normal operation?
A: No. Use the documented working pressure at the actual temperature and medium.
Q: Why can a suction hose flatten?
A: Vacuum and tight bends can collapse a wall not designed or reinforced for that duty.
Q: Can I replace a curved hose with straight hose?
A: Only if approved and it preserves bore, bend radius, routing and movement without kinking.
Q: Should a swollen hose be reused?
A: No. Swelling suggests incompatibility or layer damage and requires cause investigation.
Q: Is a tiny high-pressure pinhole safe to inspect by hand?
A: No. A fine jet can inject fluid through skin and requires safe detection equipment.
Q: Why does an air tool lose power through a long hose?
A: Small bore and restrictive fittings cause pressure drop when flow increases.
Q: Can compressor pressure be raised to compensate?
A: Not beyond any hose, coupling, regulator or tool limit; improve flow capacity instead.
Q: Should a reel hose retract freely?
A: It should operate as designed, but guide it under control and repair erratic locking or return.
Q: Can hose clips be reused?
A: Follow the system instructions; distorted, corroded or single-use clamps must be renewed.
Q: Does an MOT pass prove every hose is healthy?
A: No. It is a minimum-condition snapshot and cannot establish remaining fatigue or chemical life.
