An inlet valve controls cylinder filling and seals combustion pressure
During the intake event, the cam mechanism lifts the valve from its seat and creates an annular flow area around the head. Port, seat and valve shapes guide air into the cylinder to support charge motion and volumetric efficiency. During compression and combustion, the valve face must seal concentrically against the seat while transferring heat into the cylinder head.
Small dimensional errors can therefore affect airflow, compression, emissions and mechanical clearance.
Valve features form one engineered interface
| Feature | Function | Critical match | Failure concern |
|---|---|---|---|
| Head and margin | Controls flow and withstands seating load. | Diameter, shape and minimum margin. | Burning, tuliping or contact. |
| Seat face | Seals against cylinder-head insert. | Angle, width and concentricity. | Compression leakage. |
| Stem | Guides motion and carries side load. | Diameter, finish and clearance. | Seizure, oil entry or wobble. |
| Keeper grooves | Lock retainer through collets. | Number, profile and location. | Valve dropping into cylinder. |
| Stem tip | Receives follower/bucket load. | Hardness, height and contact pattern. | Mushrooming or clearance change. |
| Coating/material | Controls wear, heat and friction. | Engine-specific metallurgy. | Scuffing or fatigue. |
Inlet and exhaust duties are different
The incoming charge cools an inlet valve more than hot exhaust gas cools an exhaust valve. Manufacturers therefore choose different alloys, stem designs, head diameters and sometimes hollow or sodium-filled exhaust construction. Colour, magnetism or diameter alone does not reliably identify position.
Use the exact part reference and cylinder-head diagram; never swap positions to complete a set.
Valve timing shapes torque, economy and emissions

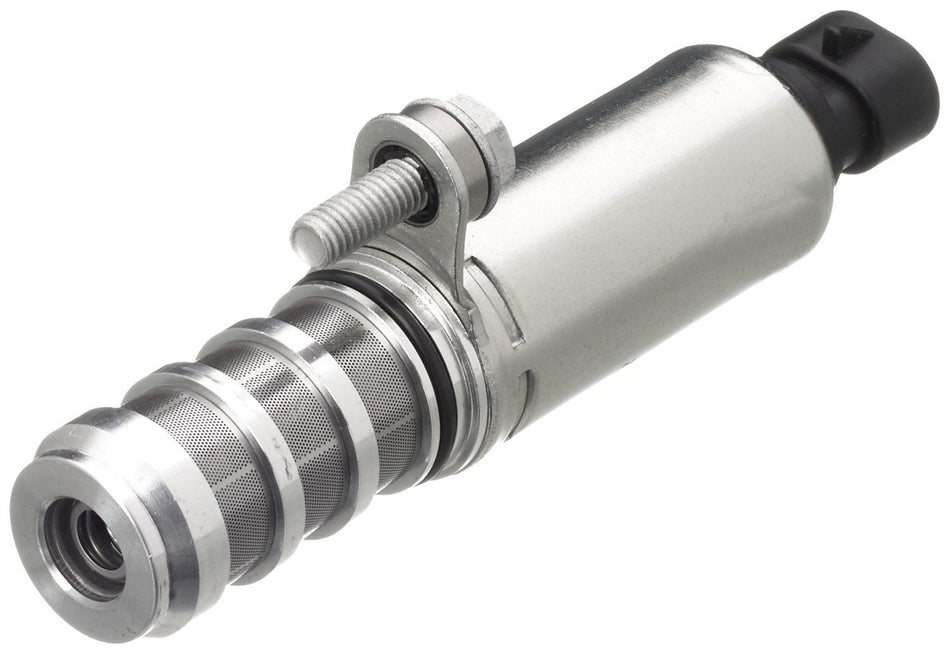

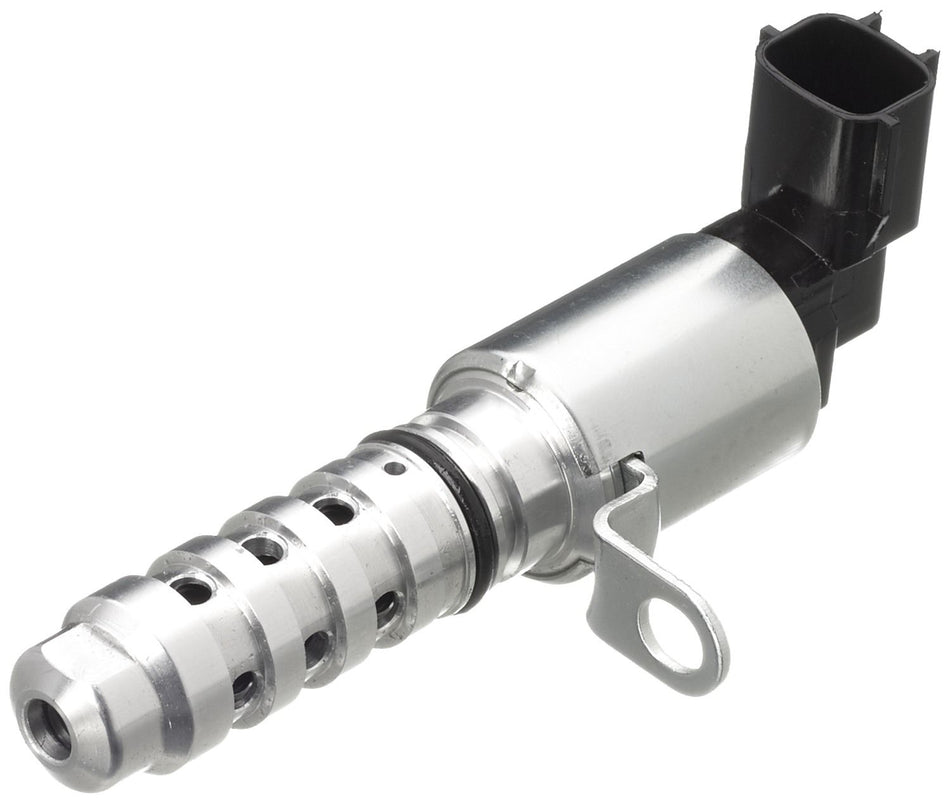

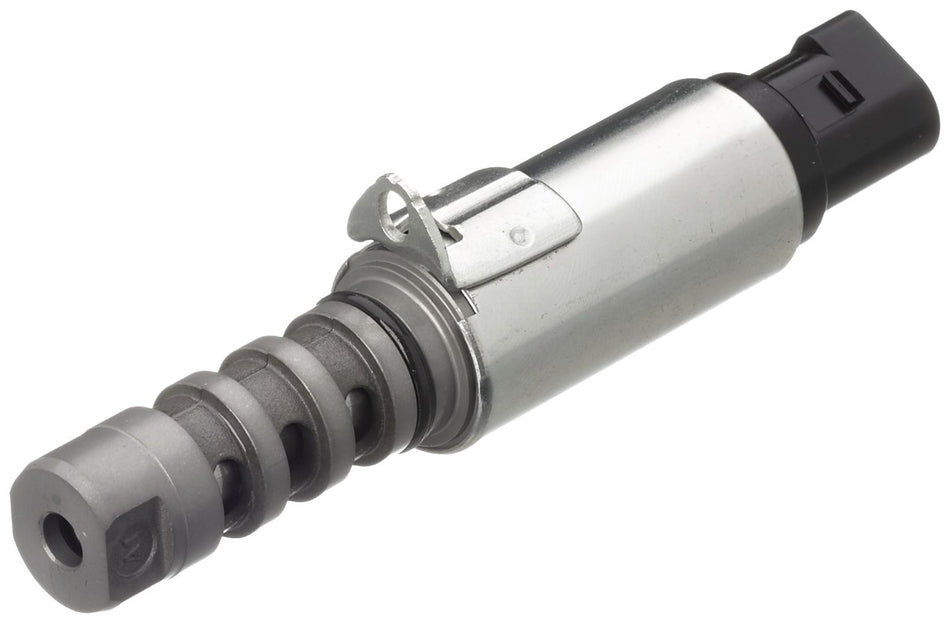

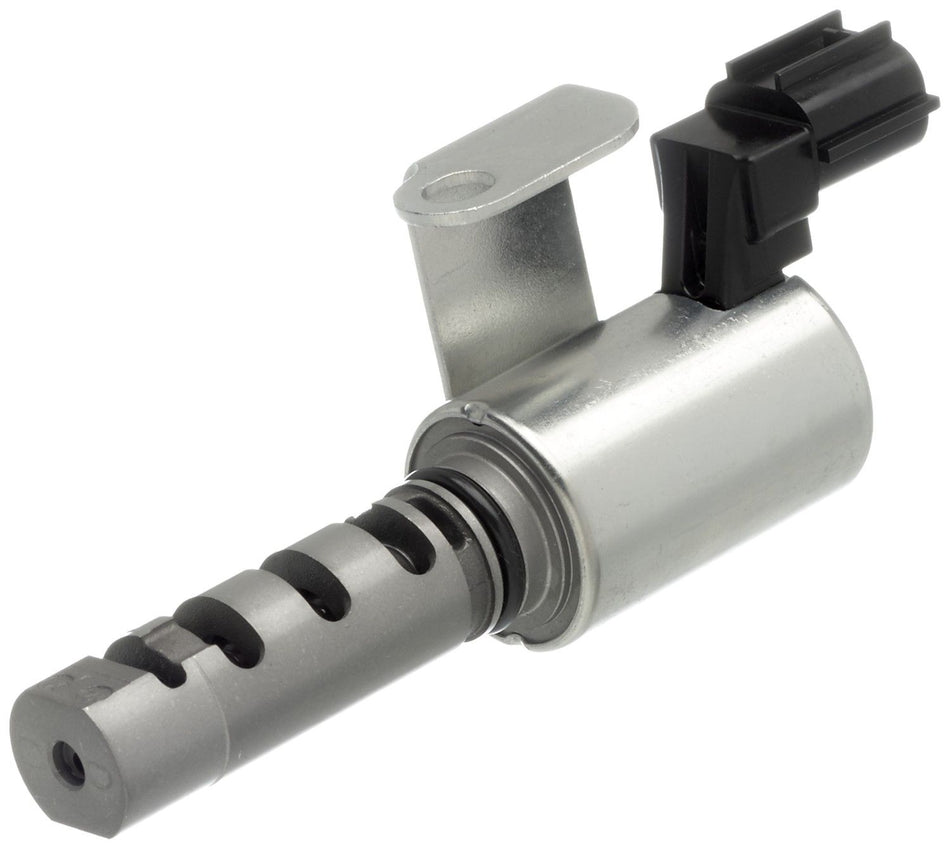

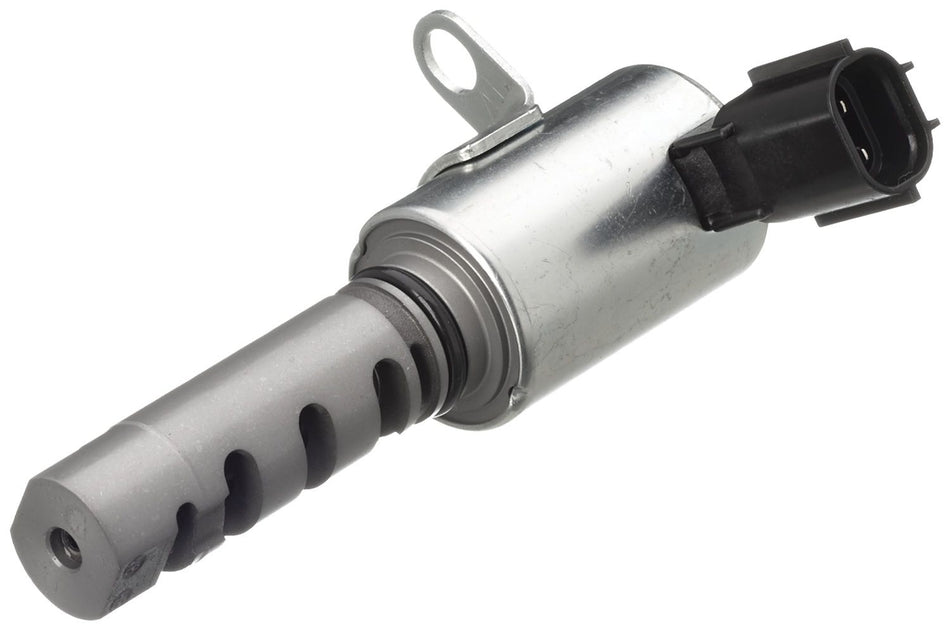

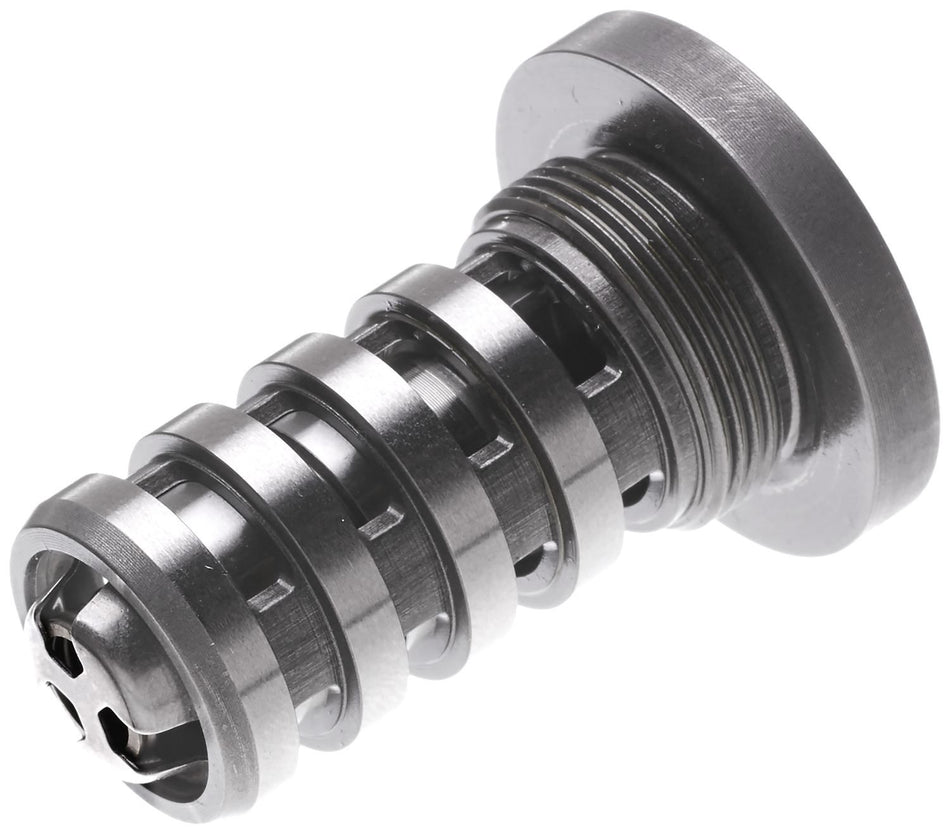

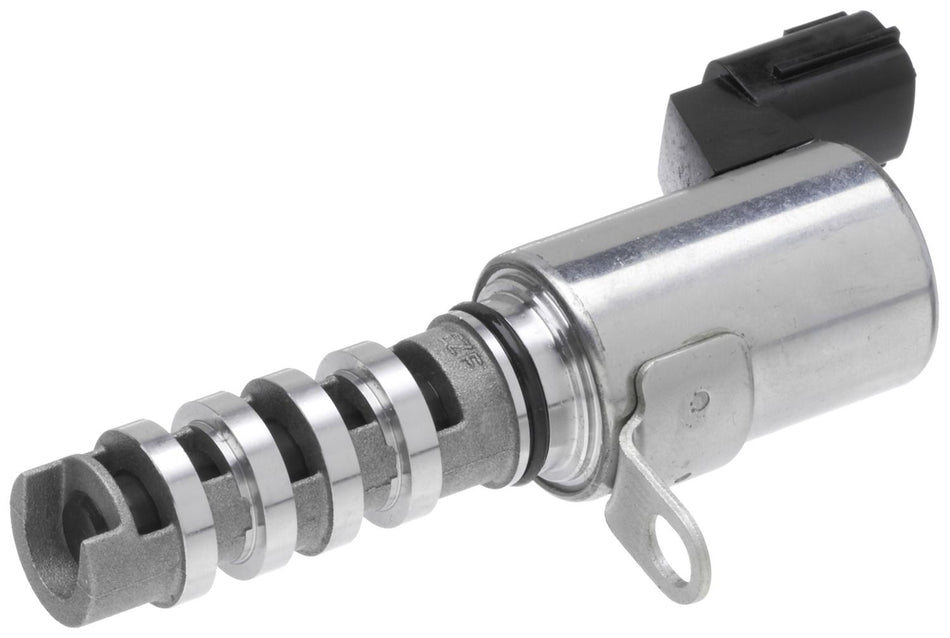

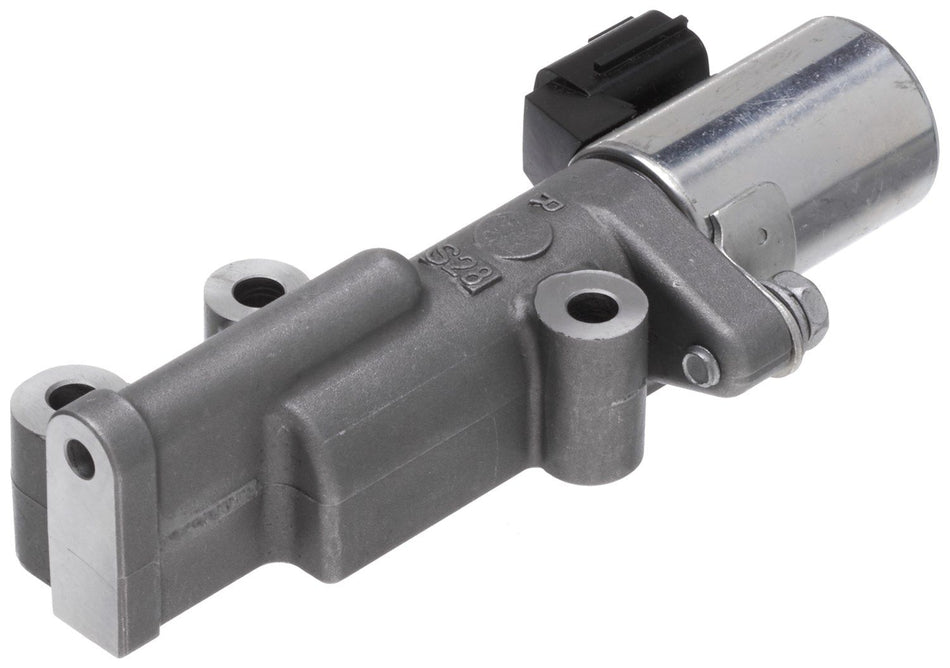

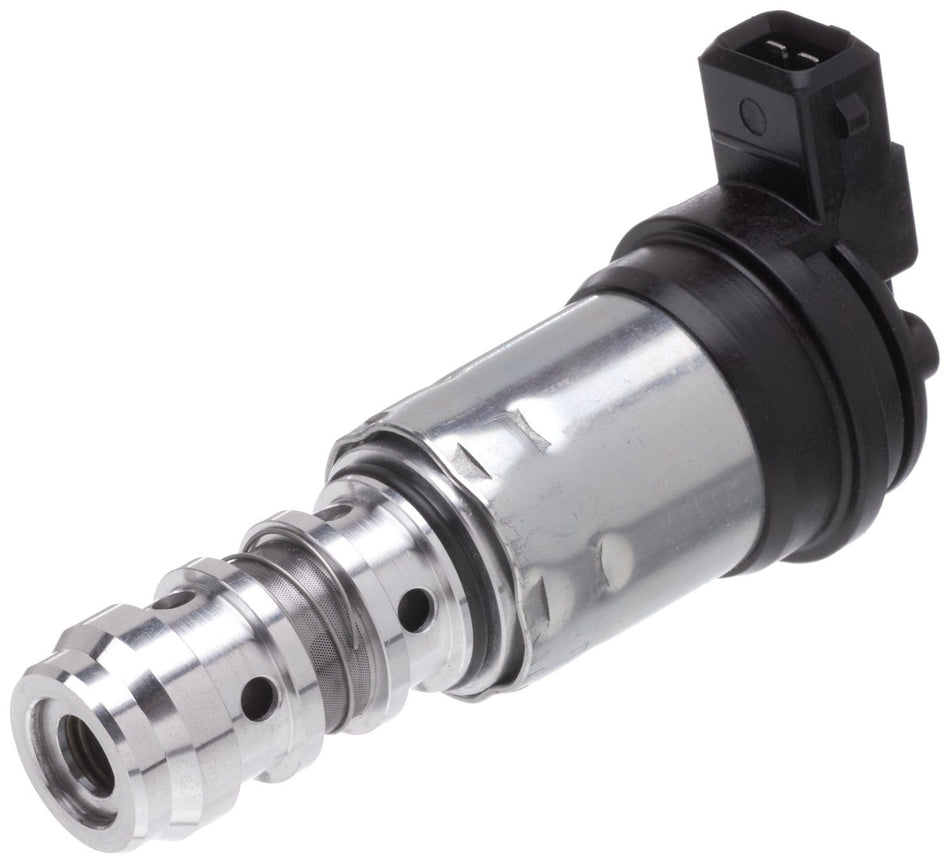

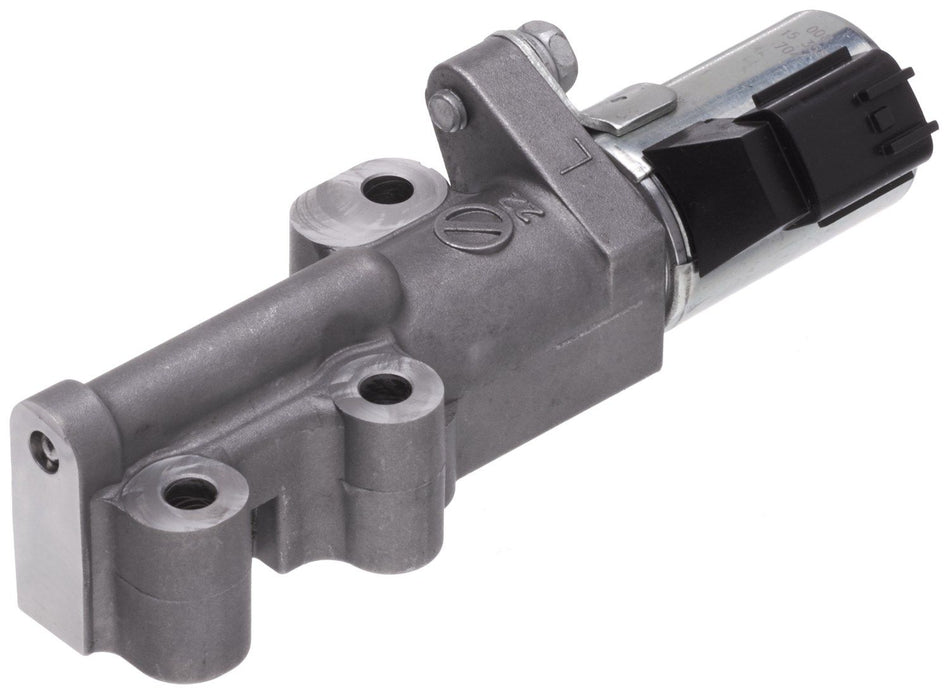

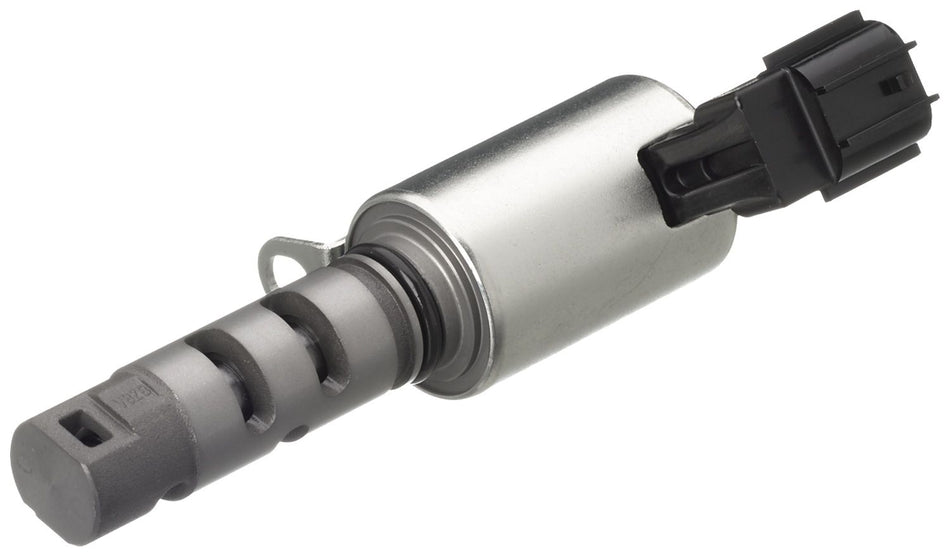

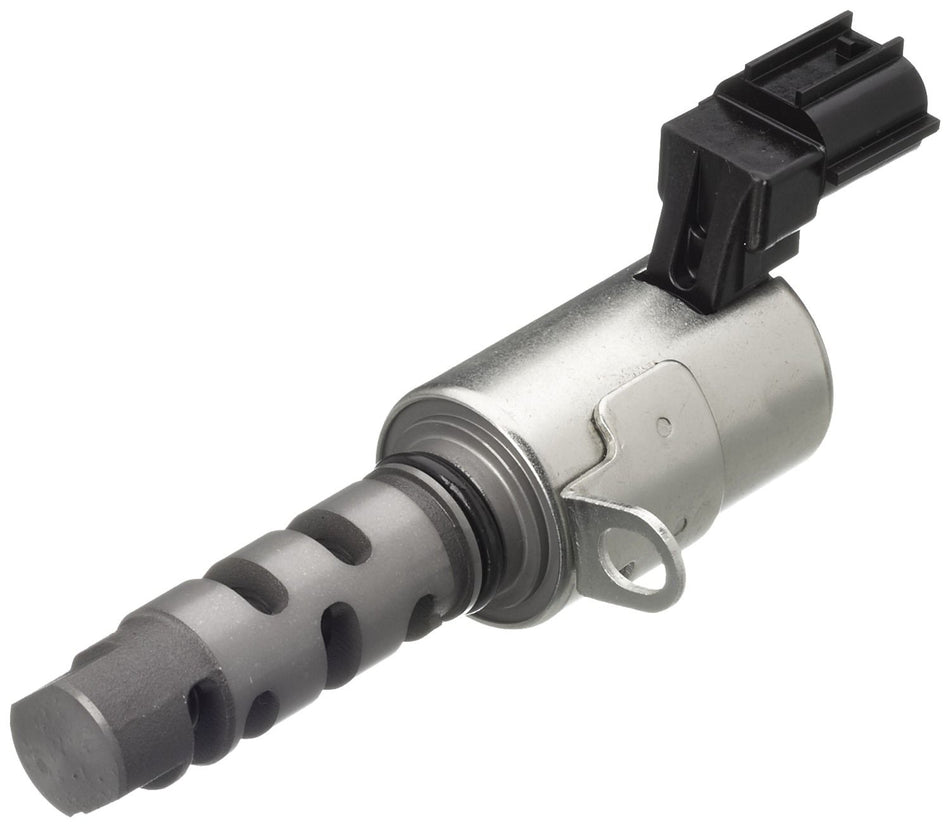

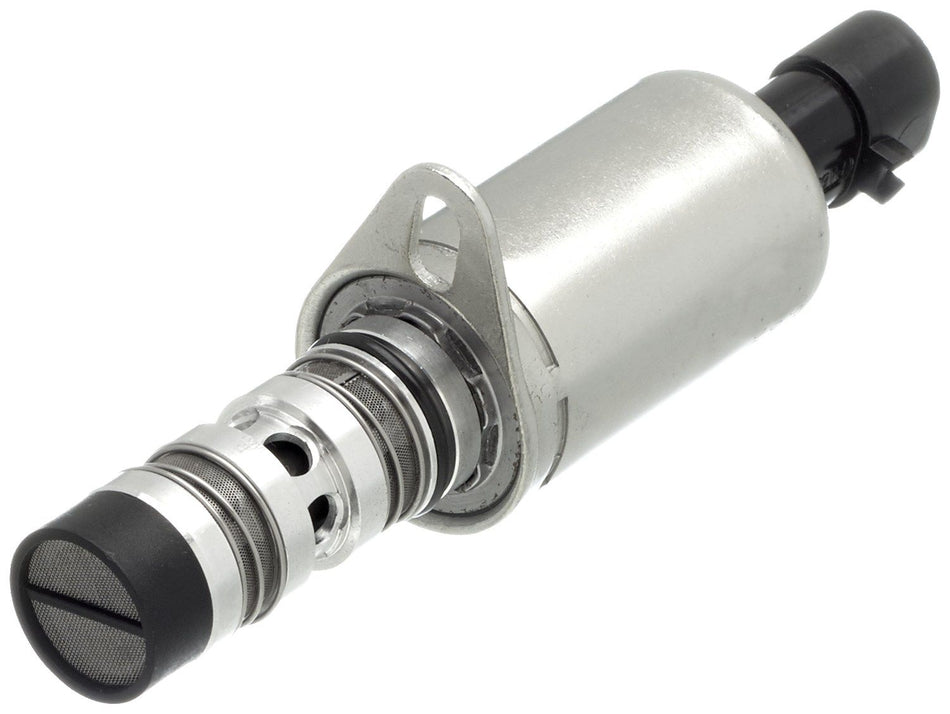

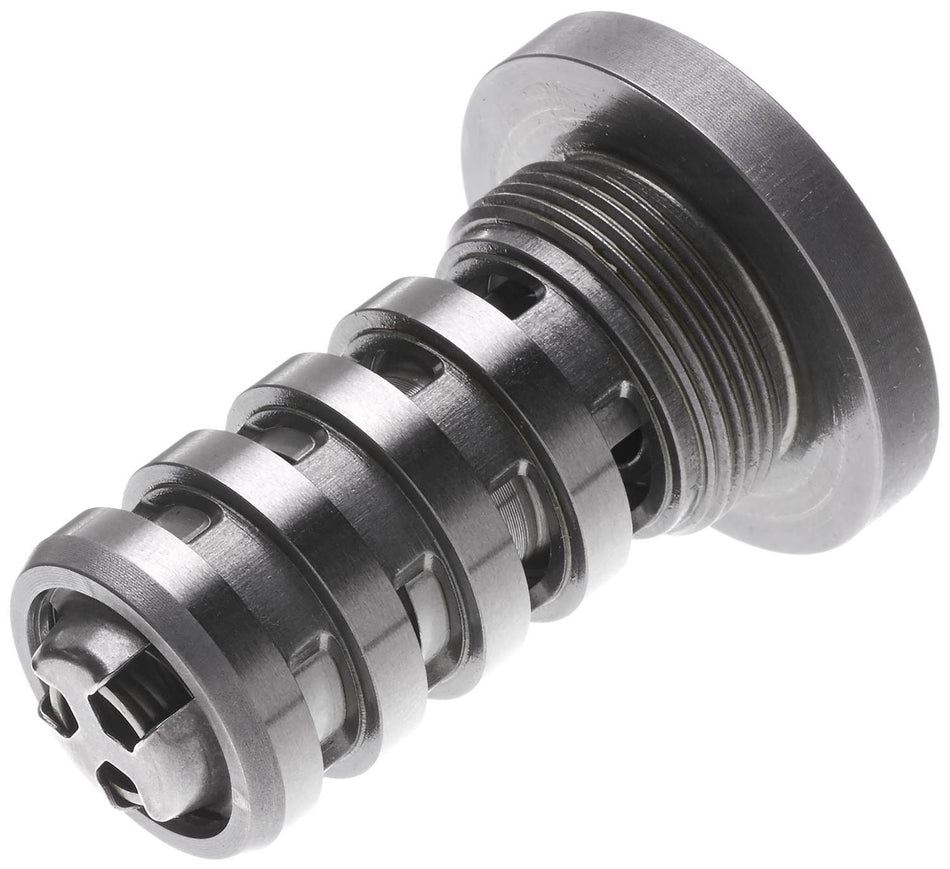

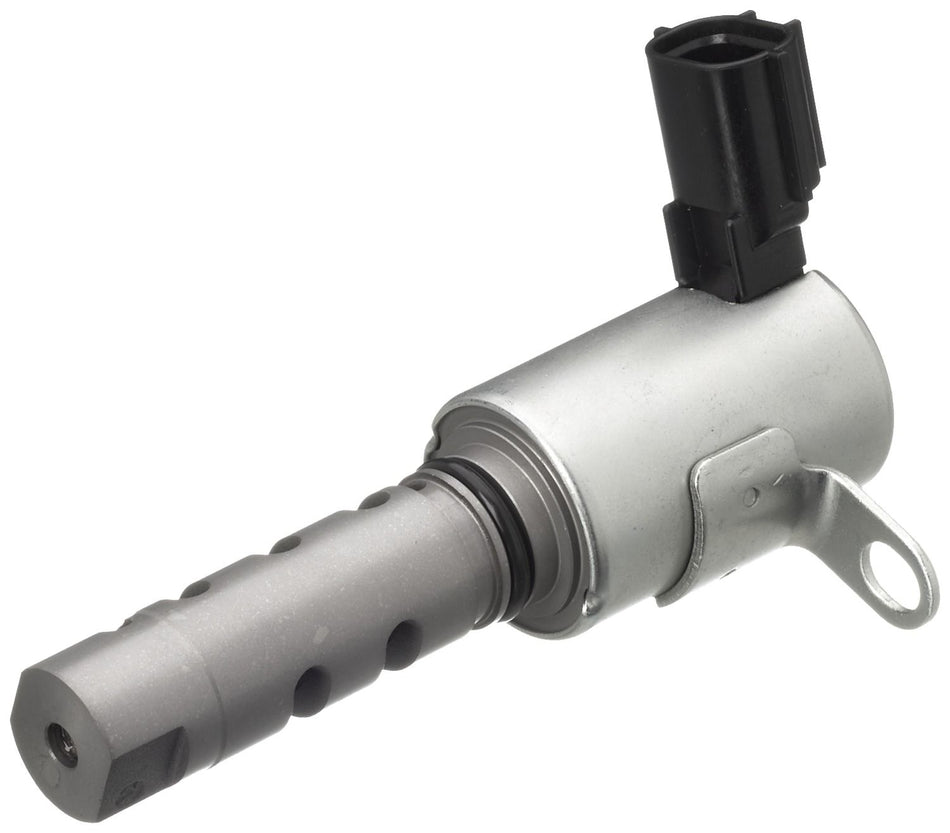

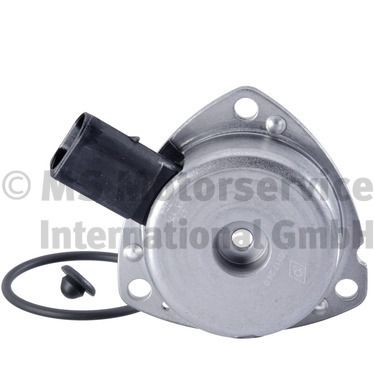

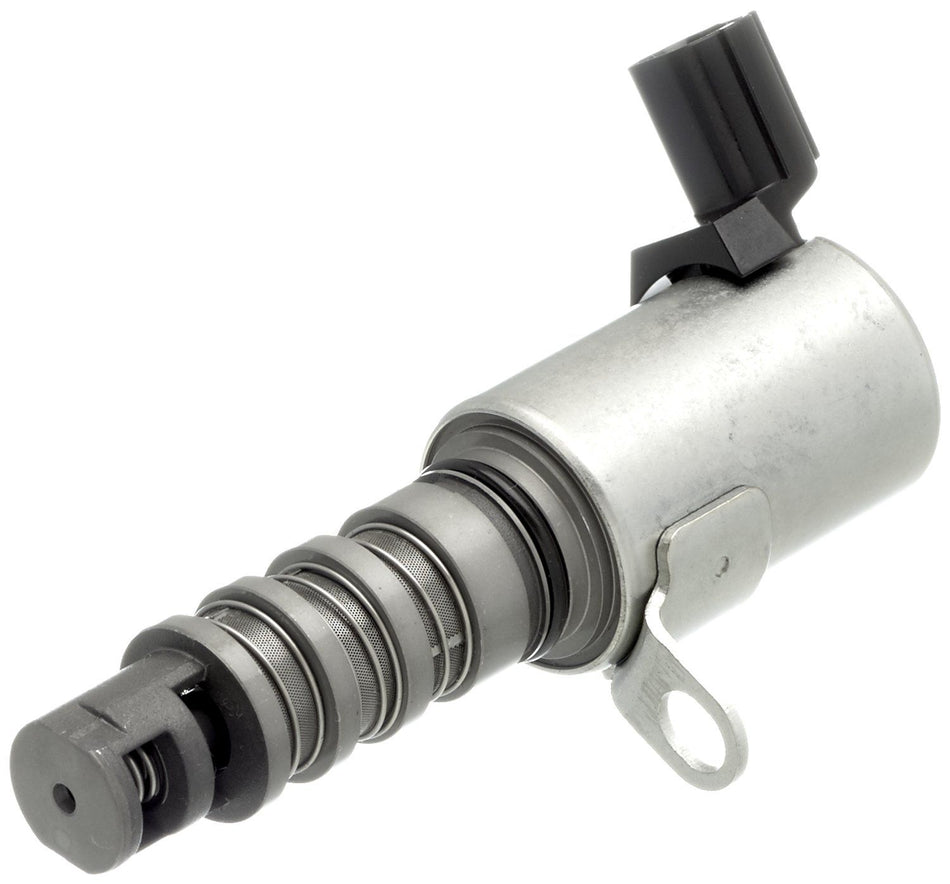

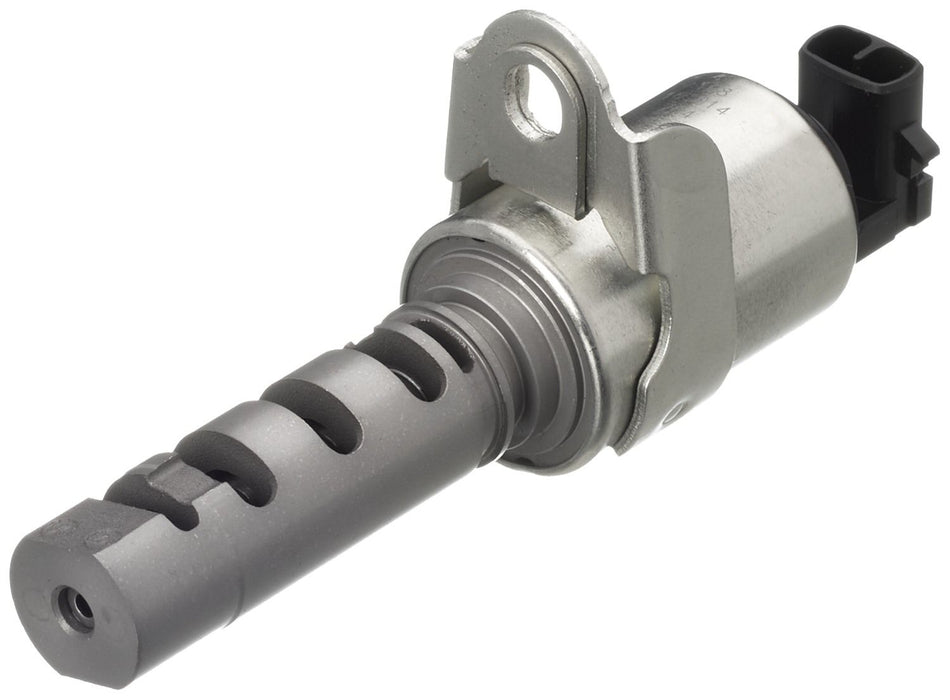

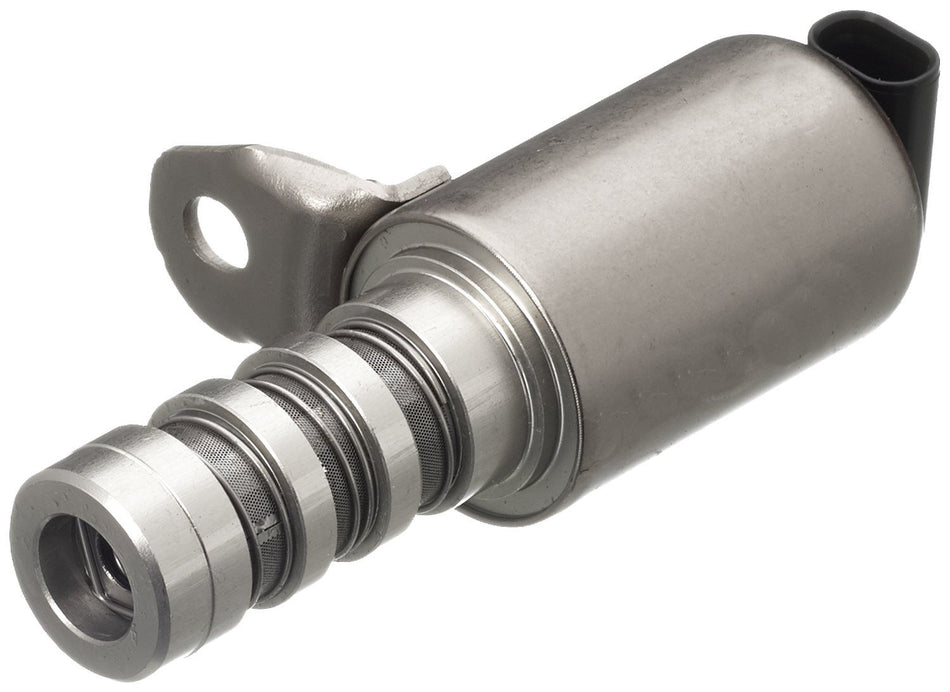

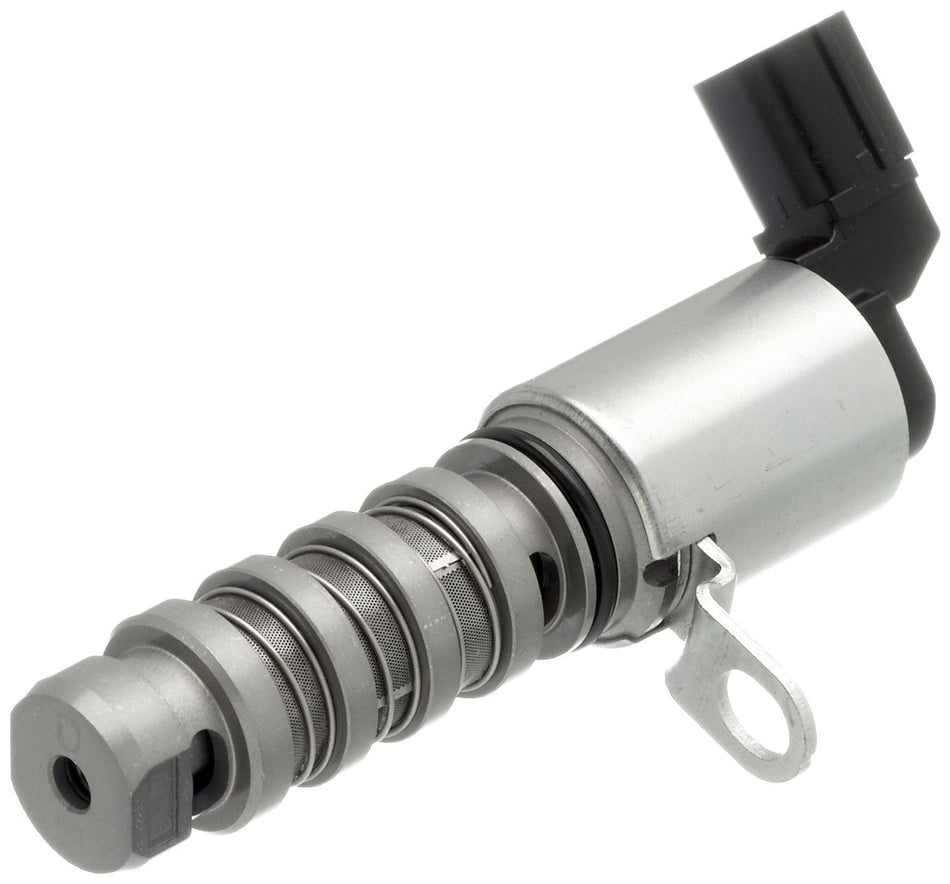

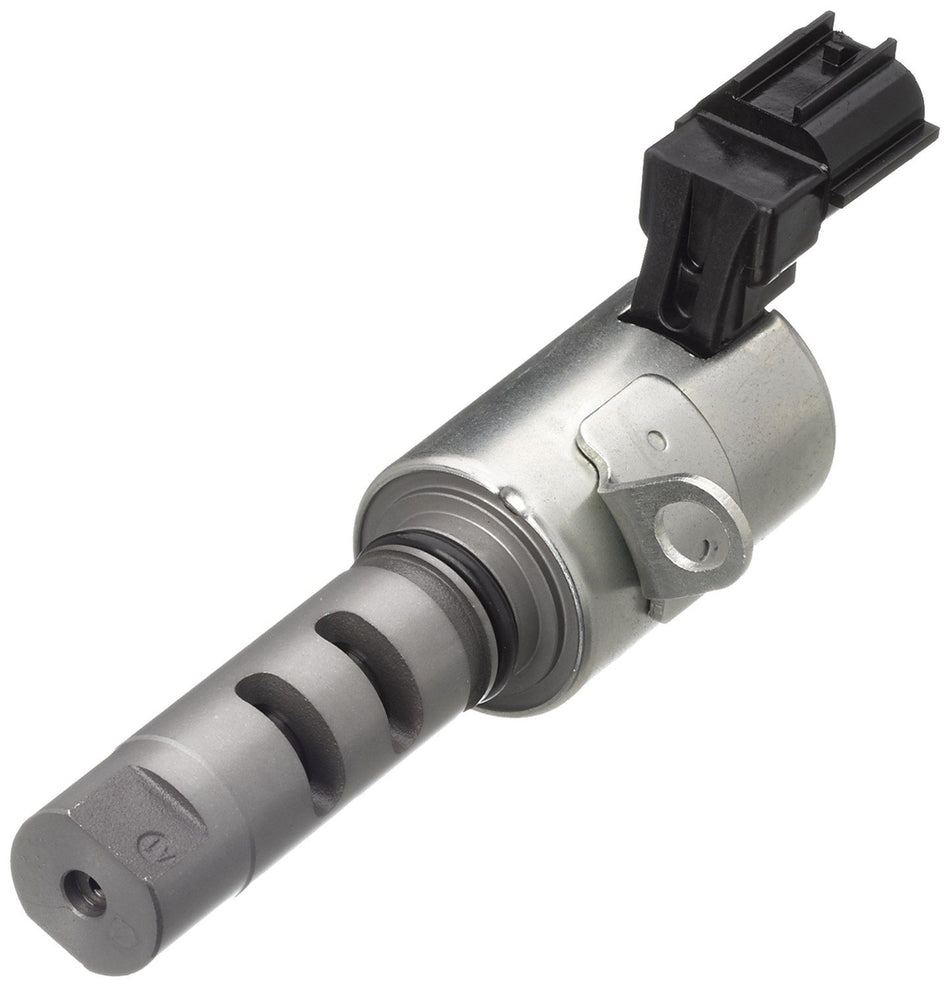

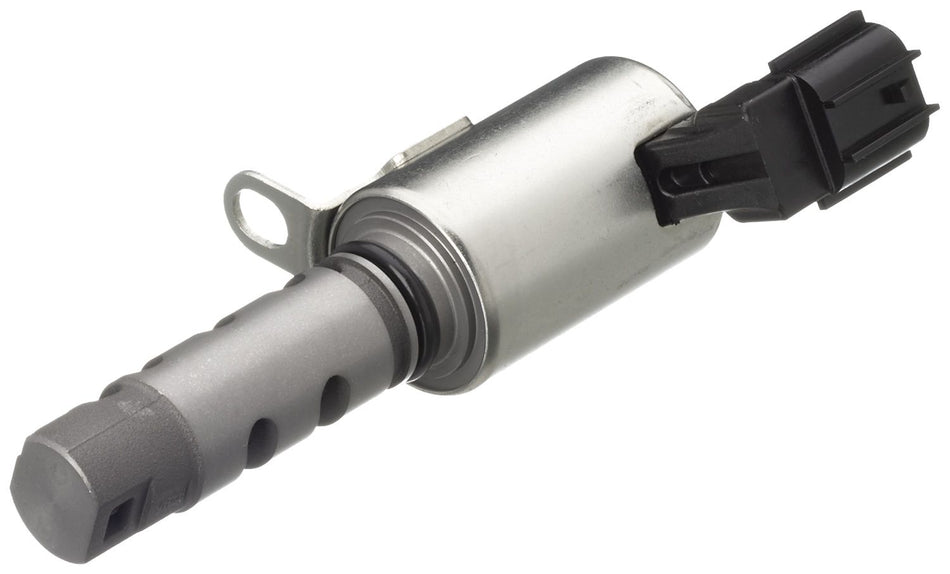

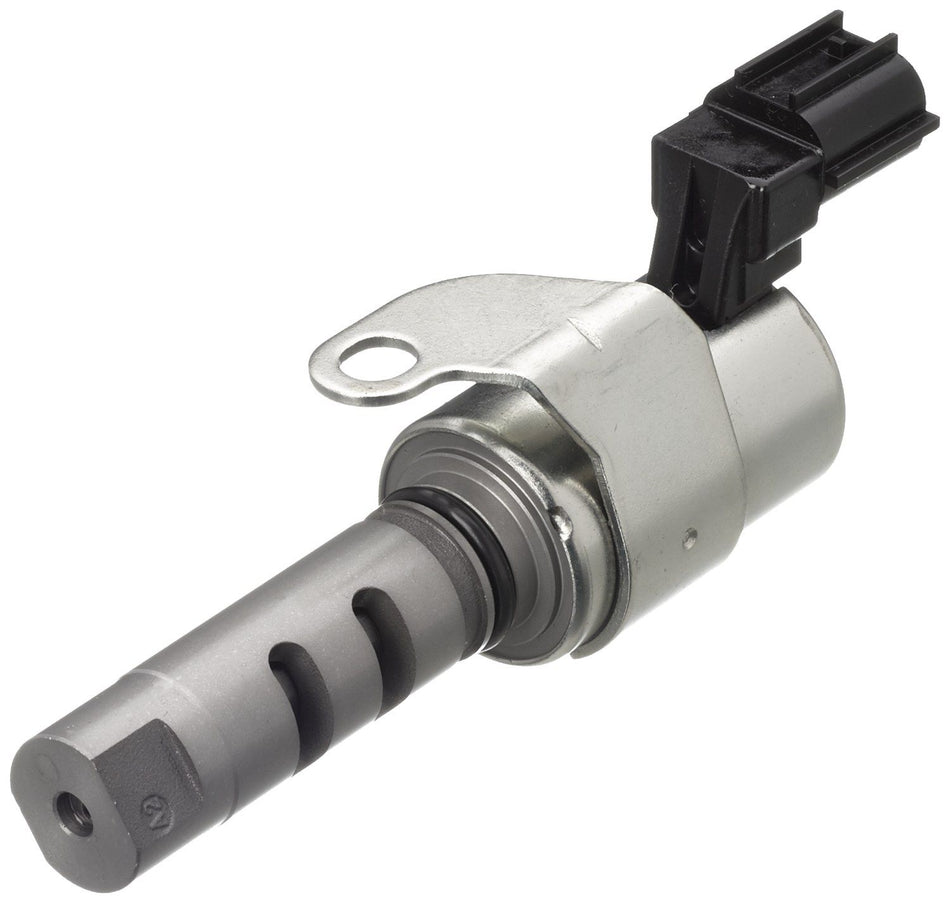

Opening before or after a piston reaches a nominal dead centre and closing after the intake stroke can use gas inertia to improve filling. Variable timing and lift systems alter those events by operating state. An apparently sealing valve can still give poor performance if cam timing, phasing or lift is wrong.
Record diagnostic phase values and confirm mechanical timing before condemning the valve.
Fitment needs the exact engine and head revision
| Identifier | Why it matters | Evidence | Mismatch result |
|---|---|---|---|
| VIN/engine code | Defines combustion and valvetrain family. | Build data and engine marking. | Wrong dimensions or material. |
| Head casting/revision | Locates seat, guide and running changes. | Casting and technical catalogue. | Incorrect installed geometry. |
| Inlet position/quantity | Separates valves by duty and cylinder count. | Head diagram and parts list. | Incomplete or misplaced set. |
| Stem/head/length | Controls guide fit, flow and clearance. | Approved dimensions/reference. | Seizure or piston contact. |
| Seat angle/grooves | Controls sealing and retainer lock. | Service drawing. | Leakage or collet failure. |
| Surface/material | Matches guide, fuel and duty. | Part specification. | Accelerated wear. |
Materials and coatings respond to specific conditions
Martensitic or austenitic steels, hardened tips, chrome- or nitride-treated stems and specialised seat-face treatments manage wear, corrosion and temperature. Alternative-fuel engines may impose different seat recession and material requirements. Machining through a thin protective layer can make a new valve unserviceable.
Do not polish or reface beyond the explicit dimensional and coating limits.
Valve guides keep the face concentric with the seat
Too little stem-to-guide clearance risks seizure as temperatures rise; too much allows the head to approach the seat off-centre and draws oil past the seal. Measure stem diameter and guide bore at specified points and directions rather than judging side movement by feel.
A new valve in a worn guide cannot maintain a durable seat seal.
Seat geometry controls sealing and heat transfer
The contact band must be concentric, at the correct width and positioned on the valve face. A very narrow band can overheat; an excessive one can restrict flow and reduce local contact pressure. Multi-angle seat machining can shape airflow, but every cut affects valve recession and installed height.
Measure after machining and replace seats or heads that cannot remain within limits.
Diagnosis should build evidence before head removal
| Evidence | Possible inlet-valve meaning | Other causes | Next action |
|---|---|---|---|
| Low compression | Face/seat leak or valve not closing. | Rings, gasket or timing. | Wet/dry and leakage tests. |
| Air heard at intake | Inlet valve leakage during leak-down. | Test piston not exactly positioned. | Repeat controlled test. |
| Intake backfire | Burnt/stuck valve or wrong timing. | Ignition or fuelling fault. | Scan, scope and timing checks. |
| Misfire when cold | Poor seal that changes with temperature. | Injector, plug or deposits. | Compare cylinder data. |
| Blue smoke/oil use | Guide or stem-seal leakage. | Rings, turbo or breather. | Inspect pattern and clearances. |
| Mechanical ticking | Clearance, follower or tip wear. | Oil pressure and cam wear. | Measure valvetrain before dismantling. |
Compression and leakage tests answer different questions
A compression test measures pressure built while cranking and depends on battery speed, throttle, timing and cylinder sealing. A controlled leak-down test holds the piston near the compression position and helps locate escaping air at intake, exhaust, crankcase or coolant. Neither result alone proves the valve itself rather than its seat, guide or operating mechanism.
Compare cylinders and follow safe ignition and fuel-disable procedures.
Carbon deposits can obstruct closing or flow
Oil vapour, exhaust-gas recirculation and certain direct-injection operating patterns can form inlet-port and valve-back deposits. Deposits may disturb airflow or hold a valve from its seat, but aggressive media cleaning can enter cylinders or damage coatings.
Use an approved cleaning method and investigate oil-control or breathing faults that caused excessive buildup.
Timing errors can bend otherwise sound valves
In an interference engine, piston and open-valve paths overlap at different times. A broken belt or chain, seized phaser, incorrect locking position or rotating cam and crank independently can cause contact. Once contact is suspected, inspect valve straightness, guides, pistons and followers rather than replacing only visible parts.
Do not turn the engine forcibly through resistance.
Spring compression requires controlled tools
Valve springs store substantial energy. Use a compressor that bears squarely on the retainer and solid head surface, wear eye protection and keep collets contained. Where on-engine work uses compressed air or a support cord, place the piston and crank safely and follow the exact method.
Never improvise with levering tools that can release the retainer suddenly.
Dismantling should preserve cylinder and position identity
Record components
Keep valves, springs, retainers, followers and shims identified by cylinder and position for diagnosis.
Release collets safely
Compress only enough to remove them without damaging grooves or stem.
Withdraw through a protected guide
Remove burrs at the stem tip so they cannot score the bore.
Every reused related component needs measurement
Inspect springs for free length, squareness and load; retainers and collets for fretting or deformation; followers, buckets and cams for wear. Check valve stems for bend, taper and scoring and heads for cracks, burning and reduced margin.
Magnetic crack testing or other specialist inspection may be required after overheating or contact.
Lapping has limited and application-specific use
Fine hand lapping can show a contact pattern or finish a suitable conventional seat when permitted, but it cannot make a worn guide concentric, correct a recessed seat or restore a thin valve margin. Abrasive left in the head rapidly damages the engine.
Many coated valves and precision-machined seats should not be lapped; follow current engine data.
Assembly establishes seals, height and clearances
Clean every oilway and abrasive trace. Lubricate stems with the named assembly product, protect new stem seals from keeper grooves and confirm they seat at the specified depth. Fit springs in the correct orientation, install matched collets and tap or inspect the retainer only by the approved settling method.
Measure installed height, valve protrusion or recession and spring load where specified.
Valve clearance must match the operating system
Mechanical tappets may use shims or adjusters; hydraulic elements need clean oil, correct preload and controlled filling. Too little clearance can hold the inlet valve open hot, while excessive clearance adds impact and reduces effective lift. Variable-lift mechanisms may require an assembly or adaptation position.
Set cold or hot clearances at the exact crank/cam positions stated.
Timing verification comes before the first start
Lock shafts with the prescribed tools, tension the belt or chain by its procedure and rotate the crank manually through the required cycles with spark plugs removed if directed. Recheck timing references and ensure no piston contact. Prime lubrication and complete relearn procedures before starting.
Stop immediately for abnormal compression resistance, noise, misfire or oil-pressure warning.
Emissions and roadworthiness depend on complete combustion
A leaking inlet valve can create misfire, catalyst-damaging unburnt fuel and emissions failures. UK MOT testing includes applicable exhaust emissions and engine warning-lamp checks. Do not road-test a severe misfire that could overheat the catalyst or leave the vehicle without reliable power.
Confirm fault counters, compression balance and leak-free operation after repair.
Practical inlet-valve FAQs
Q: Are inlet and exhaust valves interchangeable?
A: No. Their geometry, material and thermal duty differ.
Q: Can engine model alone identify a valve?
A: No. Use the exact engine code and cylinder-head revision.
Q: Does low compression prove a burnt inlet valve?
A: No. Rings, timing, gasket and the valve operating system also require tests.
Q: Can a new valve be fitted into a worn guide?
A: Not for a durable repair; measure and correct guide clearance.
Q: Is hand lapping always required?
A: No. It may be prohibited for coated or precision-finished parts.
Q: Why measure seat contact width?
A: It affects sealing, flow and heat transfer.
Q: Must valve parts stay with their cylinder?
A: Yes where reused, so wear evidence and matched interfaces remain traceable.
Q: Can valve springs be compressed with a lever?
A: Use the correct controlled compressor and eye protection.
Q: What happens if clearance is too tight?
A: The valve may not close fully when hot and can burn.
Q: Can the crank and cam be turned independently?
A: Not on an interference engine unless the service method places them safely.
Q: Does a new valve fix a damaged seat?
A: No. The guide and seat must be concentric and within limits.
Q: What requires specialist inspection?
A: Contact damage, cracks, guide wear or seat machining beyond service limits.
Q: What proves the repair is ready to run?
A: Correct measurements, timing, hand rotation, lubrication and complete reassembly checks.
