Masking Tapes

Masking tape manages the transition between coated and protected areas

The adhesive anchors the tape to a prepared substrate, the backing resists paint and solvent long enough for the operation, and the tape edge limits coating flow. Conformability lets it follow curves without lifting. Removal must then occur without splitting the new film or pulling the finish below.

No one tape optimises adhesion, heat resistance, sharpness and gentle removal on every surface.

Tape families produce distinct edge profiles

Width affects handling rather than simply coverage

Narrow tape follows curves and details, while wider tape bridges straight sections and supports masking paper. Wide backing can wrinkle on compound curves and lift its edge. Build broad protection using correctly overlapped paper or film rather than forcing one wide strip around every shape.

Place overlaps so booth airflow and spray direction do not drive coating underneath.

Temperature ratings include exposure time and substrate conditions

A tape may tolerate a quoted peak during a defined bake but soften or transfer adhesive if held longer. The panel surface can differ from booth air temperature, especially on dark metal or under infrared drying. Check tape and paint-system limits and monitor the actual process.

Do not place ordinary plastic film close to an infrared source unless its temperature rating is confirmed.

Substrate condition determines adhesion and removal risk

Test delicate and uncertain finishes before full masking

Apply a short piece in an inconspicuous area under the intended temperature and dwell where practical, then remove by the prescribed method. Look for colour transfer, imprint, loss of gloss and adhesive residue. A successful room-temperature test does not validate a bake cycle.

Do not tape over flaking lacquer, uncured filler or corrosion and expect it to remain intact.

Cleaning sequence prevents contamination being trapped at the edge

Wash and dry the vehicle, then use the paint system's waterborne and/or solvent cleaner with separate clean cloths as instructed. Blow out seams using clean controlled air before final degreasing where the process allows. Apply tape only after cleaner has evaporated.

Keep silicone sprays, tyre dressing and oily compressed air away from the preparation area. Contamination at the tape line often appears as cratering just beyond the edge.

Tape should be laid without stretching

Feed from the roll while guiding the edge, following the panel line with modest lengths. Stretching stores tension; as the backing warms it tries to retract and lifts at corners. On tight curves use a tape designed to conform rather than making numerous cuts that expose gaps.

Press with a clean finger or approved applicator along the paint-side edge. Excessive burnishing can make removal harder and transfer adhesive.

Hard-edge masking needs accurate overlap

Define the paint line first

Place the quality edge tape directly on the prepared surface. Do not use masking paper as the precision boundary.

Add paper or film outward

Overlap onto the first tape without covering its paint edge. Secure all corners against spray pressure.

Inspect from spray direction

Look for tunnels, wrinkles and exposed adhesive. Rebuild questionable sections rather than adding random patches.

Soft-edge foam controls aperture transitions

Place foam inside the door or panel aperture, not directly on the visible outer edge. Closing the panel compresses it enough to diffuse overspray, creating a feathered boundary that can be polished or blended according to the coating process. Excess compression produces a hard line; too little can allow overspray deep into the aperture.

Keep foam away from latch engagement, drain paths and electrical contacts. Confirm it cannot fall onto wet paint.

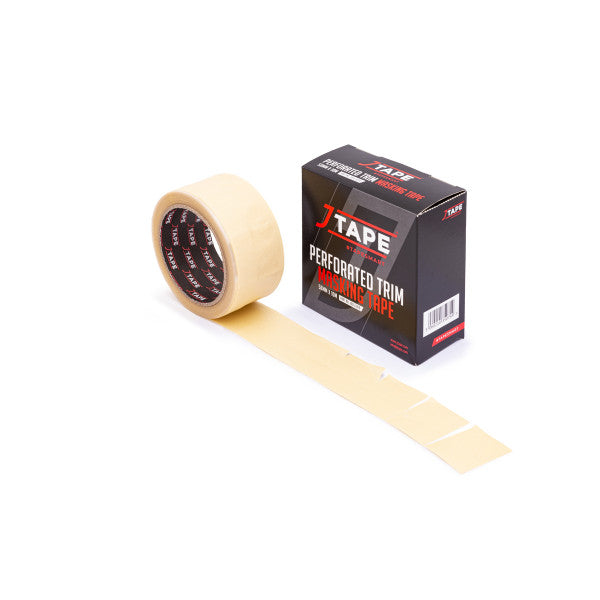

Trim tape lifts a lip without dismantling the moulding

Slide the reinforced portion behind a suitable rubber or plastic trim, then pull and fold the exposed section back so the lip rises from the paint surface. Perforations allow different widths. This helps coating extend under the original trim edge.

Do not use it on bonded trim that cannot flex, brittle aged seals or areas containing glazing antennas and sensors without checking the repair method. Removal and refit may be the only quality solution.

Masking must protect hidden cavities and safety systems

Coating technique still controls edge build

Directing excessive wet material into a tape edge builds a ridge and increases bleed. Apply primer, basecoat and clearcoat according to gun distance, flash time and film-build instructions. Replace tape between coating stages only when the paint system says to do so.

Do not blow compressed air under an edge to speed flash. It can lift the mask and carry contamination onto the panel.

Removal timing protects the fresh paint line

Many refinishing operations remove edge tape after the final coat has flashed but before it becomes too hard, while other systems require full cooling or cure. Follow the paint and tape instructions. Pull slowly back over the tape at a low angle, away from the new film edge.

If paint bridges across the tape, use only the authorised scoring method. A blade can cut through clearcoat, factory paint or a glazing seal.

Residue should be treated as a compatibility issue

Do not attack adhesive with thinners on fresh paint. Identify the substrate and coating cure, then use the approved residue remover on a cool surface. Test first and work without spreading softened adhesive into textured trim.

Residue often indicates excessive dwell, heat, dirty substrate or the wrong tape grade; correct the process before the next job.

Paint products require controlled ventilation and PPE

Masking tape does not contain overspray or hazardous vapour by itself. Spray in the approved booth with maintained extraction and use the respiratory, eye, skin and hearing protection required by the coating safety data and workplace assessment. Isocyanate-containing products demand specialist controls and health surveillance.

Keep masking paper and tape away from booth heaters and dispose of solvent/paint-contaminated waste through the appropriate route.

Practical automotive-masking-tape FAQs

Q: Can household masking tape be used for car paint?
A: Use automotive tape rated for the coating, substrate, heat and removal window.

Q: What does an 80°C rating mean?
A: It applies under defined time and test conditions; check the full technical data.

Q: Should tape be stretched around a curve?
A: No. Use a conformable grade and lay it without stored tension.

Q: How is paint bleed prevented?
A: Clean and dry the substrate, press the paint-side edge evenly and avoid flooding it.

Q: What is foam tape for?
A: It creates a softened overspray transition inside panel apertures.

Q: Where is trim-lifting tape placed?
A: Behind a compatible flexible moulding so the lip can be held off the paint edge.

Q: Can tape go over fresh paint?
A: Only after the coating reaches the stated tape-safe stage and a compatibility check passes.

Q: Why did tape leave residue?
A: Excess heat/dwell, contamination or the wrong grade may be responsible.

Q: When should edge tape be removed?
A: At the point specified by the paint and tape systems, often before full hard cure.

Q: How should tape be pulled off?
A: Slowly back over itself at a low angle without tearing the new edge.

Q: Can a blade release a bridged edge?
A: Only when the authorised method permits it and underlying surfaces are protected.

Q: Does masking replace spray-booth PPE?
A: No. Coating vapour and overspray still require full engineering and personal controls.

Q: What should be inspected before delivery?
A: Edge quality, overspray, residue, trim seating, drains and every removed mask or plug.
