Pliers are purpose-shaped levers, not universal gripping tools
Handle force is multiplied around the pivot and concentrated at the jaws. Moving the pivot nearer the work increases leverage; longer nose shapes trade force for reach and precision. Teeth, cutting bevels and formed tips determine how that force enters the part.
Correct pliers control the work without crushing, marking or launching it.
Main plier families
| Type | Designed task | Jaw feature | Important limit |
|---|---|---|---|

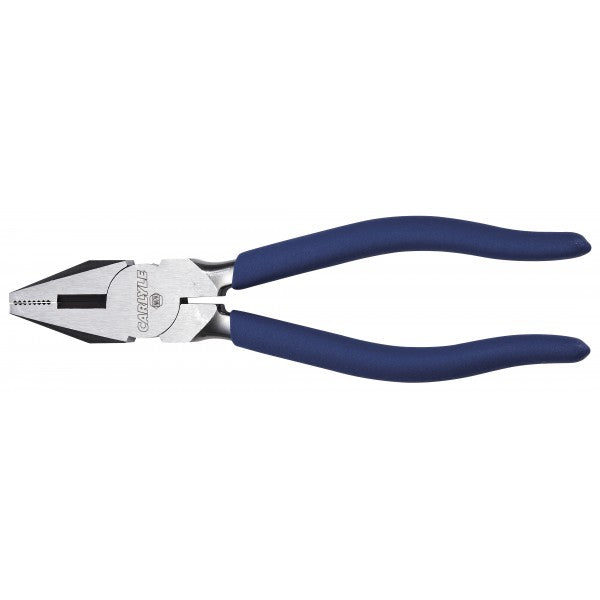

| Combination pliers | General gripping and moderate wire cutting. | Serrated flat/round zones plus cutter. | Not for hardened wire unless rated. |

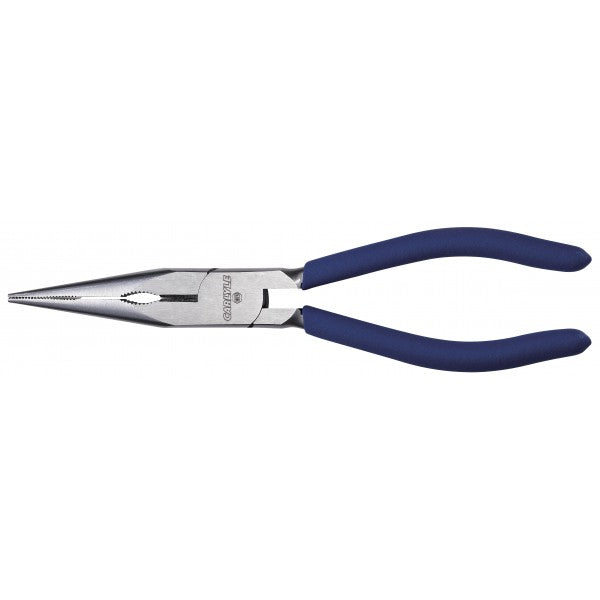

| Long-nose pliers | Positioning small parts in recesses. | Tapered narrow jaws. | Tips twist if used for high torque. |
| Diagonal cutters | Cutting specified wire or ties. | Opposed bevelled edges. | Material hardness and diameter rating. |
| Circlip pliers | Expanding or compressing retaining rings. | Straight/angled precision pins. | Internal/external action and tip size. |
| Water-pump pliers | Gripping larger irregular objects. | Multi-position tongue-and-groove jaws. | Can crush fittings and mar surfaces. |
| Locking pliers | Controlled clamping on robust work. | Over-centre lock and screw adjustment. | High local pressure; release pinch hazard. |
Leverage and work position
Work placed close to the pivot receives higher force; work at the tip receives more precise movement but lower force. For cutting, place rated wire at the intended deepest cutting zone.
Do not rock the handles sideways to compensate for inadequate capacity. Side load misaligns the jaws and loosens the pivot.
Jaw textures
Serrations improve grip by marking or displacing the surface
Coarse teeth suit sacrificial robust items but damage plated fittings, hoses, piston rods and seal lands. Smooth-jaw or soft-jaw tools protect finished surfaces when their capacity is sufficient.
Choose from the required surface condition, not only whether the tool can hold it.
Cutting edges
Cutters may be rated for copper, piano wire or another hardness range. Cutting material beyond the rating chips the edge and can eject fragments. Flush cutters leave a close face but may be more delicate than bevel cutters.
Never cut a tensioned wire without controlling both ends and planning the release.
Circlip control
External circlips expand over a shaft; internal rings compress into a bore. Tips must fill the ring holes without binding. Expand or compress only enough to clear the groove.
Overstretch permanently distorts a ring. Cover the release path and wear eye protection.
Locking pliers
The adjuster sets jaw spacing so the over-centre linkage clamps at a controlled point. Excessive screw tightening can crush thin work or make release violent. Use the release lever while controlling the handles.
Locking pliers are not a substitute for a spanner on a reusable fastener or for a line clamp on hydraulic hose.

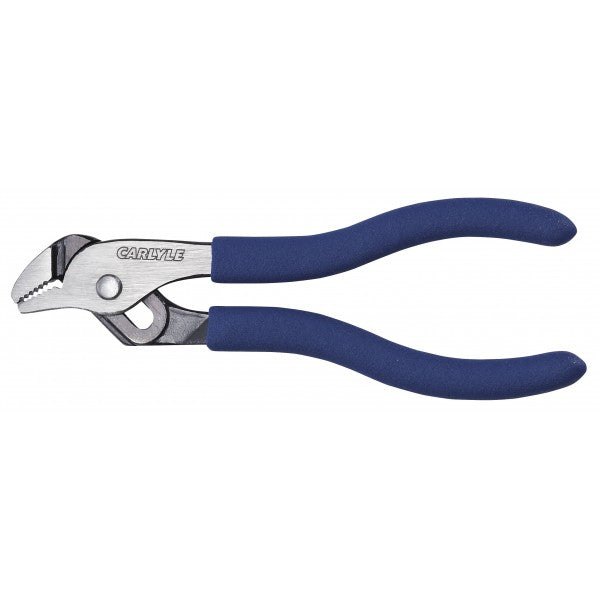

Water-pump and groove-joint pliers
Set the pivot so handles remain comfortably separated when jaws contact. The angled teeth can self-grip in one direction. Reverse loading reduces that action and can slip.
They suit robust plumbing-style shapes, not delicate automotive unions or plastic housings.

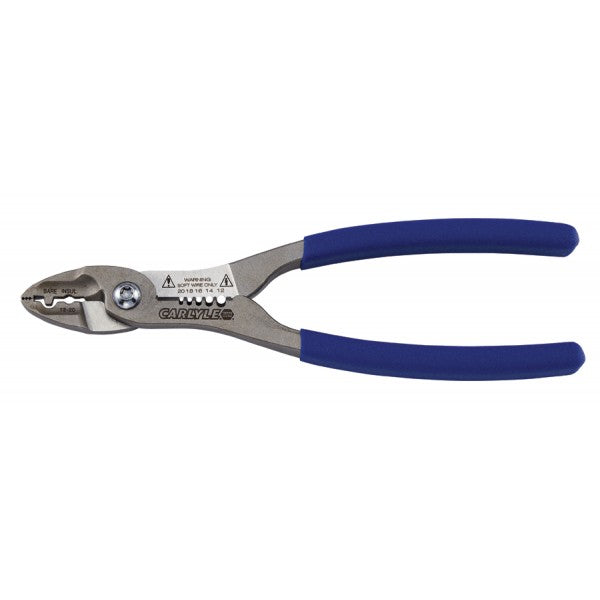

Crimping pliers
A proper crimper forms conductor and insulation wings to defined height and width. Ratcheting tools complete a full cycle before release. Die, terminal family and wire cross-section must match.
General-purpose squeezing pliers produce variable resistance and poor strain relief. Verify critical crimps by visual criteria and the specified pull test.
Hose-clamp pliers
Spring-band clamps store energy. Dedicated jaws capture their tabs and may lock or operate through a cable for remote access. Inspect the cable and latch before compressing.
Keep hands outside the clamp's path and confirm it sits square on the hose sealing land after release.
Selecting the correct tool
Identify the task, work size, hardness, surface sensitivity, required reach and stored energy. For fasteners, use sockets or spanners; for connectors, use extraction tools; for seals, use non-marring picks where specified.
Check whether replaceable jaws, dies or tips are installed and securely retained.
Condition findings
| Finding | Risk | Response |
|---|---|---|
| Chipped cutter | Poor cut and flying fragment. | Retire or approved edge replacement. |
| Splayed long-nose tips | Part slips or twists. | Remove from precision work. |
| Loose pivot | Jaws misalign under load. | Service only where specified. |
| Cracked handle insulation | Loss of voltage protection. | Quarantine certified tool immediately. |
| Bent circlip pin | Ring can launch. | Fit correct approved tip or replace. |
| Locking release sticks | Trapped hand/work and uncontrolled opening. | Remove from service. |
Pre-use inspection
Clean enough to see edges and cracks. Open and close through full travel; jaws should meet as designed without side play. Check springs, latches, adjustable tracks and replaceable-tip screws.
For insulated tools, complete the required visual and periodic electrical inspection and keep them separate from ordinary tools.
Controlled gripping
Use the broadest suitable jaw area and apply only enough force to prevent movement. Thin tube, electrical terminals and plastics deform easily. Protect surfaces with purpose-designed soft jaws, not loose cloth that can slip.
Do not grip a damper rod, brake piston, bearing race or sealing face with toothed jaws.
Cutting safely
Confirm the wire is not live or tensioned and that no fluid, gas or pyrotechnic device is associated with it. Position the cut away from the face and bystanders. Hold the offcut with a safe tool if needed.
Apply smooth force perpendicular to the wire. Twisting the cutter during the cut damages the edge.
Removing damaged fasteners
Locking pliers can sometimes grip a fastener already destined for replacement, but first protect surrounding parts and confirm the jaws cannot slip. Heat and penetrant require their own controls.
Do not treat this as a routine assembly method. Replace the fastener and use the specified torque tool on installation.
Electrical safety
Certified insulated pliers show a voltage rating and standard and use controlled insulation construction. They supplement—not replace—safe isolation, lockout and proving dead. Hybrid/EV work requires trained procedures and PPE.
Never assume red/yellow plastic grips are insulated. Remove a voltage-rated tool after any cut, burn, deep nick or contamination that compromises its system.
Safe-use controls
| Stage | Control | Failure prevented |
|---|---|---|
| Select | Jaw, capacity, hardness and surface match. | Tool damage and crushed work. |
| Inspect | Tips, cutters, pivot, latch and insulation sound. | Unexpected release. |
| Prepare | Stored energy, electricity and offcut path controlled. | Projectile, shock and entanglement. |
| Position | Work seated in intended jaw zone. | Tip breakage and slip. |
| Apply | Smooth axial hand force only. | Twisted jaws and overloading. |
| Release | Spring/locking force controlled and groove checked. | Pinch and launched clip. |
| Close-out | Tool and installed part inspected. | Hidden damage or insecure retention. |
Cleaning and lubrication
Remove metal particles from cutters and pivots. Wipe chemicals that attack grips and insulation. Apply a small amount of specified pivot lubricant without contaminating jaws, electrical work or brakes.
Do not wire-wheel insulated surfaces or dip handles in an unapproved coating.
Storage
Protect fine tips and cutting edges in a tray or sheath. Store locking pliers released so springs are not needlessly loaded. Keep crimp dies and circlip tips labelled by family and size.
Voltage-rated tools need clean dry protected storage and traceable inspection status.
Common mistakes
- Using combination pliers to turn reusable nuts and bolts.
- Cutting hardened wire with a copper-only cutter.
- Twisting long-nose tips to gain leverage.
- Over-expanding a circlip beyond its groove diameter.
- Clamping hydraulic hose with locking pliers.
- Crimping terminals with ordinary gripping jaws.
- Calling comfort-grip handles electrically insulated.
- Holding a tensioned offcut in the projectile path.
Practical pliers FAQs
Q: Can pliers replace a spanner?
A: No; serrated jaws damage reusable fastener flats.
Q: Which cutter suits hardened wire?
A: Only a tool marked for that wire hardness and diameter.
Q: Why place wire near the pivot?
A: That zone provides the greatest cutting leverage.
Q: Are internal and external circlip pliers the same?
A: They move the ring in opposite directions and must match it.
Q: Can locking pliers clamp a brake hose?
A: No; use only an approved line clamp where permitted.
Q: What makes a crimp tool correct?
A: Its die and range match the terminal and conductor.
Q: Can long-nose pliers carry high torque?
A: No; their narrow tips are designed for reach and positioning.
Q: Must eye protection be worn for circlips?
A: Yes; rings can escape with considerable stored energy.
Q: Are dipped handles voltage safe?
A: Not unless the complete tool carries recognised voltage certification.
Q: Can damaged cutters be ground sharp?
A: Only through an approved process that preserves edge geometry and hardness.
Q: Why adjust water-pump pliers first?
A: Correct handle spacing improves grip and hand control.
Q: How should locking pliers be released?
A: Control the handles and operate the intended release lever.
Q: What confirms correct circlip installation?
A: The ring is undistorted and fully seated around its groove.
