How the brake-light circuit warns following traffic
Pressing the brake pedal closes or changes the signal from a pedal-position switch. On a simple circuit, that switch supplies the stop-lamp bulbs directly or through a relay. On modern vehicles, a control module reads one or more pedal signals, checks plausibility and commands lamp outputs electronically.
The red signal must appear quickly and remain clearly brighter than the rear position lamps. A centre high-mounted stop lamp gives drivers farther back an additional line of sight. Reliable operation depends on the complete chain from pedal sensing and power distribution to ground, holder and lamp optics.
Common brake-light arrangements
| Arrangement | How it works | Fitment issue |
|---|---|---|
| Twin-filament tail/stop bulb | Low-power filament provides tail light; higher-power filament provides stop light. | Offset pins and two contacts must orient the circuits correctly. |
| Single-filament stop bulb | Dedicated bulb works only with the brake circuit. | Base, power and focal height remain application-specific. |
| LED rear combination lamp | LED board varies brightness or uses separate LED groups. | Driver electronics may be integral and non-serviceable. |
| High-level filament lamp | Several small bulbs illuminate a narrow centre housing. | All bulbs, reflector and lens must contribute evenly. |
| High-level LED bar | A sealed array illuminates across the rear window or spoiler. | Connector, body style and mounting seal must match. |
| Split body/tailgate lamp | Functions are distributed across fixed and moving panels. | Outer and inner units are not interchangeable. |

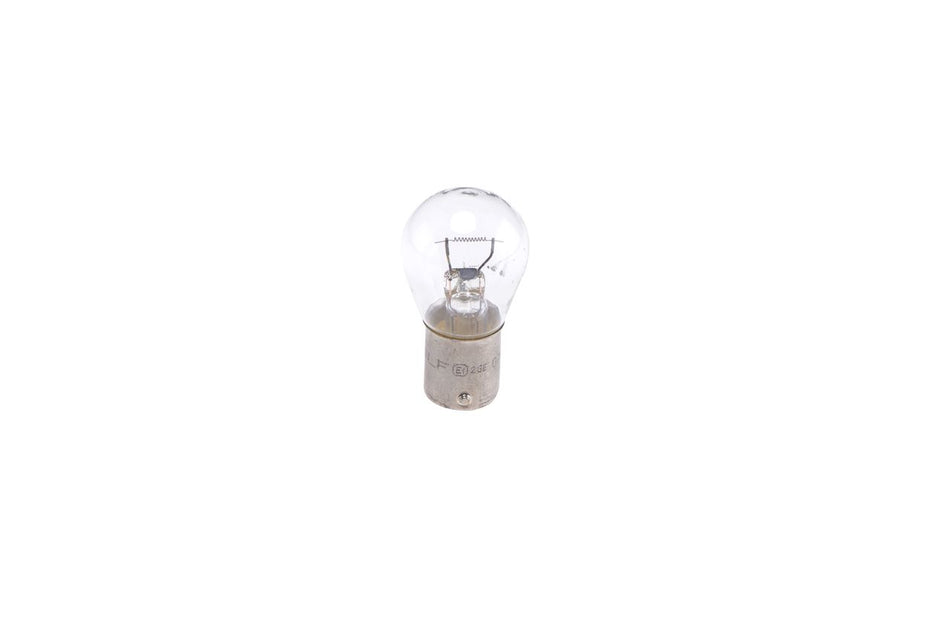

Twin-filament bulbs and contact orientation
A common combined bulb contains two separate filaments with different wattages. The brighter stop filament must connect to the brake circuit and sit at the correct optical position. Staggered bayonet pins prevent incorrect rotation when the correct holder is intact.
Forcing a similar single-contact or equal-pin bulb into the socket can bridge circuits, reverse brightness, melt the holder or make the tail light appear as bright as the brake light. Confirm the full base designation rather than relying on glass diameter.
LED lamps and control electronics
Integrated LED arrays
Many later lamps use soldered LEDs and a current-control circuit. The vehicle may pulse the supply or send a command to an intelligent lamp. Individual emitters are not necessarily approved service parts, so repairing the board can alter light distribution and sealing.
Replaceable LED sources
A replacement LED placed in a filament-bulb housing must reproduce the intended brightness and viewing pattern and remain electrically compatible. A bright central hotspot does not prove that the lamp remains visible across required angles.
Monitoring
Body-control modules may detect open circuits, short circuits or unexpected current. Incompatible low-current replacements can create warnings or flicker. Parallel resistors generate substantial heat and should not be used as an improvised cure.
Exact selection checks

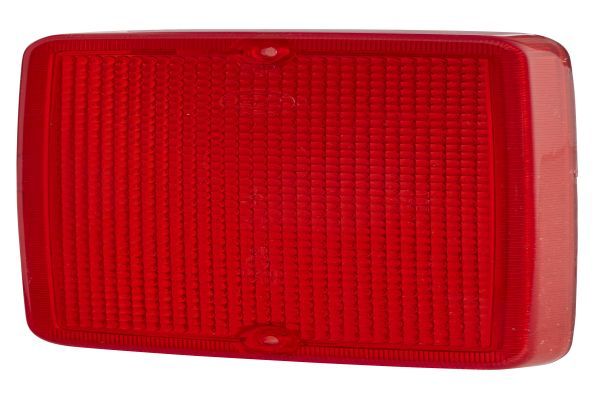

| Check | Possible variation | Why it matters |
|---|---|---|
| Vehicle build date | Filament, partial LED or full LED revision. | Body styling can remain unchanged across a lamp update. |
| Body style | Hatchback, saloon, estate, coupe or van. | Housing shape and wiring route differ. |
| Lamp position | Left/right, inner/outer or high-level. | Mountings and functions are position-specific. |
| Bulb base | Single/dual contact and pin arrangement. | Controls circuit connection and orientation. |
| Rated output | Voltage and wattage. | Affects brightness, heat and failure monitoring. |
| Connector | Pin count, keying and terminal assignment. | Physical similarity does not establish electrical equivalence. |
| Approval and lens | Optical pattern, red lens or red source. | The complete lamp must provide the lawful signal. |
| Included parts | Holder, gasket, board or control module. | Determine what must be transferred or renewed. |
Pedal switches and plausibility
A brake-pedal switch may contain two circuits: one for lamps and another for engine, cruise-control or stability logic. Their states are expected to change in a defined sequence. Incorrect adjustment can leave lamps on, delay illumination or generate a plausibility fault even when the switch is electrically new.
Some switches self-adjust during installation and can be damaged by moving the plunger incorrectly. Others require scan-tool calibration or use a pressure sensor as additional evidence. Follow the exact procedure rather than twisting a generic switch into place.
When one, several or all lamps fail
| Failure pattern | Likely area | First checks |
|---|---|---|
| One filament lamp out | Bulb, holder, local wiring or ground. | Inspect bulb and test voltage under load. |
| Both main lamps out, centre works | Shared rear feed, two aged bulbs or module outputs. | Check each socket and wiring diagram. |
| All stop lamps out | Fuse, pedal switch, supply, module or common command. | Do not drive normally; diagnose immediately. |
| Lamps remain on | Switch adjustment, pedal stop, wiring short or module command. | Inspect pedal mechanism and live switch data. |
| Dim or interacting lamps | High-resistance ground or corroded connector. | Measure voltage drop with lamps illuminated. |
| Part of an LED array dark | Emitter, board, driver or internal connection. | Confirm whether the approved unit is serviceable. |
| Failure after rain | Cracked lens, seal, vent or harness water path. | Find the ingress source before replacement. |
Voltage-drop testing under load
A high-resistance connection can show battery voltage on a digital meter when the bulb is removed but collapse when current flows. Test the positive path from battery to lamp and the ground path from lamp to battery while the brake circuit is operating. The unwanted voltage measured across a connection is the drop it consumes.
Shared ground resistance often makes tail, indicator and brake functions affect one another. Bulb substitution is not a repair for a heated terminal. Replace damaged contacts or holders and restore sealed, mechanically secure connections.
Water ingress, condensation and heat
Lamps breathe through designed vents as temperature changes. Light temporary misting may clear, whereas standing water, corrosion trails or repeated droplets indicate a fault. Check lens bonds, rear covers, gaskets, vents and body seams; drilling extra holes can admit dirt and invalidate the optical enclosure.
Melted plastic around a bulb usually points to wrong wattage, loose contact or prolonged heating. A distorted holder can no longer position the source accurately. Inspect the reflector because heat can dull or deform its surface even after the electrical fault is repaired.
Bulb replacement procedure
- Park securely, switch the ignition and lamps off, and allow hot components to cool.
- Use the prescribed trim or lamp-removal sequence to avoid broken clips.
- Note every holder position before turning or unplugging it.
- Compare base, contacts, pins, voltage, wattage and bulb code.
- Inspect the socket for green corrosion, weak contact pressure and browning.
- Insert the new bulb without force and lock the holder fully.
- Seat covers and seals evenly, keeping wiring out of pinch points.
- Test tail and stop functions separately to confirm the correct brightness change.
- Check all three brake lamps from outside the vehicle.
Replacing a complete lamp unit
Protect painted edges and support the lamp as fasteners are removed. Disconnect plugs using their latches, not the wires. Transfer holders or modules only if the replacement specification requires it, and renew damaged seals rather than adding uncontrolled sealant.
Before final trim assembly, test every function in the combination lamp and check panel alignment. A trapped gasket, loose nut or overtightened plastic stud can crack the housing and create water ingress.
Common repair mistakes
- Checking only the two low-mounted lamps and missing the centre lamp.
- Installing a single-filament or wrong-pin bulb in a dual-function holder.
- Using excess wattage to make a cloudy lamp appear brighter.
- Replacing a pedal switch without its adjustment procedure.
- Assuming an LED conversion is suitable because no warning appears.
- Clearing a fuse fault by installing a higher-rated fuse.
- Ignoring water ingress after fitting a new bulb or lamp.
- Testing with the tail lights already on and missing reversed filament operation.
Upgrades and compatibility
Restoring clean lenses, sound grounds and the specified new bulb often improves output more reliably than changing technology. Where a manufacturer offers a revised lamp, confirm whether coding, harness adapters or paired units are required.
Aftermarket lamp assemblies must suit the vehicle, driving side, body and intended road use. Dark tints, films or coatings reduce output and can compromise approval. Do not alter the high-level lamp to flash or pulse unless an applicable approved system permits it.
UK MOT and road-safety relevance
Required stop lamps must illuminate when the service brake is applied, show red light to the rear, remain secure and not be adversely affected by damage. A defective stop lamp can result in an MOT failure. The precise test treatment depends on the vehicle's age and required lamp complement.
The MOT is a minimum inspection on one date. Because total brake-light failure removes a vital warning to following drivers, repair it before normal road use rather than waiting for a test.
Practical brake-light FAQs
Q: Why are all my brake lights not working?
A: Check the shared fuse, pedal switch, supply, control command and wiring; avoid normal driving.
Q: Why does only one brake light fail?
A: A local bulb, holder, LED unit, connector or ground fault is most likely.
Q: Why do my brake lights stay on?
A: The pedal switch, its adjustment, pedal stop, wiring or module command may be faulty.
Q: Are brake and tail lights the same bulb?
A: Some lamps use two filaments in one bulb; others keep the functions separate.
Q: Can I fit a higher-wattage brake bulb?
A: No. It can overheat the holder, wiring and lamp optics.
Q: Should brake-light bulbs be changed in pairs?
A: It can provide consistent age and output, but correct diagnosis remains essential.
Q: Can I replace a filament bulb with an LED?
A: Only if the source is electrically, optically and legally suitable for that lamp.
Q: Why does the dashboard show a bulb warning after replacement?
A: The bulb may have the wrong load, poor contact or incompatible electronics.
Q: Can a brake-light switch affect cruise control?
A: Yes. Its signals are often shared with engine and cruise-control logic.
Q: Is part of a dark LED strip an MOT issue?
A: It can be if required output is significantly reduced or the lamp is defective.
Q: Why is my brake light dim?
A: Suspect wrong wattage, voltage drop, a poor ground, damaged optics or corrosion.
Q: How can I test brake lights alone?
A: Use an assistant, a safe pedal tool or a reliable reflection while viewing every lamp.
Q: Can a failed brake light cause an MOT failure?
A: Yes. Required stop lamps must operate correctly and show the proper signal.
