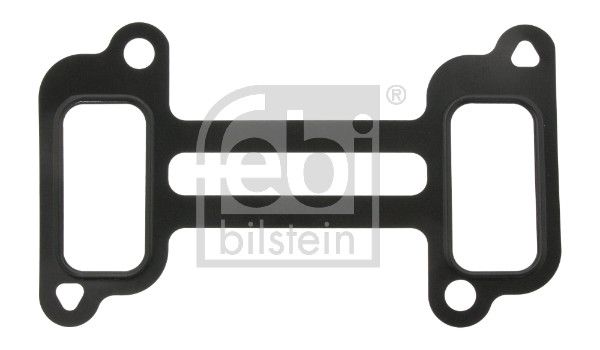

Inlet Manifold Gasket

An inlet manifold gasket seals the air passages between the manifold and cylinder head, and may also separate coolant, exhaust-gas-recirculation or crankcase-vapour galleries. On a naturally aspirated petrol engine it prevents unmetered air entering downstream of the airflow measurement; on a turbocharged engine it must retain boost as well as vacuum. Multi-piece manifolds can use additional plenum, runner-control, throttle and sensor seals that must not be confused with the head gasket interface.

Match by VIN, engine code, production date, manifold material, port shape, bolt pattern and any coolant or EGR openings. Check gasket orientation, locating tabs, sealing-bead position and whether the service information requires one-time fasteners or a complete seal kit. Similar engines can use revised manifolds and port dividers. A gasket that covers even part of a runner, injector recess or coolant hole can cause serious running or overheating problems.

Symptoms include uneven idle, lean fuel trims, cold misfire, whistle, reduced boost, oil mist, coolant loss or staining, but these do not prove gasket failure. Split breather hoses, injector seals, throttle gaskets, warped plastic, EGR joints, valves and low compression can behave similarly. Inspect visually, compare cylinder fuel correction and use an approved low-pressure smoke or pressure test. Do not search for leaks by spraying flammable fluid around a running hot engine.

Manifold removal can expose fuel, coolant, hot surfaces, sharp brackets and electrically operated throttles. Work cold, depressurise fuel where required, isolate the battery by the vehicle procedure and cap every open port immediately. Coolant is toxic and must be contained. Prevent nuts, carbon, seal fragments and cleaning liquid entering the cylinders; rotate or crank the engine only after every runner has been checked clear.

Clean mating faces without gouging aluminium or plastic, then inspect flatness, cracks, thread condition and runner-control mechanisms. Fit the gasket dry unless the exact procedure specifies sealant, align every tab and tighten in the stated sequence and stages. Refill and bleed any disturbed cooling circuit, verify throttle or runner adaptations where required, then check smoke integrity, fuel trims, boost control, coolant level and leaks through a complete heat cycle. Inlet manifold gaskets listed below are precision interfaces whose diagnosis and installation affect combustion, emissions and engine safety.

Your Current Vehicle

Or

Select Your Vehicle

1 Product

The gasket keeps each intake path controlled

Air should reach each cylinder only through the measured or commanded route. The gasket closes microscopic gaps where the manifold meets the head so pressure, vacuum and gas distribution remain predictable.

Some interfaces also carry coolant or EGR gas. The seal must keep those media separate from the runners and from the outside of the engine.

Locations within a modern intake assembly

Seal positionMedia retainedTypical constructionDo not confuse with
Manifold-to-cylinder headVacuum/boost and sometimes coolant/EGR.Carrier gasket, moulded elastomer or composite.Cylinder-head gasket.
Upper-to-lower plenumShared intake volume.Profiled O-ring or frame seal.Runner seals at the head.
Throttle-body flangeMetered intake air.O-ring, fibre or metal-backed seal.Throttle shaft leakage.
EGR mixer/pipeHot exhaust gas and boost.Metal or high-temperature composite.Manifold air seal.
Runner-control actuatorHousing vacuum and oil mist.Small radial or face seal.Actuator diaphragm fault.

Vacuum and boost conditions

A throttled petrol engine develops manifold vacuum at idle. A leak draws unmetered air in, often having its greatest proportional effect when commanded airflow is low.

Under turbocharger boost, the pressure direction reverses and a weak joint can push air and oil mist outward. A gasket may therefore leak only in one operating region.

Petrol and diesel differences

Petrol mixture control can respond quickly with positive fuel trim, unstable idle and catalyst-damaging misfire. Direct-injection deposits or injector sealing faults can confuse the picture.

Diesels usually regulate air differently but depend on correct boost, EGR and swirl distribution. Leakage can reduce charge mass, coat the joint with oil mist or upset emissions control without a classic high idle.

Metered and unmetered air

Leak position changes the diagnostic evidence

A leak after a mass-airflow sensor adds air that the controller did not count. A speed-density system may infer some of it through manifold pressure, yet cylinder-to-cylinder distribution can remain uneven.

A brake-servo, purge or crankcase-ventilation hose connected to the plenum can introduce the same type of air path. Test every branch rather than focusing only on the gasket seam.

Gasket materials

ConstructionUseful propertyCommon ageing modeInstallation concern
Moulded rubber on carrierFollows port shape and tolerates movement.Compression set, hardening or swelling.Groove cleanliness and correct seating.
Composite/fibreConforms to broad flat faces.Crushing, moisture damage or tearing.Dry fit and controlled surface finish.
Embossed metalHeat resistance and defined bead load.Bead flattening or corrosion.Correct face orientation and flatness.
Individual O-ringsServiceable seals for separate runners.Pinching, twisting or loss of elasticity.Specified lubricant and full groove insertion.
Bonded multi-media gasketSeparates air, coolant and EGR zones.Local delamination or chemical attack.Exact engine and manifold revision.

Plastic-manifold movement

Glass-filled plastic reduces mass and heat transfer but its flanges can warp from heat, fastener error or previous over-tightening. Cracks often form near bosses, seams or actuator pivots.

A thicker gasket is not a valid way to compensate for a distorted flange. Measure against the service limit and replace or repair the correct component.

Aluminium-manifold concerns

Aluminium faces can corrode around coolant passages and are easily gouged by hard scrapers. Threaded holes may pull or contain coolant and oil that hydraulically affects bolt torque.

Clean threads by the specified method and repair them only with an approved insert process that preserves alignment and clamping depth.

Failure symptoms and competing causes

EvidenceGasket mechanismAlternativeUseful discrimination
Positive fuel trim at idleVacuum leak has high proportional effect.PCV, purge, injector or airflow error.Compare trim as engine speed/load rises.
One-cylinder cold misfireLocal runner leak or coolant seep.Injector, ignition, compression or deposit.Cold capture and runner-specific smoke.
Whistle/hissAir passes a narrow gasket gap.Throttle, hose or turbo plumbing.Controlled smoke/pressure location.
Oil mist at flangeBoost escapes with crankcase vapour.Oil spill or adjacent breather leak.Clean and observe under known pressure.
Coolant lossIntegrated passage leaks externally/internally.Thermostat, hose, pump or head gasket.Cold pressure test and fluid evidence.
UnderboostCharge leaks from manifold joint.Intercooler, actuator or turbo fault.Pressure/smoke test whole charge path.

Fuel-trim analysis

Record short- and long-term correction after the engine reaches the required test state. A vacuum leak often produces more positive correction at idle than at raised speed, but strategy varies.

Compare banks and cylinders where data exists. Do not clear adaptations before capturing the pattern because learned values may be the best evidence of an intermittent leak.

Smoke and pressure testing

Use a smoke machine intended for intake diagnosis, with pressure limited below the weakest system component. Block or command valves only according to the test plan.

Smoke at a shaft or vent may be normal, while no visible plume does not exclude a heat-sensitive gap. Never substitute workshop air at uncontrolled pressure or a flammable vapour.

Coolant-path diagnosis

If coolant crosses the interface, it may leave external crystals, enter a runner or contaminate oil depending on design. A cylinder containing liquid must not be cranked because hydraulic lock can bend internal components.

Pressure-test cold at the stated value and inspect through ports where possible. Coolant dye, combustion-gas testing and oil analysis answer different questions; select evidence appropriate to the circuit.

Part selection

Match VIN and engine code, then confirm manifold casting or moulding revision. Check every port, blank, locating peg and sealing bead against the removed component before assembly.

Identify all related seals likely to be disturbed: throttle, injector, EGR, coolant pipe, runner actuator and breather connections. Reusing one hardened O-ring can invalidate otherwise careful work.

Preparation for removal

Work on a cold engine. Isolate the electrical system, depressurise fuel and drain coolant only where the vehicle procedure requires those operations.

Photograph hose and harness routing, label similar connectors and protect painted surfaces. Do not pull on wires or use brittle vacuum lines as handles.

Fuel-system boundaries

Port injectors and rails may be attached to the manifold; direct-injection high-pressure components can be nearby. Residual fuel pressure and vapour create fire and injection hazards.

Use approved caps, replace specified seals and one-time pipes, and keep ignition sources away. A high-pressure fuel line must never be loosened while the engine is running.

Protecting open ports

Cover each runner immediately with clean lint-free material or purpose-made caps, accounting for every cover before assembly. A single nut, abrasive grain or gasket chip can damage a valve or cylinder.

Vacuum loose debris before removing covers; do not blow it across the engine. If anything may have entered, inspect and retrieve it before rotating the crankshaft.

Surface preparation

Lift old material with tools compatible with the substrate and keep abrasive debris out of ports. Rotary discs can remove metal unevenly and embed particles.

Finish with the approved residue-free cleaner, then inspect surface finish, corrosion and flatness. Sealant traces in coolant holes or bolt bores must be removed without enlarging them.

Sealant rules

Most moulded inlet seals install dry. Extra RTV can hold the gasket out of its groove, squeeze into a runner or break away into an oil or coolant circuit.

Where a procedure specifies small sealant dabs at joints, use the named chemistry, bead size and assembly time. More material does not improve clamp load.

Tightening and clamp distribution

StageActionRisk controlled
Position gasketEngage every locator and verify open ports.Pinched seal or blocked passage.
Offer manifoldMove squarely without dragging across beads.Rolled O-ring and contamination.
Start fastenersHand-thread all bolts to correct depth.Cross-threading and trapped harnesses.
Initial sequenceSnug from specified centre/sequence.Flange distortion.
Final stagesUse calibrated torque/angle and renewed bolts where stated.Uneven sealing and broken bosses.
ReconnectRestore hoses, grounds, supports and clips.New vacuum leak or vibration fracture.

Cooling-system restoration

Use only the coolant type, concentration and mixing rules specified for the vehicle. Combining incompatible coolant chemistries can cause deposits and seal damage.

Fill and bleed by the prescribed vacuum or manual method, operate heaters where required and recheck after full cool-down. Never remove a hot pressure cap.

Adaptations and commissioning

Restore throttle, runner-control or idle adaptations only as required. Before starting, account for tools and port covers, then prime any disturbed fuel system and inspect for leakage.

After start, stop immediately for fuel, coolant or severe vacuum leakage. Monitor temperatures, fuel trims, manifold pressure, misfires and commanded runner position through a full heat cycle and controlled road test.

Common mistakes

Errors include blaming the gasket from a lean code, using flammable spray to find a leak, ordering by engine capacity alone and applying sealant to a moulded dry seal.

Other failures follow gouged faces, trapped wiring, unaccounted port covers, reused injector seals and tightening a plastic manifold without the specified sequence.

UK emissions and safety context

Intake leakage can cause misfire, excess emissions and catalyst overheating. A flashing engine warning, raw-fuel smell, rising temperature or liquid in a cylinder demands immediate attention.

Coolant and fuel must be contained and disposed of through appropriate routes. A successful repair includes stable emissions control, not merely disappearance of a hiss.

Practical inlet-manifold-gasket FAQs

Q: Can a manifold gasket cause a lean code?
A: Yes, especially when unmetered air enters downstream of airflow measurement.

Q: Does every leak whistle?
A: No; many gaps are quiet or appear only hot, under vacuum or boost.

Q: Can the gasket leak coolant?
A: Some designs include coolant passages, while others seal air only.

Q: Is aerosol spray a safe leak test?
A: No; use controlled non-flammable diagnostic equipment around a hot engine.

Q: Why compare fuel trim at different loads?
A: A vacuum leak often changes its proportional effect as commanded airflow rises.

Q: Must sealant be added?
A: Fit dry unless the exact procedure specifies a particular sealant location.

Q: Can a warped plastic manifold reuse a new gasket?
A: The flange must meet its flatness limit; a gasket cannot correct distortion.

Q: Are all seals included with the main gasket?
A: Not necessarily; check throttle, injector, EGR and pipe seals separately.

Q: Why cap intake ports immediately?
A: Foreign material entering a cylinder can cause severe internal damage.

Q: Can the bolts simply be tightened harder?
A: No; over-tightening distorts flanges and breaks plastic bosses.

Q: Should coolant be drained for every job?
A: Only when the specific manifold interface and procedure require it.

Q: What if coolant entered a cylinder?
A: Do not crank; remove the liquid and establish the cause safely first.

Q: What verifies the repair?
A: Leak-free pressure paths, stable trims, correct boost, no misfire and stable coolant.
