Battery Testers

Battery testers assess the condition of compatible low-voltage vehicle batteries and, on some models, the starting and charging systems. This collection includes digital conductance testers, stop-start-capable analysers, an analogue load tester and printer-paper consumables for compatible equipment. Check whether the tool supports 6-, 12- or 24-volt systems and the battery chemistry before connecting it.

A meaningful result needs correct inputs. Identify flooded, EFB, AGM spiral or AGM flat-plate construction, then enter the rating printed on the battery using the matching standard such as EN, SAE, IEC, DIN or JIS. Cold-cranking-amp numbers from different standards are not interchangeable. Record battery temperature and recent charging state as well. A tester's state-of-health estimate is an interpretation, not a direct measurement of remaining life.

Inspect the battery first. Do not test a frozen, cracked, leaking, swollen, unusually hot or heavily gassing unit. Wear eye protection, ventilate the area and keep sparks, cigarettes and ignition sources away. Connect to clean sound terminals in the stated polarity with the vehicle and accessories in the required state. Never clamp onto a loose terminal or allow the leads to cross moving or hot parts.

Charge and stabilise a deeply discharged battery before condemning it unless the tester procedure states otherwise. Surface charge, recent starting, temperature, poor clamp contact and connected vehicle loads can skew results. Use remote battery posts where the vehicle specifies them, and follow energy-management precautions; some stop-start systems require battery registration after replacement.

Record open-circuit voltage, entered rating, measured conductance or load voltage, temperature and test message, then confirm an unexpected decision with the battery or vehicle procedure. Retain the exact test setup with the result. Test alternator and starter functions only when the tool is rated and the leads are safely routed. Battery testers are not suitable for traction-battery high voltage; hybrid and electric vehicles require their own trained isolation and diagnostic methods.

Your Current Vehicle

Select Your Vehicle

A battery test estimates whether stored energy can do useful work

Voltage shows electrical potential, but a starter battery must also deliver high current without collapsing. Internal corrosion, active-material loss, sulphation, poor connections and low charge all affect that performance. A tester applies a method and interprets the response against the battery's declared rating.

The result is only as reliable as battery identification, contact quality, temperature and state of charge.

Test methods ask different questions

Tester type	Method	Strength	Limit
Digital conductance	Uses a small AC signal to estimate capability.	Fast, low energy and often in-vehicle.	Algorithm depends on correct rating/type.
Electronic impedance	Measures dynamic electrical response.	Useful for trend and service screening.	Not direct chemical inspection.
Carbon-pile/load	Applies a controlled high current.	Shows voltage under substantial load.	Generates heat and needs charged battery.
Cranking test	Records voltage during engine start.	Assesses real starting event.	Starter, oil and connections influence it.
Charging-system test	Measures voltage/ripple under conditions.	Checks alternator system behaviour.	Vehicle smart charging needs context.
Printer accessory	Produces a result record.	Supports traceability.	Paper does not change test accuracy.

State of charge and state of health are different

State of charge describes how full the battery is now. State of health compares its present capability with a reference new condition. A healthy but discharged battery may fail an immediate starting assessment, while a fully charged aged battery may show good voltage but inadequate current capacity.

Charge, rest and retest when the procedure calls for it before recommending replacement.

Battery chemistry changes the algorithm and limits

Flooded, enhanced flooded and absorbed-glass-mat batteries use different construction and charging behaviour. Stop-start applications demand repeated cycling and often use EFB or AGM. Gel and specialist leisure batteries may need another mode entirely.

Select the exact type printed or documented; guessing AGM because a case is sealed can produce a misleading decision.

Rating standards must be entered exactly

Input	Where obtained	Why required	Common error
Voltage	Battery/system label.	Sets instrument range and method.	Testing a 24 V bank as one 12 V unit.
Chemistry	Battery marking and vehicle data.	Selects interpretation model.	Confusing sealed flooded with AGM.
Rating value	Label, not catalogue guess.	Creates new-performance reference.	Entering amp-hour capacity as CCA.
Rating standard	EN, SAE, IEC, DIN, JIS marking.	Defines how number was established.	Using correct number with wrong standard.
Temperature	Battery or tester measurement.	Cold changes available current.	Testing immediately after heat exposure.
Connection point	Vehicle service instructions.	Includes or excludes cable path correctly.	Bypassing a specified remote terminal.

Cold-cranking amps are not amp-hours

CCA describes the battery's ability to supply high current under a defined cold test. Amp-hours describe charge capacity over a time-based discharge condition. One cannot be converted reliably into the other for tester entry.

Use the tester's field labelled for the rating actually printed, not the largest number visible on the case.

Visual inspection comes before electrical connection

Look for cracks, swelling, leakage, displaced terminals, loose hold-downs, damaged vents and signs of overheating. A frozen or physically compromised battery can rupture during charge or load. Heavy corrosion may also prevent a sound test connection.

Stop and control the hazard rather than cleaning or loading a battery whose integrity is uncertain.

Lead-acid batteries can release explosive gas

Charging and fault conditions can produce hydrogen and oxygen. Ventilate, keep sparks and flames away and make the final connection in the specified location. A tester clamp that arcs at a post can ignite accumulated gas.

Wear eye and skin protection suitable for corrosive electrolyte and know the site's spill and first-aid arrangements.

Connection quality controls the measurement

Clamp to clean solid lead or designated posts with correct polarity. Rocking a toothed clamp may improve contact, but never damage a plated remote stud or sensor. Poor contact adds resistance that a tester can interpret as battery weakness.

Keep leads away from fans, belts and exhaust parts before any engine-running or cranking test.

Pre-test state changes the result

Condition	Effect	Correction	Decision risk
Recent charging	Surface charge raises terminal voltage.	Apply stated removal/rest procedure.	Overstated state of charge.
Deep discharge	Low voltage distorts health estimate.	Charge safely, stabilise and retest.	Good battery condemned.
Recent cranking	Temporary voltage recovery and heating.	Observe specified wait.	Inconsistent repeat results.
Connected loads	Current alters voltage and signal.	Prepare vehicle/accessories as instructed.	False low result.
Cold battery	Reduces chemical output.	Use temperature compensation/method.	Rating compared unfairly.
Corroded clamps	Adds contact resistance.	Clean/repair connections safely.	Battery blamed for cable fault.

A load test produces real heat

A carbon-pile or analogue load tester draws substantial current through its element. Set the approved load and duration, keep vents clear and allow cooling between tests. Leads, clamps and tester body can become hot.

Never exceed the duty cycle, leave the load applied unattended or test close to a leaking battery.

Conductance testing is gentle but interpretive

The tester measures an electrical response and uses a model to estimate available cranking performance. Accurate rating and chemistry selection are therefore essential. It may ask whether the battery is installed, charged before test or connected in a series bank.

Follow prompts literally and investigate results that disagree strongly with measured starting behaviour.

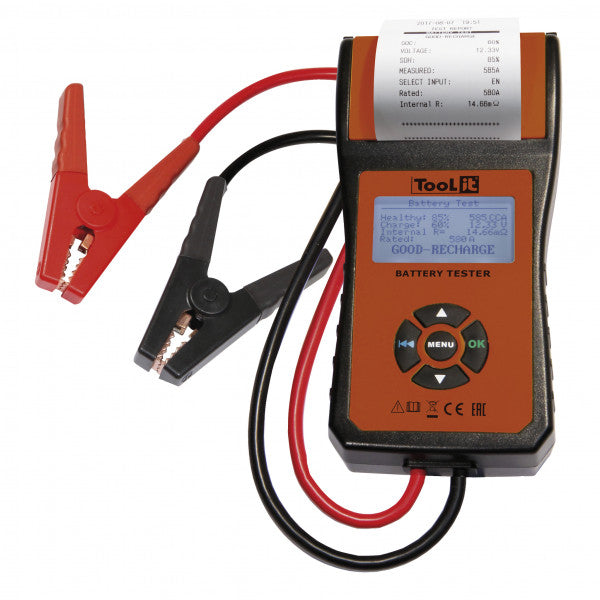

Stop-start batteries need the correct mode

AGM and EFB batteries experience different cycling duty and may sit at partial charge under energy management. A generic flooded-battery test can misclassify them. Use a tester validated for the battery type and vehicle system.

After replacement, perform any required registration or battery-monitor adaptation; testing alone does not update the controller.

Cranking analysis includes the whole current path

Voltage drop during start reflects battery capability, cable and earth resistance, starter condition, engine friction and temperature. A low cranking voltage does not isolate the battery without connection and current context. Compare at the battery and designated points where the procedure requires it.

Disable engine start only by an approved method if a longer diagnostic crank is necessary.

Charging tests must account for smart alternators

Modern control systems vary alternator voltage according to state of charge, temperature, braking and load. A single fixed voltage target can falsely condemn normal operation. Use vehicle live data, load commands and specified ranges.

Excessive ripple, warning messages or overvoltage still require prompt charging-system diagnosis.

Twenty-four-volt systems need a defined test plan

Two 12-volt batteries in series should often be identified and tested individually as well as as a bank. Unequal age, charge or internal resistance can make one unit fail early. Isolate or disconnect only by the commercial-vehicle procedure.

Never connect a 12-volt-only tester across the full 24-volt supply.

Hybrid and electric vehicles retain separate hazards

The low-voltage battery may control contactors and vehicle wake-up even though it does not propel the car directly. Follow shutdown and key-control instructions. Orange traction-battery circuits require high-voltage competence and equipment; a conventional tester must never be attached to them.

Remote terminals may be the required safe connection point.

A repeatable sequence improves evidence

Identify and inspect

Record battery type, standard, rating, temperature, installation and physical condition.

Prepare and connect

Set the vehicle state, make clean polarity-correct contact and route leads safely.

Test, record and confirm

Save readings, follow charge-and-retest instructions and corroborate unexpected decisions.

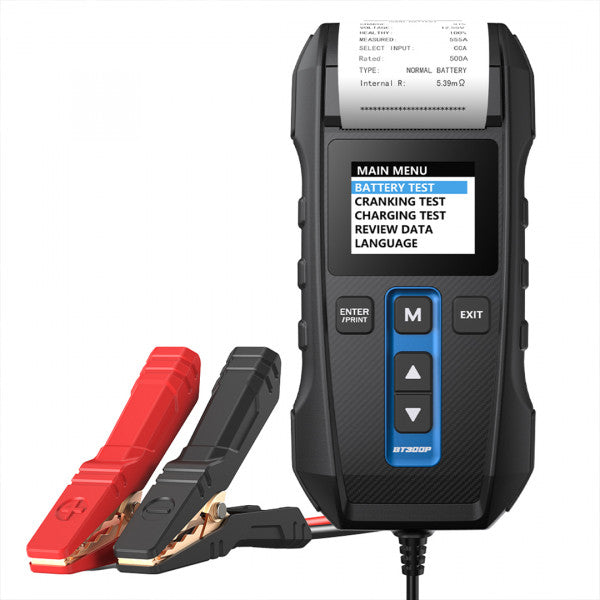

Printed results need correct context

A thermal printer can provide time, rating, voltage and decision evidence. Use the compatible paper orientation and storage conditions; thermal records fade with heat, light and chemicals. Add vehicle and operator identification through the approved process without exposing personal data.

A printout is not proof that the correct battery standard or connection was chosen.

Tester care preserves accuracy and safety

Inspect lead insulation, clamp teeth, strain relief, display and calibration status. Clean electrolyte residue with the method stated by the manufacturer and keep the instrument dry. Replace printer paper and batteries without contaminating the electrical compartment.

Remove equipment from service after a reverse-polarity, overvoltage or overheating event until assessed.

Practical battery-tester FAQs

Q: Does 12.6 volts prove a battery is healthy?
A: No. Voltage can be normal while high-current capacity is poor.

Q: Are CCA and amp-hours the same?
A: No. They describe different performance characteristics.

Q: Can EN and SAE CCA numbers be entered interchangeably?
A: No. Select the standard printed with the rating.

Q: Should a flat battery be replaced immediately?
A: Charge and retest safely unless damage or procedure dictates replacement.

Q: Can a frozen battery be tested?
A: Never load or charge it until safely thawed and assessed.

Q: Why does clamp position matter?
A: Contact and included cable resistance change the result.

Q: Is AGM the same as EFB?
A: No. Select the exact chemistry mode.

Q: Can a tester check an EV traction battery?
A: No. Use the vehicle's trained high-voltage diagnostic process.

Q: What does charge and retest mean?
A: State of charge is too low for a reliable health decision.

Q: Is a printed pass permanent proof?
A: No. It records one correctly or incorrectly configured test at one time.

Q: What stops testing immediately?
A: Cracks, leakage, swelling, heat, freezing, heavy gas or damaged terminals.

Q: What supports a sound decision?
A: Correct identity/input, safe stable test conditions and corroborating vehicle evidence.
