Rotor-arm operation in a conventional ignition system
The distributor combines mechanical rotation with electrical switching. Its shaft stays synchronised to the engine cycle, while the rotor arm sweeps beneath a circle of cap terminals. When the coil releases stored magnetic energy, high voltage enters the cap centre, crosses its carbon contact and travels along the arm.
As the metal tip approaches the appropriate terminal, the electrical field across the remaining gap becomes strong enough for an arc. The pulse continues down that cylinder's lead and across the spark-plug electrodes. This process repeats many times each second as engine speed rises.
Why the arm remains separated from the cap posts
A controlled discharge gap
Physical contact would wear rapidly and would struggle to accommodate timing advance. Instead, the tip passes close enough for voltage to bridge the air while leaving mechanical clearance for shaft movement, manufacturing tolerance and thermal expansion.
Allowance for timing advance
The instant of coil discharge moves earlier as operating conditions change. A suitable tip arc remains aligned with its cap post throughout the calibrated range. The correct matched dimensions prevent voltage seeking a neighbouring cylinder.
Common rotor-arm constructions
| Construction | Identifying characteristic | Service implication |
|---|---|---|
| Plain moulded arm | Direct conductor from centre pickup to outer tip. | Continuity and insulation must match the original design. |
| Suppressed arm | Internal resistor between the centre and tip. | Measure against the correct specified range. |
| Push-on arm | Moulded bore locates on a shaft flat or key. | Must press fully home without force or rocking. |
| Screw-fixed arm | Small fastener retains arm to hub or shaft. | Use the stated screw, locking method and tightening value. |
| Rev-limiter arm | Spring-loaded contact moves with centrifugal force. | Cut-off calibration and rotation direction are specific. |
| Shielded/specialist arm | Additional insulation or screening for a particular system. | Substitution can change clearance and suppression. |
Identifying the distributor before ordering
Older vehicles often received replacement engines or distributors during their lives. A model-year catalogue entry may therefore disagree with the component on the car. Clean the distributor body carefully and record its maker's number, label or casting detail.
Note whether advance is vacuum, mechanical or electronically commanded, and compare cap fastening style and terminal count. Photographs help with key position and moulded shape, but dimensions and the distributor reference are stronger evidence than colour alone.
Measurements that control compatibility
| Dimension or feature | What to compare | Fault created by a mismatch |
|---|---|---|
| Centre height | Shaft seating to top contact surface. | Poor brush pressure or collision with the cap. |
| Tip radius | Shaft centre to outer conductive edge. | Excessive firing gap or contact with posts. |
| Bore/key | Diameter, flat, notch and angular location. | Loose retention or incorrect phase. |
| Body clearance | Moulded width and underside depth. | Contact with trigger, weights or cap moulding. |
| Conductor arc | Tip width and leading/trailing profile. | Insufficient overlap during advance. |
| Electrical resistance | Direct path or rated suppressor value. | Weak spark or unwanted interference. |
| Limiter marking | Engine-speed value and direction. | Wrong cut-off or loss of overspeed protection. |
Voltage demand across the secondary circuit
The coil raises voltage until the easiest available path breaks down. Desired paths are the internal rotor gap and the spark-plug gap; unwanted paths include damp cap surfaces, cracked insulation and the rotor body to its shaft.
Worn plugs, excessive electrode gaps, lean mixture and high cylinder pressure increase the firing voltage required. Resistive or open leads add further stress. A newly installed arm can fail again if those causes remain.
Carbon tracking and internal breakdown
A contaminated insulating surface can carry a tiny discharge. Heat from repeated arcs converts the trail into conductive carbon, leaving a pencil-like line. Once established, cleaning rarely restores dependable insulation because the material itself has changed.
Breakdown may also occur through the moulding from the centre contact towards the metal spindle. This often produces a no-start with a good coil output reaching the distributor. The defect can be temperature- or humidity-sensitive and may not show on a low-voltage meter.
Contact wear patterns
| Observation | Interpretation | Next action |
|---|---|---|
| Light grey deposit on tip | Expected arc erosion over service life. | Assess against interval and dimensions. |
| Deep pitting or missing metal | Abnormally high voltage demand or large gap. | Renew and test leads, plugs, cap and dimensions. |
| Burning at one edge only | Phasing or advance alignment may be incorrect. | Check trigger position, distributor indexing and matching. |
| Circular rubbing mark | Cap terminal or brush assembly is touching. | Inspect shaft play, cap seating and arm height. |
| Crack around keyway | Wrong fit, impact or force during installation. | Replace and inspect the shaft locating feature. |
| Green or white corrosion | Moisture and dissimilar-metal reaction. | Find water entry and renew affected components. |

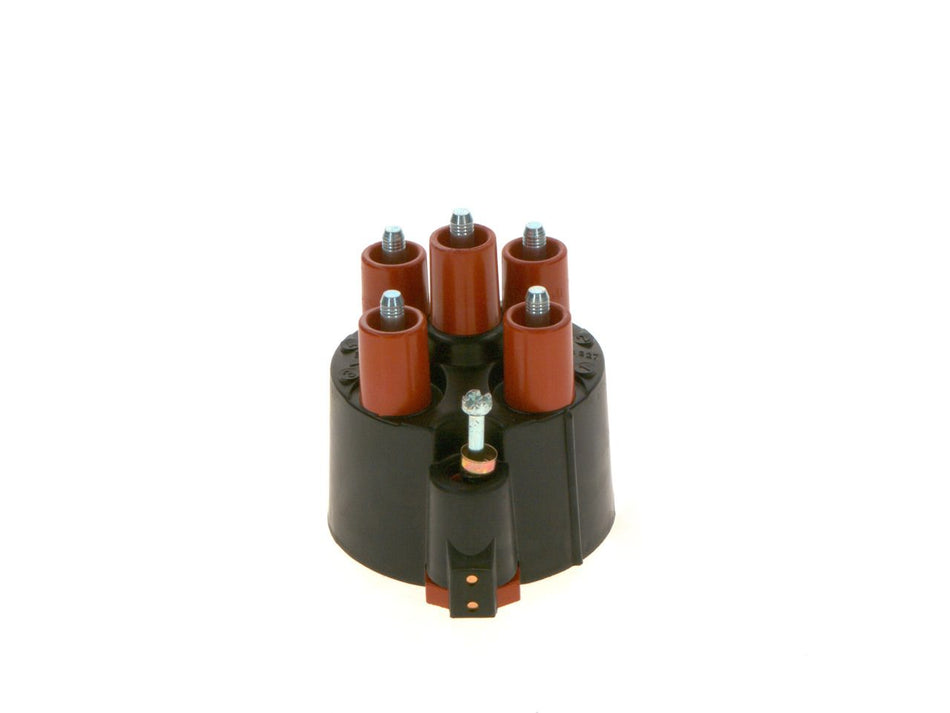

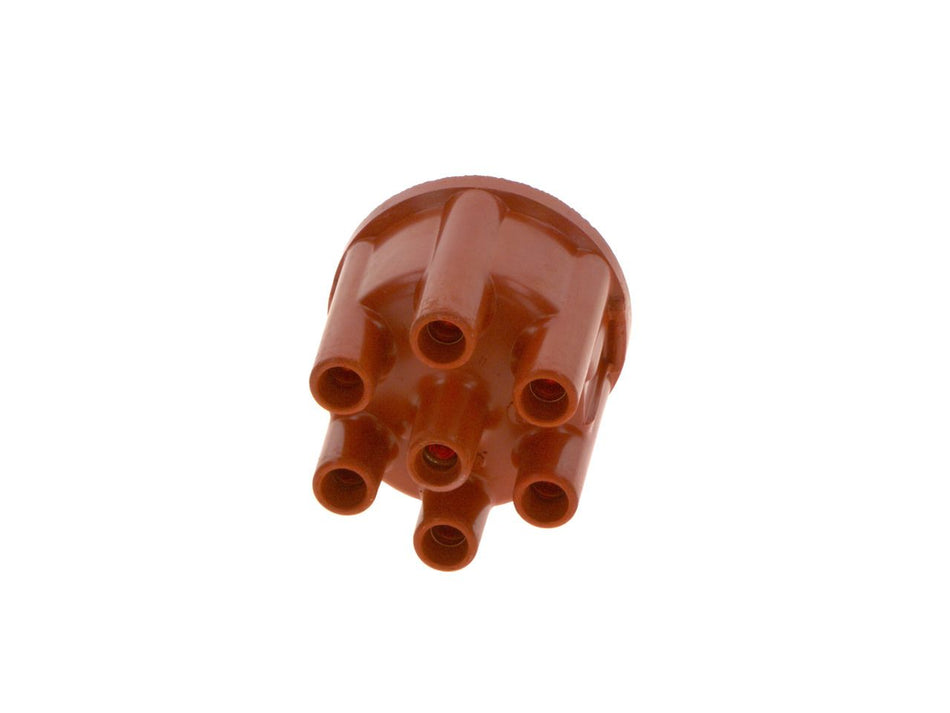

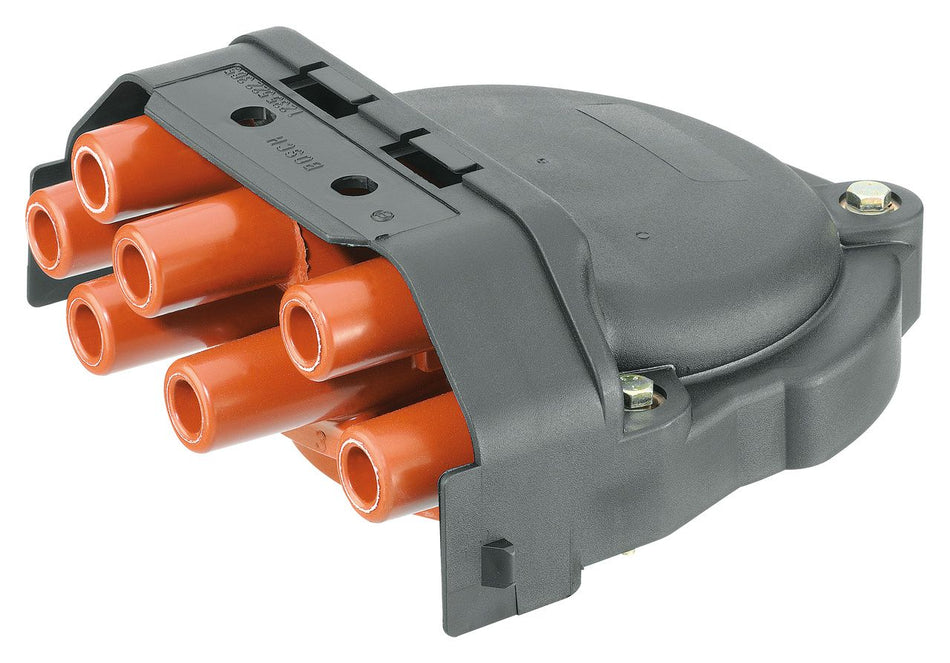

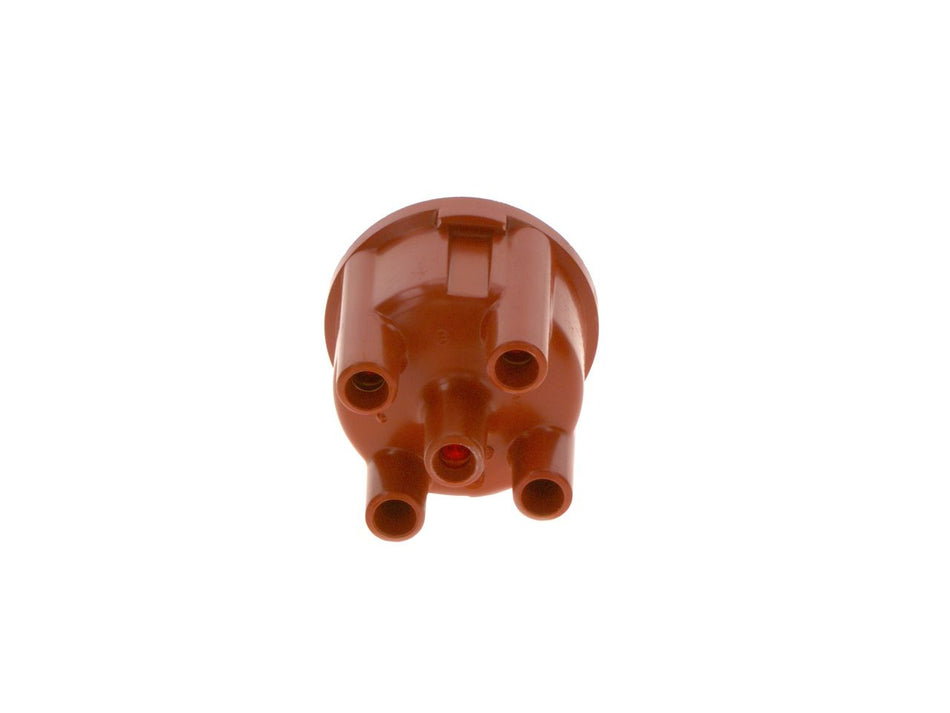

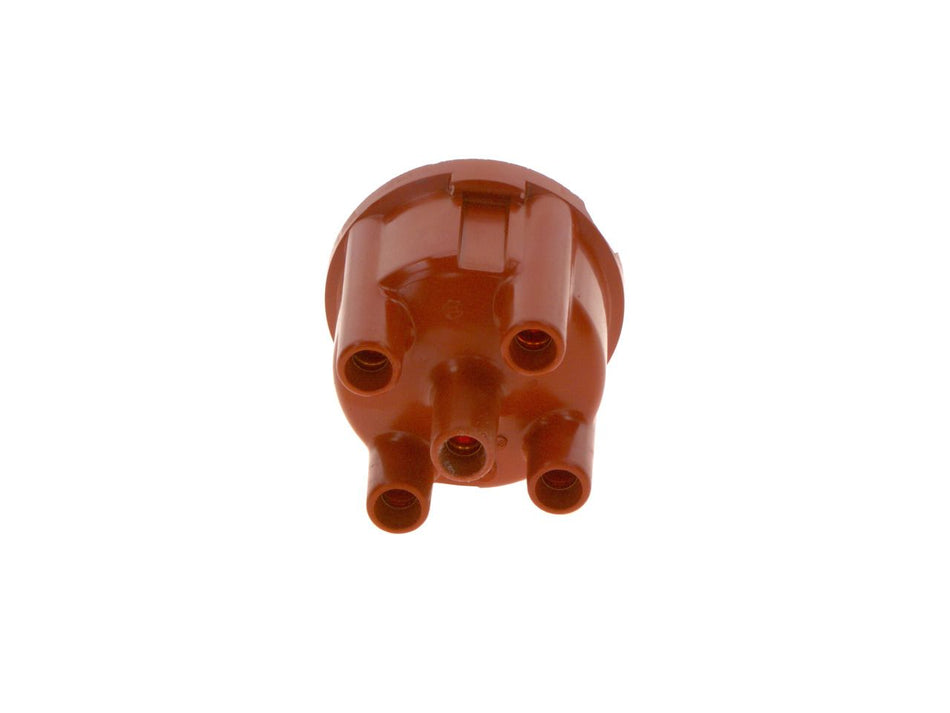

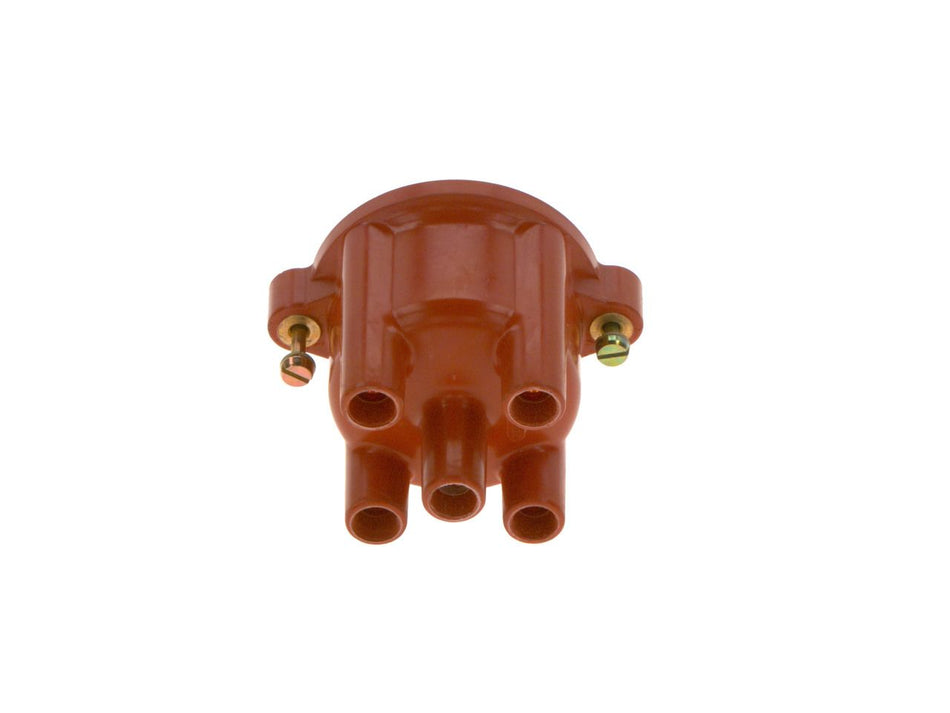

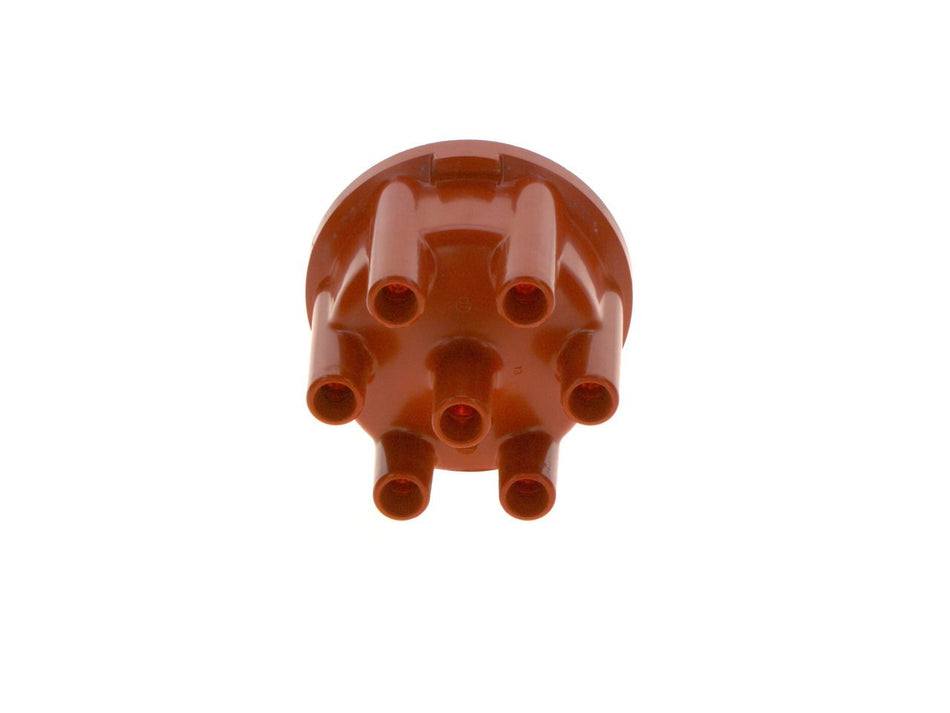

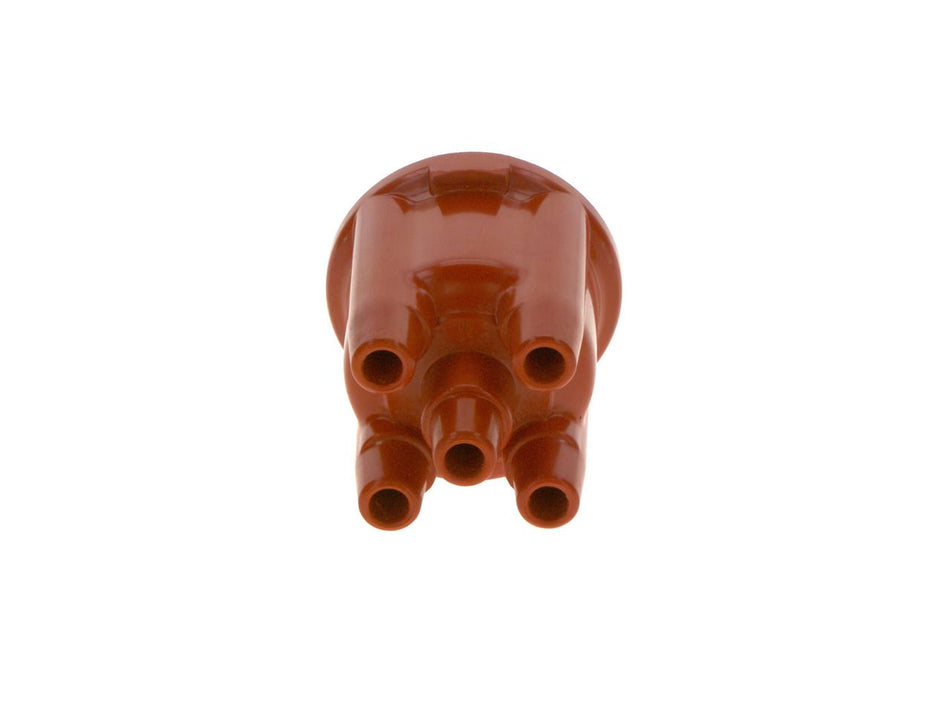

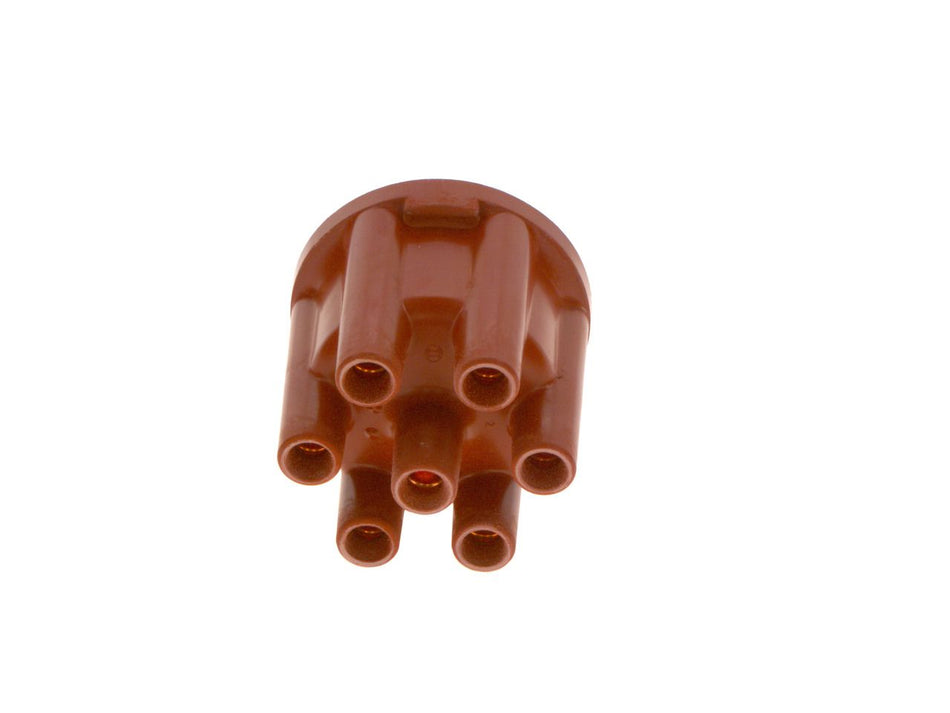

Distributor cap and centre brush
The cap's spring-loaded carbon brush must remain long enough to touch the arm without binding. A missing brush leaves a large uncontrolled central gap; a seized brush can wear the arm or lose contact as the shaft moves.
Inspect outer posts for balanced erosion, cracks around towers and carbon lines between terminals. Replace the cap if insulation or terminals are unserviceable. Combining a new arm with an incompatible or severely worn cap prevents reliable clearance.
Shaft bushes, advance and trigger condition
Grip the shaft only as service instructions allow and assess radial play. A worn bush changes pickup gap, ignition timing and arm-to-cap spacing during each revolution. Oil passing the bush can contaminate the high-voltage surfaces.
Mechanical advance weights should move freely and return under spring force. Vacuum advance moves the trigger plate on many distributors; damaged flexible earth leads can open as the plate travels. Electronic pickup air gaps and contact-breaker dwell require their own specifications.
Diagnostic symptoms
| Vehicle behaviour | Possible rotor-arm mechanism | Checks beyond the arm |
|---|---|---|
| No spark at every plug | Open conductor or discharge to shaft. | Coil output, cap brush, trigger and amplifier. |
| Breakdown during acceleration | Insulation leaks as required voltage rises. | Lead resistance, plug gap, mixture and compression. |
| Damp-morning misfire | Surface tracking through condensation. | Cap cracks, seals and lead boots. |
| Sudden regular speed limit | Incorrect or sticking limiter mechanism. | Fuel delivery and electronic control limits. |
| Crossfire or backfire | Wrong phase, cap match or lead order. | Base timing and valve timing. |
| Unstable dwell/timing | Arm contact is rarely the primary cause. | Shaft bush, points, trigger plate and drive gear. |
Testing without creating new faults
Measure a resistor arm only after confirming its intended specification. Clean probe contact is needed, and readings can change as a failed resistor is flexed. A basic continuity check can expose a complete open circuit but cannot apply real ignition voltage.
Use a rated inline or adjustable spark tester rather than making the coil discharge across an uncontrolled distance. An excessive open gap can force voltage through insulation or damage an ignition amplifier. Secondary waveform analysis requires the correct capacitive or high-voltage probe.
Removal and replacement procedure
- Identify distributor make and obtain the applicable ignition specifications.
- Park securely, switch the ignition off and keep sparks away from fuel vapour.
- Label leads and record cap orientation before releasing its clips or screws.
- Lift the cap without pulling on aged lead conductors.
- Inspect contamination, cap brush, terminal wear and shaft movement.
- Remove the arm vertically or release its dedicated fastener as designed.
- Compare every locating, dimensional and electrical feature with the replacement.
- Align the key and seat the new arm fully using hand pressure only.
- Refit a sound matched cap and restore leads exactly to firing order.
- Verify starting, timing, advance and misfire-free operation.
Preserving reliability on infrequently used vehicles
Long storage encourages condensation and terminal oxidation. Keep cap vents and seals in their intended condition, and correct water paths rather than applying unapproved sealant that traps moisture. Do not leave the ignition switched on with contact breakers closed, as the coil and points may overheat.
At service, operate the vehicle sufficiently to assess hot behaviour as well as cold starting. Age matters alongside mileage: moulded insulation, springs and bonded conductors can deteriorate while a classic vehicle covers few miles.
Frequent workshop errors
- Assuming every distributor fitted to one engine uses the same arm.
- Ordering by rotor colour instead of maker number and dimensions.
- Levering beneath the arm and damaging pickup or advance parts.
- Sanding the conductor and leaving abrasive dust inside the cap.
- Bending the tip to compensate for an incorrect part.
- Applying grease or moisture-displacing spray across insulating surfaces.
- Refitting leads one terminal out or in the wrong rotation order.
- Ignoring excessive shaft play and recurring oil contamination.
Breakdown urgency, safety and roadworthiness
A mild intermittent misfire can quickly overheat a catalytic converter because unburned fuel burns in the exhaust. Stop driving if the engine warning flashes, power loss becomes severe, fuel is smelled or backfire creates a fire risk. A no-start should be diagnosed with the vehicle secured away from traffic.
High-voltage ignition deserves the same caution on an old vehicle as on a newer one. Keep hands, loose clothing and test leads clear of belts and fans. Misfire-related emissions, warning indications and poor running can be relevant to the UK MOT test according to vehicle age and equipment.
Rotor arm FAQs
Q: What is a rotor arm?
A: It is the rotating insulated conductor that distributes coil voltage among the cap's cylinder terminals.
Q: Is a rotor arm the same as a distributor rotor?
A: Yes, rotor arm is a common UK name for that component.
Q: Why does the arm not touch each cap post?
A: A designed air gap avoids mechanical wear and accommodates ignition advance.
Q: Can one vehicle model use different rotor arms?
A: Yes, alternative distributor makes and later replacements may require different parts.
Q: How can I identify the distributor?
A: Use its manufacturer, stamped or cast number, cap layout and measured features.
Q: What does a black line on the arm mean?
A: It usually indicates a carbonised leakage path and the arm should be replaced.
Q: Can the brass tip be cleaned with a file?
A: Filing changes its clearance and masks the cause, so an unserviceable arm should be renewed.
Q: Why is my new rotor arm burning quickly?
A: Excess plug or lead resistance, incorrect dimensions, a bad cap brush or mixture faults can raise voltage demand.
Q: Does the arm need lubrication?
A: No lubricant belongs on its high-voltage conductive or insulating surfaces unless explicitly specified.
Q: Can a rotor arm fail only when hot?
A: Yes, expansion and insulation breakdown can make the problem temperature-sensitive.
Q: What is a rev-limiter rotor arm?
A: It uses centrifugal action to interrupt ignition at a calibrated maximum speed.
Q: Will a multimeter prove the arm is good?
A: No. It can find some resistance faults but cannot reproduce high-voltage leakage.
Q: Must ignition leads be marked before removal?
A: Yes when there is any doubt, because firing order and cap position are critical.
Q: Can rotor-arm misfire affect an MOT?
A: It may affect emissions, engine running or warning-lamp requirements for the vehicle.
