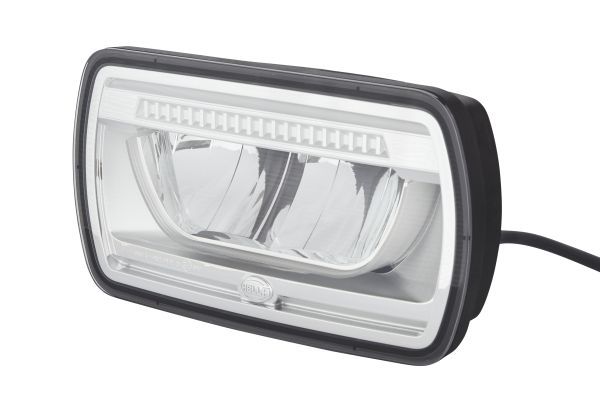

High Beam Headlight - 1FE 016 773-001
Regular price
£10.00
Couldn't load pickup availability
Ready to install and hit the road!
All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!
Mounting Type :
Bolted
Fastening Type :
Vertical
Lamp Type :
LED
Light colour :
white
Voltage [V] :
12
Voltage [V] :
24
Voltage from [V] :
9
Voltage to [V] :
32
Height [mm] :
132
Overall Height [mm] :
141
Width [mm] :
238
Depth [mm] :
113
Fitting Depth [mm] :
23
Length [inch] :
5
Light Function :
with high beam (LED)
Light Function :
with position light (LED)
Number of light functions :
2
Registration Type :
ECE approved
fulfils ECE standard :
R10
fulfils ECE standard :
R148
fulfils ECE standard :
R149
Reference number :
25
Cable Length [mm] :
800
Housing Colour :
black
Lens Colour :
Crystal clear
Shape :
rectangular

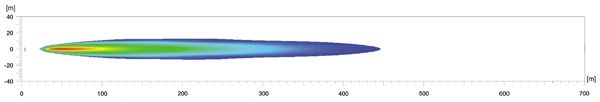

Light Distribution :
Long-range illumination
Diffusing Lens Type :
Clear diffusing lens
Diffusing Lens Material :
Plastic
Protection Type (IP Code) :
IP6K7
Protection Type (IP Code) :
IPX9K
Plug Type :
open cable ends
Colour Temperature [K] :
6,000
Luminous Flux [lm] :
541
Weight [g] :
680
Power Consumption [W] :
1.3
Power Consumption [W] :
2.7
Housing material :
Thermoplast
Quantity :
1
- Vendor HELLA
- SKU 1FE 016 773-001
- User manual
- HELLA : 1FE 016 773-001
