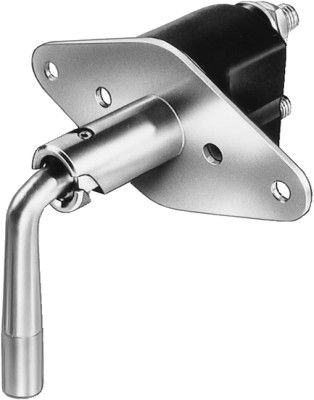

Main Switch, battery - 6EK 001 559-007
Regular price
£10.00
Couldn't load pickup availability
Ready to install and hit the road!
All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!
Mounting Type :
Bolted
Connecting thread :
M10
Number of connectors :
2
Capacity at 24V :
max 2500 A/10 sek.
Supplementary Article/Supplementary Info 2 :
with bolts/screws
Actuation Type :
Rotary Operation
DIN/ISO :
40050
Protection Type (IP Code) :
IP53
Protection Type (IP Code) :
IPX4
Thread Pitch [mm] :
1.5
Switch Function :
Normally Open Contact
Current Strength [A] :
100
SVHC :
7439-92-1; Lead
- Vendor HELLA
- SKU 6EK 001 559-007
- AGCO : 45059800 D45059800
- AGRIFAC : 7748100
- AHLMANN : 4174433A
- AMAZONE : NG056
- AUDI : KDWHLO9520
- BUCHER : 6938
- CARRARO : AG395919
- CASE IH : 30659- K21421263
- CLAAS : 057 098 40
- FELDBINDER : 070159
- FENDT : D 450 598 00
- IVECO : 3431319 46975
- JOHN DEERE : AL 68 661
- KRONE : 0302508/0
- LANGENDORF : 1134812
- LIEBHERR : 6 060 254 6 060 254 08 6 060 254 77 6 060 709 6 060 709 08
- LINDE : 001 973 35 03 0019730810
- MAN : 81.25506-7000
- MANITOU : 4174433A
- MERCEDES-BENZ : 000 545 25 08 000 545 84 08 A 000 545 25 08 A 000 545 84 08
- O&K : 0030659 0991465
- PAUS : 501535
- SANY : B241200000614
- SISU : 186-110-0031
- SPIERINGS : 405221
- TEREX : 8000-3423
- VW : KDWHLO9520
- User manual
- BOSCH : 0 341 002 003
- HELLA : 6EK 001 559-001, 6EK 001 559-007
