The bearing maintains hub position while allowing rotation
Rolling elements separate inner and outer rings, reducing sliding friction. Raceways carry load through small, carefully shaped contact zones.
The bearing must resist radial weight and axial cornering force while keeping the brake disc and wheel aligned.

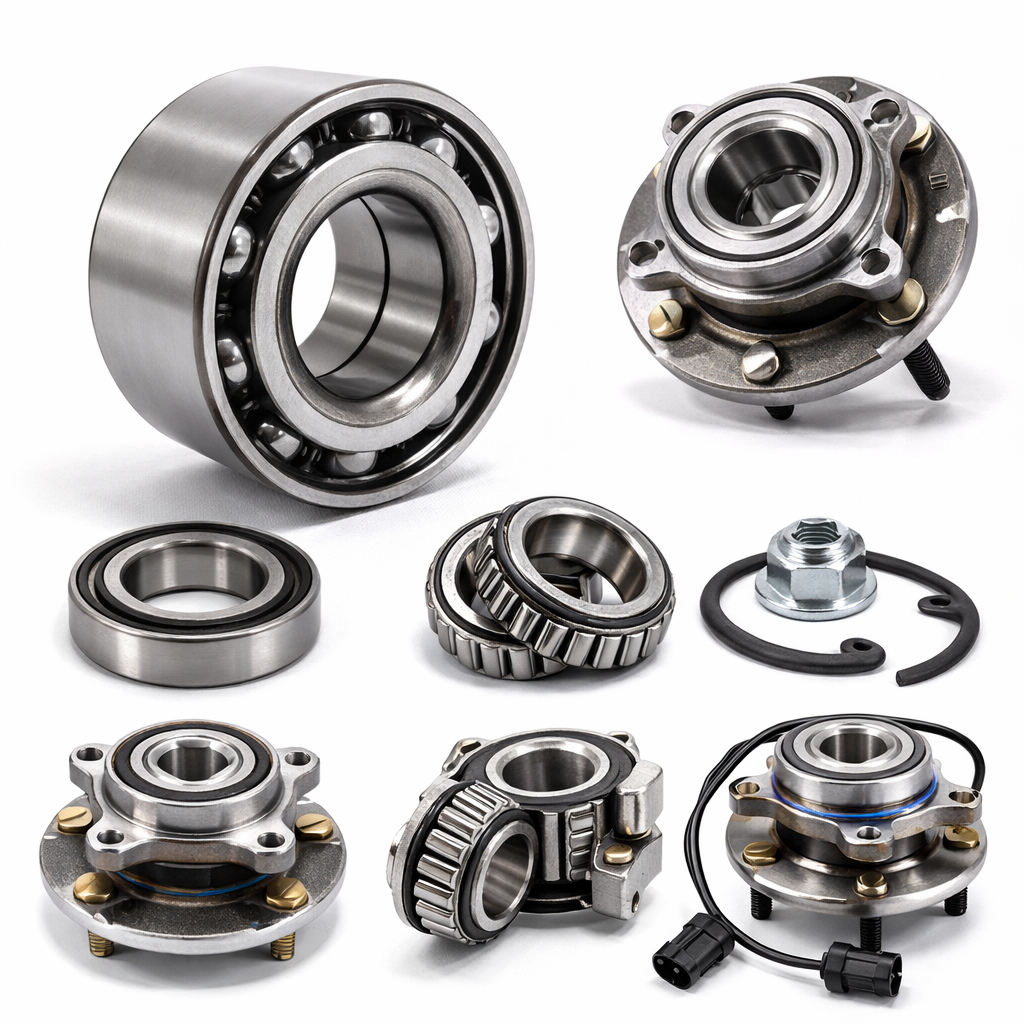

Wheel-bearing designs
| Design | Rolling element | Load capability | Service arrangement |
|---|---|---|---|
| Double-row angular-contact ball | Balls in opposed contact angles. | Radial and bidirectional axial. | Sealed cartridge, normally preset. |
| Double-row tapered roller | Conical rollers and raceways. | High combined loads and stiffness. | Preset cartridge or hub unit. |
| Paired separate taper bearings | Inner and outer roller cones/cups. | High load with adjustable clearance. | Grease pack and manual end-float setting. |
| Hub-bearing generation unit | Ball or roller rows. | Combined load with integrated flange. | Bolt-on/complete hub replacement. |
| Needle/specialist bearing | Slender rollers. | High radial in small section. | Less common wheel-end application. |
Radial, axial and moment loads
Cornering applies an overturning moment across the bearing rows
Vehicle weight acts mainly radially, while bends and road camber add axial load. Wheel offset creates leverage that the two rows must resist.
Incorrect spacers, offset or preload increases internal contact stress. Load rating alone cannot validate an altered wheel/suspension setup.
Contact angle and stiffness
Angular-contact raceways direct forces along inclined lines. Opposed rows react loads from either direction and control tilting.
Manufacturers tune geometry for hub rigidity, friction and life. A dimensionally identical industrial bearing may lack the correct contact configuration.
Clearance and preload
Internal clearance accommodates fits and temperature; preload removes play and raises stiffness. Too much creates heat, too little permits movement.
Sealed cartridges arrive with internal setting designed around correct housing and shaft fits. External clamp torque completes the system on many driven hubs.
Materials and surface engineering
| Element | Required property | Damage mechanism | Evidence |
|---|---|---|---|
| Raceway steel | Hard, clean and fatigue resistant. | Spalling, brinelling or corrosion. | Pits, flakes and rumbling. |
| Balls/rollers | Accurate form and smooth finish. | Skidding, indentation or debris damage. | Roughness and metal particles. |
| Cage | Maintain spacing at speed. | Crack, heat or lubricant starvation. | Irregular noise and seizure risk. |
| Seals | Exclude water with low drag. | Cut lip, hardening or displaced seal. | Contamination and grease loss. |
| Grease | Film strength across temperature. | Oxidation, washout or incompatibility. | Discolouration and heat. |
| Encoder layer | Stable magnetic pole pattern. | Impact, swarf or wrong orientation. | Wheel-speed signal fault. |
Generation 1, 2 and 3 units
First-generation cartridges contain rings and rolling elements only. Later designs integrate one flange, then both wheel and knuckle mounting features.
Greater integration improves assembly accuracy but changes replacement scope. Do not press apart a hub unit intended to be replaced complete.
Sealing and contamination
Road water, salt and fine grit rapidly damage polished raceways. Contact seals balance exclusion against friction and temperature.
Pressure washing directly at a seal, a missing dust cap or a damaged driveshaft seal path shortens life. Keep new units in packaging until fitment.
Magnetic wheel-speed encoding
An elastomer face can contain alternating magnetic poles. A Hall or magnetoresistive sensor reads their movement as wheel speed.
The encoded side may look like an ordinary black seal. Test orientation with the correct viewer and prevent ferrous dust adhering.
Part selection
Start with VIN and original number, then verify architecture, dimensions, axle, ABS and driven-hub details. Production revisions can alter width or encoder.
Check whether the catalogue item is a bare bearing, cartridge or complete hub unit. Order all prescribed retention parts separately if not included.
Noise diagnosis
| Noise behaviour | Bearing interpretation | Comparison |
|---|---|---|
| Pitch rises with road speed | Possible race/roller frequency. | Tyre and driveline also speed-related. |
| Changes on gentle corner load | Possible loaded-side race damage. | Tyre tread also changes under load. |
| Changes with throttle | Less specific to wheel bearing. | Final drive or CV/load path. |
| Scrape once per revolution | Possible seal/encoder or hub issue. | Brake shield/disc contact. |
| Rough when spun unloaded | Advanced surface damage possible. | Remove brake drag influence. |
| Intermittent ABS signal | Encoder/runout or internal movement. | Sensor gap and wiring. |
Tyre-noise distinction
Cupped or blocky tread generates a remarkably similar hum. Run a hand over tread safely and compare noise across different road surfaces.
Rotate tyres only where fitment permits and use chassis microphones. Avoid replacing a bearing from cabin location alone.
Wheel-play assessment
Support the vehicle and observe hub-to-knuckle movement directly while controlled force is applied. Separate ball-joint and steering-link motion.
Some adjustable taper bearings have specified small end float, while sealed cartridges should follow their own limit. Do not apply a universal play value.
Heat diagnosis
Compare hubs after equivalent controlled use with non-contact measurement adjusted for surface differences. Brake drag is often the source of one hot corner.
A bearing tightened excessively may heat quickly. Stop rather than continuing to “bed it in”.
Fatigue and spalling
Repeated contact stress initiates cracks beneath raceways. Material eventually flakes, increasing noise and debris.
Life depends strongly on load, fit, lubrication and contamination. Pothole impacts and wrong wheel offset can accelerate damage.
False brinelling and installation damage
Force transmitted through stationary rolling elements leaves indentations at their spacing. The bearing may feel acceptable until these tracks become noisy.
Transport vibration, hammering and incorrect pressing can all produce it. Apply installation force only to the ring with the interference fit.
Electrical-current damage
Current passing through a rotating bearing can create microscopic craters and fluted race patterns. This is more relevant around electric drivetrains and poor earth paths.
Follow welding earth placement and high-voltage procedures. A replacement bearing alone will fail again if damaging current remains.
Housing and journal fits
Corrosion, fretting and spun races alter interference. Clean without removing base metal, then measure diameter, roundness and shoulder condition.
Retaining compound is not a universal repair for an oversize knuckle or undersize hub. Apply only an engineered approved process.
Safe removal
Press and puller loads can release suddenly
Use rated guarded equipment, align tools and support the knuckle close to the force path. Wear eye protection and keep hands clear.
Remove circlips first and identify bearing shoulders. Increasing press force against an unseen retainer can fracture the casting.
Installation force paths
| Fit being made | Apply load to | Never load through |
|---|---|---|
| Outer ring into knuckle | Outer ring face. | Inner ring and balls/rollers. |
| Inner ring onto hub | Supported inner ring. | Outer ring and rolling elements. |
| Complete bolt-on unit | Mounting flange/bolts evenly. | Wheel flange by hammer impact. |
| Taper cup into hub | Cup edge using full driver. | Roller cone. |
| Seal into bore | Seal casing squarely. | Flexible lip/encoder. |
| Driveshaft through inner spline | Approved puller/installer. | Hammer blows through shaft. |
Fastener clamp load
Hub nuts and bolts can set internal ring contact and prevent fretting. Use new hardware and exact thread preparation.
Follow torque, angle, staking and wheel-loaded condition. An impact gun gives neither controlled clamp nor reliable preload.
Adjustable taper bearings
Pack each roller space with specified grease, install seals and seat bearings while rotating. Then set end float/preload precisely.
Overtightening squeezes out film and creates heat; looseness shocks races and upsets brakes. Fit new locking pins or retainers.
Post-installation verification
Check free rotation, end float, brake and sensor routing before lowering. Pump brakes and torque wheels correctly.
Road-test at progressive speed, monitor live wheel-speed agreement and compare temperatures. Re-inspect for play, noise and fastener security.
Common mistakes
Errors include selecting by dimension only, opening seals, installing the encoder backwards, applying press force through the rollers and reusing hub nuts.
Others are overlooking worn journals, spinning bearings with air, wrong taper preload, impact final torque and mistaking tyre hum for bearing damage.
UK MOT and safety context
Wheel bearings are inspected for excessive play, roughness and condition during the current MOT. A condition presenting a collapse risk can be dangerous.
Stop driving for severe grinding, major play, wheel instability or rapid hub heating. Bearing seizure or separation can cause loss of control.
Practical wheel-bearing FAQs
Q: Can bearing noise sound like tyre noise?
A: Yes; compare tread, road surface, load and measured hub evidence.
Q: Does no play mean the bearing is good?
A: No; race damage can be noisy before measurable clearance develops.
Q: Can I spin a dry bearing with compressed air?
A: No; uncontrolled speed and poor lubrication can damage it dangerously.
Q: Why press on a specific race?
A: It keeps installation force away from rolling contacts.
Q: Are same-sized bearings interchangeable?
A: Internal geometry, seals, load rating and encoders may differ.
Q: Can a sealed bearing be regreased?
A: Do not open a sealed-for-life automotive cartridge.
Q: Why can braking make the hub hot?
A: A dragging brake often imitates bearing-generated heat.
Q: Does wheel offset affect bearing life?
A: Changed leverage can increase overturning load beyond design.
Q: What is false brinelling?
A: Stationary rolling contacts indent races under shock or vibration.
Q: Can the magnetic seal be cleaned with a steel brush?
A: No; protect its pole layer from impact and ferrous debris.
Q: Why replace the hub nut?
A: It may be one-use and its clamp load is part of bearing setup.
Q: Should a taper bearing have zero end float?
A: Set exactly the stated end float or preload for that hub.
Q: What confirms successful replacement?
A: Correct fits/preload, smooth running, stable heat and valid speed signal.
