Timing parts: keeping the crank and cams in sync
Your engine’s timing system links the crankshaft (bottom end) to the camshaft(s) (top end) so the valves open and close at exactly the right moment. That synchronisation is what allows the engine to make power efficiently, start reliably and meet emissions requirements. If timing drifts or fails, you can see anything from rough running and warning lights to severe internal damage — particularly on “interference” engines where piston-to-valve contact is possible.
Most vehicles use either a timing belt or a timing chain. Belts run dry and rely on correct tension and clean running surfaces; chains run inside the engine and depend heavily on good oil condition and pressure. Around those core drives you’ll also find tensioners, idler pulleys, guides, sprockets, seals and covers. Many modern engines add variable valve timing (VVT) components, cam phasers and control valves to adjust timing on the move for better torque and economy.
Choosing the right timing components is about correct fitment and system completeness. A worn pulley or weak tensioner can shorten the life of a new belt or chain. Likewise, oil contamination, coolant leaks and overdue servicing can accelerate chain stretch or VVT issues. For UK drivers, a healthy timing system also supports cleaner running — which helps with emissions-related MOT outcomes and prevents avoidable breakdowns.
What you’ll typically find in this collection

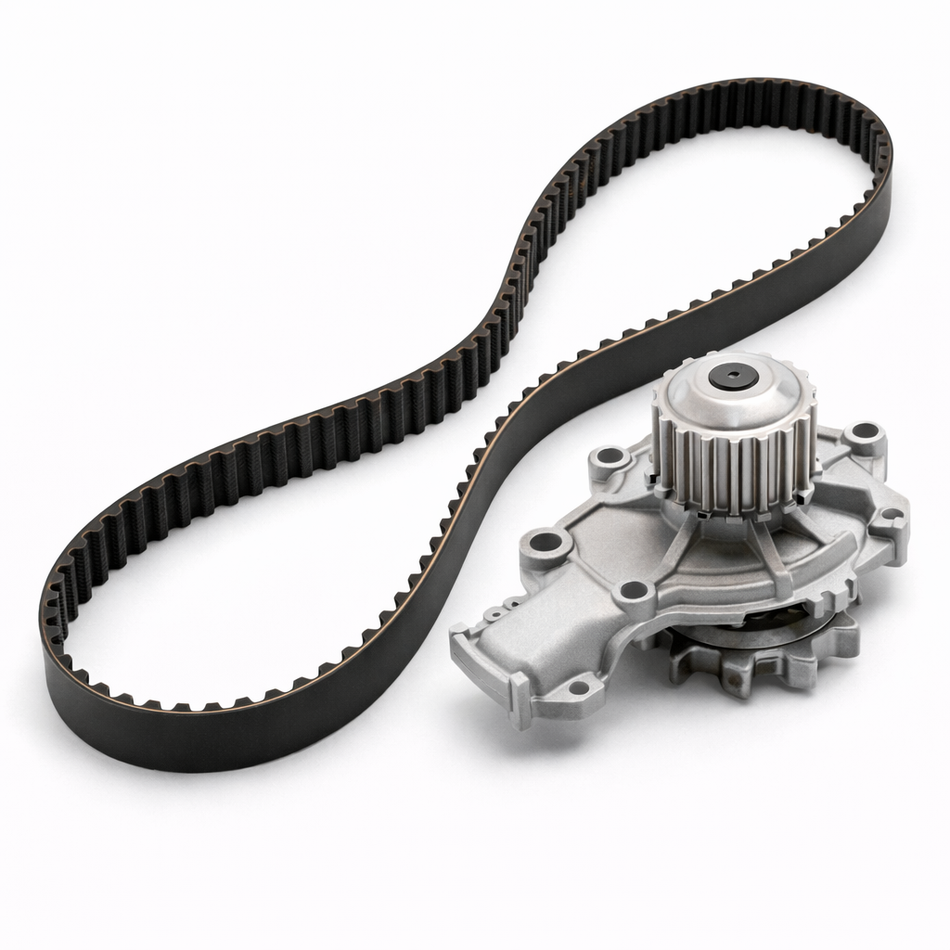

- Timing belts and timing belt kits (belt + tensioner/idlers where applicable)
- Timing chains and chain kits (chain + guides/tensioner/sprockets where applicable)
- Tensioners, idlers, guides, sprockets and seals
- Related control parts for modern systems (where fitted), such as VVT components
| System | Strength | What to watch |
|---|---|---|
| Timing belt | Quiet, efficient drive | Age/interval replacement, tensioner and pulley condition |
| Timing chain | Durable when well maintained | Oil quality, chain stretch, guides/tensioner wear |
Browse the compatible timing parts listed below to match your engine code and vehicle specification.
Your Current Vehicle
Or
Timing Parts
Engine timing explained: belts, chains, kits and the parts that protect your engine
1) What the timing system is
The timing system is the mechanical link between the crankshaft and camshaft(s). As the crank turns, the cams rotate in a fixed relationship so the valves open for intake and exhaust at the correct time. On many engines the timing system also drives ancillary components (commonly the water pump on some belt-driven designs), and it may include variable timing mechanisms that adjust cam position under load.
2) How it works (step-by-step)
- Crank rotation: the crankshaft turns from starter motor input and combustion forces.
- Drive transfer: a belt or chain transfers rotation from crank sprocket to cam sprocket(s).
- Ratio control: the system maintains a fixed speed relationship (typically cam speed is half crank speed on 4-stroke engines).
- Tension management: tensioners and guides keep the belt/chain stable and prevent skipping.
- Timing optimisation (if fitted): VVT/phasers alter cam timing to balance torque, economy and emissions.
- Feedback and monitoring: engine management uses cam/crank position signals to confirm synchronisation and detect faults.
3) What timing performance depends on
- Correct tension: too loose risks skipping teeth; too tight can overload bearings and pulleys.
- Alignment and tracking: sprocket wear, bent brackets or incorrect fitting can make belts wander and chains run noisy.
- Component condition: tensioners, idlers and guides often fail before the belt/chain itself.
- Clean operating environment: oil leaks can degrade some belt materials; sludge can starve chain tensioners of oil pressure.
- Accurate timing setup: correct locking tools and procedures prevent mis-timing and fault codes.
| Factor | Why it matters | What it can cause if ignored |
|---|---|---|
| Tensioner health | Stabilises belt/chain under load changes | Rattle, skipping, rapid wear |
| Oil condition (chains/VVT) | Lubricates and pressurises hydraulic tensioners/phasers | Chain stretch, VVT faults, noisy startup |
| Correct installation timing | Prevents cam/crank mismatch | Misfire, poor starting, warning lights |
4) Vehicle types and applications
Timing components apply across petrol, diesel and hybrid powertrains (where an internal combustion engine is present). Small petrol engines often use belts for low noise, while many diesels and larger engines use chains due to higher loads — although either design can appear in any segment. Vans and vehicles used for high-mileage work can place extra thermal and service stress on oil-dependent chain systems. Stop-start and short-trip use can be hard on timing chains and VVT because oil may not fully warm up and contaminants can build up.
5) Modern technologies and related systems
Modern timing is closely tied to emissions control. Variable valve timing, variable lift and advanced engine management strategies improve efficiency but add parts that must move freely and respond quickly. Many engines use:
- VVT cam phasers: adjust cam angle using oil pressure and internal vanes.
- Oil control valves (OCVs): electrically controlled valves that meter oil to the phasers.
- Cam/crank sensors: provide synchronisation signals used to detect timing deviation.
- Wet belt systems (some designs): belt runs in oil, changing the maintenance considerations and oil sensitivity.
6) Development and evolution overview
Early engines used gears or simple chains. As noise and efficiency became priorities, belts became common. Later, tighter emissions and fuel economy targets drove the adoption of variable timing and more complex chain/belt routing with guides and hydraulic tensioners. Today’s systems can be highly reliable when maintained correctly, but they are less tolerant of poor servicing, incorrect oil and installation shortcuts.
7) Core timing components (detailed breakdown)
Timing belts
Timing belts are reinforced composite belts with moulded teeth. They must run true on sprockets and maintain correct tension. Because belts age with heat cycles and time (not only mileage), service schedules are vehicle-specific and should be followed.
Timing chains
Timing chains run inside the engine and rely on lubrication. Chains can “stretch” over time due to wear at pins and links, and worn guides can increase noise. Hydraulic tensioners depend on oil pressure; sludge and poor oil quality can make startup rattle more likely.

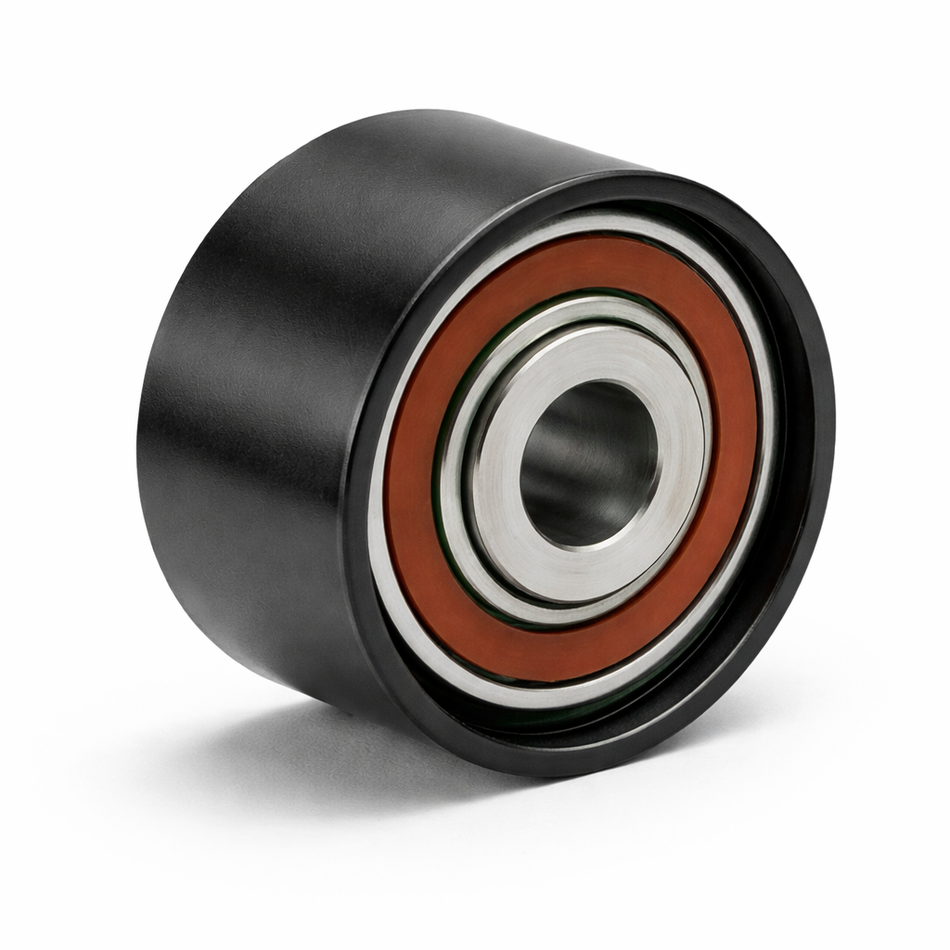

Tensioners, idlers and guides
Tensioners can be mechanical or hydraulic. Idler pulleys guide belts and reduce vibration; chain guides control chain path and prevent slap. These are common failure points and are often included in complete kits.
Sprockets, seals and covers
Crank and cam sprockets must have clean, unworn tooth profiles. Seals (crank/cam) prevent oil leaks that can contaminate belts or reduce oil level for chains. Covers protect from debris and retain oil on chain-driven systems.
VVT parts (where fitted)
Cam phasers and oil control valves need clean oil and correct pressure. Sticky control valves, blocked oilways or incorrect oil viscosity can cause sluggish timing response and fault codes.
| Component | Primary job | Common wear/failure mode | Typical symptom |
|---|---|---|---|
| Timing belt | Drive cams at correct ratio | Age cracking, tooth shear, contamination damage | Noise, mis-timing, non-start (worst case) |
| Timing chain | Lubricated drive inside engine | Link/pin wear, guide wear, tensioner issues | Rattle on start, timing correlation codes |
| Tensioner | Maintains stable tension | Weak spring/hydraulic failure | Slap/rattle, belt flutter, skip risk |
| Idler/guide | Controls belt/chain path | Bearing wear, guide erosion | Whine, roughness, debris, noise |
| VVT phaser/OCV | Adjusts cam timing | Sticking, oil contamination | Rough idle, loss of power, warning light |
8) Comparison tables
| Timing type | Best suited to | Advantages | Trade-offs |
|---|---|---|---|
| Belt (dry) | Quiet, efficient everyday engines | Low noise, predictable scheduled replacement | Age/interval sensitive; contamination can be harmful |
| Chain | Higher-load and long-life designs | Durable when oil is maintained | Oil-dependent; stretch/noise can develop |
| Belt (in oil, where used) | Compact modern designs | Low friction and packaging benefits | Highly oil-sensitive; strict servicing is important |
| Buying option | What’s included | When it makes sense | Risk if you don’t |
|---|---|---|---|
| Single belt/chain | Main drive only | When related parts are verified healthy | Old tensioner/guide can shorten new part life |
| Timing kit | Drive + tensioner + idlers/guides (varies) | Most routine timing services | Less chance of repeat labour due to a weak ancillary part |
| Expanded kit (where offered) | May add sprockets, seals or related items | High mileage, noisy systems, leak prevention | Skipping worn sprockets/seals can cause noise or leaks later |
9) Wear parts and inspection guidance
Timing systems should be inspected whenever symptoms appear, during major servicing, or when there’s evidence of oil/coolant leaks near timing covers. Because access is labour-heavy, preventative replacement of key wear parts is often sensible when the system is already open.
| Check item | What to look for | Why it matters | Action |
|---|---|---|---|
| Belt condition | Cracks, glazing, missing teeth, contamination | Risk of slip or failure | Replace per schedule or if damaged |
| Idler/tensioner bearings | Roughness, play, noise | Bearing failure can derail belt | Replace as part of kit where applicable |
| Chain noise | Rattle on cold start, persistent slapping | May indicate tensioner/guide wear | Diagnose promptly; don’t ignore recurring rattle |
| Oil/coolant leaks near covers | Wetness around cam/crank seals, cover gaskets | Contamination and low-fluid risk | Address leaks during timing work |
10) Materials and construction choices
Timing parts are engineered for heat, load and precise tooth engagement. Belts use fibre reinforcement; chains use hardened steel links; guides use wear-resistant polymers over metal supports; and tensioners may be spring-loaded and/or oil-actuated. Fitment accuracy matters: small differences in tooth profile, guide shape or tensioner travel can affect durability and noise.
| Part | Material approach | Benefit | Common issue if poor quality |
|---|---|---|---|
| Timing belt | Reinforced composite with moulded teeth | Quiet and efficient | Premature cracking, tooth wear |
| Timing chain | Hardened steel links and pins | High load capacity | Rapid elongation, noise |
| Guides | Polymer wear surface on rigid backing | Low friction and controlled movement | Wear-through leading to slap/rattle |
11) Fluids, specs and approvals (timing relevance)
Timing chains and VVT systems are strongly influenced by oil quality and correct viscosity. Use the oil specification recommended for your engine (commonly defined by an OEM approval plus an ACEA/API category). Overly long intervals, wrong viscosity or sludge can affect hydraulic tensioners and cam phasers.
| Fluid/spec area | Why it matters to timing | Best practice |
|---|---|---|
| Engine oil viscosity | Supports tensioner/phaser response and lubrication film strength | Follow the vehicle’s specified grade and approval |
| Oil cleanliness | Prevents sticking valves and blocked oilways | Regular servicing; address sludge causes |
| Coolant integrity | Controls operating temperature and prevents overheating | Fix leaks promptly; avoid mixing incompatible coolants |
12) Operating conditions, overheating and limits
Hard use and poor operating conditions can accelerate timing wear. Frequent short journeys can leave moisture and fuel dilution in the oil; overheating can harden seals and degrade plastics; and repeated high-load driving can stress guides and tensioners.
| Condition | Effect on timing components | Mitigation |
|---|---|---|
| Short trips / stop-start | Oil contamination affects chains and VVT response | Maintain service schedule; use correct oil spec |
| Oil leaks | Can contaminate belts; low oil harms chain tensioners | Repair leaks early; replace seals during timing work |
| Overheating | Accelerates seal hardening and plastic guide wear | Fix cooling faults; don’t ignore temperature spikes |
13) Fault symptoms and urgency
Timing-related faults vary from mild drivability issues to “stop immediately” situations. If you suspect timing slip or chain/belt failure risk, it’s safer to avoid driving until diagnosed.
| Symptom | Possible cause | Urgency | Notes |
|---|---|---|---|
| Rattle on cold start (then fades) | Chain tensioner bleed-down, early chain/guide wear | Medium | Persistent or worsening rattle deserves prompt diagnosis |
| Engine warning light + rough running | Cam/crank correlation issue, VVT fault, mis-timing | High | Mis-timing can damage catalyst/emissions systems |
| Whining/whirring from timing area | Idler/tensioner bearing wear | High | Bearing failure can lead to belt derailment |
| Sudden non-start or engine stops | Severe timing slip/failure | Critical | Do not crank repeatedly; inspect professionally |
14) Maintenance and repair guidance
- Follow the correct service interval: timing schedules vary widely by engine and year; always confirm for your exact vehicle.
- Prefer complete kits where appropriate: replacing tensioners/guides/idlers reduces repeat labour and failure risk.
- Fix leaks before they become timing problems: oil and coolant leaks near covers should be addressed promptly.
- Use proper timing tools: locking pins/plates and correct torque procedures reduce the risk of mis-timing.
- After installation: rotate the engine by hand as specified (where appropriate) and recheck timing marks before first start.
15) Common mistakes to avoid
- Replacing only the belt/chain: leaving a worn tensioner or guide can undo the whole job.
- Ignoring oil spec on chain/VVT engines: incorrect oil can create noise and faults.
- Skipping torque and angle steps: timing hardware often uses specific tightening procedures.
- Contaminating parts during fitting: keep belt paths clean; avoid sealants where not specified.
- Cranking a suspected failed timing engine: repeated cranking can worsen internal damage.
16) Upgrades and tuning considerations (UK road/MOT caveats)
Timing modifications (such as adjustable sprockets or altered cam timing) are specialist changes that can affect emissions, idle quality and reliability. For road cars in the UK, any modification that increases emissions or triggers warning lights risks MOT-related issues. If you’re aiming for performance, a safer approach is ensuring the timing system is in excellent condition and that any VVT components are functioning correctly before considering calibration changes.
17) UK MOT, legal and safety notes
A timing system itself isn’t a standalone MOT test item like brakes, but its effects can be. Misfires, engine warning lights (where relevant), excessive smoke, and poor emissions can all contribute to MOT problems. From a safety perspective, a failing belt/chain can lead to sudden breakdowns. If you notice persistent timing noise, correlation fault codes, or loss of power, treat it as a priority repair rather than “one to watch”.
Use the listings below to select timing parts that match your engine code, build year and any variant-specific details (such as VVT configuration or belt/chain design).
