Sump
Engine sump parts for reliable lubrication and leak-free running
The engine sump (often called the oil pan) sits at the lowest point of the engine and acts as the main reservoir for engine oil. As oil circulates to lubricate bearings, camshafts, pistons and timing components, it drains back down into the sump ready to be picked up again. A sound sump system helps maintain stable oil pressure, supports cooling by carrying heat away from internal parts, and keeps contaminants suspended until the oil filter can do its job.
Because the sump lives under the vehicle, it’s exposed to potholes, speed bumps, corrosion and impact damage. Even small issues—like a worn sump plug washer or a rounded drain plug—can lead to slow leaks that lower oil level over time. Running low on oil is one of the fastest ways to accelerate engine wear, trigger warning lights, and in severe cases cause oil starvation.
What you’ll typically find in this category
- Oil sumps/pans (steel or aluminium), sometimes with baffles or a windage design
- Sump plugs (standard, magnetic, or manufacturer-specific designs)
- Sump plug washers/seals (crush washers, bonded seals, O-rings)
- Oil pump-related parts (where listed as part of the sump system)
- Oil cooler-related parts (on vehicles where oil temperature management is integrated)
| Component | Why it matters | Common giveaway |
|---|---|---|
| Sump / oil pan | Holds oil, supports pickup under braking/turning | Wet patches, dents, seepage at the seam |
| Sump plug | Provides a service drain point | Rounded head, slow drip after an oil change |
| Washer / seal | Prevents leaks at the drain plug | Seepage around the plug, oil on undertray |
Browse the compatible sump, plug and sealing parts below to help keep your engine protected and oil-tight.
Your Current Vehicle
Or
Sump Parts
Understanding the engine sump: function, components, faults and maintenance
1) What the sump system is
The sump is the engine’s oil reservoir and a key part of the lubrication system. It stores the oil supply, allows oil to settle and de-aerate (reduce foaming), and provides a mounting point for the oil drain plug. On many engines the sump also contributes to oil cooling by presenting a large surface area to airflow underneath the vehicle.
2) How it works (step-by-step)
- Oil rests in the sump when the engine is off (and collects there during operation after lubricating components).
- Oil pickup draws oil from the sump through a pickup pipe/strainer positioned near the lowest point.
- The oil pump pressurises flow and sends oil through galleries to bearings, camshaft areas, timing components and hydraulic systems (where fitted).
- Oil passes through filtration (full-flow filter; sometimes additional screens or bypass systems).
- Oil drains back by gravity into the sump, carrying heat and microscopic debris.
- Level and pressure are monitored by sensors/switches on many modern vehicles, triggering warnings if the system can’t maintain protection.
3) What sump performance depends on
- Correct oil level (too low risks starvation; too high can cause aeration and leaks).
- Pickup control under G-forces (baffles, trap doors, and windage control help keep the pickup covered during braking/turning).
- Sealing integrity (sump gasket/sealant, drain plug washer, sensor seals, and mating faces).
- Material and corrosion resistance (steel vs aluminium and protective coatings).
- Oil specification (viscosity and approvals suited to the engine, turbo and aftertreatment system).
4) Vehicle types and applications
Most UK passenger cars and light commercial vehicles use a wet sump system. Performance and packaging vary by engine layout (transverse vs longitudinal), drivetrain (FWD, RWD, AWD), and use case (towing, stop-start commuting, track days). Some performance engines use semi-dry or dry sump arrangements, but many “road cars” still rely on wet sump designs with improved baffling.
| Application | Typical sump priorities | What to watch for |
|---|---|---|
| City/commuter cars | Leak prevention, easy servicing | Short-trip moisture/sludge, neglected washers |
| Turbo petrol/diesel | Oil temperature control, correct spec | Oil starvation under hard driving, varnish buildup |
| Vans/light commercial | Durability, impact resistance | Sump damage from kerbs/ramps, undertray issues |
| Performance use | Baffling, windage control | Pressure drop in long corners, oil aeration |
5) Modern technologies and related systems
Modern sump systems often interact with electronics and emissions equipment. Oil level/temperature sensors can be integrated into the pan. Stop-start systems increase the number of engine restarts, making oil pressure build-up and correct oil grade important. Engines with DPFs and catalytic converters may require specific low- or mid-SAPS oils to protect aftertreatment, which indirectly supports sump cleanliness and overall lubrication performance.
6) Development and evolution overview
Older engines commonly used simple pressed-steel sumps with basic drain plugs and minimal baffling. As engines became more compact and more powerful, sump designs evolved to reduce windage losses, control oil movement under higher cornering loads, and package around subframes and exhaust systems. Materials expanded to aluminium and composite/steel hybrids on some platforms to improve stiffness, NVH and heat transfer.
7) Core components explained (detailed breakdown)
Sump / oil pan
The sump itself may include internal baffles, ribbing, and a shaped “well” where the pickup sits. Some sumps have integrated mounting points for sensors, oil return pathways, or a windage tray to reduce crankshaft “whipping” through oil mist.

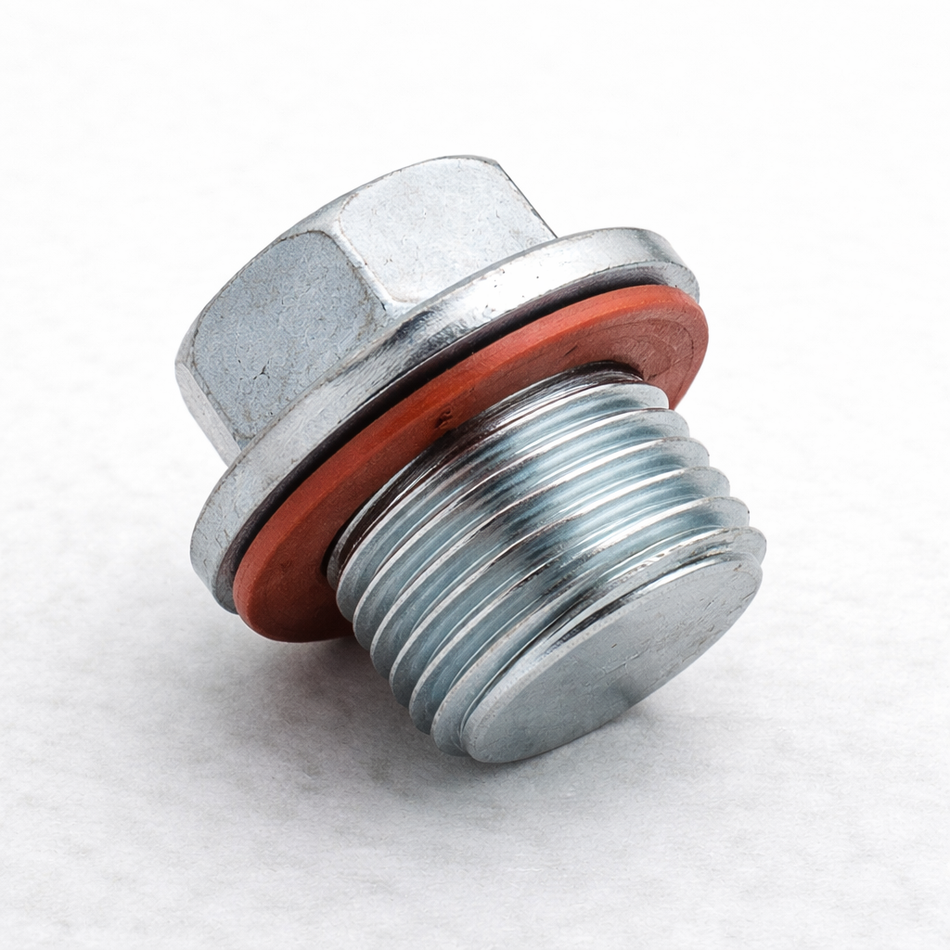

Sump plug, washer and sealing strategy
The drain plug is designed to be removed repeatedly during servicing. The seal may be a single-use crush washer, a bonded rubber/metal washer, or an O-ring style seal depending on the engine. Reusing the wrong washer or over-tightening can distort sealing faces, damage threads, and cause persistent leaks.
Oil pickup and strainer
The pickup sits close to the bottom of the sump and usually includes a strainer to prevent large debris entering the pump. Clearance matters: too close and it can be restricted by dents; too far and it may uncover under braking or cornering when oil sloshes away.
Oil pump (as part of the wider sump system)
Many engines use a gear or rotor (gerotor) pump driven mechanically. Pump health, correct oil viscosity, and a clean pickup strainer are essential for stable pressure—especially on engines with turbochargers or variable valve timing systems that rely on oil pressure for control.
Oil cooler and temperature management
Some vehicles cool oil using an oil-to-water heat exchanger or an air-to-oil cooler. Keeping oil temperature within limits protects viscosity, reduces oxidation, and helps maintain oil pressure—particularly when towing, driving at motorway speeds for long periods, or using the vehicle under heavy load.
8) Comparison tables
Wet sump vs dry sump (overview)
| System | How it stores oil | Pros | Cons |
|---|---|---|---|
| Wet sump | Oil stored in the pan under the engine | Simple, compact, common on road vehicles | Can suffer pickup uncovering under high G-forces |
| Dry sump | Oil stored in an external tank; scavenged from engine | Excellent oil control, improved reliability in hard use | More complex, more parts, usually specialist setups |
Drain plug sealing types
| Seal type | Typical use | Best practice |
|---|---|---|
| Crush washer (metal) | Common on many engines | Replace at each oil change; torque correctly |
| Bonded seal | Where improved sealing is required | Check for damage/hardening; replace if seepage appears |
| O-ring | Some designs with a groove in the plug | Inspect for flattening; lubricate lightly with clean oil |
9) Wear parts and inspection guidance
| Item | Inspection interval | What to check | Action if failed |
|---|---|---|---|
| Sump plug washer/seal | Every oil change | Flattening, cracks, seepage | Replace with correct type |
| Sump plug threads | Every oil change | Cross-threading, damage, rounded head | Replace plug; repair threads if required |
| Sump body | At service / when underneath | Dents near pickup, corrosion, gasket seepage | Repair/replace sump and renew sealing |
| Pickup/strainer | When sump is removed | Sludge blockage, damaged seal | Clean/replace and investigate root cause |
10) Materials and construction choices
| Material | Benefits | Trade-offs | Typical failure mode |
|---|---|---|---|
| Pressed steel | Cost-effective, resistant to cracking | Can corrode; can dent | Rust seepage; dented pickup area |
| Cast aluminium | Stiff, good heat transfer, corrosion resistant | Can crack on impact; threads can strip | Cracks around bolt holes; damaged drain threads |
| Composite/hybrid (vehicle-dependent) | Weight/NVH optimisation | Design-specific sealing and repair approach | Seal failures; damage from incorrect refit |
11) Oils, specs and approvals (relevant to sump health)
The sump doesn’t “choose” the oil, but the oil you use strongly influences deposit formation, sludge risk, and temperature stability. Always follow the viscosity grade and approvals listed in your vehicle handbook. Using the wrong oil can contribute to pickup blockage, low oil pressure warnings, and turbo wear.
| Spec type | What it controls | Why it matters for the sump system |
|---|---|---|
| Viscosity (e.g. 0W-20, 5W-30) | Cold flow + hot thickness | Supports pressure build-up and protection at temperature |
| ACEA/API class (engine-dependent) | Performance and compatibility | Helps manage deposits and wear; protects aftertreatment on some engines |
| Manufacturer approval (OEM code) | Exact engine requirements | Best match for turbo, timing and emissions systems |
12) Operating conditions, overheating and limits
Oil temperature rises under load. If oil thins too much, pressure can drop. If it overheats repeatedly, oxidation increases and sludge can form—raising the risk of pickup restriction. Short journeys can also be harsh: moisture and fuel dilution may not evaporate fully, affecting oil quality over time.
| Condition | Impact on sump system | Practical mitigation |
|---|---|---|
| Frequent short trips | Moisture/fuel dilution, sludge risk | Use correct oil; keep to sensible service intervals |
| Towing/heavy load | Higher oil temperature, faster degradation | Check level more often; ensure cooling system is healthy |
| Hard cornering/braking | Oil slosh can uncover pickup | Maintain correct level; consider baffling on suitable setups |
| Kerb/impact strikes | Dents/cracks, restricted pickup | Inspect underside; don’t ignore new drips |
13) Fault symptoms and urgency
| Symptom | Likely causes | Urgency |
|---|---|---|
| Oil spots on driveway / undertray soaked | Washer/seal, sump seam, cracked sump, loose plug | High — investigate before level drops |
| Low oil warning / pressure light | Low level, pickup restriction, pump issue, wrong viscosity | Immediate — stop safely and check level |
| Rattling/knocking on start-up | Oil draining back, pressure delay, worn components | Medium to high — diagnose promptly |
| Burning oil smell / smoke near engine bay | Oil leaking onto exhaust or hot surfaces | High — fire risk; repair urgently |
14) Maintenance and repair guidance (practical and safety-first)
- Use the correct washer/seal for the drain plug design; replace it routinely.
- Torque correctly—over-tightening is a common cause of stripped threads and distorted sealing faces.
- Inspect after an oil change—wipe clean, then re-check for seepage after a short drive.
- Check oil level on level ground and follow the vehicle procedure (dipstick or electronic measurement steps).
- If removing the sump, clean mating faces carefully and use the specified gasket/sealant strategy.
15) Common mistakes to avoid
- Reusing crush washers or fitting the wrong seal type “because it looks close”.
- Using excessive sealant that can squeeze out and later block the pickup strainer.
- Jack/lift positioning that crushes undertrays or damages sump edges.
- Ignoring dents—especially if they’re near the pickup area.
- Mixing oil grades/specs without understanding compatibility (follow the handbook).
16) Upgrades and tuning considerations (with UK road/MOT caveats)
For vehicles used hard (spirited road driving, track days), oil control improvements can be beneficial—such as baffled sumps, windage trays, or improved breathers where appropriate for the engine. Any modification must remain safe, securely mounted, and free from leaks. Avoid changes that increase the risk of ground contact on UK roads (lowered vehicles and speed bumps are a common cause of sump damage). If you’re unsure, consult a competent specialist—especially where modifications affect emissions systems or engine management.
17) UK MOT, legal and safety notes
In the UK, fluid leaks can affect road safety and environmental risk. A visible leak that’s severe, continuously dripping, or likely to contaminate the road surface can lead to MOT issues and should be treated as urgent. Separately, oil leaks onto hot exhaust components can create smoke and fire risk—do not ignore these symptoms. Always dispose of used oil and contaminated rags responsibly via local recycling facilities.
