Clutch guide: how it works, what affects performance and when to replace parts
What the clutch system is
A clutch is a controlled coupling between the engine and the transmission. On manual cars it lets you start moving from rest and change gears by briefly separating the engine from the gearbox. In most passenger cars the clutch is a dry friction assembly, clamped against the flywheel by spring pressure. The driver (or an actuator) controls a release mechanism that reduces the clamping force when the pedal is pressed.
How the clutch works (step-by-step)
- Pedal/actuator input: pressing the clutch pedal moves a cable or pushes hydraulic fluid through a master cylinder.
- Force transmission: hydraulic pressure operates a slave cylinder or concentric slave cylinder (CSC). Cable systems pull a release fork.
- Release action: the release bearing presses the diaphragm spring (or levers) in the pressure plate.
- Disengagement: clamping force reduces and the friction disc can slip or separate from the flywheel/pressure plate faces.
- Speed matching: engine speed and gearbox input speed can change independently, enabling a gear change.
- Re-engagement: releasing the pedal restores clamping force; torque transfers through the friction disc again.
What clutch performance depends on
- Friction material condition: thickness, heat resistance and contamination level determine grip and smoothness.
- Clamp load: a healthy pressure plate spring provides the correct force across the disc.
- Flywheel surface and damping: flatness and (if fitted) DMF damping springs influence engagement feel and vibration control.
- Release system travel: correct hydraulic/cable operation ensures full disengagement to protect synchros and ease shifting.
- Driving style and load: frequent stop-start, towing and slipping the clutch on hills accelerate wear and heat stress.
- Related components: engine/gearbox mounts, driveshaft issues or misfires can mimic clutch judder and noise.
Vehicle types and applications
Clutch designs vary with torque demand and packaging. Small petrol hatchbacks commonly use a single-plate dry clutch with either a solid flywheel or DMF depending on engine vibration and emissions tuning. Modern diesels and many turbocharged engines frequently use a DMF to control torsional vibration. Vans and taxis may use heavier-duty clutches designed for higher loads and frequent use. Automated manual and dual-clutch transmissions also use clutch assemblies, but the control and service procedures can differ significantly.
Modern technologies and related systems
On newer vehicles, the clutch interacts with systems designed to reduce emissions and improve drivability. Start-stop systems increase the number of engine starts and can affect clutch and DMF workload. Hill-hold and traction control can mask poor clutch control but also add heat if the clutch is slipped excessively. Some cars use self-adjusting clutches (SAC) to maintain pedal feel as the disc wears. Concentric slave cylinders combine the release bearing and hydraulic slave into one unit, simplifying packaging but making leaks more consequential.
Development and evolution overview
Early clutches used simple friction plates and mechanical linkages. As engines produced more torque and cabins demanded lighter pedal effort, diaphragm-spring pressure plates and hydraulic actuation became common. Dual-mass flywheels arrived to reduce noise and vibration and to help protect gearboxes as torsional loads increased. More recently, self-adjusting mechanisms and integrated hydraulic release bearings have become widespread to improve consistency and packaging.
Core clutch components explained
Clutch disc (friction plate)
The disc carries friction linings and a sprung hub (on many applications) to soften engagement and reduce driveline shock. Wear reduces lining thickness and can expose rivets, leading to scoring of the flywheel/pressure plate. Oil contamination (from crank or gearbox input seals) can cause slipping and grabby engagement.
Pressure plate and cover assembly
The pressure plate clamps the disc to the flywheel. A diaphragm spring provides clamping force and also serves as the point the release bearing presses against. Heat spots, loss of spring tension and warped surfaces can lead to slip, judder and inconsistent bite.
Release bearing, fork and guide tube
The release bearing transmits pedal force to the diaphragm spring. Noisy bearings often squeal or growl, especially when the pedal is pressed. Fork pivots and guides must move freely; wear or bending can reduce release travel.
Hydraulic actuation: master cylinder, slave cylinder and concentric slave cylinder (CSC)
Hydraulic systems use brake-type fluid in most applications (always check the vehicle spec). Leaks can occur at seals or pipe connections and may show as a sinking pedal, difficulty selecting gears or fluid loss. A CSC leak can contaminate the clutch, meaning a single failed part can necessitate broader replacement.
Flywheel: solid vs dual-mass (DMF)
A solid flywheel is a single-piece mass. A DMF is two masses connected by springs and damping elements, designed to absorb torsional vibration. DMFs improve refinement and can protect transmissions, but worn DMFs can rattle, clunk, or cause shudder and poor engagement.
Pilot bearing/bush and input shaft considerations
Some vehicles use a pilot bearing/bush to support the gearbox input shaft. If it seizes or wears, you may get noise, vibration or difficulty shifting. Correct alignment during installation is essential to avoid premature wear.
Comparison tables
Solid flywheel vs dual-mass flywheel
| Flywheel type | How it behaves | Typical benefits | Common wear signs |
|---|---|---|---|
| Solid flywheel | Single mass; minimal internal damping | Simple, robust, predictable engagement | Heat spotting, surface scoring, clutch judder if warped |
| Dual-mass flywheel (DMF) | Two masses with springs/damping | Reduced vibration, smoother idle and low-speed drivability | Rattle at idle, clunks, excessive rotational free-play, shudder |
Clutch actuation types
| Actuation | Where common | What to watch | Service note |
|---|---|---|---|
| Cable | Older/simpler designs | Stretch, fraying, poor adjustment, heavy pedal | Routing and lubrication matter; check pedal free-play if specified |
| Hydraulic (master + slave) | Many modern manuals | Leaks, air in system, soft pedal | Bleeding may be required after parts replacement |
| Concentric slave cylinder (CSC) | Many modern manuals | Internal leaks, contamination of clutch | Often replaced preventively during clutch jobs due to labour access |
Wear parts and inspection guidance
| Wear area | Symptoms | Basic check | What can happen next |
|---|---|---|---|
| Friction disc | Slip, high biting point, burning smell | Road test in a higher gear for slip (safe, controlled) | Rapid overheating, loss of drive |
| Pressure plate | Slip under load, inconsistent engagement | Assess for slip and engagement changes; inspect during removal | Worsening slip, heat damage to flywheel |
| Release bearing/CSC | Noise when pedal pressed, poor disengagement | Listen at idle with gentle pedal movement | Loss of disengagement; potential fluid leak (CSC) |
| Flywheel/DMF | Rattle, clunk, judder, vibration | Noise diagnosis; confirm play/condition when gearbox removed | Harsh engagement, driveline shock, further component wear |
| Hydraulics (if fitted) | Soft pedal, hard gear selection, fluid loss | Check fluid level and inspect for leaks at cylinders/pipes | Inability to select gears; breakdown risk |
Materials and construction choices
Clutch linings are engineered for a balance of grip, heat tolerance and smooth engagement. Pressure plates and flywheels use high-strength steels and friction faces designed to handle repeated heat cycles. Springs and damping elements in sprung hubs and DMFs are tuned to reduce vibration without creating excessive slack. Choosing the correct specification for your engine and gearbox matters: torque rating, spline count, diameter and release type must match.
| Component | Typical materials | Why it’s used | Failure pattern |
|---|---|---|---|
| Friction lining | Composite friction material (vehicle-specific) | Controlled coefficient of friction and heat resistance | Wear, glazing, contamination leading to slip/judder |
| Diaphragm spring | Spring steel | Stable clamp force over many cycles | Loss of tension, uneven clamp, engagement issues |
| DMF damping | Springs, friction washers, grease (internal) | Absorbs torsional vibration | Rattle, excessive play, harshness |
| Hydraulic seals | Elastomers compatible with specified fluid | Leak-free operation and consistent feel | Fluid leakage, air ingress, poor disengagement |
Fluids, specs and approvals (where relevant)

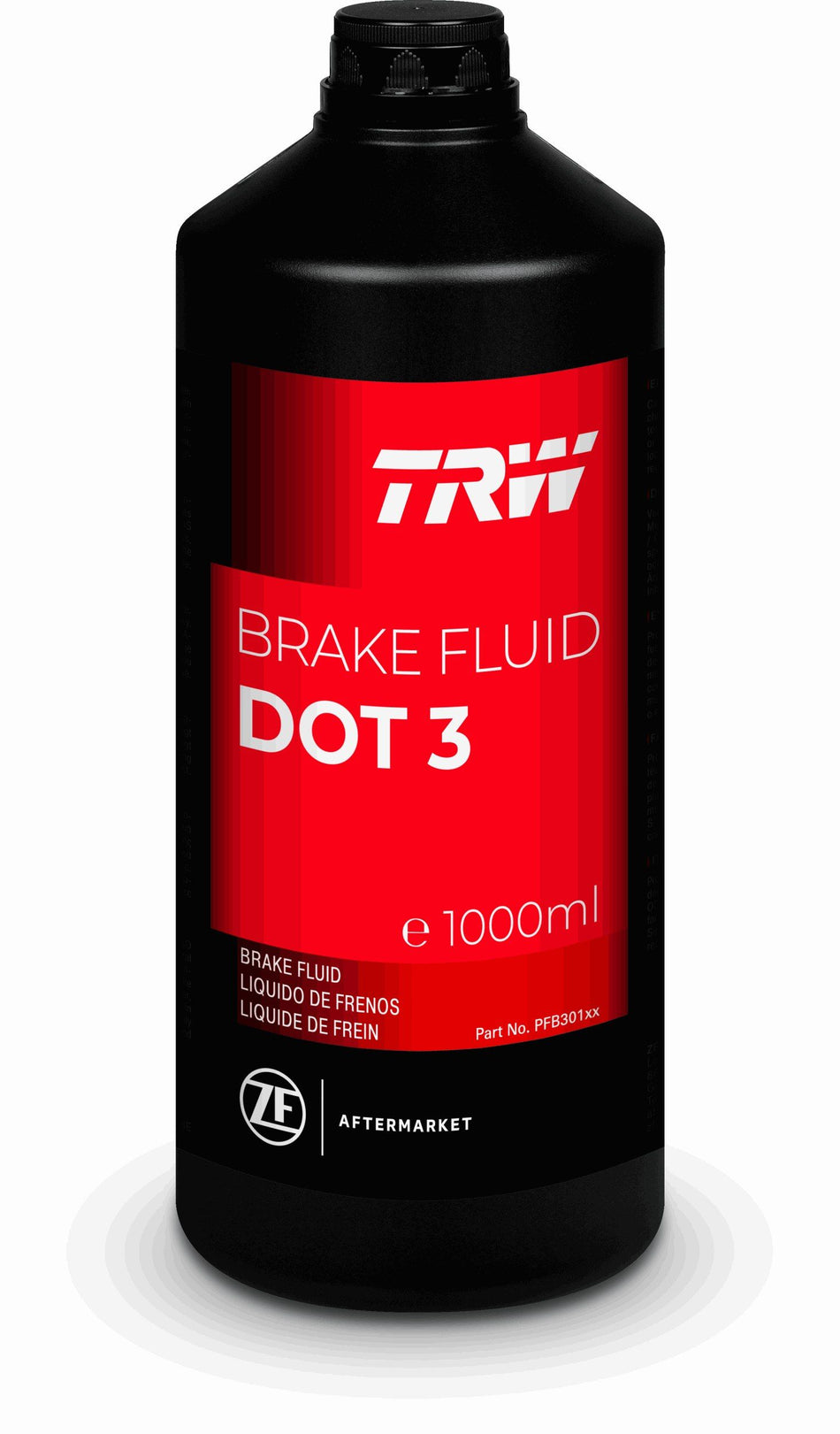

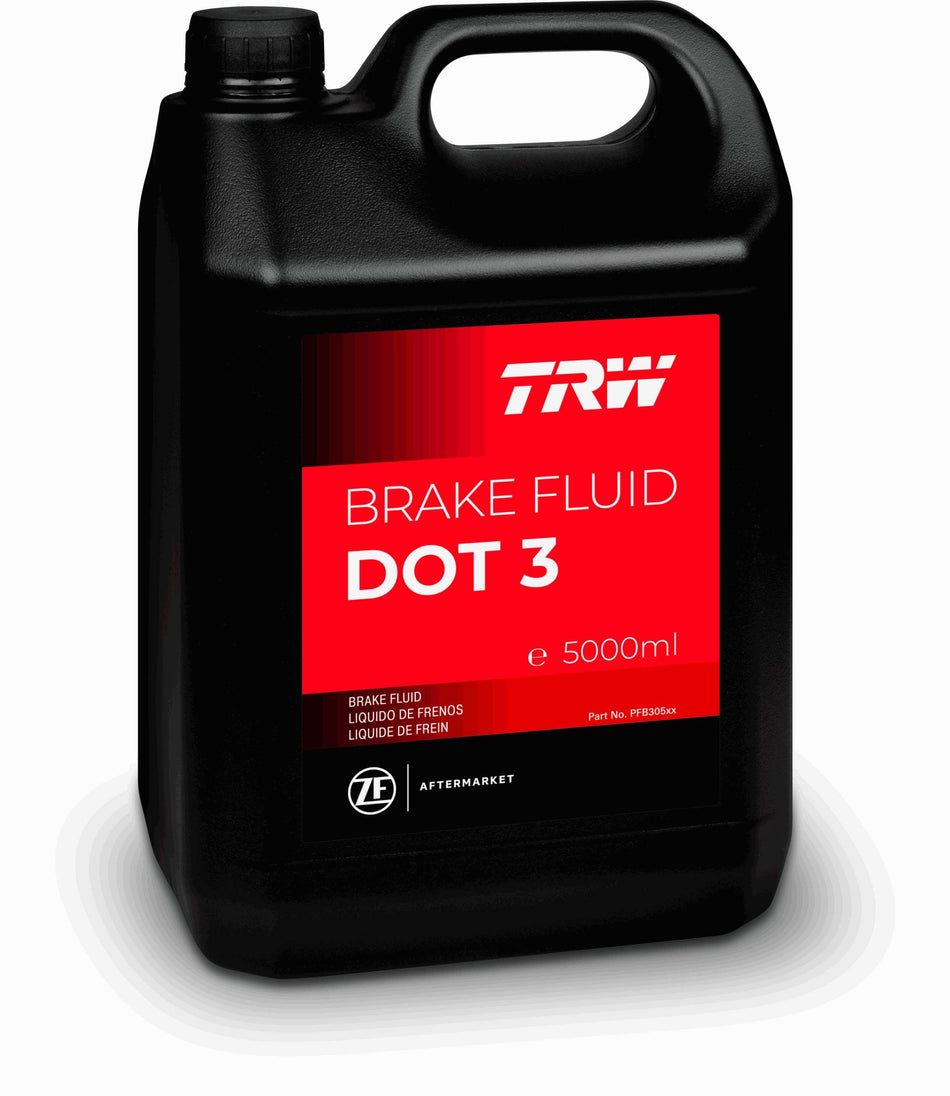

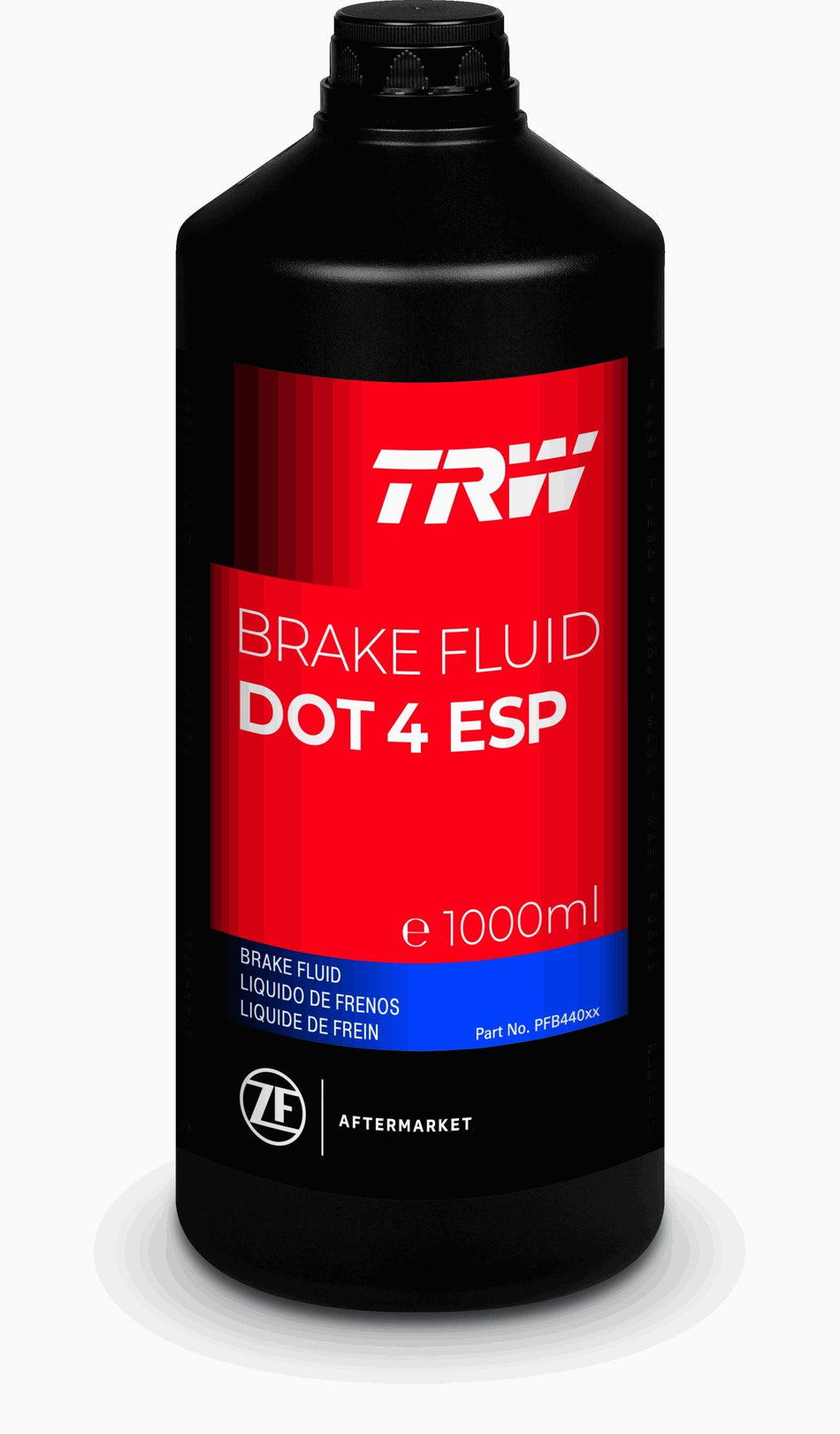

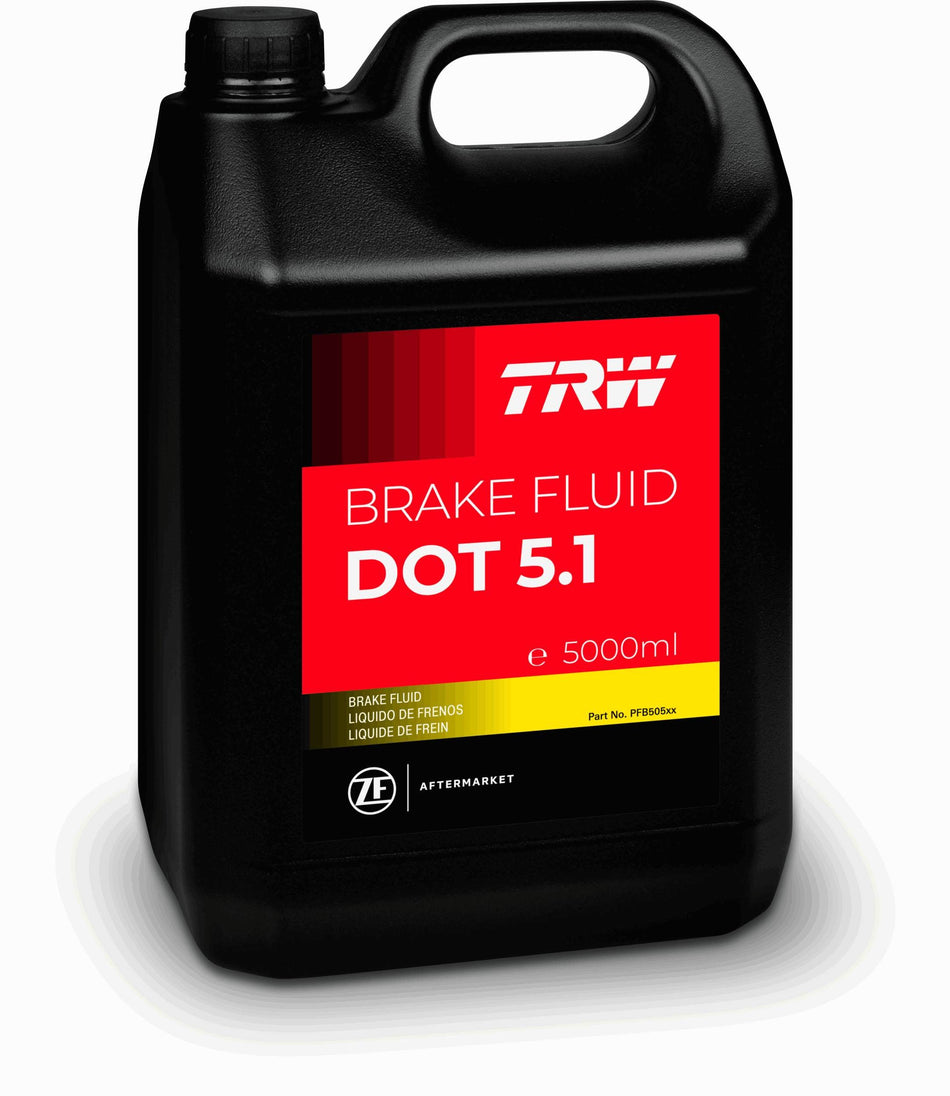

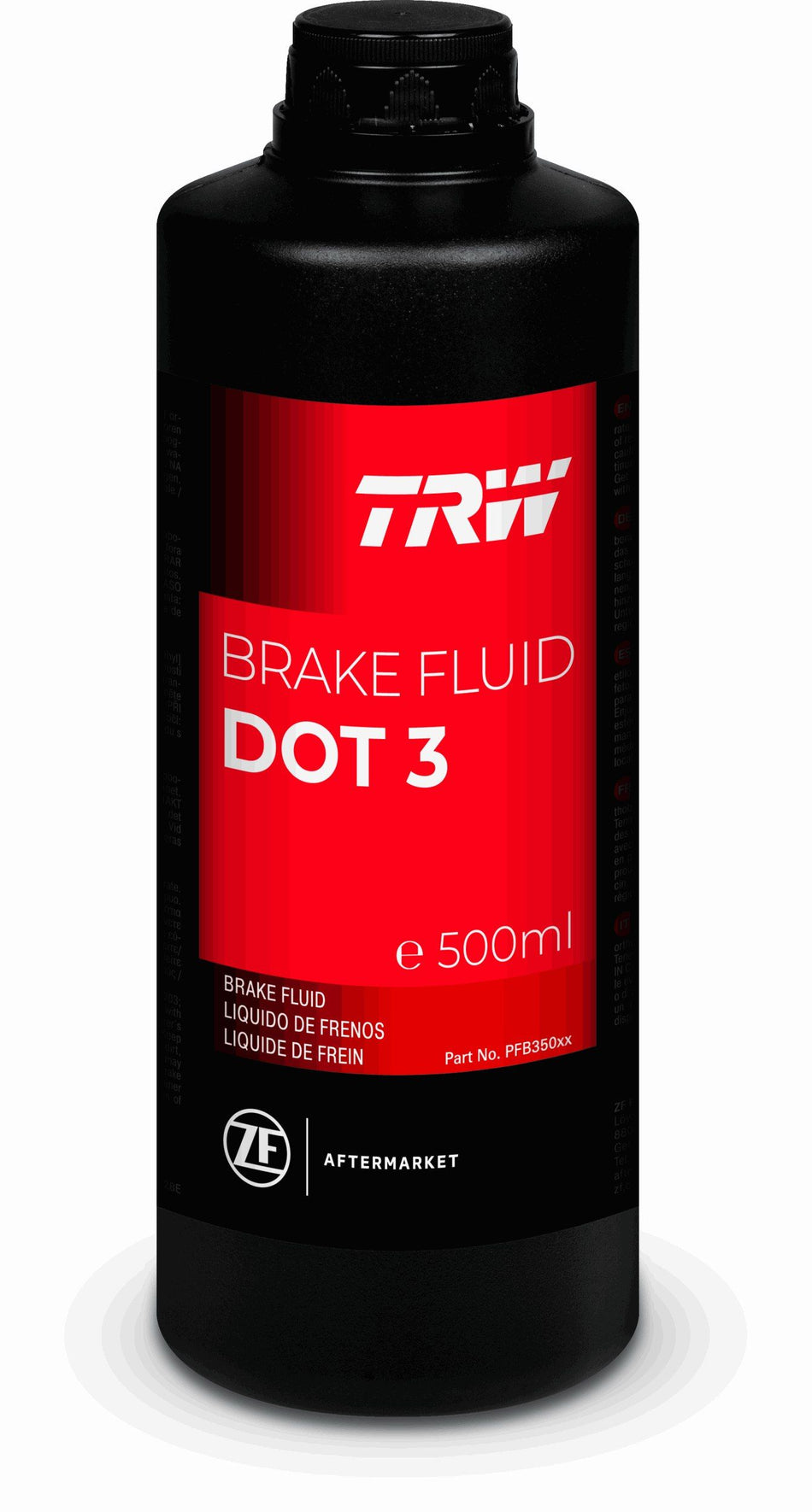

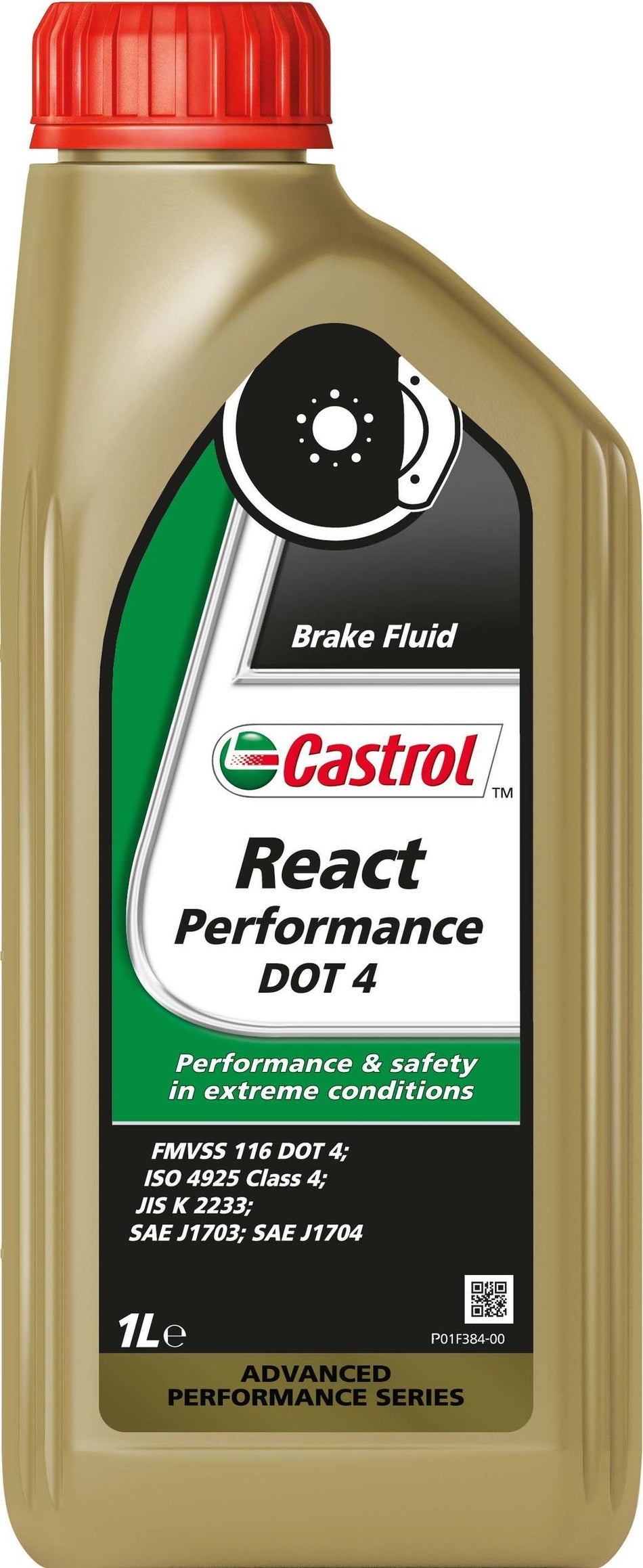

Many hydraulic clutch systems share fluid with the brake reservoir and use DOT-spec brake fluid, but you should always confirm the correct specification for the vehicle. Contaminated fluid can damage seals and change pedal feel. If the clutch shares the brake reservoir, a falling level must be treated seriously — it may affect braking safety as well.
| Hydraulic clutch topic | What to verify | Good practice | Risk if ignored |
|---|---|---|---|
| Fluid type | Vehicle handbook/spec | Use only the correct DOT grade if specified | Seal damage and reduced performance |
| Low level | Leak source (master/slave/CSC) | Inspect promptly; don’t rely on repeated top-ups | Loss of clutch disengagement; potential brake impact |
| Bleeding | Correct procedure | Avoid aeration; ensure full release travel | Hard shifting, clutch drag, premature wear |
Operating conditions, overheating and limits
Clutches are designed to slip briefly during pull-away and gear changes. Prolonged slip generates heat that can glaze friction surfaces, warp the pressure plate, damage a DMF and, in extreme cases, crack components. Hill starts, towing, heavy loads and stop-start city driving increase thermal stress. “Riding” the clutch (resting a foot on the pedal) can partially disengage the clutch, increasing heat and accelerating release bearing wear.
| High-stress situation | What it does | Likely symptom | Mitigation |
|---|---|---|---|
| Repeated hill starts | Prolonged slip and heat build-up | Burning smell, judder, eventual slip | Use handbrake/hill-hold properly; minimise slip time |
| Towing/heavy loads | Higher torque demand | Slip under acceleration, overheating | Ensure clutch spec suits application; drive smoothly |
| Stop-start traffic | More engagement cycles | Earlier wear, pedal feel changes | Anticipate traffic; avoid unnecessary clutch slipping |
| Oil contamination | Reduces friction, creates grabby behaviour | Slip, shudder, poor bite | Fix seal leaks; replace contaminated clutch components |
Fault symptoms and urgency
| Symptom | Possible causes | Urgency | Why |
|---|---|---|---|
| Clutch slipping under load | Worn disc, weak pressure plate, contamination, DMF issues | High | Heat damage can escalate quickly and cause loss of drive |
| Can’t select gears / clutch drag | Hydraulic fault, air in system, release bearing/CSC issue | High | Can strand you and risk gearbox damage |
| Grinding/noise when pedal pressed | Release bearing wear, fork/guide issues | Medium–High | May lead to sudden failure or poor disengagement |
| Judder on take-up | Hot spots, warped surfaces, contamination, DMF, mounts | Medium | Can indicate heat damage or drivetrain issues |
| Pedal sinks or feels spongy | Hydraulic leak, air, master/slave seal failure | High | Loss of disengagement can occur without warning |
Maintenance and repair guidance
- Diagnose before replacing: check for hydraulic leaks, pedal feel changes and related mount/drivetrain issues that can mimic clutch faults.
- Replace as a system where sensible: labour overlaps heavily, so clutch disc, pressure plate and release bearing/CSC are commonly renewed together.
- Inspect flywheel condition: heat spots, cracks and DMF play should be assessed when the gearbox is off.
- Prevent contamination: address crankshaft rear main seal or gearbox input seal leaks before fitting new parts.
- Follow correct bedding-in: gentle driving for the first period helps the new friction surfaces seat properly (avoid hard launches and prolonged slipping).
Common mistakes to avoid
- Fitting a clutch without checking (or replacing) a leaking concentric slave cylinder on vehicles where access requires gearbox removal.
- Reusing damaged bolts or ignoring torque and angle procedures where specified.
- Touching friction faces with greasy hands or allowing oil/cleaner residue onto the disc and flywheel faces.
- Ignoring alignment tools during installation, leading to difficult gearbox refitting and potential input shaft damage.
- Assuming “new clutch” fixes hard shifting when the real issue is hydraulics, linkage adjustment or gearbox faults.
Upgrades and tuning considerations (with UK road/MOT caveats)
Upgrading a clutch is usually about matching torque capacity to the vehicle’s use (e.g., towing, higher output) while keeping road manners acceptable. Higher-clamp or performance friction materials can cope with more torque but may increase pedal effort, noise or harsh engagement. Solid flywheel conversions can change vibration characteristics and may increase drivetrain noise; suitability depends on the vehicle and intended use. Any modification should maintain safe, controllable engagement and must not introduce drivability issues that could be considered unsafe on the road.
UK MOT, legal and safety notes
The clutch itself isn’t typically tested as a discrete component like brakes, but it directly affects safe control of the vehicle. A car that can’t reliably disengage drive, selects gears unpredictably, or stalls easily in traffic may be unsafe to use. Fluid leaks around the clutch hydraulics are also a safety issue, especially where the clutch shares a reservoir with the braking system. If you suspect significant slip, loss of disengagement or fluid loss, reduce driving and diagnose promptly.
