Engine Block
Engine block parts: the foundation of compression, lubrication and cooling
The engine block is the structural core of an internal combustion engine. It houses the cylinders where combustion happens, provides mounting points for key rotating and reciprocating parts, and contains internal oil galleries and coolant passages that keep the engine lubricated and temperature-controlled. Because so many critical systems are built around the block, even small issues—oil leaks, coolant loss, overheating or loss of compression—can quickly become expensive if ignored. For UK drivers, where short journeys, stop-start traffic and winter temperature swings are common, the block’s ability to manage heat and maintain stable clearances is essential for reliability.
In parts terms, “engine block” is rarely just the bare casting. This category often includes block-related components and sealing items such as core/freeze plugs, crankshaft seals, gaskets and gasket sets, oil galleries and plugs, oil sump and sump gaskets (where applicable), engine mounting hardware, timing covers/chain covers interfaces, and fasteners used during rebuilds. Depending on the engine design, the block also interfaces with cylinder liners, main bearing caps, piston cooling jets, and sensors measuring oil pressure, coolant temperature or crank position. When the block area is compromised, symptoms can look like many other faults—misfires, poor starting, coolant pressurisation, oil contamination or persistent leaks—so correct diagnosis matters before replacing parts.
Engine block-related work ranges from straightforward sealing repairs (for example a leaking crank seal or sump gasket) to rebuild-level jobs requiring careful measurements, correct torque procedures and clean assembly. Performance and longevity depend on maintaining oil pressure, stable coolant temperature and correct compression. If these fundamentals are lost, wear accelerates across the whole engine.
Common engine block-related parts and interfaces
- Sealing: crankshaft seals, sump gaskets, timing cover seals, O-rings and gasket sets
- Block plugs and hardware: core/freeze plugs, gallery plugs, bungs, bolts and fixings
- Lubrication interfaces: oil sump fittings, oil return points, piston oil squirters (engine-dependent)
- Sensing and controls: oil pressure and coolant temperature sensors (vehicle-dependent)
- Mounting interfaces: engine mounts and brackets (vehicle-dependent)
Quick guide: what block-area symptoms can indicate
| Symptom | Often linked to | Why it matters |
|---|---|---|
| Oil dripping from lower engine | Sump gasket, seals, housing joints | Oil loss can lead to low pressure and engine damage |
| Coolant loss / staining | Core plugs, block interfaces, leaks nearby | Overheating risks head gasket and block warpage |
| Compression issues | Cylinders/liners, head gasket, piston/bore wear | Affects power, starting and emissions |
Compatible engine block parts and related sealing components are listed below.
Your Current Vehicle
Or
Engine Block Parts
Engine block components: what they do, how failures happen, and how to repair them correctly
1) What the engine block category is
The engine block is the main engine casting that supports the crankshaft, cylinders and many auxiliary interfaces. In service terms, engine block parts usually means the components that seal, plug, support or interface with the block—rather than only the casting itself. These include seals and gaskets, plugs (core/freeze plugs and gallery plugs), sump and lower-end interfaces, mounting points, and the fittings and sensors attached to the block. Because the block connects lubrication, cooling and mechanical compression, problems here can rapidly affect overall engine health.
2) How the engine block “works” (step-by-step)
- Air and fuel enter the cylinders: the cylinders are formed within the block (with or without liners).

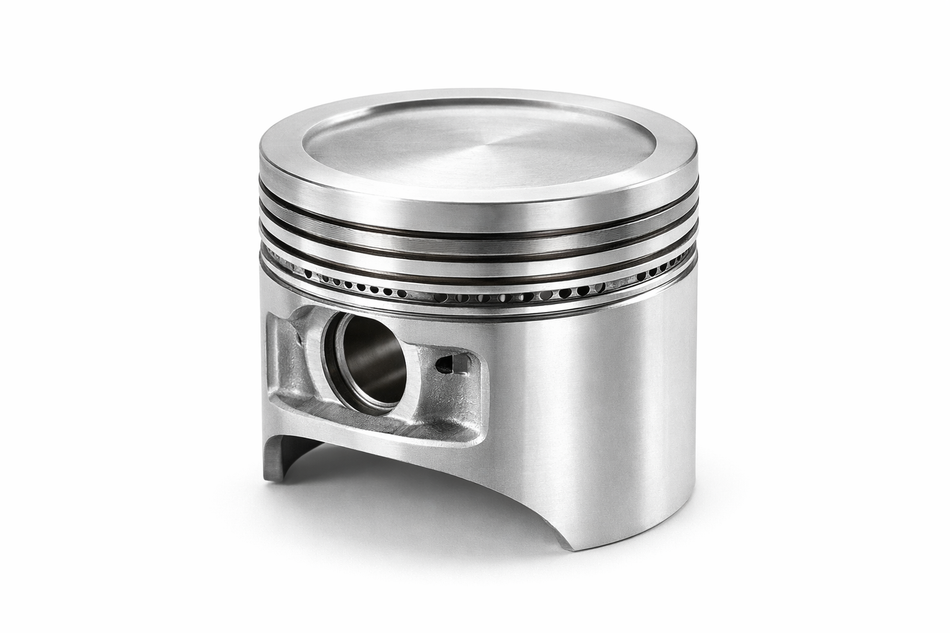

- Compression and combustion: pistons compress the mixture; combustion force is transferred to the crankshaft.

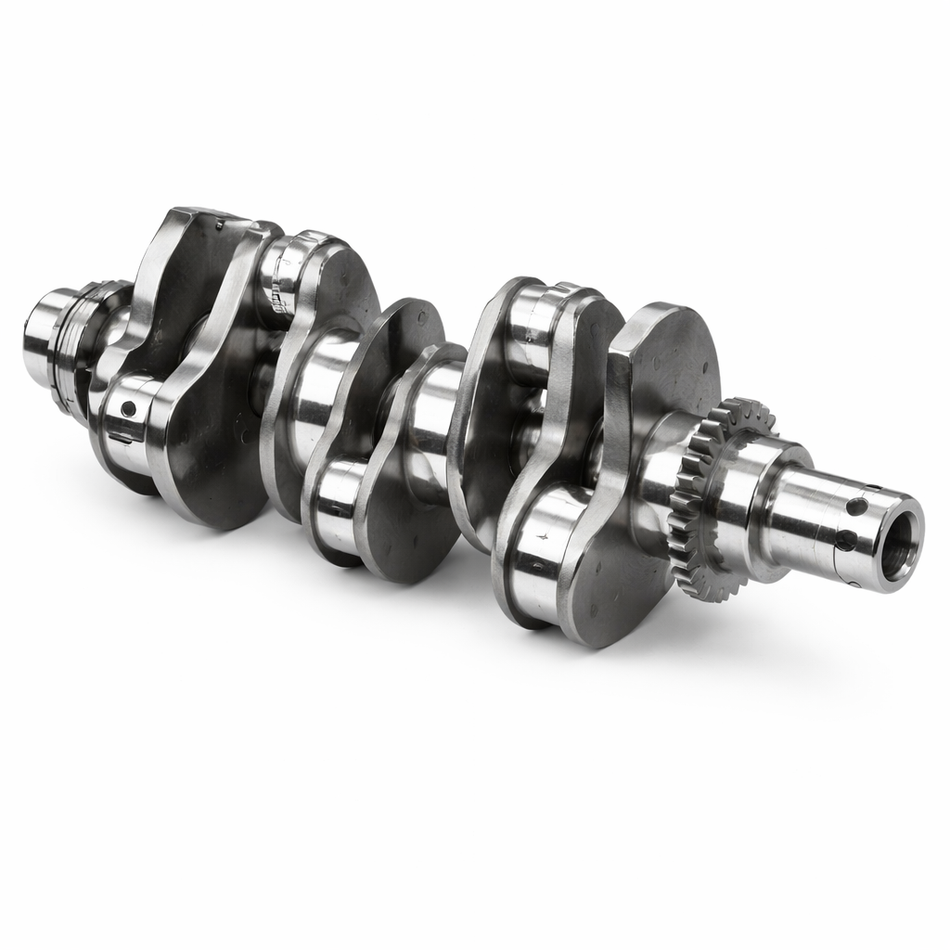

- Crankshaft support: main bearings and bearing caps in the block support crank rotation.
- Lubrication flow: oil galleries route pressurised oil to bearings and moving parts; oil drains back to the sump.
- Cooling control: coolant passages in and around the block move heat to the radiator via the water pump.
- Sealing and containment: gaskets, seals and plugs keep oil/coolant contained and protect pressure integrity.
- Sensing and control: sensors mounted to the block monitor temperature and oil pressure (vehicle-dependent).
3) What performance depends on
- Stable oil pressure: essential for bearings, turbochargers (if fitted) and long-term wear control.
- Consistent cooling: overheating can distort components, damage seals and lead to head gasket failure.
- Correct clearances: cylinder/bore condition and bearing clearances affect compression, efficiency and noise.
- Sealing integrity: small leaks can become big losses; internal leaks can contaminate oil or coolant.
- Correct assembly: torque procedure, clean surfaces and correct sealant use are critical on rebuild work.
4) Vehicle types and applications
- Petrol engines: often higher revving, sensitive to oil quality and correct temperature control.
- Diesel engines: typically higher cylinder pressures; block strength and sealing must cope with load.
- Turbocharged engines: rely heavily on oil pressure and cooling stability; leaks and low oil are higher risk.
- High-mileage vehicles: more likely to show seepage at seals, corrosion at plugs, and wear-related compression loss.
- Commercial use: longer idling and high load can stress cooling and oil systems.
5) Modern technologies and related systems
- Aluminium blocks and mixed materials: lighter designs can be more sensitive to overheating and correct coolant chemistry.
- Wet/dry liners: some engines use liners for serviceability; sealing and fit are critical.
- Integrated oil cooling and piston jets: some blocks include oil squirters and integrated cooling features.
- Engine management: sensors mounted to the block (crank position, knock, oil pressure on some vehicles) influence drivability.
- Stop-start duty cycles: more frequent starts and temperature swings increase importance of correct oil and strong sealing.
6) Development and evolution overview
Engine blocks evolved from heavy cast-iron designs with generous tolerances to lighter, more complex castings with integrated galleries, improved cooling paths and material optimisation. Modern engines often use aluminium blocks, coated bores or liners, and tighter emissions-driven tolerances. This improves efficiency but increases sensitivity to overheating, incorrect coolant, poor oil maintenance and contaminated assembly during repairs.
7) Detailed breakdown of core block-related components
Block casting and cylinder bores/liners
The block casting provides rigidity and houses the cylinders. Some engines have cylinders machined directly in the block; others use liners. Bore condition affects compression, oil consumption and blow-by. On rebuilds, measurement and correct machining are crucial.
Main bearing caps, fasteners and bottom-end support
Main bearings support the crankshaft. The caps and fasteners must maintain alignment and clamping force. Incorrect torque procedures or reused stretch bolts (where specified) can lead to bearing damage.
Core (freeze) plugs and gallery plugs
Core plugs seal manufacturing holes in coolant jackets; oil gallery plugs seal oil passages. Corrosion, poor coolant maintenance or improper installation can cause leaks. A small seep can quickly become a coolant loss problem.

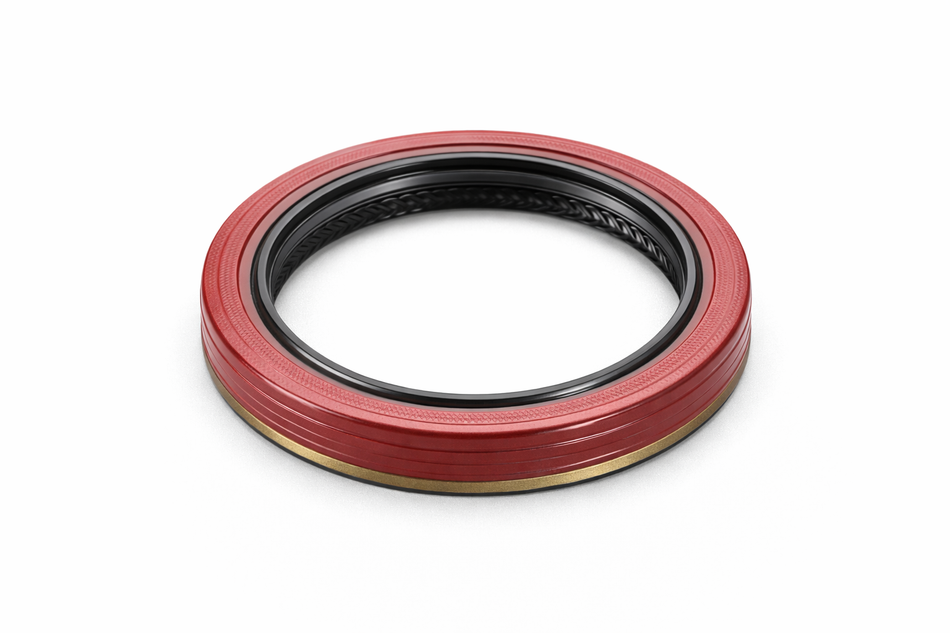

Crankshaft seals and timing cover interfaces
Front and rear crank seals prevent oil leaks where the crank exits the block. Leaks here can contaminate belts, clutches or undertrays. Correct installation depth and a clean sealing surface matter.
Oil sump and lower-end sealing
The sump bolts to the block and forms the oil reservoir. Sump gaskets or sealant joints can leak, particularly after impacts, incorrect tightening or distortion. Some engines use structural sumps that also affect rigidity.
Sensors and fittings on the block
Common fittings include oil pressure sensors/switches, coolant temperature sensors, knock sensors, and crankshaft position sensors (vehicle-dependent). Incorrect sensor type or damaged wiring can mimic mechanical faults.
8) Comparison tables
Block construction and service implications
| Design | Where you see it | Strengths | Service considerations |
|---|---|---|---|
| Cast iron block | Many older and some heavy-duty engines | Rigid and tolerant of heat cycling | Heavier; corrosion management still matters |
| Aluminium block | Many modern petrol/diesel engines | Lightweight, good heat transfer | More sensitive to overheating; correct coolant essential |
| Liner-based block | Some performance and serviceable designs | Potential serviceability of cylinders | Liner sealing and fit are critical |
| Coated bore (engine-dependent) | Some modern efficiency designs | Low friction potential | Specialist repair routes; avoid abrasive contamination |
Leak type vs likely source
| Leak observation | Common sources | Typical clues | First action |
|---|---|---|---|

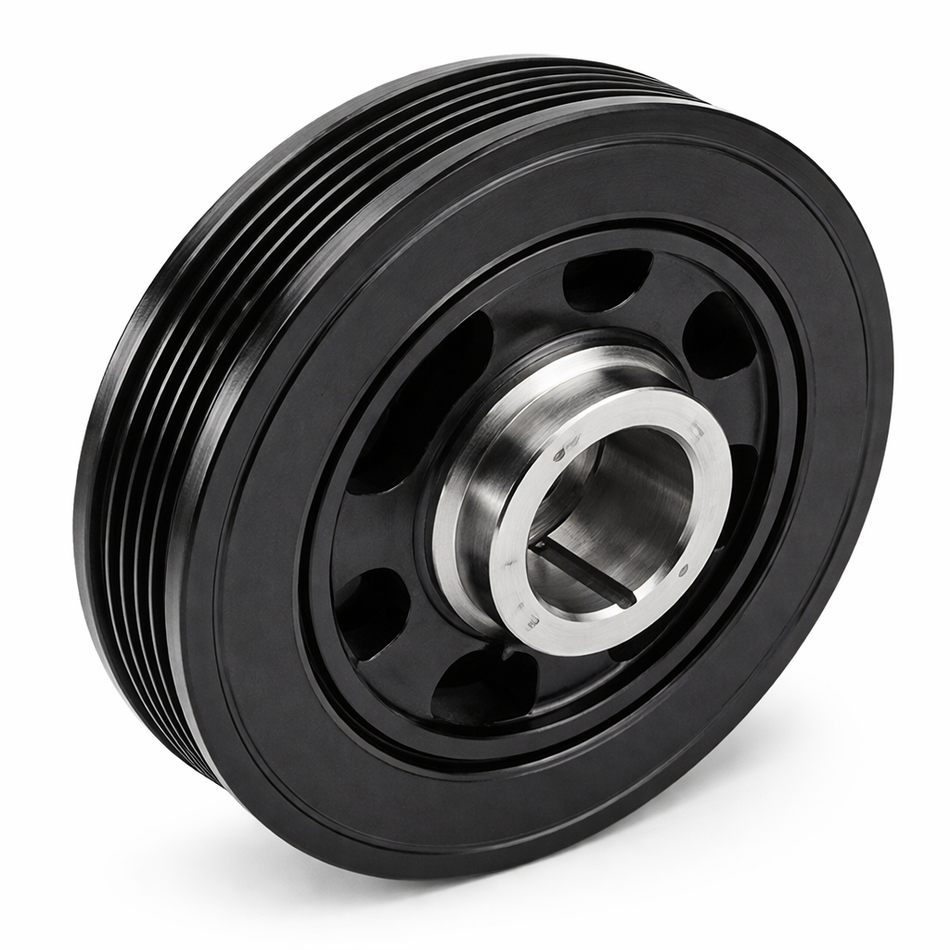

| Oil at front of engine | Front crank seal, timing cover joint | Oil around crank pulley area | Clean, inspect, check breather system |
| Oil from lower edge | Sump gasket/sealant, drain plug area | Drips after parking | Check fastener tightness and damage |
| Coolant seep on side of block | Core plugs, coolant fittings | Rust staining or dried coolant traces | Pressure test cooling system |
| Oil/coolant mixing | Head gasket, oil cooler (vehicle-dependent) | Milky residue, pressurised hoses | Stop driving and diagnose urgently |
9) Wear parts and inspection guidance
| Item | What to inspect | Common symptoms | Why it matters |
|---|---|---|---|
| Crankshaft seals | Weeping, oil on surrounding components | Oil smell, drips, belt contamination | Oil loss and secondary damage risk |
| Sump gasket/sealant joint | Wet edges, impact damage | Oil spots under car | Low oil can cause bearing damage |
| Core plugs | Corrosion, staining, seepage | Coolant loss, overheating | Overheating can cause major engine damage |
| Breather/PCV system (engine-dependent) | Blockages, pressure build-up | Multiple new leaks, oil mist | Crankcase pressure can force oil past seals |
| Mounts and brackets | Cracks, sagging, loose fixings | Vibration, knocks | Affects driveline alignment and stress on joints |
10) Materials and construction choices
| Part | Common material | Why it’s used | Key note |
|---|---|---|---|
| Core/freeze plugs | Steel/brass (engine-dependent) | Seals coolant jacket openings | Corrosion resistance varies; coolant condition matters |
| Crank seals | Rubber/elastomer with spring | Maintains sealing on rotating shaft | Correct installation depth prevents leaks |
| Gaskets | Rubberised, composite, MLS (application-dependent) | Seals joints under heat/pressure | Clean surfaces and correct torque are essential |
| Sump | Steel/aluminium/composite (engine-dependent) | Holds oil and can aid rigidity | Distortion or impact can cause persistent leaks |
11) Fluids / specs / approvals where relevant
| Fluid/spec area | Why it matters to the block | What can go wrong | Practical check |
|---|---|---|---|
| Engine oil specification | Protects bearings and bores; supports oil pressure | Wear, low pressure, sludge | Use correct viscosity/spec for the engine |
| Coolant type and concentration | Corrosion protection and temperature control | Core plug corrosion, overheating | Use correct coolant chemistry; maintain concentration |
| Sealants (where specified) | Seals sumps/covers on some engines | Leaks or blocked oil pick-up if misused | Use correct amount; keep away from oil galleries |
| Breather function | Controls crankcase pressure | Forced oil leaks and oil misting | Inspect PCV/breather system during leak repairs |
12) Operating conditions, overheating and limits
| Condition | Common UK trigger | Risk to block-area parts | Prevention |
|---|---|---|---|
| Overheating | Coolant leaks, failed fans, blocked radiator | Warping, gasket failure, seal hardening | Fix coolant loss quickly; monitor temperature |
| Short-trip use | Urban driving | Condensation and sludge, pressure build-up | Correct oil changes; keep breather system healthy |
| Salt and moisture exposure | Winter roads | External corrosion of plugs and fixings | Rinse underside; address leaks early |
| Impacts to sump area | Kerbs, road debris | Sump cracks/distortion and oil loss | Inspect after impacts; check oil level regularly |
13) Fault symptoms and urgency
| Symptom | Possible block-area causes | Urgency | Safety-first response |
|---|---|---|---|
| Oil pressure warning | Oil loss, pick-up issues, bearing wear | Critical | Stop engine and investigate immediately |
| Repeated overheating | Coolant leaks, core plug failure, circulation faults | Critical | Do not continue driving; diagnose cooling system |
| Persistent oil leaks | Seals, sump joint, crankcase pressure | High | Clean, trace source; fix before oil drops |
| White smoke and coolant loss | Head gasket/engine internal leak | Critical | Stop driving and diagnose urgently |
| Knocking from bottom end | Bearing wear, low oil pressure | Critical | Stop engine; continued running can destroy the block |
14) Maintenance and repair guidance
- Control the basics: maintain correct oil level and change oil/filter on schedule appropriate to use.
- Keep cooling healthy: address coolant loss immediately and use correct coolant chemistry.
- Diagnose leaks properly: clean the area first; check breathers/PCV if new leaks appear after repairs.
- Use correct torque procedures: sumps, caps and covers often have sequences and specified fasteners.
- Keep assembly clean: debris and excess sealant can block oil galleries or the oil pick-up.
15) Common mistakes to avoid
- Ignoring small oil leaks until the oil level drops and pressure is affected.
- Overusing sealant, which can squeeze into oil passages and cause starvation.
- Assuming overheating is “just a sensor” without checking coolant level and pressure integrity.
- Reusing single-use fasteners where the engine design specifies stretch bolts.
- Replacing a seal without addressing crankcase pressure causes (blocked breather/PCV).
16) Upgrades / tuning considerations (with UK road/MOT caveats)
Engine block “upgrades” usually relate to rebuild quality and intended use. For higher-stress applications (towing, track use, higher boost on turbo engines), stable oil temperature and pressure become more important, and the bottom end must be within specification. Any modification that increases cylinder pressure or heat load should be approached cautiously and with correct supporting maintenance. For UK road use, reliability, emissions compliance and safe operation matter more than marginal gains—poorly executed tuning can increase oil consumption, smoke and MOT emissions issues.
17) UK MOT, legal and safety notes
Engine block-related issues can affect the MOT and roadworthiness indirectly. Significant oil leaks, excessive smoke, or overheating problems are not just reliability concerns—they can create safety risks and emissions failures. Coolant leaks that lead to overheating can cause breakdowns and damage. If you see an oil pressure warning, experience repeated overheating, or notice coolant/oil mixing, treat it as urgent and avoid driving until diagnosed.
