Air conditioning parts guide: how car A/C works, what affects performance, and how to diagnose faults
What the air conditioning system is
Automotive air conditioning is a closed-loop thermal system designed to move heat out of the cabin and control humidity. It works alongside your heater and ventilation: even in winter, A/C often runs to dry the air and clear the windscreen quickly. The system uses refrigerant to carry heat, and specialised compressor oil to lubricate internal components and keep seals healthy. Because the circuit is pressurised and sensitive to contamination, correct parts selection and safe servicing are essential.
How it works (step-by-step)
- Compression: The compressor draws low-pressure refrigerant gas from the evaporator and compresses it into a high-pressure, high-temperature gas.
- Heat rejection: The hot gas flows through the condenser (usually at the front of the vehicle). Airflow removes heat and the refrigerant condenses into a high-pressure liquid.
- Drying and storage: The receiver-drier (or accumulator, depending on system design) traps moisture and debris and helps stabilise flow.
- Pressure drop: The expansion valve or orifice tube meters refrigerant and drops pressure, turning the liquid into a cold, low-pressure mixture.

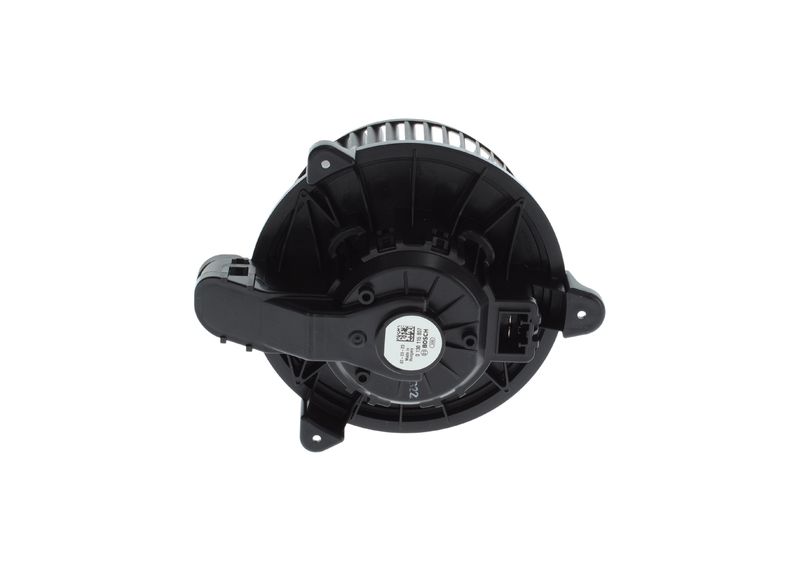

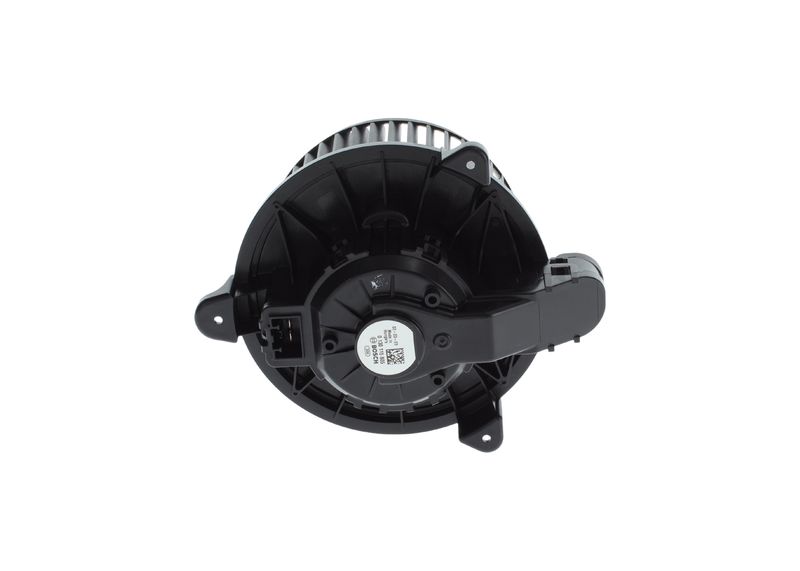

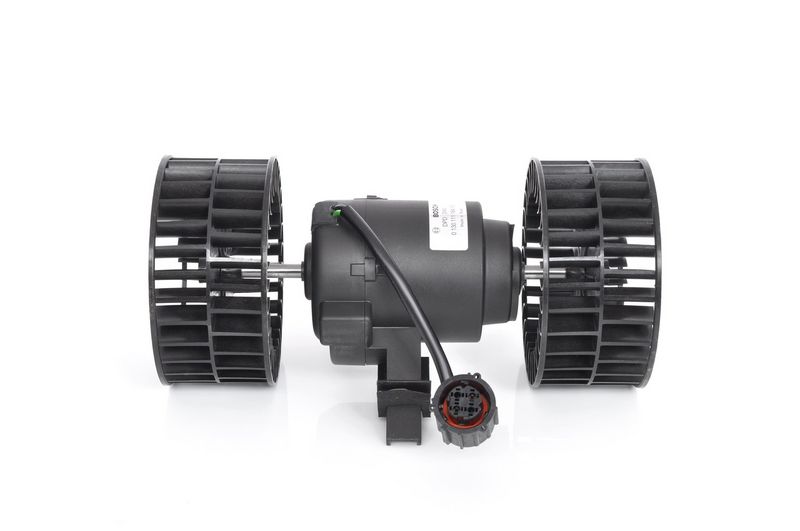

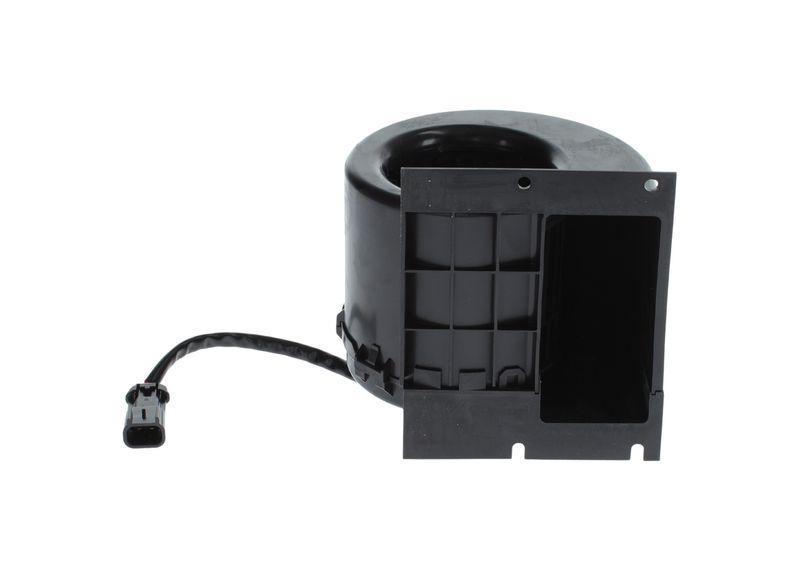

- Cabin cooling and dehumidifying: In the evaporator (inside the HVAC box), the refrigerant absorbs cabin heat and moisture. The blower pushes cooled, dried air into the cabin; condensation drains away through a tube.
- Control and protection: Pressure/temperature sensors and control valves manage compressor output and prevent operation outside safe limits.
What A/C performance depends on
- Correct refrigerant mass: Too little reduces cooling and can starve the compressor of oil circulation; too much can raise pressures and stress components.
- Airflow across condenser and through cabin: Blocked fins, failed cooling fans or a restricted cabin filter can mimic “low gas”.
- System cleanliness and dryness: Moisture reacts inside the circuit, forming acids and ice that damage components and cause restrictions.
- Component health: Compressors, expansion devices and sensors must operate smoothly for stable temperatures and pressures.
- Temperature management: Overheating from poor engine cooling or condenser airflow can push A/C pressures beyond normal operating range.
Vehicle types and applications
Nearly all modern cars have A/C, but layouts differ. Small cars may have simpler fixed-displacement compressors, while larger vehicles and many newer models use variable-displacement or electrically controlled compressors for efficiency. Hybrids and EVs can use electric compressors and may integrate cabin cooling with battery/thermal management strategies. Vans, MPVs and SUVs often have higher cooling loads and may use larger condensers and more powerful fans.
Modern technologies and related systems
Today’s climate control systems can include automatic temperature regulation, humidity sensors, cabin air quality sensing and electronically controlled expansion valves. Variable-displacement compressors adjust output to match demand, improving fuel economy. Some systems use start/stop strategies that require robust control logic to maintain comfort. On EVs and many hybrids, electric compressors can run without the engine, and heat pump systems may share components with A/C hardware.
Development and evolution overview
Car A/C systems moved from simple on/off compressor control to precision metering and variable output. Refrigerant types have also changed over time, with newer vehicles using different refrigerants than older models. As systems have become more efficient and compact, they’ve also become more sensitive to contamination and incorrect servicing. That’s why correct refrigerant type, compatible oils and proper sealing practices are central to reliable repairs.
Core components (detailed breakdown)

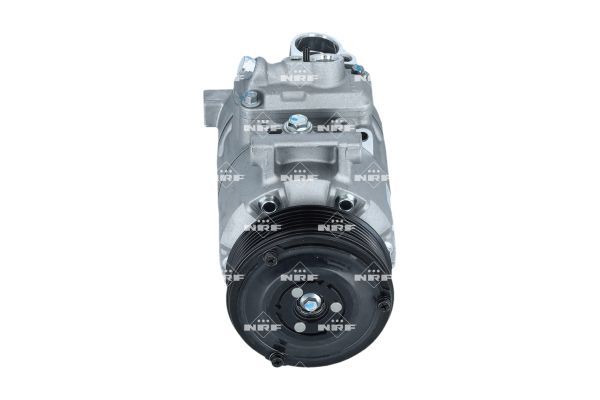

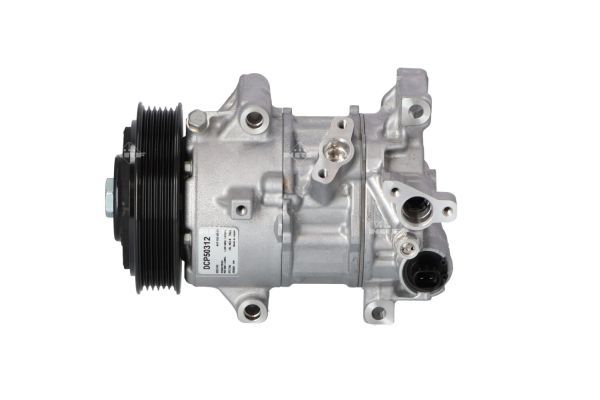

Compressor and compressor control
The compressor is the heart of the system. Depending on design, it may use a clutch pulley (belt-driven) or run continuously with internal control. Variable-displacement units adjust pumping capacity; some use a control valve that can fail and cause poor cooling or erratic pressures. Electric compressors (common on hybrids/EVs) rely on specific oil types and electrical safety procedures.
Condenser and cooling fan support
The condenser sheds heat to the outside air. It’s vulnerable to stone impact and corrosion, and it relies on strong airflow. A weak radiator fan or blocked condenser fins can cause high-pressure shutdowns, poor cooling at idle and intermittent performance in traffic.
Evaporator, HVAC box and drainage
The evaporator absorbs heat and removes moisture. If the drain is blocked, condensation can pool and cause odours, misting or damp carpets. Because the evaporator sits inside the dashboard area, leaks can be labour-intensive to access and often show as gradual refrigerant loss plus poor cooling.
Receiver-drier / accumulator
These components capture moisture and debris. Once saturated, they can no longer protect the system, increasing the risk of internal corrosion and freezing at the expansion device. They’re commonly replaced when the system has been opened for major repairs.
Expansion valve / orifice tube
This is the metering device that controls refrigerant flow into the evaporator. A restriction can cause weak cooling, icing, or pressure readings that don’t make sense. Some vehicles use thermostatic expansion valves; others use fixed orifice tubes with an accumulator.
Hoses, pipes, seals and O-rings
Refrigerant lines include flexible hoses and aluminium pipework. O-rings and seals are designed for refrigerant and oil compatibility; using the wrong material can lead to leaks. Because leaks can be very small, correct torque and cleanliness during assembly are important.
Sensors, switches and control valves
Pressure sensors protect the system from running with dangerously low or high pressures. Temperature sensors help the HVAC system manage evaporator icing risk and cabin comfort. Faulty sensors can disable the A/C even when the mechanical parts are healthy.
Comparison tables
Compressor types and what they’re suited to
| Compressor type | How it controls output | Typical benefits | Common fault pattern |
|---|---|---|---|
| Fixed displacement (clutch controlled) | Cycles on/off via clutch or pressure logic | Simple, robust design | Clutch issues, cycling complaints, noise |
| Variable displacement | Adjusts pumping internally via control valve | Smoother temperature control, efficiency | Control valve faults, weak cooling despite correct charge |
| Electric compressor | Electrically driven, speed controlled | Works with engine off (hybrid/EV), precise control | Oil compatibility issues, electrical safety concerns |
Expansion device options
| Device | Where used | Strengths | Typical symptoms if faulty |
|---|---|---|---|
| Thermostatic expansion valve (TXV) | Many modern vehicles | Responsive metering to load changes | Erratic cooling, icing, pressure imbalance |
| Orifice tube | Some systems with accumulator | Simple, inexpensive | Restriction from debris, weak cooling |
| Electronic expansion valve | Advanced HVAC / EV & hybrid systems | Very precise control | Control faults, diagnostic codes, unstable temps |
Wear parts and inspection guidance
| Item | What to check | What it can cause | Practical next step |
|---|---|---|---|
| Condenser | Corrosion, impact damage, blocked fins | Poor cooling, high pressures at idle | Inspect front-end airflow; replace if leaking/damaged |
| Compressor | Noise, clutch/pulley condition (if fitted), metal debris signs | No cooling, contamination through system | Diagnose carefully; avoid running if severe noise |
| Receiver-drier/accumulator | Age, system opened for repair | Moisture damage, freezing, corrosion | Replace when major components/pipework are changed |
| Cabin filter | Restriction, damp smell, visible dirt | Weak airflow, poor demist, odours | Replace filter; check HVAC drain function |
| O-rings and seals | Oil staining, slow loss of cooling over time | Low refrigerant, compressor lubrication risk | Replace seals during reassembly; use correct type |
| Pressure/temperature sensors | Fault codes, A/C not engaging | System shutdown despite intact hardware | Scan diagnostics and verify wiring/inputs |
Materials and construction choices
A/C components are designed to handle pressure, vibration and corrosion. Condensers and evaporators are typically aluminium with thin fins for heat exchange efficiency, which makes them vulnerable to physical damage and corrosion over time. Hoses incorporate barrier layers to reduce refrigerant permeation. Seals are specialised elastomers designed for refrigerant and oil compatibility; the wrong seal material can swell, crack or leak.
| Component | Construction detail | Why it matters in service |
|---|---|---|
| Condenser/evaporator | Aluminium micro-channel or tube-and-fin | Efficient cooling but sensitive to blockage and impact |
| Hoses | Reinforced with internal barrier layer | Reduces refrigerant loss; damage can cause slow leaks |
| O-rings | Refrigerant/oil-compatible elastomer | Correct fit and material prevent leaks under cycling pressure |
| Drier media | Desiccant material inside canister | Moisture control protects compressor and expansion device |
Fluids, specifications and approvals (refrigerant and compressor oil)
A/C systems use both refrigerant and compressor oil. The correct refrigerant type and oil specification must match the vehicle’s system design. Mixing types or using the wrong oil can reduce lubrication, harm seals and lead to poor cooling or component failure. Because A/C refrigerants are controlled substances and systems are pressurised, servicing typically requires appropriate equipment and procedures.
| Consumable | Role in the system | Compatibility requirement | Service note |
|---|---|---|---|
| Refrigerant | Carries heat and enables phase change cooling | Must match vehicle system type | Requires controlled recovery/charging equipment |
| Compressor oil | Lubricates compressor and supports seal health | Must match compressor and refrigerant | Incorrect oil can cause poor lubrication and failures |
| UV dye (where used) | Helps leak detection | Must be compatible with oil/refrigerant | Use appropriate quantity; avoid guesswork |
Operating conditions, overheating and limits
A/C pressures rise with outside temperature, high engine bay heat and poor airflow. In UK traffic on warm days, condenser cooling fan performance becomes critical. Overpressure events can trigger system shutdown to protect components. Running the system when severely undercharged can reduce oil circulation and increase compressor wear. Conversely, an overcharged system can elevate pressures and strain hoses, seals and the compressor.
| Condition | What happens | Likely symptom | What to check |
|---|---|---|---|
| High ambient temperature + idle traffic | Condenser heat rejection drops | Cooling weak at idle, improves when moving | Cooling fans, condenser cleanliness, airflow path |
| System undercharge (leak) | Lower cooling capacity and oil circulation | Not cold, cycles frequently | Leak test, repair, proper recharge |
| System overcharge | Pressures rise beyond normal | Intermittent shutdown, harsh compressor load | Correct recovery/charge procedure |
| Moisture contamination | Ice/restriction at expansion device | Cooling comes and goes, frosting | Drier condition, evacuation quality after opening system |
Fault symptoms and urgency
| Symptom | Possible causes | Urgency | Reason |
|---|---|---|---|
| No cooling and compressor won’t engage | Low pressure due to leak, sensor fault, electrical issue | Medium–High | Often protective shutdown; needs diagnosis before forcing operation |
| Loud squeal/rattle when A/C is switched on | Belt/pulley issue, clutch/pulley bearing, compressor fault | High | Risk of belt loss or compressor damage; avoid continued use |
| Cooling weak at idle, OK at speed | Fan issue, condenser restriction, overpressure | Medium | Can worsen in traffic; check cooling support systems |
| Musty smell / damp cabin | Evaporator moisture, blocked drain, cabin filter | Medium | Affects comfort and demist performance; potential mould |
| Windows fog easily in wet weather | A/C not dehumidifying, airflow restriction | High | Visibility/safety issue, especially for rapid demisting |
Maintenance and repair guidance
- Use A/C regularly: Running it year-round helps circulate oil and can support seal health (even in winter for demisting).
- Keep airflow paths clean: Clear leaves/debris from scuttle areas and ensure condenser fins are not blocked.
- Replace cabin filters on schedule: A restricted filter reduces airflow and can make A/C seem weak.
- Fix leaks before recharging: Recharging without repairing the leak is a short-term fix and risks running low again.
- When major components fail: Consider contamination risk; debris can spread through the system and damage replacements.
- Follow safe servicing practice: Pressurised refrigerant systems require correct recovery/charging methods and suitable equipment.
Common mistakes to avoid
- Adding refrigerant without confirming the correct type and without leak diagnosis.
- Assuming “needs gas” when the real issue is a weak fan, blocked condenser, faulty sensor or restricted cabin filter.
- Reusing old O-rings or fitting incorrect seal materials during reassembly.
- Opening the system and not replacing moisture-control components (where appropriate), leading to corrosion or icing issues.
- Ignoring abnormal noises from the compressor/pulley — continued use can escalate damage and contamination.
Upgrades and tuning considerations (UK road/MOT caveats)
A/C “upgrades” are usually practical improvements: fitting a condenser with adequate heat exchange for the vehicle, maintaining proper cooling fan operation, and ensuring the system is correctly serviced for stable performance in traffic. Avoid modifications that compromise safe operation, introduce insecure pipework routing, or risk leaks. If A/C changes affect demisting or trigger warning lights, rectify before relying on the vehicle for everyday driving.
UK MOT, legal and safety notes
A/C itself is not typically a direct MOT test item, but it affects safety through demisting and visibility. Also note that refrigerants are controlled and A/C systems are pressurised; safe handling and correct procedures matter. Any repair should leave pipework securely mounted, free from chafing, and without leaks. If the vehicle struggles to demist the windscreen in wet conditions, treat it as a safety problem and diagnose promptly.
