Gaskets
Engine gaskets and seals: essential for compression, coolant flow and oil control
Gaskets are the precision sealing parts that sit between engine components to stop fluids and gases escaping. They’re used throughout the engine and cooling system—between the cylinder head and engine block, around the rocker/valve cover, intake and exhaust manifolds, thermostat housings, water pumps, oil coolers and many other joints. Without the correct gasket in good condition, an engine can lose compression, leak oil or coolant, draw in unmetered air, or allow fluids to mix. That’s why gaskets matter for performance, reliability and emissions, not just cleanliness.
Most gaskets work by being clamped between two machined surfaces. When tightened to the correct torque (often in a specific sequence), the gasket compresses and conforms to minor surface imperfections, creating a seal across oil galleries, coolant passages and combustion chambers. Some joints also use separate rubber seals or O-rings, while others rely on gasket maker/sealant in defined places. In UK driving, repeated heat cycles, short journeys, high mileage and occasional overheating can accelerate gasket hardening and shrinkage. Leaks may start as minor seepage, but they can become urgent quickly—especially coolant loss or head gasket failure, which risks overheating and severe engine damage.
Common gasket and seal types you’ll see

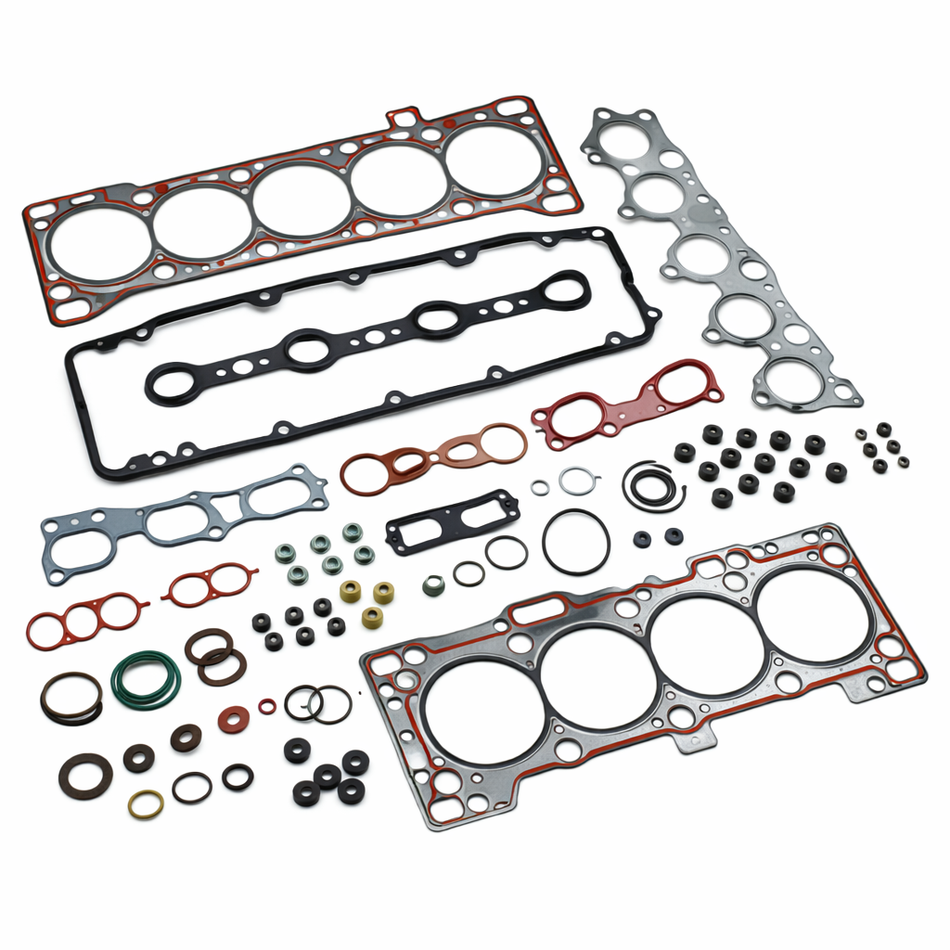

- Head gaskets (combustion, oil and coolant sealing)
- Rocker/valve cover gaskets and spark plug tube seals (where fitted)
- Intake and exhaust manifold gaskets
- Thermostat housing, water pump and coolant flange gaskets/O-rings
- Oil system seals: sump gaskets, oil cooler seals, cam/crank seals (application dependent)
Quick selection and planning checklist
| Check | Why it matters | Typical pitfall |
|---|---|---|
| Engine code + year | Small changes affect gasket shape and thickness | Ordering by model only |
| Associated bolts/seals | Some fasteners are torque-to-yield and shouldn’t be reused | Reusing old bolts and causing leaks |
| Surface condition | Warp or corrosion prevents a reliable seal | Skipping cleaning/flatness checks |
Compatible gaskets and related seals for your vehicle are listed below.
Your Current Vehicle
Or
Variety Of Gaskets
Gaskets and seals guide: how they work, what fails, and how to avoid repeat leaks
1) What the gaskets category is
Engine gaskets and seals are service parts that prevent leakage between joined components and keep combustion gases, oil and coolant in the correct places. They appear anywhere two surfaces meet—metal-to-metal, metal-to-plastic, or around rotating shafts. This category typically includes head gaskets, rocker/valve cover gaskets, manifold gaskets, coolant housing gaskets/O-rings, sump gaskets (where used), oil cooler seals and various auxiliary seals used during engine repairs.
2) How gaskets work (step-by-step)
- Clamping force: bolts/studs apply a measured load that compresses the gasket.
- Conformity: the gasket material flows slightly to fill microscopic surface imperfections.
- Sealing zones: different areas seal different media—combustion pressure, oil galleries and coolant ports.
- Heat cycling: materials expand/contract; good designs maintain sealing under temperature change.
- Long-term stability: the gasket must resist hardening, chemical attack and creep over time.
3) What sealing performance depends on
- Correct gasket design: shape, thickness, fire-ring design (head gaskets) and port layout must match the engine.
- Surface prep: clean, flat mating surfaces with no old sealant ridges or corrosion.
- Fastener condition and torque: correct torque sequence/angle; replace torque-to-yield bolts where specified.
- Operating temperatures: overheating can distort surfaces and destroy gasket layers.
- Crankcase ventilation: excessive crankcase pressure can force oil past seals and gaskets.
4) Vehicle types / applications
- Petrol engines: common issues include rocker cover leaks and intake manifold sealing on some designs.
- Diesel engines: higher cylinder pressures make head gasket integrity and bolt torque discipline critical.
- Turbocharged vehicles: more heat and pressure can expose weak sealing or poor surface preparation.
- High-mileage commuters: repeated heat cycles harden rubber seals and flatten cork/rubber composites.
- Short-trip cars: condensation and sludge can contribute to PCV issues and gasket seepage.
5) Modern technologies / related systems
- Multi-layer steel (MLS) head gaskets: common on modern engines for high stability under heat and pressure.
- Plastic housings and integrated modules: thermostats/coolant flanges often use shaped rubber seals or O-rings.
- Variable valve timing and oil control: more oil galleries and solenoids increase the importance of clean, leak-free sealing.
- Emissions systems: exhaust manifold sealing affects oxygen sensor readings and catalyst efficiency.
- Stop-start and thermal management: frequent warm-up/cool-down cycles can accelerate seal ageing.
6) Development / evolution overview
Early engines used simple paper, cork and fibre gaskets. As temperatures and pressures increased, manufacturers moved to composite materials, formed rubber seals and—at the cylinder head—MLS designs with engineered layers and sealing beads. Modern engines also use more moulded seals and O-rings for quick assembly and consistent sealing in plastic/aluminium housings, making correct part selection and careful installation even more important.
7) Detailed breakdown of core gasket and seal components

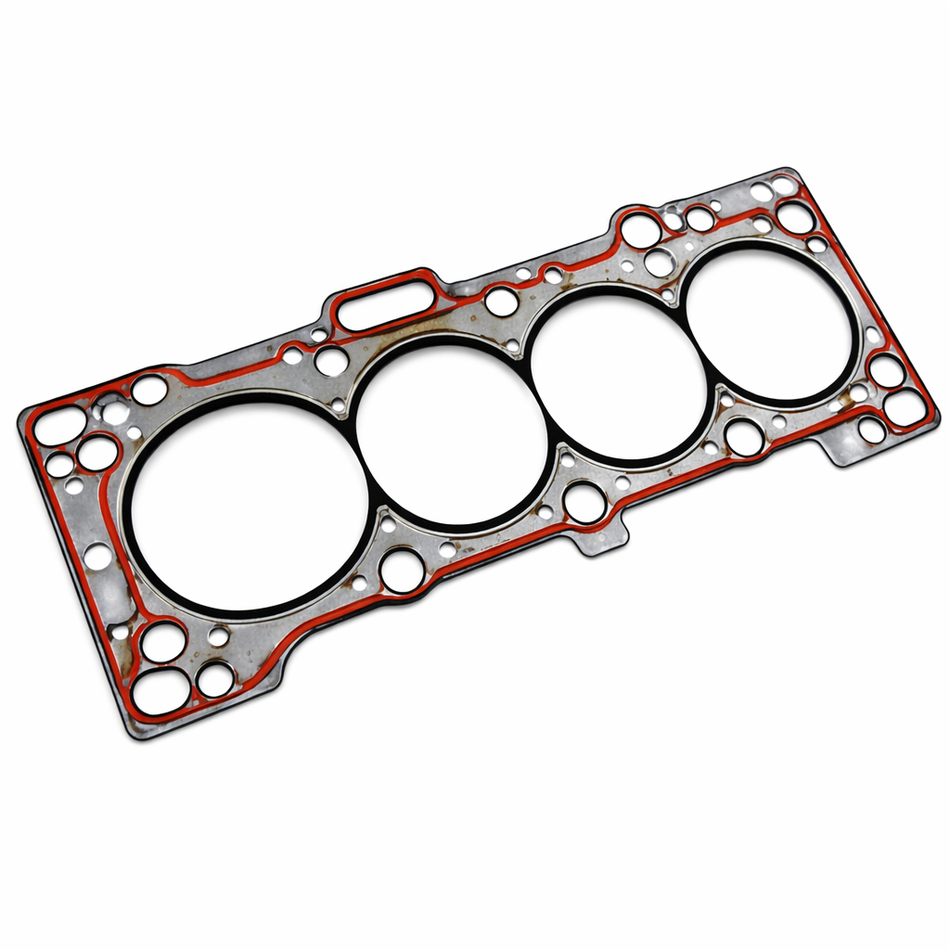

Head gaskets
The head gasket seals combustion chambers while keeping coolant and oil separate. Failure can show as coolant loss, overheating, pressurised hoses, misfires, or contamination (e.g., oil in coolant). Correct thickness and design are critical, and installation depends heavily on surface flatness and correct bolt procedures.

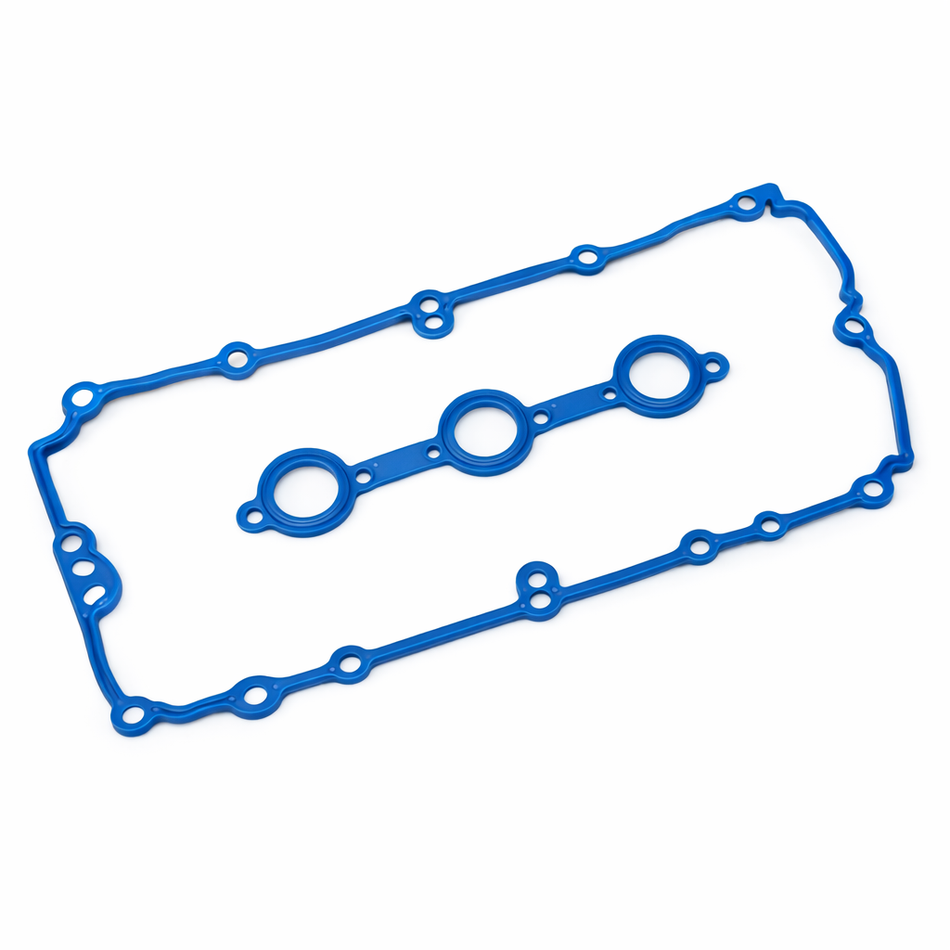

Rocker/valve cover gaskets and spark plug tube seals
These prevent oil leaks at the top of the engine. Hardening rubber, blocked breathers and poor cleaning are common causes of repeat seepage. Some engines also use separate grommets around fasteners that must be renewed for a proper seal.

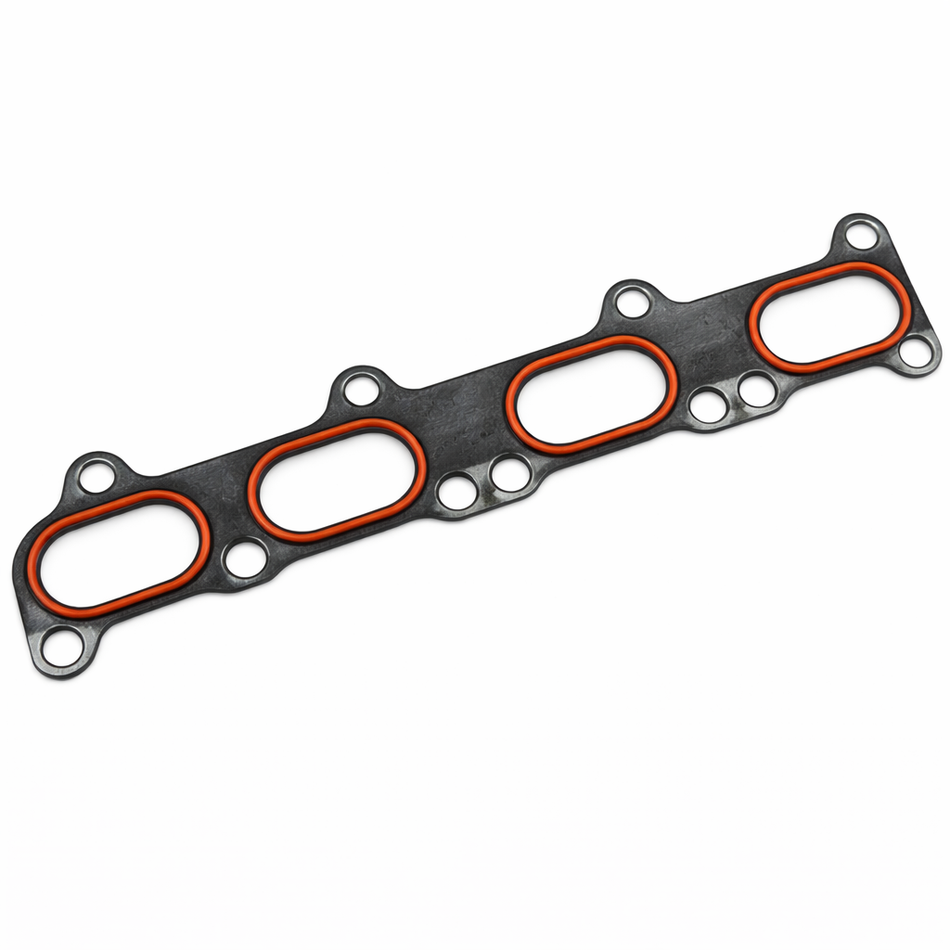

Intake manifold gaskets
Intake leaks can cause rough idle, lean running and fault codes. Manifolds may seal air and (on some engines) coolant, so gasket failure can present as both running issues and coolant loss.

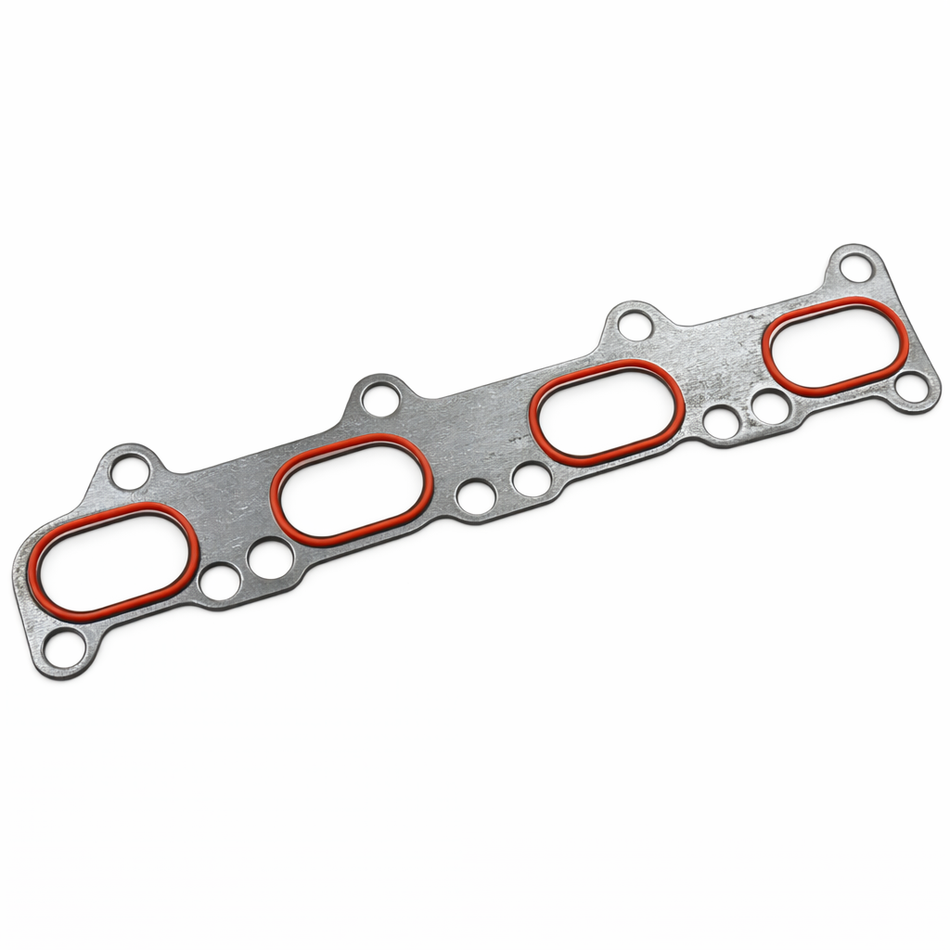

Exhaust manifold gaskets
Exhaust leaks can cause ticking noises, fumes, reduced performance and emissions issues. Sealing quality depends on flatness and correct fastener torque, especially after heat cycling.

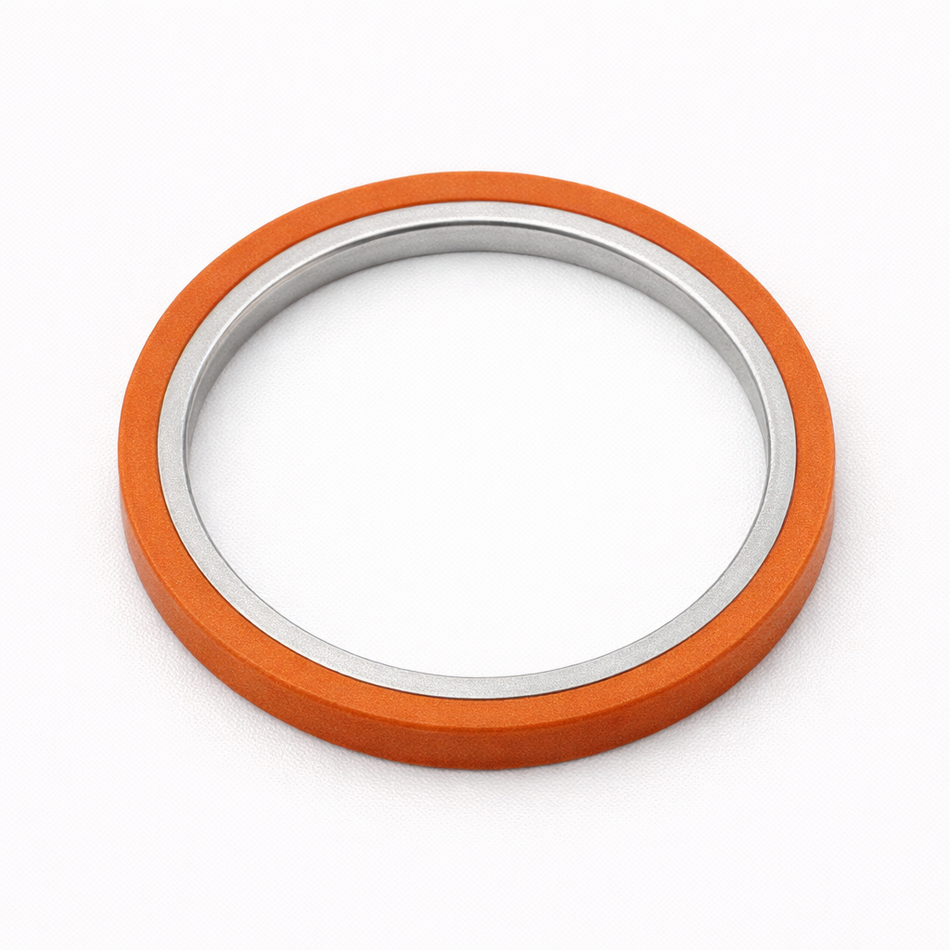

Coolant system gaskets and O-rings
Thermostat housings, coolant flanges and water pumps typically seal with shaped gaskets or O-rings. Plastic housings can warp or crack; surface damage and incorrect O-ring seating are common causes of leaks.

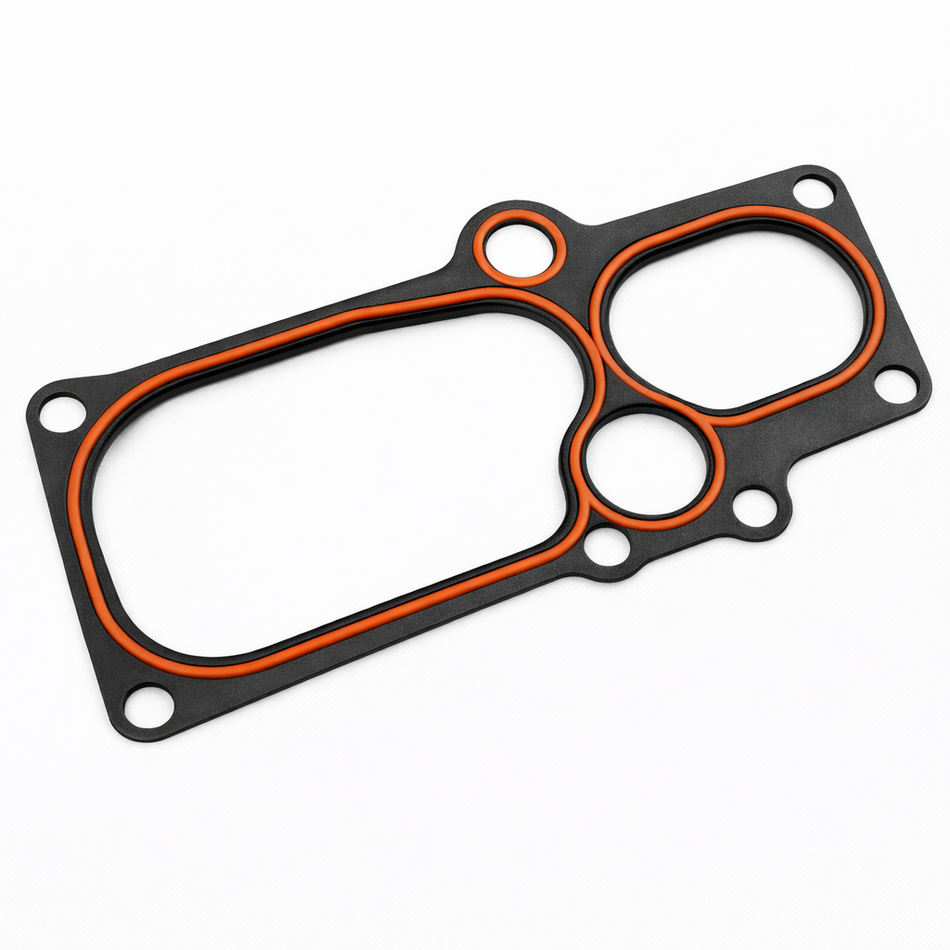

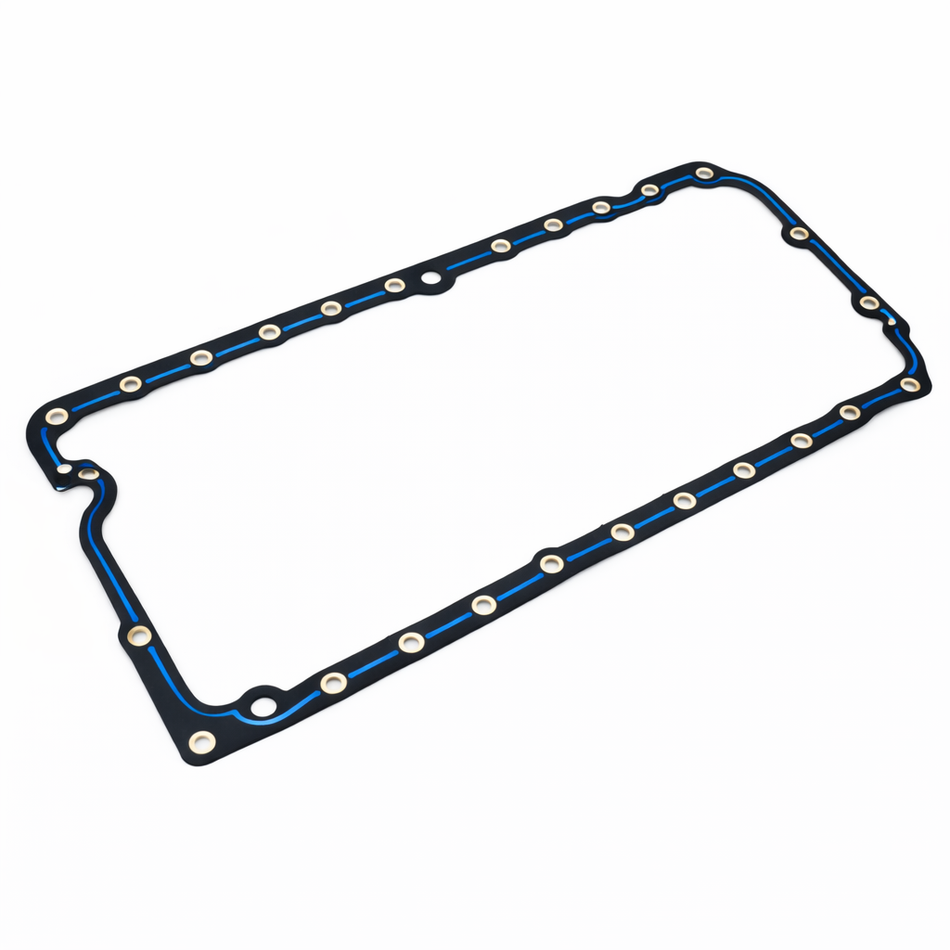

Oil system gaskets and shaft seals

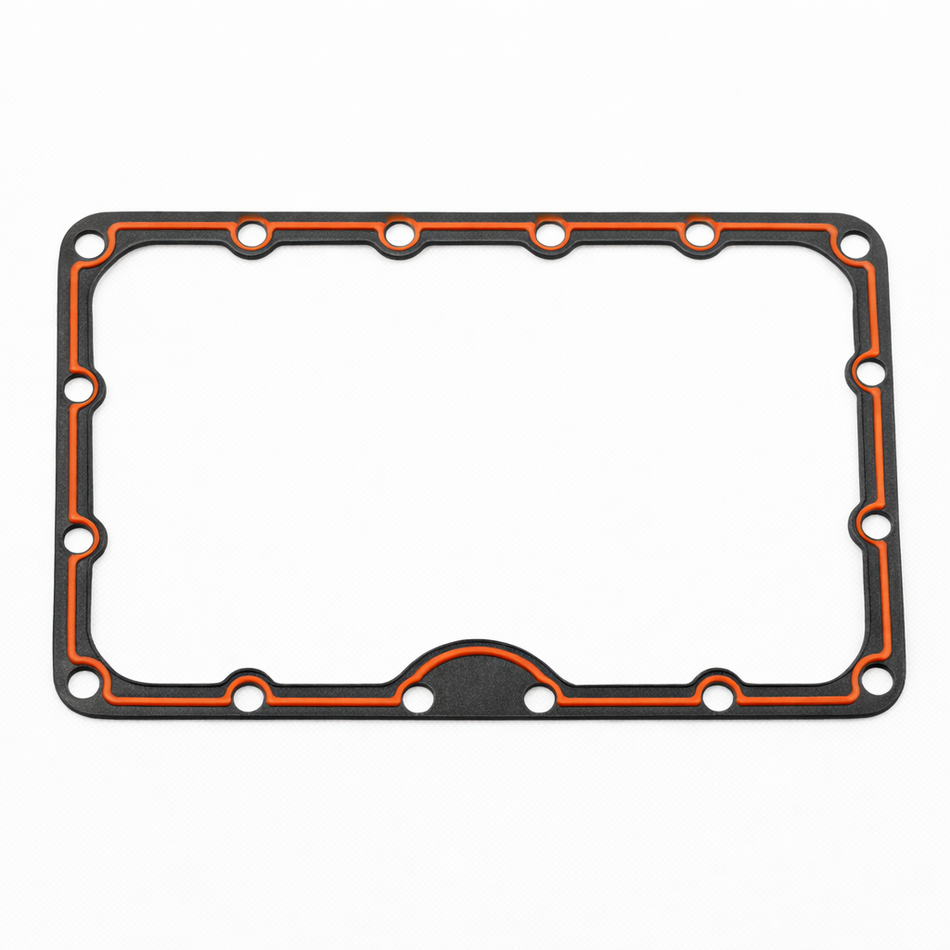

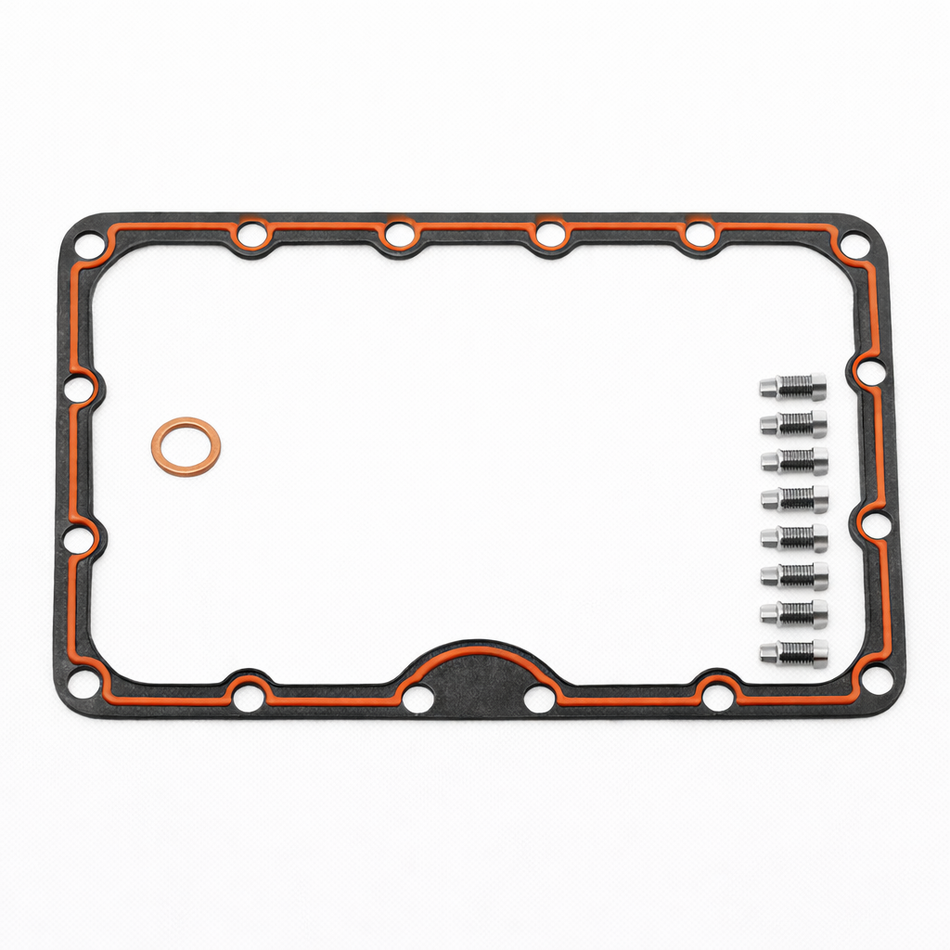

Sump gaskets (where used), oil cooler seals, camshaft and crankshaft seals prevent oil loss. A “gasket leak” may actually be caused by crankcase pressure from a PCV fault, so diagnosis matters before replacing parts.
8) Comparison tables
Gasket type vs typical symptoms
| Gasket/seal type | What it seals | Common symptoms | Typical risk level |
|---|---|---|---|
| Head gasket | Combustion, oil, coolant | Overheating, coolant loss, misfire, pressurised cooling system | High |
| Rocker/valve cover | Oil | Oil smell, seepage onto engine, smoke on hot components | Medium |
| Intake manifold | Air (sometimes coolant) | Rough idle, lean codes, whistle, coolant leak (design dependent) | Medium |
| Exhaust manifold | Exhaust gases | Ticking noise, fumes, emissions faults | Medium to high |
| Coolant housing O-ring | Coolant | Drips, low coolant warning, sweet smell | High (if coolant loss continues) |
| Cam/crank seal | Oil at rotating shafts | Oil on timing cover, belt contamination | Medium to high |
Sealing methods comparison
| Method | Where used | Pros | Watch-outs |
|---|---|---|---|
| Pre-formed gasket | Covers, housings, sumps | Consistent shape and thickness | Surface must be clean; avoid over-tightening |
| O-ring / moulded seal | Coolant flanges, pumps, sensors | Quick installation, reliable with correct seating | Pinching/twisting causes leaks |
| MLS gasket | Cylinder heads | Handles high heat/pressure well | Flatness and bolt procedure are critical |
| Liquid gasket / RTV (selective use) | Specific joints per design | Fills small gaps | Too much can block oil galleries; must be applied correctly |
9) Wear parts and inspection guidance
| Inspection area | What to check | What it suggests | Next step |
|---|---|---|---|
| Coolant level and condition | Unexplained loss, contamination | External leak or internal sealing issue | Pressure test; inspect housings and hoses |
| Oil level and leaks | Fresh oil around joints | Gasket seepage or crankcase pressure | Check PCV/breather function |
| Joint surfaces | Warp, corrosion, gouges | Gasket may not seal reliably | Repair/replace mating part; verify flatness |
| Fasteners | Stretched bolts, damaged threads | Incorrect clamping force | Replace bolts; follow torque sequence |
| Exhaust joints | Soot marks, ticking noise | Exhaust leak | Replace gasket; check manifold flatness |
10) Materials and construction choices
| Material/design | Typical use | Strengths | Limitations |
|---|---|---|---|
| Multi-layer steel (MLS) | Head gaskets | Heat/pressure stability | Needs excellent surface flatness and correct torque |
| Composite/fibre | Some manifolds/covers | Good conformity | Can compress over time if over-torqued |
| Rubber moulded seals | Covers, housings | Great sealing with correct seating | Hardens with age and heat cycling |
| Metal-reinforced gaskets | High-temp joints | Durability at exhaust temperatures | Still needs correct clamping and flat surfaces |
11) Fluids / specs / approvals where relevant
| Related spec | Why it matters | Applies to | Guidance |
|---|---|---|---|
| Coolant type/spec | Compatibility with seals and corrosion protection | Coolant housings, head gasket repairs | Use the correct coolant spec for your vehicle |
| Engine oil grade | Oil pressure and seal behaviour | All oil-sealed joints | Follow the manufacturer’s oil spec |
| Sealant type (if specified) | Incorrect sealant can leak or block passages | Specific joints only | Use sealant only where the design calls for it |
| Torque settings/angles | Ensures correct clamping force | Head bolts, covers, manifolds | Follow the proper sequence and stages |
12) Operating conditions / overheating / limits
| Condition | What happens | Gasket impact | Prevention |
|---|---|---|---|
| Overheating | Head and block expand/warp | Head gasket failure risk rises sharply | Fix cooling faults early; don’t ignore coolant loss |
| Short journeys | Moisture and sludge build-up | PCV problems and oil leaks more likely | Maintain PCV; use correct oil and intervals |
| High load/towing | More heat and pressure | Weak sealing shows quickly | Ensure cooling system is healthy |
| Winter salt exposure | Corrosion at housings/fasteners | Coolant flange and housing leaks | Use correct coolant and inspect housings |
13) Fault symptoms and urgency
| Symptom | Possible gasket/seal cause | Urgency | What to do |
|---|---|---|---|
| Unexplained coolant loss | Housing O-ring, water pump seal, head gasket (varies) | High | Pressure test; don’t continue driving if overheating |
| Oil smell or smoke from engine bay | Rocker cover gasket leak onto hot surfaces | Medium | Repair leak and clean residue to confirm success |
| Rough idle/lean fault codes | Intake manifold gasket leak | Medium | Check for vacuum leaks; confirm gasket fitment |
| Tapping/ticking noise at cold start | Exhaust manifold gasket leak | Medium to high | Inspect for soot marks; repair before emissions issues worsen |
| Milky residue or contamination signs | Possible internal sealing fault | High | Diagnose properly; avoid guesswork |
14) Maintenance and repair guidance
- Diagnose before replacing: confirm the leak source; oil can travel and drip far from the real failure point.
- Clean properly: remove old gasket material without gouging surfaces; avoid debris entering oil/coolant passages.
- Use correct torque: follow the specified pattern, stages and angles, especially on heads and manifolds.
- Replace related seals/bolts as needed: many jobs fail because old seals or stretched fasteners were reused.
- Recheck after heat cycling: some covers and housings may require a gentle recheck of fasteners (only if specified).
15) Common mistakes to avoid
- Using sealant everywhere “just in case” (excess can squeeze into passages and cause problems).
- Over-tightening cover bolts, which can distort the cover and create new leaks.
- Skipping flatness checks after overheating—no gasket can compensate for warped surfaces.
- Mixing up gasket orientations or pinching O-rings during installation.
- Ignoring crankcase ventilation faults that force oil past seals.
16) Upgrades / tuning considerations (with UK road/MOT caveats)
On modified or higher-boost engines, sealing demands increase. Some builds use performance-oriented gasket designs or upgraded fasteners, but reliability still depends on correct machining, preparation and torque procedure. For UK road use, any modifications should remain safe, emissions-compliant and suitable for MOT requirements; exhaust sealing in particular can affect emissions readings and fault codes.
17) UK MOT, legal and safety notes
Oil and coolant leaks can lead to MOT issues and are safety concerns. Significant leaks may be recorded as defects, and leaks that contaminate braking components or create smoke can be hazardous. Coolant loss that risks overheating should be treated as urgent, and any exhaust leaks should be addressed promptly to reduce fumes and emissions problems.
