Electrical parts: power, starting, charging and control for modern vehicles
Your car’s electrical system does far more than run the radio. It supplies and manages power for starting and charging, operates safety-critical lighting, and supports the sensors and control units that keep the engine running efficiently. When an electrical component starts to fail, symptoms can range from a slow crank on cold mornings to warning lights, rough running, intermittent faults, or a flat battery after the car has been parked. Because many electrical issues appear “random”, choosing the correct replacement part and fitting it properly is key to a reliable fix.
At the heart of the system are the battery, starter motor and alternator. The battery provides stored energy, the starter turns the engine over, and the alternator recharges the battery and powers the vehicle once running. From there, power is distributed through cables, fuses and relays to loads such as headlights, wipers, fans, heated screens and pumps. Modern cars also rely heavily on sensors (for example crank/cam position, temperature, pressure and oxygen/air-fuel feedback), plus switches, actuators and control modules that interpret data and command systems in real time.
Common electrical component groups
- Starting & charging: batteries, alternators, starter motors, regulators (application dependent)
- Power distribution: fuses, relays, fuse boxes, wiring and connectors
- Engine electrical: sensors, coils, leads and ignition-related parts (where applicable)
- Lighting & signalling: bulbs, lamps, switches and related fittings (vehicle dependent)
Quick diagnosis pointers
| Symptom | Often linked to | First checks |
|---|---|---|
| Slow cranking / clicks | Battery, terminals, starter circuit | Battery condition, cable tightness, corrosion |
| Battery warning light | Alternator/charging fault | Belt condition, charging voltage test |
| Intermittent electrical faults | Relays, fuses, poor earths | Fuse/relay inspection, earth strap condition |
Compatible electrical parts for your vehicle are listed below.
Your Current Vehicle
Or
Simple collection list
Electrical system guide: how it works, what fails, and how to choose the right parts
1) What the electrical category covers
This collection brings together the key service parts that generate, store, distribute and control electrical power in a vehicle. Depending on the vehicle, this includes batteries, alternators, starter motors, regulators, fuses, relays, switches, wiring/connection items, sensors and ignition-related electrical parts. Electrical components support everything from reliable starting and stable charging to efficient engine management, lighting, comfort features and safety systems.
2) How the vehicle electrical system works (step-by-step)
- Battery stores energy: supplies power for cranking and supports systems when the engine is off.
- Starter circuit cranks the engine: a control signal (via ignition switch/start button and relays) energises the starter to turn the engine.
- Engine starts and alternator takes over: the alternator generates electrical power and recharges the battery.
- Power distribution: fuses protect circuits; relays switch higher loads using low-current control signals.
- Control and feedback: sensors send data to control units, which adjust fuelling, ignition timing, boost, cooling fans and more (vehicle dependent).
- Earthing/return path: earth straps and ground points complete circuits; poor earths cause many “mystery” faults.
3) What electrical performance depends on
- Voltage stability: weak batteries, failing alternators or high resistance connections lead to low voltage and erratic behaviour.
- Correct part specification: output ratings, connector types, sensor calibration and mounting style must match the application.
- Wiring integrity: damaged insulation, water ingress and corroded connectors increase resistance and cause intermittents.
- Heat management: under-bonnet heat accelerates ageing of coils, sensors and wiring.
- Battery management systems: many modern vehicles monitor battery condition and charging strategy; incorrect fitment can cause issues.
4) Vehicle types / applications
- Petrol and diesel vehicles: both rely on robust starting/charging and sensor feedback; diesels often demand higher cranking capability.
- Stop-start vehicles: place greater demands on the battery and charging control strategy.
- Hybrids/EVs (12V system): still use 12V components for control electronics, lighting and auxiliaries (high-voltage systems are separate).
- Commercial and high-mileage use: long running times and accessory loads increase wear on alternators, belts and wiring.
- Older cars: corrosion, tired earth straps and brittle wiring are common, and “simple” faults can be connection-related.
5) Modern technologies / related systems
- Smart charging: alternator output may be controlled by ECU strategy rather than fixed regulation.
- CAN/LIN networks: modules communicate digitally; a voltage drop can cause multiple warning lights at once.
- ADAS and safety systems: stable power supply supports ABS/ESC, steering assistance and sensor modules.
- LED lighting: may require specific drivers/modules and can be sensitive to poor grounding.
- Immobiliser/security integration: starting faults may involve the control side (switches/relays/modules) as well as the starter itself.
6) Development / evolution overview
Vehicle electrics have evolved from basic charging and lighting circuits to complex, networked systems with multiple control units. As emissions and efficiency targets increased, engines gained more sensors and actuators, while comfort and safety features expanded the number of circuits and modules. The result is that modern diagnostics often starts with fundamentals—battery health, charging voltage and connection resistance—before chasing individual components.
7) Detailed breakdown of core electrical components

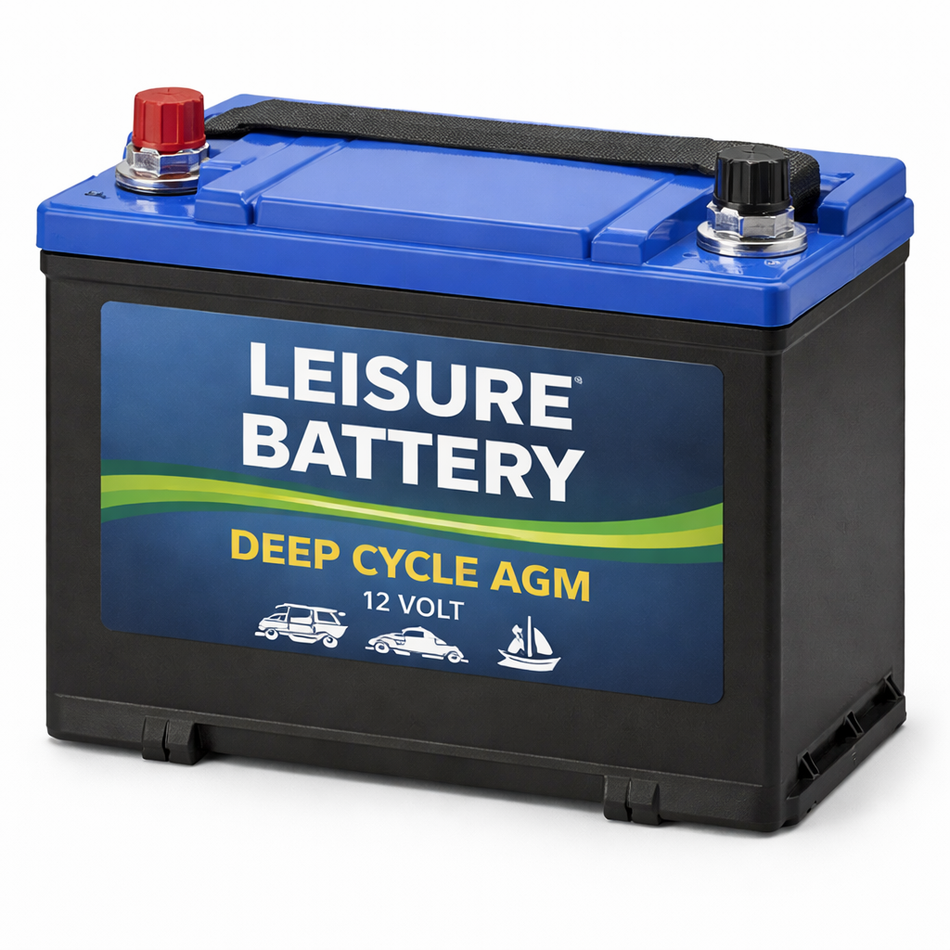

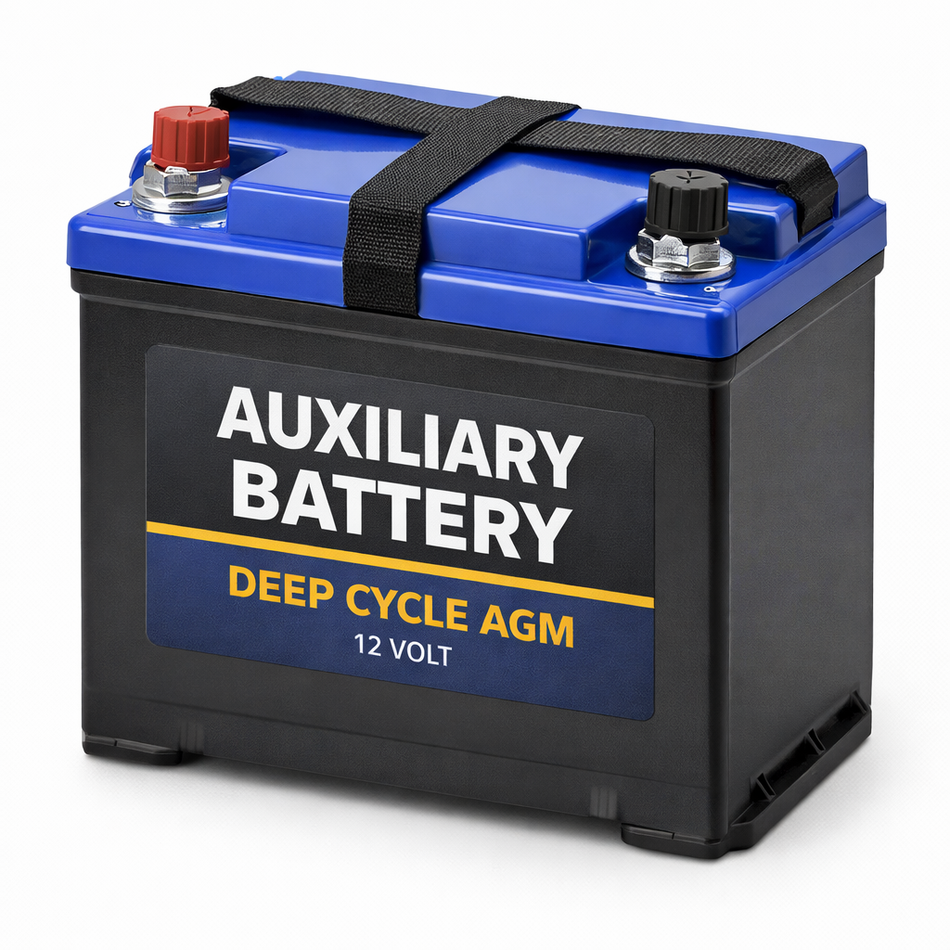

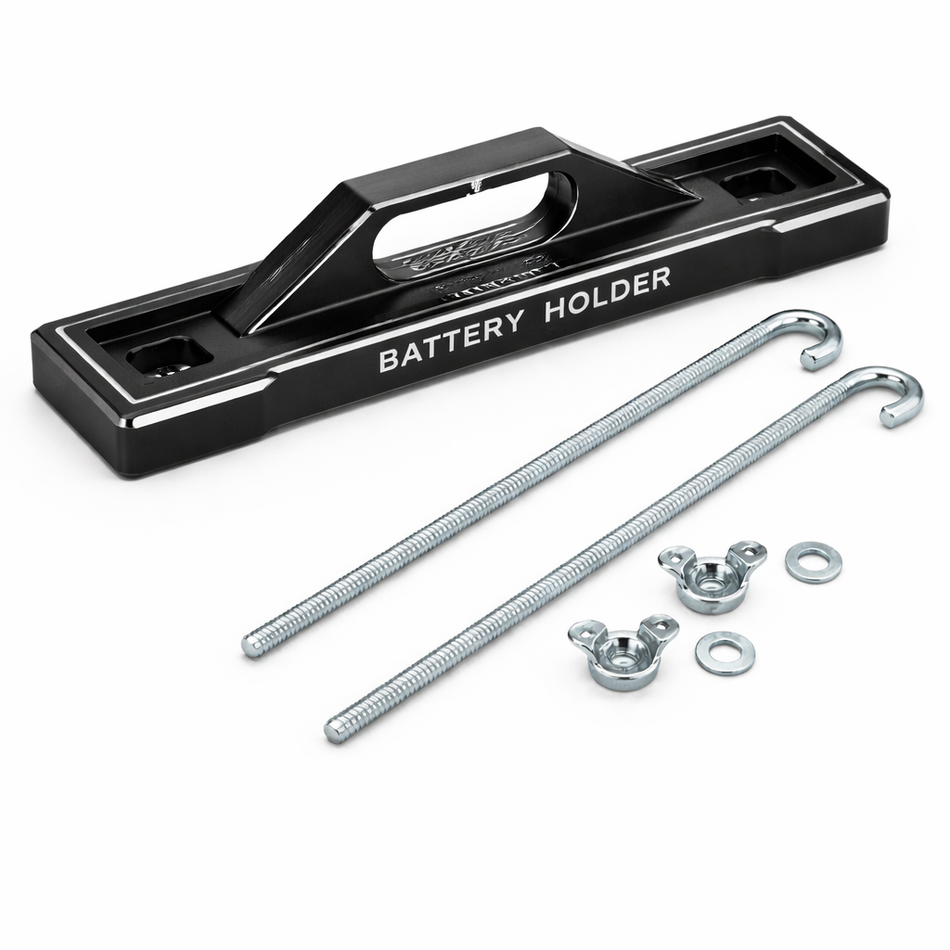

Battery
The battery provides high current for starting and stabilises voltage for electronics. Battery type and capacity must suit the vehicle’s demands (especially stop-start systems). Poor battery health commonly shows as slow cranking, repeated low-voltage warnings, or systems resetting.
Alternator and voltage regulation
The alternator generates power once the engine is running. Regulation may be internal or controlled by the vehicle’s charging strategy. Symptoms of charging issues include battery warning lights, dimming lights, unusual electrical behaviour, or a battery that repeatedly goes flat.
Starter motor and starter circuit parts
The starter motor draws very high current. Faults can be mechanical (worn brushes/solenoid) or electrical (high resistance at terminals, weak earth, relay issues). A click with no crank can be a voltage drop problem, not always a failed starter.
Fuses, fuse boxes and circuit protection
Fuses protect wiring and components from overload. Repeatedly blown fuses usually point to a short circuit or a failing load drawing excessive current. Using the correct fuse rating is essential for safety.
Relays and control switching
Relays allow small control currents to switch larger loads such as fans, pumps and lights. A relay fault can mimic a failed component (for example, a fan that won’t run). Heat and vibration can degrade relay contacts over time.
Sensors and engine electrical
Sensors provide critical feedback such as temperature, pressure, position and oxygen/mixture information. Incorrect or drifting sensor signals can cause poor running, higher emissions and warning lights. Connector condition and wiring are part of the system—many “sensor faults” are actually wiring or plug issues.
Ignition electrical (where applicable)
Ignition coils, leads and related parts create the spark for petrol engines. Misfires may be load-dependent (worse under acceleration) and can be affected by heat. Correct fitment and connector compatibility matter.
Switches, connectors and wiring items
Switchgear, terminals, earth straps and wiring accessories are often overlooked, but they’re frequent causes of intermittent faults. Moisture ingress and corrosion can raise resistance and create sporadic issues that are difficult to reproduce.
8) Comparison tables
Starting vs charging faults: quick separation
| Observation | More likely starting-side | More likely charging-side | Helpful test |
|---|---|---|---|
| Slow crank even after a drive | Starter circuit resistance, starter wear | Alternator undercharging | Voltage drop test + charging voltage test |
| Battery repeatedly flat after parking | Parasitic drain / poor battery condition | Charging may be insufficient | Drain test and battery health test |
| Battery warning light while driving | Less likely | Alternator/regulator/belt issue | Charging voltage under load |
| Single system not working (e.g., fan) | Relay/fuse/switch for that circuit | Less likely | Swap relay/fuse check + power/earth checks |
Relays vs fuses vs switches
| Part type | Role | Typical failure mode | Common symptom |
|---|---|---|---|
| Fuse | Protects circuit from overload | Blows due to short/overcurrent | System dead; fuse visibly open |
| Relay | Switches high current using low current | Worn contacts / sticking | Intermittent operation, clicking, heat-related faults |
| Switch | User/control input | Worn contacts / water ingress | Function only works in certain positions or not at all |
9) Wear parts and inspection guidance
| Item to inspect | What to look for | Why it matters | Action |
|---|---|---|---|
| Battery terminals/earth straps | Corrosion, looseness, heat marks | High resistance causes voltage drop | Clean/secure; replace worn parts |
| Alternator belt & pulley area | Cracks, glazing, noise | Slip reduces charging output | Inspect and address belt/pulley issues |
| Fuse and relay sockets | Heat damage, loose pins | Poor contact creates intermittent faults | Replace damaged holders; check fit |
| Sensor connectors | Oil/water ingress, broken clips | Signal errors trigger warning lights | Repair connectors; verify wiring |
| Wiring looms | Chafing, brittle insulation | Shorts and intermittents | Protect/repair as required |
10) Materials and construction choices
| Component | Material/detail | Benefit | Common limit |
|---|---|---|---|

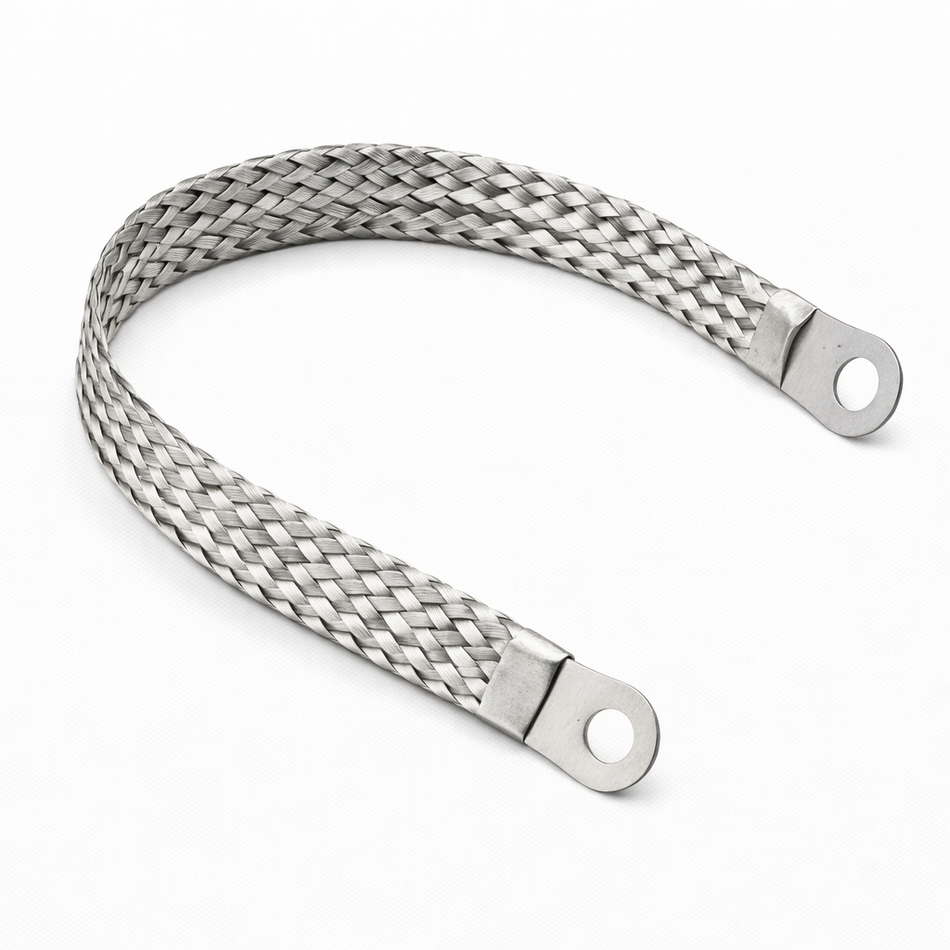

| Cables/earth straps | Copper conductors, crimped lugs | Low resistance path for high current | Corrosion at joints increases resistance |
| Connectors | Sealed plugs, locking tabs | Moisture resistance and secure fit | Broken locks cause intermittent contact |
| Relays | Coil + contact set | Efficient switching of high loads | Contacts wear/arc over time |
| Sensors | Electronics in heat/vibration environment | Accurate control feedback | Heat ageing and contamination can skew readings |
11) Fluids / specs / approvals where relevant
| Spec area | Applies to | Why it matters | What to match |
|---|---|---|---|
| Battery type & capacity | 12V battery | Start-stop and accessory demands | Correct type and rating for the vehicle |
| Alternator output/connector | Alternator | Charging strategy compatibility | Amperage rating and plug type |
| Sensor fitment and calibration | Sensors | Accurate ECU control | Part number, connector, mounting style |
| Fuse rating | Fuses | Electrical safety | Always match specified amperage |
| Bulb type and base | Lighting (where applicable) | Correct beam pattern and fit | Bulb code/base type and application |
12) Operating conditions / overheating / limits
| Condition | Typical UK scenario | Electrical impact | Practical mitigation |
|---|---|---|---|
| Cold weather | Winter mornings | Higher cranking demand; weak battery shows | Test battery health and terminal condition |
| Road salt and damp | Gritted roads / rain | Corrosion on grounds and connectors | Inspect/clean ground points and plugs |
| Under-bonnet heat | Traffic, turbo engines | Ageing of coils, sensors, wiring | Check heat shields, routing and connectors |
| High accessory loads | Heated screens, fans, lights | Charging system runs harder | Ensure alternator/belt and battery are healthy |
13) Fault symptoms and urgency
| Symptom | Possible cause | Urgency | What to do first |
|---|---|---|---|
| Battery light on while driving | Charging fault (alternator/regulator/belt) | High | Stop safely and test charging voltage |
| Multiple warning lights at once | Low voltage, poor earth, network upset | High | Check battery/charging and main grounds |
| Random cut-outs or stalls | Power supply issue, relay fault, sensor signal | High | Inspect power/ground integrity; scan for codes |
| Single function dead (horn/fan/lights) | Fuse/relay/switch or local wiring | Medium | Check fuse and relay before replacing components |
| Misfire under load (petrol) | Coil/lead/spark related or sensor issue | Medium to high | Check ignition parts and connectors; confirm fault codes |
14) Maintenance and repair guidance
- Start with the basics: battery health, terminal tightness and earth straps are foundational checks.
- Use proper testing: a multimeter voltage test and voltage drop test can quickly reveal high resistance faults.
- Inspect connectors: look for water ingress, damaged pins, broken locks and green corrosion.
- Replace like-for-like: match connectors, ratings and part numbers where required.
- After repair: confirm charging voltage, clear relevant fault codes (where appropriate), and recheck symptoms.
15) Common mistakes to avoid
- Replacing parts without confirming voltage and ground integrity first.
- Fitting the wrong fuse rating (a safety risk and can damage wiring).
- Ignoring corroded earth points—many faults return until grounds are fixed.
- Assuming a sensor is faulty when the connector or wiring is the real issue.
- Using universal connectors or splices without proper sealing in moisture-prone areas.
16) Upgrades / tuning considerations (UK road/MOT caveats)
Electrical “upgrades” often focus on reliability: healthy battery capacity for accessory-heavy use, robust earth straps, and correct-spec relays and fuses. Lighting upgrades should maintain safe beam patterns and road legality; poorly chosen bulbs or poorly aimed lights can reduce visibility and may cause MOT issues. Any changes should avoid excessive current draw, protect wiring with correct fusing, and remain compatible with vehicle monitoring systems.
17) UK MOT, legal and safety notes
Electrical issues can affect MOT outcomes and day-to-day safety—especially lights, indicators, horn, ABS/ESC warnings and battery/charging faults. Warning lights for safety systems should be treated seriously, and lighting must operate correctly with suitable alignment and brightness. If the battery warning light is illuminated while driving, address it promptly to avoid loss of power and a breakdown.
