Heating and ventilation (HVAC): how it works, what affects performance, and what to check
What the heating and ventilation system is
Automotive HVAC (heating, ventilation and air conditioning) manages airflow, temperature and humidity inside the cabin. It draws air from outside (or recirculates cabin air), filters it, pushes it through a heater matrix and/or A/C evaporator, then distributes it via vents to the windscreen, face-level and footwell outlets. In the UK, its “hidden” job is moisture control: dry air clears condensation faster than warm air alone.
How it works (step-by-step)
- Air intake: air enters through a scuttle intake; a recirculation flap can switch to internal air.
- Filtration: a cabin/pollen filter traps dust, soot and pollen; some are activated carbon for odours.
- Air movement: a blower motor pushes air through the HVAC box at speeds controlled by a resistor pack or electronic module.
- Heating path: engine coolant (or an electric heater) warms the heater matrix; air passing over it heats up.
- Cooling/drying path: the A/C evaporator chills the air and removes moisture; condensed water drains beneath the car.
- Mixing and distribution: blend flaps set temperature; mode flaps direct air to demist, dash or footwell vents.

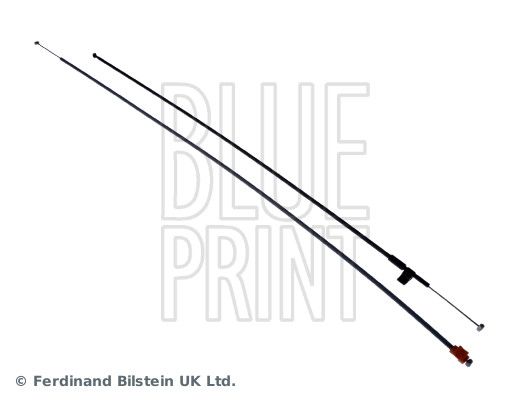

- Control logic: manual systems use cables/switches; climate control uses sensors and actuators to maintain a set temperature.
What HVAC performance depends on
- Correct coolant temperature and flow: a stuck-open thermostat or low coolant can mean weak cabin heat.
- Unrestricted airflow: a clogged cabin filter or failing blower reduces demist speed and comfort.
- Sealed refrigerant circuit: A/C cooling and dehumidifying rely on the correct refrigerant charge and leak-free seals.
- Flap operation and calibration: broken gears/actuators can trap the system in “hot”, “cold” or the wrong vent position.
- Clean heat exchangers: blocked heater matrices and contaminated evaporators reduce efficiency and can create odours.
Vehicle types and applications
Small cars often have compact HVAC boxes and straightforward blower controls, while larger vehicles and MPVs may use higher-capacity blowers and dual-zone climate control. Some vehicles add rear cabin vents, auxiliary heaters (useful for diesels that warm up slowly), or heat-pump systems on EVs to improve winter efficiency. Commercial vehicles may prioritise rapid demisting and robust fan performance for frequent door openings.
Modern technologies and related systems
Many cars now integrate HVAC with engine management, stop-start, battery monitoring and cabin air quality features. Automatic climate control uses interior temperature sensors, sunlight sensors, evaporator temperature sensors and pressure sensors. Some systems coordinate with heated windscreens, heated seats and steering wheels, and may limit A/C compressor operation under certain low-voltage or high-load conditions.
| Technology | What it does | Common dependencies |
|---|---|---|
| Automatic climate control | Maintains a set cabin temperature | Accurate sensors, working actuators, correct refrigerant charge |
| Recirculation control | Reduces fumes/odours and speeds cooling | Healthy flap motor and seals; correct use to prevent misting |
| Heat pump / PTC heater (some hybrids/EVs) | Efficient cabin heat in cold weather | Electrical system health and vehicle-specific controls |
Development and evolution overview
Earlier cars relied on simple heater matrices and cable-controlled flaps, with limited filtration and no A/C. As cabin comfort expectations rose, manufacturers added higher-capacity blowers, better sealing and multi-speed controls. Air conditioning became widespread, then climate control introduced electronic sensors and motors to regulate temperature more precisely. More recently, improvements focus on air quality (better filters), lower energy use (variable compressors, heat pumps) and faster demisting with smarter control strategies.
Core components: detailed breakdown
Cabin/pollen filter
The cabin filter protects occupants and the HVAC box from dust and debris. A blocked filter restricts airflow and can strain the blower motor. Activated carbon versions help reduce smells and traffic fumes, which is useful in urban driving.
Blower motor and speed control (resistor pack/module)
The blower provides airflow. Older systems use a resistor pack to step fan speeds; modern systems often use an electronic control module for smoother regulation. Intermittent fan operation, only one working speed, or a fan that cuts out can point to the resistor/module or worn motor brushes.
Heater matrix, coolant valves and hoses
The heater matrix is a small radiator inside the dash area. Hot coolant flows through it, warming the air passing over. A restricted heater matrix reduces heat output; a leaking matrix can cause misting, a sweet smell, greasy windscreen film or damp carpets. Some vehicles use heater control valves to regulate coolant flow.

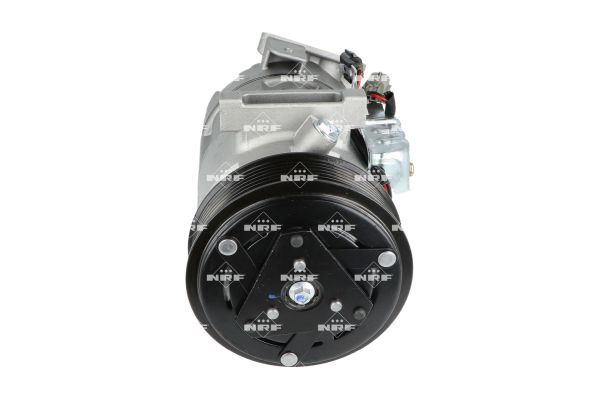

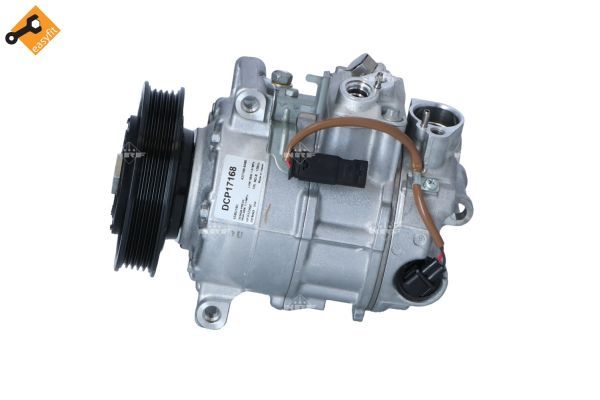

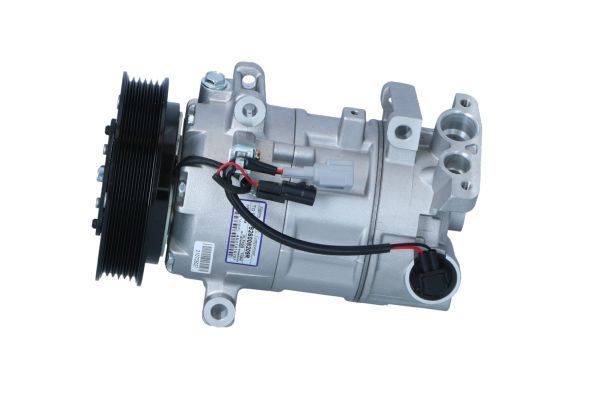

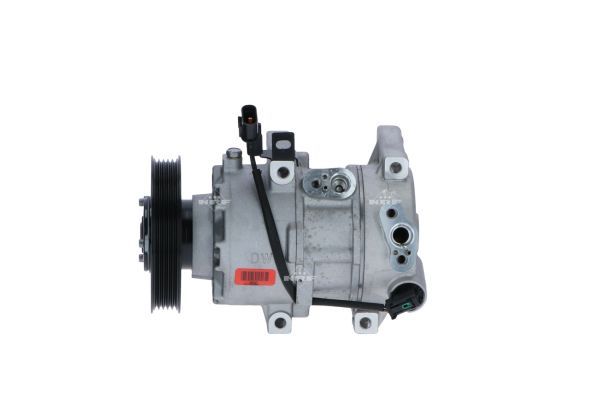

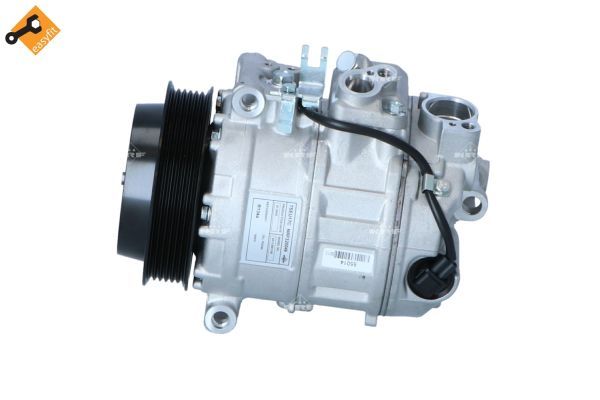

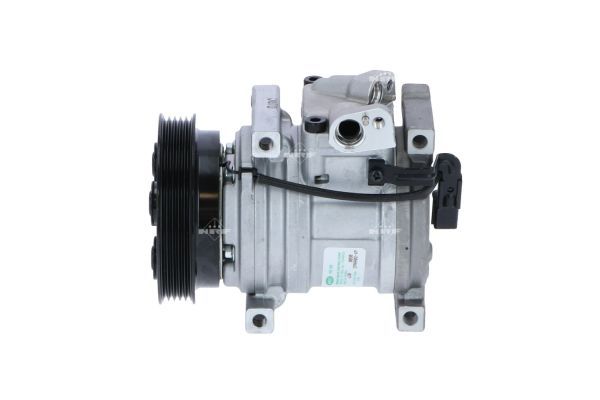

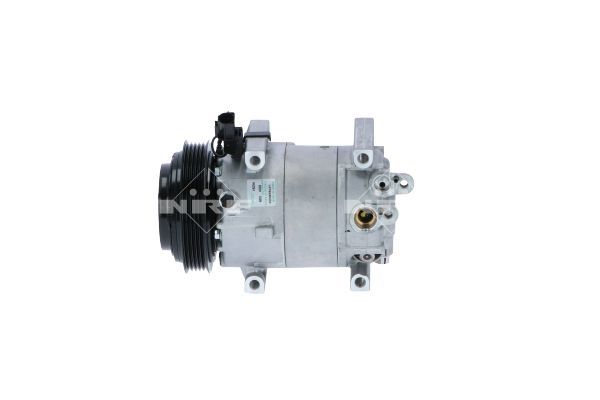

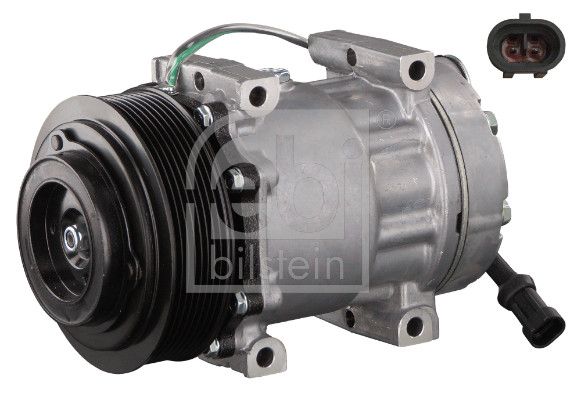

A/C compressor, condenser, evaporator and drier
The compressor circulates refrigerant through the system. The condenser (front of the car) releases heat, while the evaporator (inside the HVAC box) absorbs heat and removes moisture. The receiver drier/accumulator manages moisture and protects the system. Loss of cooling is often linked to low refrigerant from small leaks, but electrical controls, pressure sensors and compressor clutches/valves also play a role.
Expansion valve/orifice tube and pressure sensors
The expansion device meters refrigerant into the evaporator, creating the pressure drop needed for cooling. Pressure sensors protect the system from running outside safe limits. Faults here can cause inconsistent cooling, rapid cycling or poor performance in certain conditions.

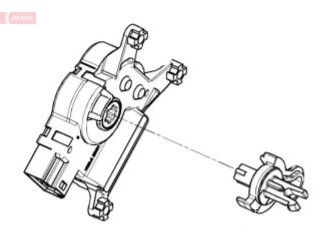

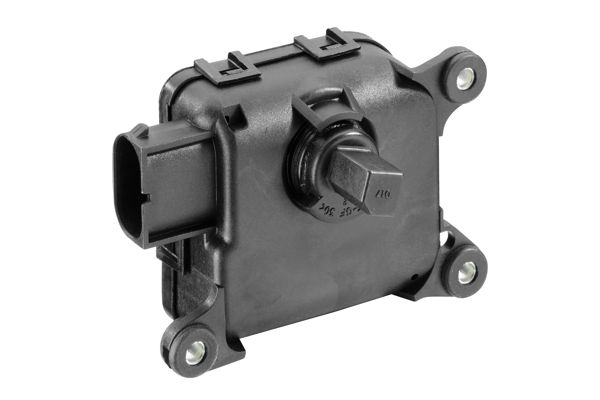

Air distribution and blend flaps, actuators and control panel
Flaps determine where the air goes and how much heat is mixed in. Actuators may be electric motors with gears or vacuum-controlled units. Clicking behind the dashboard, air stuck on one vent position, or temperature that won’t change often points to a flap actuator or linkage issue.
Comparison tables
Manual heater controls vs automatic climate control
| Feature | Manual system | Automatic climate control |
|---|---|---|
| Temperature control | Driver sets hot/cold position | System targets a set temperature using sensors |
| Common failure points | Cables, resistors, simple switches | Sensors, actuators, control modules, calibration |
| Diagnosis | Often visual/functional checks | May require fault-code reading and actuator tests |
Cabin filter types
| Filter type | Best for | Trade-offs |
|---|---|---|
| Standard particulate | Dust/pollen filtration | Less odour reduction than carbon types |
| Activated carbon | Traffic fumes and smells | Can be slightly more restrictive when heavily loaded |
| Anti-allergen/advanced media (vehicle-dependent) | Enhanced allergen capture | Must match housing size and airflow spec |
Wear parts and inspection guidance
| Part | What wears/blocks | Typical signs | Practical checks |
|---|---|---|---|
| Cabin filter | Dust, leaves, soot | Weak airflow, musty smell, noisy fan | Inspect and replace at service intervals or sooner in city driving |
| Blower resistor/module | Heat stress, electrical load | Only one fan speed works, fan cuts out | Check connector heat damage; verify power/ground |
| Blower motor | Brush wear, bearing drag | Squeal, vibration, intermittent operation | Listen for bearing noise; check current draw if possible |
| Heater matrix | Internal blockage or leaks | Poor heat, sweet smell, fogging, damp footwells | Check coolant level and signs of leakage; assess hose temperatures |
| A/C system | Refrigerant loss, seal ageing | Not cold, slow demist, compressor cycling | Look for oily residue at joints; use proper A/C service equipment |
| Flap actuators | Gear wear, calibration drift | Clicking, wrong vent direction, stuck hot/cold | Confirm vent changes and temperature changes at different settings |
Materials and construction choices
HVAC components mix aluminium heat exchangers (heater matrix, condenser, evaporator), polymer housings and ducting, copper/aluminium pipe sections, rubber O-rings and seals, and electric motors. Heat exchangers are lightweight and efficient but sensitive to corrosion and physical damage. Seals must match refrigerant type and system design; incorrect O-rings or poor joint cleanliness are common causes of repeat leaks.
| Component | Typical materials | Why | Common weakness |
|---|---|---|---|
| Condenser/evaporator/heater matrix | Aluminium cores | Efficient heat transfer, light weight | Corrosion, impact damage, internal blockage (heater) |
| HVAC housing and flaps | Engineered plastics, foam seals | Low weight, good sealing and shape control | Foam deterioration, flap seal leaks |
| Refrigerant seals | Special elastomers (O-rings) | Resists refrigerant/oil and temperature cycling | Wrong size/material causes leaks |
Fluids, specs and approvals
HVAC links two “spec critical” areas: engine coolant for heating, and refrigerant plus compressor oil for A/C. The correct types and quantities are vehicle-specific. Mixing coolant types or using incorrect refrigerant/oil can cause corrosion, seal damage or poor performance. A/C servicing should be carried out with proper recovery and charging equipment, as releasing refrigerant is unsafe and not permitted.
| Item | Why specification matters | Good practice |
|---|---|---|
| Engine coolant | Protects heater matrix and cooling system from corrosion/freezing | Use the correct coolant spec and mixture; bleed air properly after work |
| Refrigerant & A/C oil | System pressure and lubrication depend on correct type/charge | Charge to manufacturer spec using correct equipment; fix leaks first |
| Cabin filter fitment | Incorrect fit can bypass filtration and restrict airflow | Match dimensions and airflow direction marking |
Operating conditions, overheating and limits
HVAC performance changes with ambient temperature and humidity. Short trips in winter often create condensation faster than the system can clear it, especially if the cabin filter is clogged or A/C is inactive. In summer, heavy heat load and stop-start traffic can push condenser temperatures up, stressing the A/C system. Overheating concerns include blower resistor overheating due to restricted airflow, and compressor stress when refrigerant is low.
| Condition | What gets stressed | Result | What helps |
|---|---|---|---|
| High humidity + cold glass | Demist capacity | Persistent fogging | Use A/C with heat (if available), fresh air, clean cabin filter |
| Clogged cabin filter | Blower and resistor/module | Weak airflow, overheating, fan failure | Replace filter; clear debris from intake area |
| Low refrigerant | Compressor lubrication and pressures | Poor cooling, cycling, potential damage | Leak test and correct recharge to spec |
| Cooling system fault | Heater output | No/weak heat | Confirm coolant level, thermostat function, bleeding |
Fault symptoms and urgency
| Symptom | Likely causes | Urgency | Why |
|---|---|---|---|
| Windscreen won’t demist properly | Cabin filter, blower, A/C not drying, coolant/heater fault | High | Poor visibility is an immediate safety risk |
| Sweet smell, oily film, damp carpet | Heater matrix leak | High | Coolant loss and misting; can affect engine cooling |
| Fan only works on one speed | Resistor pack/module, switch, wiring | Medium | Can progress to total fan loss and poor demisting |
| A/C not cold, hissing/cycling | Low refrigerant/leak, pressure sensor, compressor issues | Medium | Comfort and drying reduced; low charge can damage compressor |
| Persistent musty smell | Dirty evaporator, blocked drain, old filter | Low–Medium | Air quality issue; may indicate drainage problems |
Maintenance and repair guidance
- Replace the cabin filter regularly: it’s one of the most common causes of weak airflow and slow demisting.
- Use A/C year-round (when available): it dries air and helps keep seals lubricated, improving demist performance.
- Keep the scuttle intake clear: leaves and debris can block airflow and increase blower noise.
- Monitor coolant health: correct coolant spec and proper bleeding help maintain heater output and protect the heater matrix.
- Service A/C correctly: diagnose leaks before recharging; use the correct refrigerant and oil to manufacturer spec.
Common mistakes to avoid
- Ignoring coolant loss when cabin heat is weak—low coolant can affect both heater output and engine safety.
- Recharging A/C without finding a leak—performance may drop again quickly and low charge can stress the compressor.
- Fitting the wrong cabin filter orientation or size, leading to bypass or restricted airflow.
- Using recirculation continuously in damp weather—this can trap moisture and worsen misting.
- Assuming “no heat” is always the heater matrix—thermostat faults and airlocks are also common.
Upgrades and tuning considerations (UK road/MOT caveats)
Upgrades in this area are usually practical rather than performance-focused: higher-grade cabin filters (activated carbon), refreshed blower motors for better airflow, or restoring A/C efficiency with correct servicing. Avoid modifications that compromise safety (for example, disabling demist functions or poorly rerouting ducts). Any changes should maintain reliable windscreen clearing and safe visibility in all seasons.
UK MOT, legal and safety notes
While HVAC itself isn’t a primary MOT “performance” test like brakes, clear visibility is always a road safety requirement. If your windscreen mists heavily and the blower/demist can’t clear it, treat it as urgent. Coolant leaks affecting the heater matrix can also influence the wider cooling system, and any A/C work must be handled safely and legally with appropriate servicing practices.
