Induction
Induction parts: clean, measured air for efficient combustion
The induction system is everything that guides air from outside the vehicle into the engine. It sounds simple, but it’s one of the biggest factors in drivability, fuel economy and emissions. Modern engines rely on a controlled airflow path so the ECU can calculate the correct amount of fuel and manage boost, idle speed and exhaust emissions. If air is restricted, leaking, or measured incorrectly, the engine may hesitate, idle poorly, smoke, trigger warning lights, or struggle to deliver power—especially under load.
A typical induction route starts at the air intake and air filter, passes through ducting and resonators, then through airflow measurement such as a MAF sensor (or a MAP sensor plus other inputs), into the throttle body (petrol and many modern diesels), and on to the intake manifold where air is distributed to each cylinder. Turbocharged engines add more stages: the turbo’s compressor draws air in, compresses it, then sends it through boost pipework and an intercooler before it reaches the inlet manifold. Along the way there are seals, O-rings, gaskets, clamps and vacuum/boost hoses that must hold pressure and prevent unmetered air entering the system.
Common induction component groups
- Air filters, airboxes, snorkels and intake ducting
- MAF/MAP sensors and intake air temperature sensors (application dependent)
- Throttle bodies and associated seals
- Intake manifolds, manifold gaskets and fittings
- Turbo intake/boost hoses, intercooler hoses, clamps and O-rings
What to match when ordering
| What to confirm | Why it matters | Typical pitfall |
|---|---|---|
| Engine code + year | Different sensors/ducting layouts and connectors | Ordering by model only |
| Turbo vs non-turbo | Boost pipework and seals differ | Mixing similar-looking hoses |
| Sensor plug style | Correct fit and signal compatibility | Universal connectors that don’t seal |
Compatible induction parts for your vehicle are listed below.
Your Current Vehicle
Or
Induction Parts
Induction system guide: airflow, boost control and common faults
1) What the induction category is
“Induction” refers to the parts that bring air into the engine and help manage it: filtration, ducting, sensors that measure airflow or pressure, throttle bodies (where fitted), intake manifolds, and (on turbocharged engines) boost hoses, intercoolers and associated seals. These components influence how smoothly the engine runs, how it responds to the throttle, and whether it meets emissions targets.
2) How it works (step-by-step)
- Air is drawn in: the engine’s pumping action (and turbo compressor on boosted engines) pulls air through an intake opening.
- Air is filtered: the air filter traps dust and debris to protect cylinders, turbo compressor blades and sensors.
- Air is measured: either a MAF sensor measures airflow directly, or a MAP sensor measures manifold pressure alongside temperature and engine speed to calculate load.
- Airflow is controlled: the throttle body regulates air on petrol engines and many modern diesels; idle control is managed electronically.
- Air is distributed: the intake manifold routes air evenly to each cylinder; some designs use swirl flaps or variable runners.

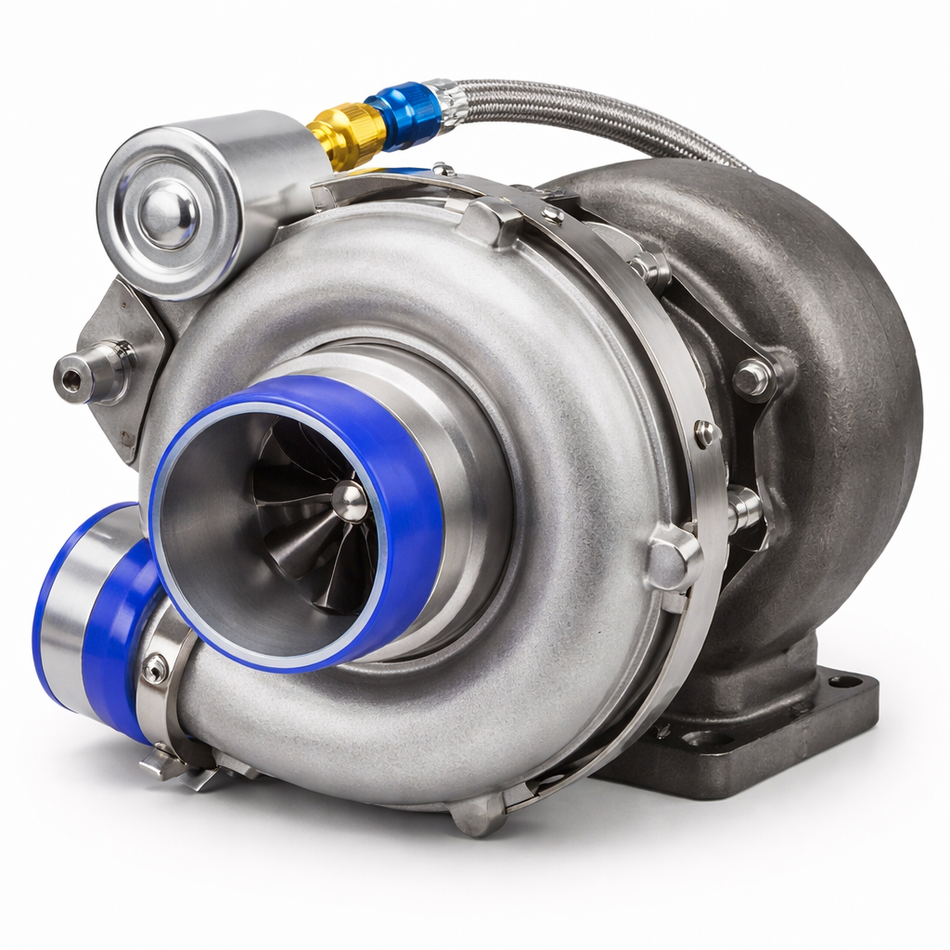

- Turbo stage (if fitted): air is compressed by the turbo, cooled by an intercooler, then delivered to the manifold via boost pipework and seals.
3) What induction performance depends on
- Airflow without restriction: a clogged filter or collapsed ducting reduces available air and can increase smoke on diesels.
- No unmetered air leaks: cracks, split hoses and poor seals allow air in/out without the ECU accounting for it.
- Accurate sensing: contaminated sensors or poor electrical connections can skew fuel and boost calculations.
- Sound mechanical joints: clamps, O-rings, gaskets and couplers must hold vacuum and boost as temperatures change.
- Clean control components: sticky throttle bodies and heavy deposits can cause unstable idle or sluggish response.
4) Vehicle types / applications
- Petrol engines: sensitive to intake leaks and throttle body condition; leaks often show as rough idle or lean-running symptoms.
- Diesel engines: boost leaks can reduce torque and increase smoke; some have intake swirl systems that add complexity.
- Turbocharged vehicles: more hose joints and seals; intercooler and boost pipework condition matters.
- Stop-start and modern ECUs: rely on stable airflow and voltage; intake-related faults can trigger warning lights quickly.
- High-mileage cars and vans: heat cycling hardens rubber hoses and seals; clips and couplers can fatigue.
5) Modern technologies / related systems
- Electronic throttle control: drive-by-wire throttles integrate sensors and motors, improving control but requiring correct calibration and sealing.
- Variable intake designs: some manifolds change runner length or use swirl/tumble flaps to improve low-speed torque and emissions.
- Boost management: ECU-controlled turbo systems depend on accurate pressure readings and leak-free pipework.
- Crankcase ventilation (PCV): introduces vapours into the intake; faults can increase oil mist and contribute to deposits.
- EGR interaction: exhaust gas recirculation affects intake cleanliness and airflow behaviour (system dependent).
6) Development / evolution overview
Earlier engines used simple mechanical throttles and basic manifolds with minimal sensing. As emissions and efficiency targets tightened, systems gained better filtration, precise airflow/pressure measurement, electronic throttles, and more complex intake manifolds. Turbocharging became common, adding intercoolers and additional ducting. The trade-off is improved performance and economy—balanced against a greater need for clean sensors, sound seals and correct fitment.
7) Detailed breakdown of core components
Air filters and airbox assemblies
The filter protects the engine and turbo from abrasive particles. A blocked filter increases pumping losses, can reduce performance and may worsen fuel economy. A damaged airbox seal can allow dirt past the filter, which is especially harmful on turbocharged engines.
Intake ducting, resonators and couplers
Ducting guides air smoothly and reduces intake noise. Cracks, loose joints and collapsed sections can cause air leaks, rattles, whistling, or poor running. Many faults are simply aged rubber or plastic that no longer seals well.
MAF, MAP and intake air temperature sensors
These sensors inform the ECU how much air the engine is receiving and under what conditions. Contamination (oil mist, dust) and wiring issues can cause incorrect readings, leading to hesitation, limp mode, excess smoke, or warning lights.
Throttle body and seals (where fitted)
The throttle body controls airflow; modern units include the motor and position sensors. Deposits can make idle unstable and response inconsistent. Correct gaskets/seals prevent vacuum leaks.
Intake manifold, gaskets and fittings
The manifold distributes air evenly. Gasket failure or cracks can create unmetered air leaks. Some designs integrate actuators and flaps; wear can cause rattles, airflow imbalance or fault codes.
Turbo intake and boost pipework (turbo engines)
Boost hoses, intercooler connections, clamps and O-rings must hold pressure. A small split can cause a large loss of torque and a hissing sound under load. Oil mist in charge pipes can be normal to a degree, but heavy oil contamination warrants careful diagnosis.
8) Comparison tables
MAF-based vs MAP-based load calculation
| Approach | What it measures | Strengths | Common failure pattern |
|---|---|---|---|
| MAF system | Airflow entering the engine | Direct measurement, strong for transient response | Dirty sensor or air leaks after the MAF cause drivability issues |
| MAP system | Manifold pressure (plus other inputs) | Robust in some layouts; fewer restrictions in intake | Boost/vacuum leaks or pressure sensor faults skew load calculation |
Common induction leaks and their typical clues
| Leak location | Turbo or non-turbo? | Typical symptom | What you might notice |
|---|---|---|---|
| After MAF / intake ducting | Both | Rough idle, hesitation | Whistling, unstable idle, warning light |
| Manifold gasket area | Both | Idle issues, lean-running behaviour (petrol) | Hissing near manifold, inconsistent trims (diagnostic) |
| Intercooler/boost hose joint | Turbo | Loss of torque, limp mode | Hiss on acceleration, oily mist at joint |
| Vacuum lines (where used) | Often turbo | Control faults | Erratic boost or actuator behaviour |
9) Wear parts and inspection guidance
| Part to inspect | Check for | Risk if ignored | Practical action |
|---|---|---|---|
| Air filter element | Dirt loading, deformation, poor sealing | Restricted airflow, dust ingress | Replace at sensible intervals; ensure airbox seals properly |
| Rubber hoses and couplers | Splits, soft spots, oil swelling | Boost/vacuum leaks and poor running | Inspect bends and joints; replace aged rubber |
| Clamps and clips | Loss of tension, corrosion, wrong size | Intermittent leaks under load | Use correct clamp type and range for the hose |
| Sensor connectors | Broken locks, corrosion, oil ingress | Incorrect readings, warning lights | Clean/repair connectors; confirm secure fit |
| Throttle body (if fitted) | Deposits, sticking, damaged gasket | Unstable idle and response | Clean as appropriate; replace gasket/seal if disturbed |
10) Materials and construction choices
| Component | Common materials | Why it’s used | Common weakness |
|---|---|---|---|
| Intake ducting | Plastic, rubber, composite | Lightweight, shaped for airflow/noise control | Cracks with age/heat; seals harden |
| Boost hoses | Rubber, silicone (application dependent) | Handles pressure and movement | Swelling/softening from oil mist; splits at joints |

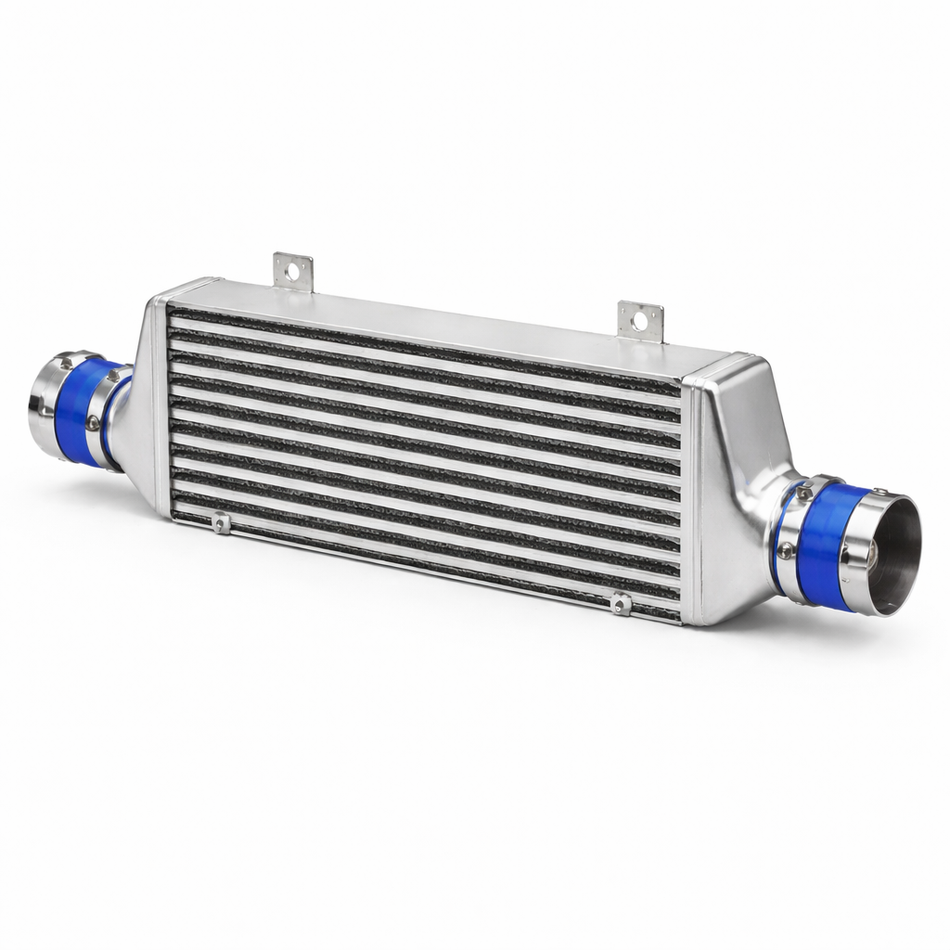

| Intercooler | Aluminium core with plastic end tanks (common) | Efficient cooling at low weight | End-tank seal leaks or damage from impacts |
| Manifold | Plastic or aluminium | Packaging and airflow design | Plastic can crack/warp; gaskets age |
11) Fluids / specs / approvals where relevant
| Spec area | Applies to | Why it matters | What to match |
|---|---|---|---|
| Filter grade and fit | Air filters | Protection vs restriction balance | Correct part for airbox; ensure proper seal |
| Sensor type/connector | MAF/MAP/IAT sensors | Signal compatibility and fitment | Connector style and mounting pattern |
| Hose diameter and joint type | Boost/intake hoses | Prevents leaks and blow-offs | Internal diameter, length, end shape, O-ring style |
| Clamp range | Clamps and clips | Even pressure without hose damage | Correct size for hose OD and spigot design |
12) Operating conditions / overheating / limits
| Condition | Typical UK scenario | Effect on induction | Practical mitigation |
|---|---|---|---|
| Wet roads and winter salt | Motorway spray | Moisture and grime load increases; connectors corrode | Check intake joints and electrical plugs periodically |
| High under-bonnet heat | Traffic and turbo engines | Hoses harden, plastics fatigue | Inspect bends/joints; replace ageing rubber |
| Repeated short trips | Urban driving | More deposits from vapours; sensor contamination risk | Keep filters fresh; ensure PCV system is healthy |
| Heavy load driving | Towing or steep climbs | Leaks show under boost; higher intake temps | Check intercooler hoses and clamps for security |
13) Fault symptoms and urgency
| Symptom | Possible induction cause | Urgency | First checks |
|---|---|---|---|
| Hissing under acceleration (turbo) | Boost leak at hose/intercooler joint | Medium to high | Inspect hoses, clamps and oily mist at joints |
| Rough idle / stalling | Vacuum leak, throttle body issue, sensor error | Medium | Check intake ducting, gaskets, connectors |
| Loss of power / limp mode | Boost control/pressure sensing fault or leak | High | Inspect pipework; read fault codes where possible |
| Excess smoke (diesel) | Air restriction or boost leak | High (emissions) | Check filter, hoses, intercooler joints |
| Engine warning light | Airflow/pressure plausibility faults | Medium to high | Check for leaks first; verify sensor fitment |
14) Maintenance and repair guidance
- Replace air filters on time: it’s one of the simplest ways to protect the induction path and sensors.
- Inspect hoses at bends and joints: small splits often open under boost and close at idle.
- Use the correct seals and clamps: many boost joints rely on specific O-rings; wrong clamps can cut hoses or slip.
- Keep connectors secure: broken locking tabs and corrosion create intermittent sensor signals.
- After disturbing the intake: check for air leaks and ensure every hose is seated fully before road testing.
15) Common mistakes to avoid
- Fitting an air filter incorrectly so unfiltered air bypasses the element.
- Ignoring oily residue at boost joints (often a clue to a small pressure leak).
- Over-tightening clamps until hoses distort or split.
- Replacing sensors without checking for intake leaks or wiring faults first.
- Mixing up similar-looking hoses on turbo engines where the end shapes and seals differ.
16) Upgrades / tuning considerations (with UK road/MOT caveats)
Induction “upgrades” often focus on airflow and durability: high-quality filtration, fresh boost hoses and secure clamps can improve consistency and reduce leak risk. However, modifications that change intake noise, sensor placement or airflow characteristics can affect fuelling and emissions control. For UK road use, any changes should remain safe, correctly secured, and emissions-compliant; persistent warning lights, smoke or poor running can lead to MOT-related issues and should be addressed promptly.
17) UK MOT, legal and safety notes
Induction faults can show up as warning lights, excessive smoke (particularly on diesels), or poor running—issues that matter for road safety and emissions compliance. Air leaks and sensor errors can increase emissions and reduce drivability. Ensure all intake and boost pipework is securely fitted, and treat repeated limp mode or smoke as urgent to avoid breakdown risk and potential MOT failures.
