Starter System
The starter system is essential to getting an engine running reliably, converting electrical energy into the mechanical force needed to begin combustion. By coordinating components within the electrical system and engine, it ensures the vehicle starts promptly and consistently, whether in cold conditions or after repeated short journeys.
This category includes the service components that manage and transfer starting power, such as the starter motor, solenoid and supporting electrical connections. Working together with the battery and ignition system, these parts control current flow and torque delivery so the engine can turn over smoothly and reach stable idle without unnecessary strain.
The condition of starter system components has a direct impact on reliability and convenience. As replacement items wear, electrical resistance can increase and mechanical engagement may become inconsistent, leading to slow cranking, intermittent starting or clicking noises. These symptoms often develop gradually, affecting confidence before complete failure occurs.
Using OEM-quality or OEM-equivalent components during routine maintenance helps maintain efficient operation and dependable engagement. Parts built to the correct specifications support accurate control of current and torque, protecting the battery and related wiring while ensuring the engine starts as intended.
Delaying attention to starter system issues can have wider consequences. Excessive current draw or repeated failed starts may place additional load on the battery and electrical system, accelerating wear elsewhere. What begins as an occasional hesitation can turn into a no-start situation if preventative care is overlooked.
Choosing the right starter system components provides confidence that your vehicle will start reliably day after day. By selecting parts matched to your vehicle, you can support dependable performance, protect the electrical system and maintain long-term reliability with every start.
Your Current Vehicle
Or
Starter System Parts
Starter systems explained: how cranking works, what fails, and how to diagnose it
1) What a starter system is
The starter system is the vehicle’s cranking circuit — the high-current electrical path and control logic that spins the engine to starting speed. In most petrol and diesel vehicles, the starter motor physically turns the crankshaft via the flywheel ring gear. The circuit is controlled by the ignition switch/start button and safety interlocks, and it depends on low-resistance cabling and solid earthing.
2) How it works (step-by-step)
- Authorisation: immobiliser/ECU confirms key or transponder status (vehicle dependent).
- Start request: ignition switch or start button sends a low-current signal.
- Interlocks: clutch switch (manual) or park/neutral switch (auto) must allow cranking.
- Relay action: a starter relay may energise to supply the solenoid control terminal.
- Solenoid engagement: solenoid pushes the pinion into the ring gear and closes heavy contacts.
- High-current crank: battery current flows through the main cable into the starter motor windings.
- Engine fires: once combustion begins, you release the key/button and the solenoid disengages.
- Overrunning protection: the starter drive clutch prevents the engine spinning the motor at excessive speed.
3) What starting performance depends on
- Battery state of charge and condition: cold weather and short trips reduce available cranking power.
- Voltage drop: corroded terminals, weak earth straps or poor connections reduce motor torque.
- Starter motor health: brushes, commutator and bearings affect current draw and speed.
- Solenoid contact condition: burnt contacts can cause clicks or intermittent crank.
- Engine condition: high compression, thick oil in winter, or mechanical drag increases load.
- Control logic: immobiliser, ECU strategies, and start-stop can change how and when it cranks.
4) Vehicle types / applications
Starter systems vary by engine size, fuel type and packaging. Small petrol engines may use compact gear-reduction starters. Larger diesels typically need higher torque and higher current capacity. Many modern vehicles integrate the starter into start-stop strategies and may crank more frequently than older cars, increasing wear on the motor, solenoid and battery.
5) Modern technologies and related systems
- Start-stop: increased start cycles demand robust starters and batteries (commonly EFB/AGM where specified).
- Smart charging: alternator/ECU charging strategies affect battery state and cranking consistency.
- Immobiliser and CAN control: start authorisation may be distributed across modules.
- Clutch/selector sensing: prevents cranking in gear (manual) or out of P/N (automatic).
- Heat management: turbocharged engines and tight engine bays can heat-soak starters.
6) Development / evolution overview
Early starters were typically direct-drive designs with simpler switching. Over time, gear-reduction starters became common to deliver high torque with lower motor size, improving efficiency. Solenoid designs also improved, integrating pinion engagement and high-current switching in one unit. More recently, start-stop and hybridised systems increased duty cycles and tightened requirements on battery specification, cable integrity and control electronics.
7) Detailed breakdown of core components

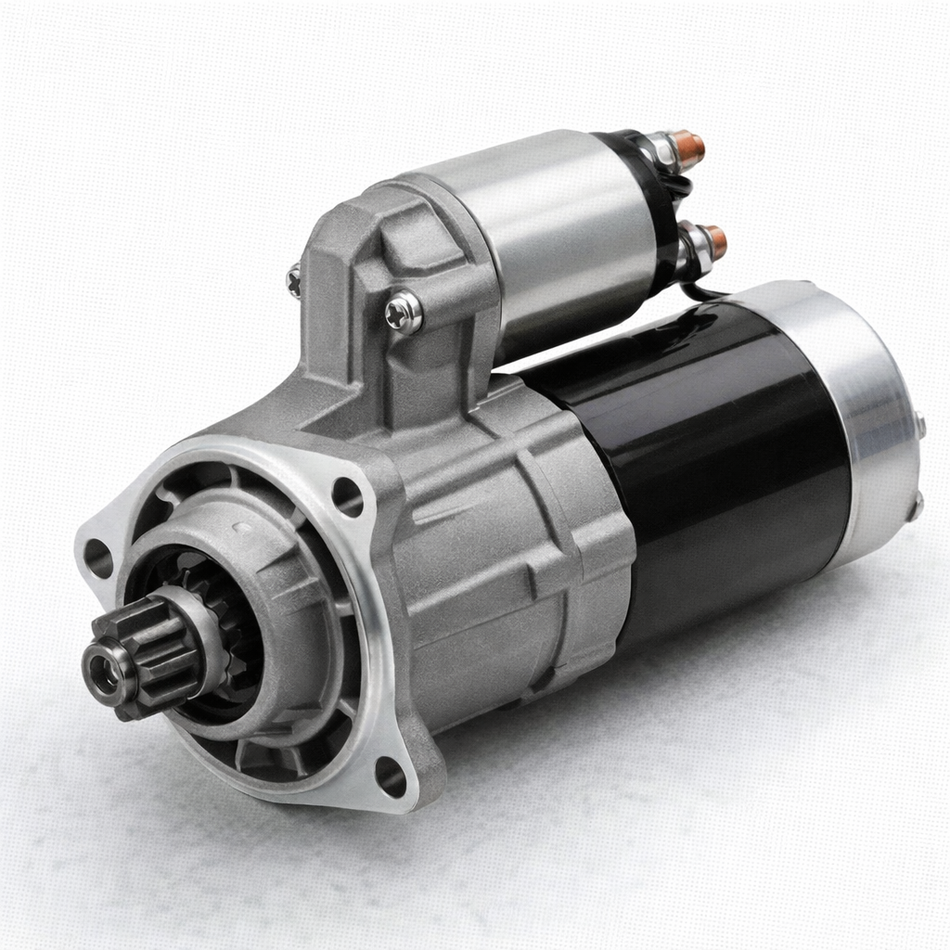

Starter motor (the torque source)
The starter motor is a DC motor designed for very high torque over a short time. Key wear points include brushes (current transfer), commutator (contact surface), armature windings, and bearings/bushes. A worn motor may crank slowly, draw excessive current, or work intermittently depending on brush position.

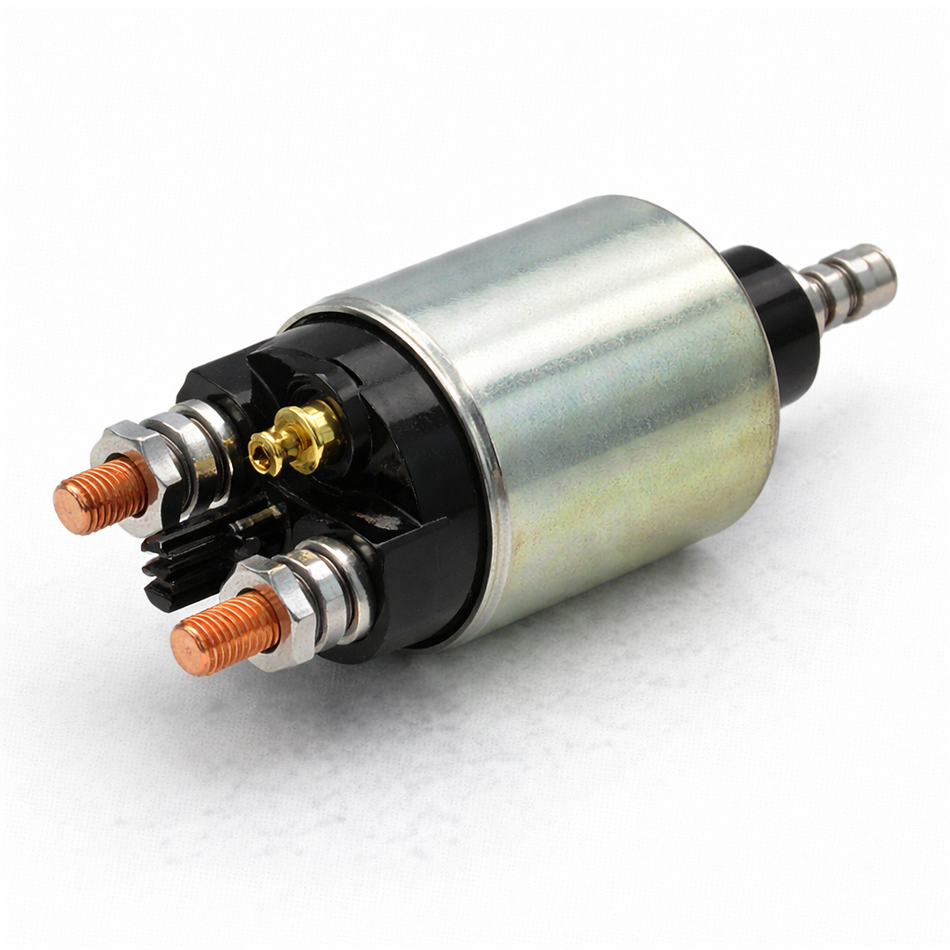

Starter solenoid (engagement + switching)
The solenoid acts as an electromagnet that moves a plunger. Mechanically, it engages the pinion with the ring gear. Electrically, it closes a heavy contact set (a high-current switch) to feed the motor. Burnt or pitted contacts can cause a click without crank or intermittent operation.
Starter relay (control side, where fitted)
Many vehicles use a relay to protect the ignition switch and wiring by switching the solenoid feed. Faulty relays can cause intermittent no-crank, especially when warm, or when vibration makes contacts open.
Starter drive / overrunning clutch (Bendix-type drive)
This mechanism allows the starter pinion to transmit torque to the engine, then freewheel once the engine starts. Failure can present as whirring (motor spins but doesn’t crank engine) or grinding.

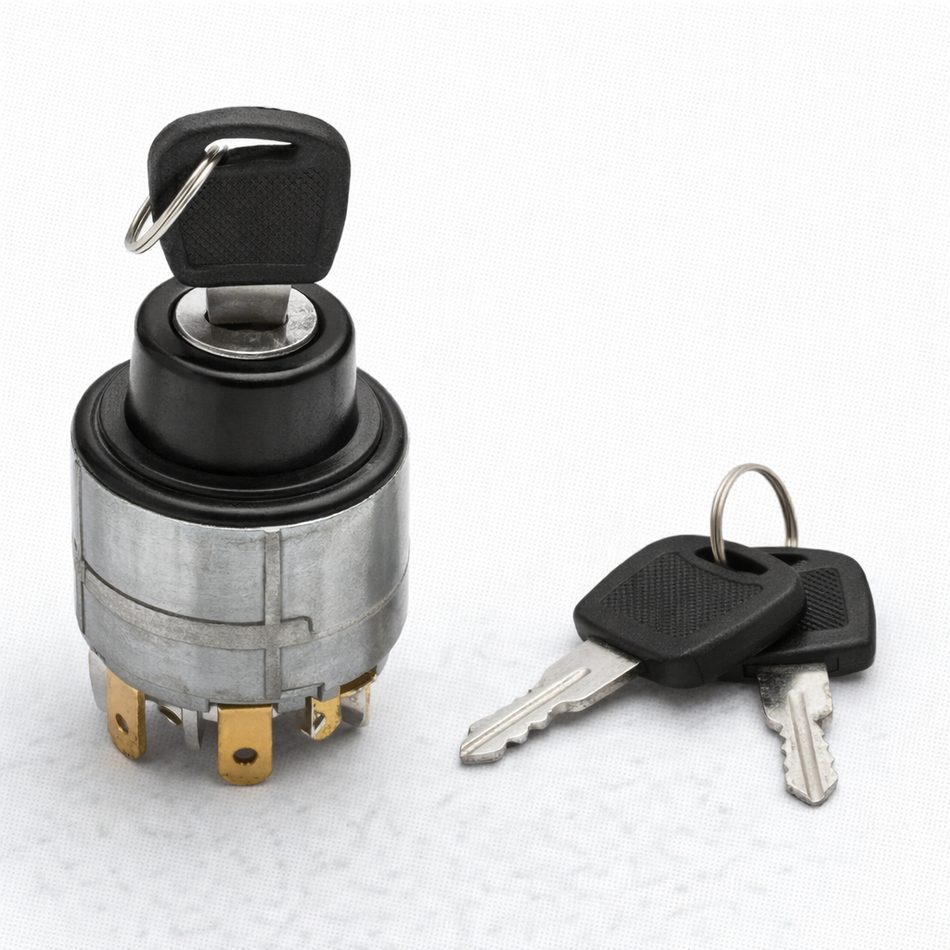

Ignition switch / start button module
On key-start vehicles, worn ignition switch contacts can intermittently fail to send a reliable start signal. On keyless vehicles, the start request may be controlled by a module and authorised by immobiliser logic.
Cables, terminals and earth straps
High current means small resistance becomes a big problem. Loose, corroded or underspecified connections cause voltage drop and heat. A weak earth strap can mimic a dead battery or faulty starter.
Flywheel / ring gear interface
The starter pinion engages the ring gear teeth. Repeated grinding or misalignment can chip teeth, leading to harsh engagement, occasional free-spinning, or no-crank at certain engine positions.
8) Comparison tables
Starter motor design types
| Type | How it delivers torque | Typical benefits | Common considerations |
|---|---|---|---|
| Direct-drive | Motor drives pinion directly | Simple construction | Larger/heavier for a given torque; can draw higher current |
| Gear-reduction | Motor drives through reduction gears | High torque in smaller package; often efficient | More components; gear wear/noise if damaged |
Click / crank symptom mapping (control vs power side)
| What you hear/see | More likely control-side | More likely power-side | Quick, safe checks |
|---|---|---|---|
| No sound, dash lights normal | Ignition switch, relay, interlock, immobiliser | Less likely | Check fuses/relay operation; verify clutch/P-N input |
| Single click, no crank | Relay/solenoid trigger present but weak | Solenoid contacts, battery voltage drop, earth strap | Check battery voltage during crank; inspect terminals/earths |
| Rapid clicking | Low supply to solenoid | Low battery, bad connections | Charge/test battery; clean and tighten terminals |
| Motor spins, engine doesn’t | Less likely | Starter drive/clutch, pinion engagement, ring gear damage | Stop cranking to avoid gear damage; inspect starter drive |
9) Wear parts and inspection guidance
| Item | What to inspect | What it causes | Typical action |
|---|---|---|---|
| Battery terminals | Corrosion, looseness, damaged clamps | Slow crank, intermittent no-start, hot terminals | Clean/secure; replace damaged terminals |
| Earth strap(s) | Fraying, corrosion at lugs, loose fixings | Voltage drop, erratic electrical behaviour | Replace strap; clean mating surfaces |
| Starter motor | Brush wear, bearing play, burning smell, oil contamination | Slow crank, high current draw, intermittent crank | Replace motor or rebuild where appropriate |
| Solenoid contacts | Click with no crank, intermittent operation | No-start despite good battery | Replace solenoid/starter assembly (application dependent) |
| Ring gear teeth | Chipped/rounded teeth, grinding noise | Poor engagement, occasional no-crank position | Investigate starter alignment and ring gear condition |
10) Materials and construction choices
| Construction area | What varies | Why it matters | Practical note |
|---|---|---|---|
| Windings and conductors | Copper quality, insulation, winding design | Affects torque output and heat tolerance | Overheating shortens motor life during repeated cranking |
| Brushes/commutator | Brush compound, commutator finish | Impacts starting consistency and current draw | Intermittent faults can appear at specific armature positions |
| Solenoid contact set | Contact material and surface area | Determines resistance and durability | High resistance causes clicks and heat |
| Drive/pinion gear | Gear material, clutch design | Affects engagement, noise and durability | Grinding should be treated urgently to protect ring gear |
11) Fluids / specs / approvals (what’s relevant here)
Starter systems don’t use service fluids, but they are sensitive to battery specification, cable integrity and correct fitment. On start-stop vehicles, battery type (where specified by the vehicle) is particularly important.
| Spec area | Examples | Why it matters |
|---|---|---|
| Battery capability | Cold cranking performance and correct technology (vehicle dependent) | Determines how well it cranks in UK winter conditions |
| Cable/earth condition | Correct routing, clean contact faces, secure fixings | Reduces voltage drop and overheating risk |
| Fitment and alignment | Correct starter mounting and engagement depth | Protects ring gear teeth and prevents grinding |
12) Operating conditions / overheating / limits
| Condition | Impact | What you may notice | What helps |
|---|---|---|---|
| Cold weather | Higher engine drag; reduced battery output | Slower crank, longer start time | Healthy battery, clean terminals, correct oil grade |
| Heat soak (hot engine bay) | Higher electrical resistance; solenoid stickiness | Hot-start click/no-crank, intermittent start | Check heat shields, cable routing, starter condition |
| Repeated cranking | Motor overheats quickly | Smell, smoke, weakening crank speed | Stop and diagnose rather than “holding” the key |
| Oil leaks onto starter | Contamination accelerates wear | Dirty casing, slow crank, eventual failure | Fix leaks; ensure starter area stays clean |
13) Fault symptoms and urgency
| Symptom | Likely causes | Urgency | Reason |
|---|---|---|---|
| Grinding on start | Pinion/ring gear engagement issue, worn drive | High | Can damage flywheel ring gear (costly repair) |
| Single click, no crank | Solenoid contacts, voltage drop, weak earth, relay | High | Often becomes a complete no-start without warning |
| Slow crank with good battery | Starter wear, cable resistance, engine drag | Medium | Strains battery and can mask other faults |
| Intermittent no-crank | Relay/interlock/ignition switch, heat soak | Medium | Can leave you stranded; diagnosis is easier before total failure |
14) Maintenance and repair guidance
- Start with the basics: battery condition, terminal tightness, and earth straps solve many “starter” complaints.
- Measure voltage drop: checking voltage during cranking helps separate battery/cable faults from starter faults.
- Inspect for heat and corrosion: warm, discoloured terminals indicate resistance and overheating.
- Address leaks: oil contamination shortens starter life and can affect engagement mechanisms.
- Use safe isolation: disconnect the battery before working on heavy starter cables, and secure the vehicle properly if working underneath.
15) Common mistakes to avoid
- Replacing the starter motor without checking battery health and cable/earth condition first.
- Ignoring grinding noises and continuing to crank, risking ring gear damage.
- Cleaning terminals but leaving loose clamps or damaged cable ends in place.
- Bypassing interlocks or immobiliser logic rather than diagnosing the root cause.
- Allowing long cranking periods that overheat the motor and wiring.
16) Upgrades / tuning considerations (with UK road/MOT caveats)
Higher-compression engines, performance builds, or vehicles that frequently hot-start in tight engine bays may benefit from a higher-torque starter (application dependent) and improved heat shielding or cable routing. Any upgrade should fit securely, use correct gauge wiring, and avoid exposed terminals. For UK road use, modifications must remain safe and roadworthy; poor wiring practices can create electrical hazards and reliability issues.
17) UK MOT, legal and safety notes
The MOT isn’t a dedicated “starting system test”, but unsafe electrical repairs, insecure batteries, damaged wiring, and warning lights related to electrical systems can lead to advisories or failures depending on what’s observed and what systems are affected. From a practical safety standpoint, repeated no-start attempts can overheat cables and terminals. If you smell burning, see smoke, or hear grinding, stop cranking and diagnose the fault promptly.
