Brake Shoes/Drums
Brake shoes and brake drums form a key part of drum braking systems, converting hydraulic pressure into friction that slows or stops a vehicle. While disc brakes are common on modern cars, drum brakes remain widely used on rear axles, smaller vehicles, and parking brake systems due to their compact design, durability, and cost-effective performance.
In a drum brake system, brake shoes press outward against the inner surface of a rotating drum when hydraulic pressure is applied. This friction reduces wheel speed and helps maintain vehicle stability during braking. The system works alongside other braking components such as master cylinders, wheel cylinders, brake fluid, sensors, and mechanical handbrake mechanisms, creating a coordinated braking response across all wheels.
The condition of brake shoes and drums has a direct impact on braking efficiency, pedal feel, noise levels, and overall safety. Over time, friction materials wear down, drums can become scored or warped, and internal components may degrade due to heat, moisture, or corrosion. Symptoms such as reduced braking force, vibration, pulling to one side, or unusual noises can indicate that inspection or replacement is required.
Brake shoes and drums are used across a wide range of vehicles, including passenger cars, vans, and light commercial vehicles. They are also integral to many parking brake systems, where reliable mechanical holding force is essential. Modern drum brake designs may incorporate self-adjusting mechanisms and integration with electronic braking systems, ensuring consistent performance as components wear.
Understanding how brake shoes and drums function, how they wear, and how they interact with the wider braking system is essential for safe maintenance and repair. Compatible brake shoes, drums, and related components for a variety of vehicle applications are listed below.
Your Current Vehicle
Or
Brake Shoes and Drums
Understanding Brake Shoes and Drums
What the system is
Brake shoes and drums form the core of drum braking systems, where braking force is generated by friction between curved shoes and a rotating drum attached to the wheel hub. This system is commonly used on rear wheels and in parking brake assemblies due to its compact design and ability to provide consistent holding force.
Although disc brakes dominate front axles in modern vehicles, drum brakes remain an important part of overall braking architecture. They operate within hydraulic systems that include master cylinders, brake lines, wheel cylinders, brake fluid, and mechanical components that regulate movement and adjustment.
How the system works step-by-step
- The driver presses the brake pedal.
- The master cylinder converts pedal force into hydraulic pressure.
- Brake fluid transmits pressure through hydraulic lines.
- The wheel cylinder expands, pushing the brake shoes outward.
- Brake shoes contact the inner surface of the drum.
- Friction slows the wheel and reduces vehicle speed.
What braking performance depends on
- Friction material composition and thickness of brake shoes
- Surface condition and roundness of brake drums
- Hydraulic pressure and brake fluid quality
- Correct adjustment of shoes and self-adjusting mechanisms
- Condition of springs, wheel cylinders, and mounting hardware
Vehicle types and applications
- Rear braking systems on passenger cars
- Light commercial vehicles and vans
- Older vehicle platforms and compact city cars
- Parking brake mechanisms integrated with rear brakes
Modern technologies and related systems
- ABS (Anti-lock Braking System)
- EBD (Electronic Brake-force Distribution)
- Traction control and stability systems
- Self-adjusting drum brake mechanisms
Development and evolution of drum brakes
Drum brakes were once the dominant braking technology in automotive design. As vehicle performance increased, disc brakes became more common on front axles due to superior heat dissipation. However, drum brakes have evolved with improved materials, precision manufacturing, and integration with electronic safety systems, ensuring continued relevance in modern vehicles.
Core components breakdown

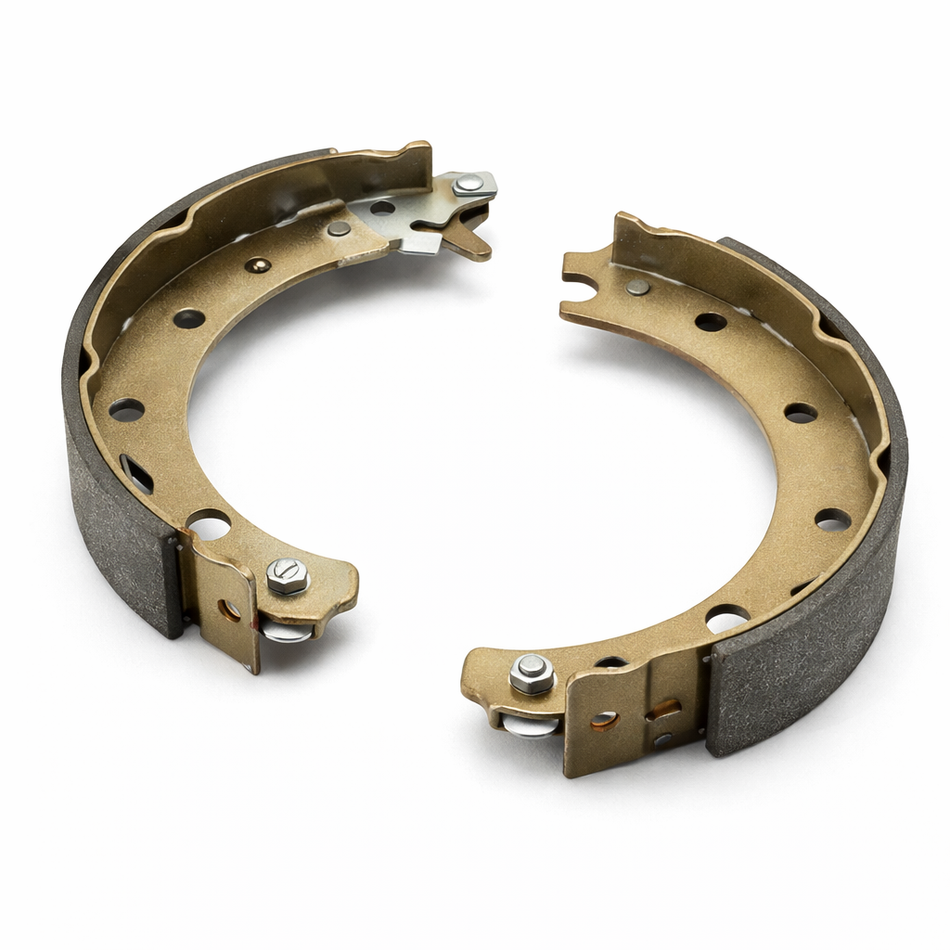

Brake shoes
Curved metal structures lined with friction material that press against the drum when activated.
Brake drums
Cylindrical components mounted to the wheel hub that provide the friction surface for braking.
Wheel cylinders
Hydraulic actuators that convert fluid pressure into mechanical movement of the shoes.
Springs and adjusters
Mechanical parts that return shoes to their resting position and maintain correct clearance.
Comparison of braking mechanisms
| Mechanism | Main components | Typical location | Key characteristics |
|---|---|---|---|
| Drum brake | Shoes, drums, wheel cylinders | Rear axle | Enclosed, durable, compact |
| Disc brake | Pads, discs, calipers | Front axle | Efficient cooling, responsive |
Wear parts and inspection guidance
| Component | Typical wear indicators | Inspection timing | Potential consequences |
|---|---|---|---|
| Brake shoes | Reduced lining thickness, noise | During brake servicing | Reduced braking efficiency |
| Brake drums | Scoring, ovality, cracks | When shoes are replaced | Vibration and uneven braking |
| Wheel cylinders | Fluid leaks, sticking pistons | Periodic inspection | Loss of braking performance |
Materials and construction choices
| Component | Material | Purpose | Properties |
|---|---|---|---|
| Brake shoes | Steel backing with friction lining | Generate braking friction | Heat-resistant, wear-resistant |
| Brake drums | Cast iron or alloy composites | Friction surface | High thermal capacity, durability |
Fluids, specifications and approvals
| Specification | Description | Common standards | Importance |
|---|---|---|---|
| Brake fluid | Hydraulic medium | DOT 3, DOT 4, DOT 5.1 | Transfers braking force |
| Component tolerances | Manufacturing limits | OE specifications | Ensures correct fit and performance |
Operating conditions and limits
| Condition | Cause | Effect | Outcome |
|---|---|---|---|
| Overheating | Heavy braking, towing | Reduced friction | Brake fade |
| Contamination | Fluid leaks, dust | Reduced grip | Uneven braking |
Fault symptoms and urgency
| Symptom | Likely cause | Urgency | Recommended response |
|---|---|---|---|
| Grinding or squealing | Worn shoes | High | Inspect and replace components |
| Soft brake pedal | Air or leaks in hydraulic system | Critical | Immediate inspection |
| Poor handbrake performance | Worn shoes or maladjustment | Medium to high | Adjust or replace components |
Maintenance and repair guidance
Brake shoes and drums should be inspected regularly as part of routine servicing. When replacing components, both sides of an axle should be serviced together to maintain balanced braking. Correct adjustment, torque settings, and bedding-in procedures are essential to ensure safe and consistent performance.
Common mistakes to avoid
- Replacing shoes without checking drum condition
- Ignoring leaks from wheel cylinders
- Incorrect adjustment of brake shoes
- Mixing incompatible friction materials
Upgrades and tuning considerations
Some vehicles may benefit from improved friction materials or heavy-duty drums, particularly for towing or frequent load carrying. Any modifications must remain compliant with UK road regulations and MOT requirements to ensure safety and legality.
UK MOT, legal and safety notes
During the UK MOT test, brake shoes and drums are assessed for wear, braking efficiency, and balance across axles. Excessive wear, contamination, or imbalance can result in test failure. Maintaining these components in good condition is essential for legal road use and overall vehicle safety.
