Relays

Relays: small electrical switches that protect circuits and power high-load components

Automotive relays are compact electrical switches that let a low-current control signal operate a higher-current circuit. In practical terms, a relay allows a dashboard switch, ECU output, or body control module to turn on components like headlights, cooling fans, fuel pumps, horns, heated screens, air-con clutches and starter circuits without routing heavy current through delicate switches or control units. This improves reliability, helps protect wiring, and reduces voltage drop—especially important on modern vehicles packed with electrical loads and sensitive electronics.

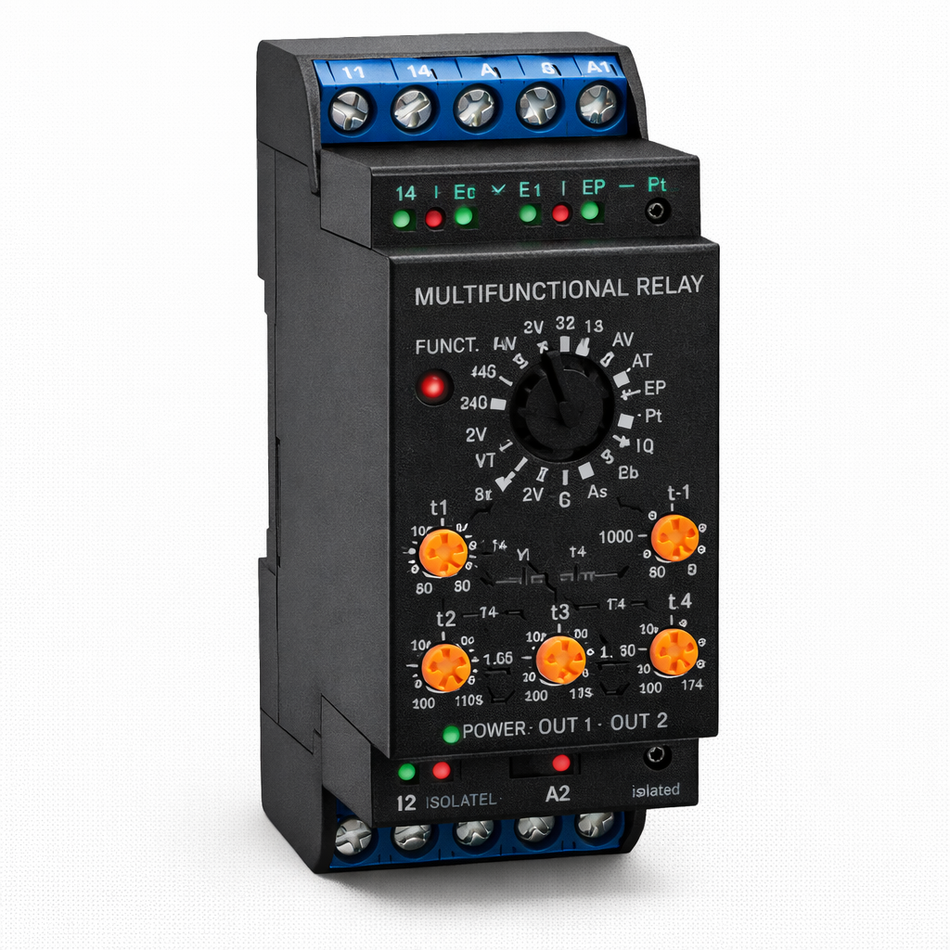

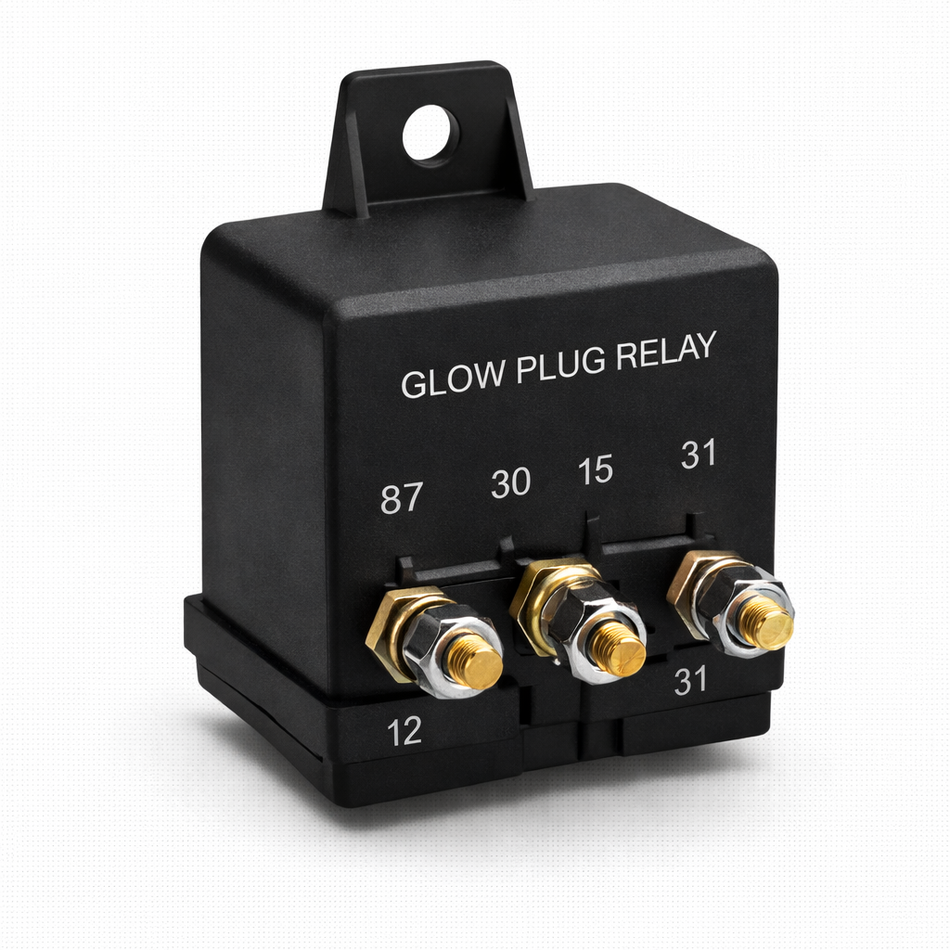

Most relays live in a fuse/relay box under the bonnet or inside the cabin, and they often look similar even when their internal design is different. The key variables are pin layout (such as 4-pin or 5-pin), contact type (normally open or changeover), coil voltage (typically 12V on cars), and current rating for the circuit they control. Some vehicles also use specialist relays (for example, timed or latching relays, or integrated modules) depending on the electrical architecture.

Where relays are commonly used

  • Starter and ignition-related circuits (where applicable)
  • Fuel pump and engine management power feeds
  • Radiator/cooling fan control
  • Headlights, fog lights and horns
  • Heated rear window, mirrors and auxiliary heaters (model dependent)

Quick compatibility checks before ordering

Check Why it matters What can go wrong
Pin count & layout Must match the socket and circuit design Won’t fit, or operates the wrong contacts
Relay type Normally-open vs changeover Component may run constantly or not at all
Current rating Contacts must handle the load safely Overheating, melted socket, intermittent faults

Compatible relays for your vehicle and application are listed below.

Your Current Vehicle

Or

Select Your Vehicle

Relay guide: how automotive relays work, common faults and safe replacement tips

1) What an automotive relay is

A relay is an electrically operated switch. It uses a small current through a coil to open or close a separate set of contacts that carry a larger current. In cars, relays let control electronics and cabin switches manage heavy loads without overheating or suffering voltage drop. They also help isolate circuits, making electrical systems easier to design and protect with fuses.

2) How a relay works (step-by-step)

  1. Control signal applied: a switch, ECU or control module supplies voltage to the relay coil.
  2. Magnetic field builds: the coil energises and creates a magnetic field.
  3. Armature moves: the magnetic field pulls an internal armature.
  4. Contacts change state: normally-open contacts close (or a changeover contact switches from one path to another).
  5. Load is powered: current flows to the component (fan, pump, lights, etc.) through the relay contacts.
  6. Signal removed: the coil de-energises, spring tension returns the contacts to the rest position.

3) What relay performance depends on

  • Correct electrical rating: contact rating must suit the load and inrush current (motors can spike on start-up).
  • Good contact condition: arcing and wear increase resistance and heat.
  • Healthy coil circuit: weak supply, poor earths or control module issues can prevent proper switching.
  • Socket integrity: loose terminals and heat damage cause intermittent faults.
  • Environment: moisture and corrosion in fuse boxes can degrade connections.

4) Vehicle types / applications

  • Older vehicles: more stand-alone relays for lights, horns and fans; faults often show as intermittent operation.
  • Modern vehicles: relays may be controlled by ECUs/BCMs; some functions are integrated into modules.
  • Diesel and petrol: fuel pump control (where fitted) and engine power feeds often rely on relays.
  • Vans/LCVs: higher duty cycles and auxiliary equipment can increase load on relay circuits.

5) Modern technologies / related systems

  • Body control modules (BCM): often switch relay coils electronically, sometimes using diagnostics and load monitoring.
  • Solid-state switching: some vehicles use electronic drivers instead of traditional relays for certain loads.
  • CAN-controlled functions: the command to energise a relay may be triggered by network messages rather than a direct switch.
  • Start/stop and thermal management: frequent cycling can increase relay wear in some circuits.

6) Development / evolution overview

Traditional electromagnetic relays have been used for decades because they’re robust and simple. As vehicles gained more electrical features, fuse boxes became more centralised and relay functions expanded. Today, some circuits still rely on classic plug-in relays, while others use integrated relay modules or solid-state drivers to improve diagnostics and reduce mechanical wear. Even so, plug-in relays remain common for high-current loads like fans and certain lighting circuits.

7) Core relay components (and what they do)

Coil (electromagnet)

The coil is energised by a low-current control signal (commonly 12V in passenger cars). If the coil fails open-circuit or shorts, the relay won’t actuate correctly.

Armature and spring

This mechanical section moves when the coil energises, physically changing the contact position. Springs return the relay to its default state when power is removed.

Contacts

The contacts carry the load current. Over time, arcing can pit the surfaces and increase resistance, which generates heat and can damage the relay socket.

Housing and terminals

The housing protects internal parts. Terminals (pins) connect the relay to the vehicle wiring via the relay base. Poor pin fitment can cause intermittent faults and heat build-up.

8) Comparison tables

Common relay types used on cars

Relay type Pin layout (typical) How it switches Common uses
Normally open (NO) 4-pin Closes only when energised Fans, pumps, horns, auxiliary loads
Changeover (SPDT) 5-pin Switches between two outputs Some lighting and control circuits
Normally closed (NC) Less common Opens when energised Special control functions
Micro/mini relay formats Varies Same principles, smaller package Modern fuse boxes with limited space

Symptoms that point to relay vs wiring vs component

Observed issue Relay likely? Other common causes Safe first check
Component works intermittently Yes Loose terminals, corrosion, poor earth Inspect relay base for heat/corrosion
No operation, no relay click Maybe Fuse, control signal, switch/ECU command Check fuse and supply to relay coil circuit
Relay clicks but component doesn’t run Maybe Load wiring, connector, failed motor/solenoid Check output side continuity/voltage (competently)
Burning smell/melted relay socket Often Overcurrent, poor terminal grip, incorrect rating Stop using circuit; inspect socket and wiring

9) Wear parts and inspection guidance

Item Inspect for What it causes Action
Relay contacts (internal) Pitting/wear (often inferred from symptoms) Voltage drop, heat, intermittent operation Replace relay with correct spec
Relay terminals/pins Discolouration, looseness High resistance and heat Replace relay; check base fitment
Relay socket/base Melted plastic, spread terminals Recurring failures Repair/replace socket where required
Fuses in the same circuit Incorrect rating, signs of heat Nuisance blowing or under-protection Fit correct fuse rating for the circuit
Wiring and earth points Corrosion, broken strands Low voltage to coil or load Clean/repair connections safely

10) Materials and construction choices

Design aspect Common construction Why it matters What to look for
Contact material Alloys designed to resist arcing Handles repeated switching Correct rating for inductive loads
Housing Heat-resistant plastics Protects internals and prevents shorts No cracks or heat distortion
Terminal plating Corrosion-resistant finishes Improves connection reliability Clean, undamaged pins
Sealed vs non-sealed Varies by application Moisture resistance in harsh areas Match the original style where possible

11) Fluids / specs / approvals where relevant

Spec point Typical value/format Why it matters Where to confirm
Coil voltage Usually 12V (cars) Wrong coil voltage won’t switch correctly Relay markings and vehicle application data
Current rating Varies by circuit Prevents overheating of contacts Relay markings and circuit requirements
Pin configuration 4-pin/5-pin layouts Ensures correct wiring paths Relay base and original relay type
Normally open/changeover NO or SPDT Determines what powers up and when Original relay function and pin diagram

12) Operating conditions / overheating / limits

Condition What happens Risk Prevention
High inrush loads (motors) Contact arcing on start-up Premature contact wear Use correctly rated relay for inductive loads
Loose relay socket terminals Resistance and heat build-up Melted socket, intermittent faults Inspect base condition; repair if heat damaged
Moisture/corrosion Poor conductivity Random electrical issues Keep fuse box seals intact; address water ingress
Incorrect fuse/relay rating Under/over-protection Damage to wiring or repeated failures Match ratings to the vehicle specification

13) Fault symptoms and urgency

Symptom Possible relay involvement Urgency Why it matters
Cooling fan not running Common High Overheating risk and potential engine damage
Fuel pump/no-start (where relay controlled) Possible High Vehicle may stall or fail to start reliably
Headlights or horn intermittent Common High Safety and legal visibility/audibility
Burning smell near fuse box Often Immediate Fire risk; stop and investigate
Accessory stays on when it shouldn’t Possible Medium to high Battery drain and component overheating

14) Maintenance and repair guidance

  • Start with basics: check the fuse and inspect the relay box for moisture or heat damage.
  • Look for a matching relay: many vehicles use identical relays for different circuits; swapping with a known-good identical type can help isolate a fault (only where appropriate and safe).
  • Inspect the socket: loose or heat-damaged terminals can cause repeat failures even with a new relay.
  • Keep connections clean and dry: water ingress in a fuse box should be resolved to prevent ongoing electrical issues.
  • Be cautious with diagnostics: if you’re unsure, seek competent electrical testing—incorrect probing can cause short circuits.

15) Common mistakes to avoid

  • Fitting a relay with the right shape but the wrong pin layout or switching type.
  • Ignoring heat damage in the relay base—this can lead to intermittent faults and melting.
  • Using an incorrect fuse rating to “stop it blowing”, which can remove circuit protection.
  • Assuming the relay is the fault without checking for water ingress, poor earths or a failed component drawing excess current.
  • Forcing relays into sockets and bending pins or spreading terminals.

16) Upgrades / tuning considerations (with UK road/MOT caveats)

Electrical “upgrades” should prioritise safety and correct protection. If you add auxiliary lighting or accessories, the correct approach is proper wiring, fusing and relay control so the load doesn’t overload existing circuits. Poorly executed electrical modifications can create fire risk and may affect roadworthiness. Keep all additions neat, protected and reversible, and ensure lights and signalling remain compliant for UK road use.

17) UK MOT, legal and safety notes

Relay faults can affect safety-critical systems such as headlights, indicators (depending on design), cooling fans and horns. For UK road use, ensure required lighting functions correctly and that wiring is safe and properly protected. Signs of overheating at fuse/relay boxes should be treated urgently. If an electrical issue is intermittent or causes loss of essential functions, address it before driving regularly and before an MOT.

FAQ

It lets a low-current control signal switch a higher-current circuit, powering loads like fans, pumps, lights and horns without overloading switches or control modules.

Common signs include intermittent operation, a component not working despite a good fuse, or heat damage around the relay/socket. Proper testing confirms it.

A 4-pin relay is typically a simple on/off (normally open) switch, while a 5-pin relay is often a changeover type that switches between two outputs.

No. Pin layout, switching type, coil voltage and current rating must match the circuit requirements.

The coil may be energising, but the contacts may be worn, or the problem could be on the load side (wiring, connector, motor, earth).

High resistance from loose terminals, overcurrent draw, or incorrect relay/fuse ratings can create heat and damage the socket.

No. A fuse protects a circuit by breaking when current is too high; a relay is a switch that controls power delivery.

Commonly in a fuse/relay box under the bonnet and sometimes another panel inside the cabin, depending on the vehicle.

Yes. Moisture and corrosion in fuse boxes can create intermittent faults, voltage drop and heat at terminals.

They can. Mechanical movement and contact arcing (especially on motor circuits) can gradually increase resistance and reduce reliability.

Only if the relays are identical in type and rating and the circuits are appropriate. If unsure, use competent electrical testing.

Yes—if they cause failures in required lighting, horn operation, cooling fans (overheating risk) or other essential systems.
