Battery retention controls a dense moving mass
A starter battery is heavy enough to damage its tray, cables and surrounding parts if it slides or lifts. A correctly engineered holder transfers acceleration and road loads through strong case features into the vehicle structure. It must restrain the battery without concentrating force on a weak lid, terminal or unsupported wall.
A protective cover is related but not interchangeable: it manages contact, splash, heat or enclosure rather than supplying the primary hold-down unless the vehicle design explicitly combines both functions.
Holder, tray and cover have separate responsibilities

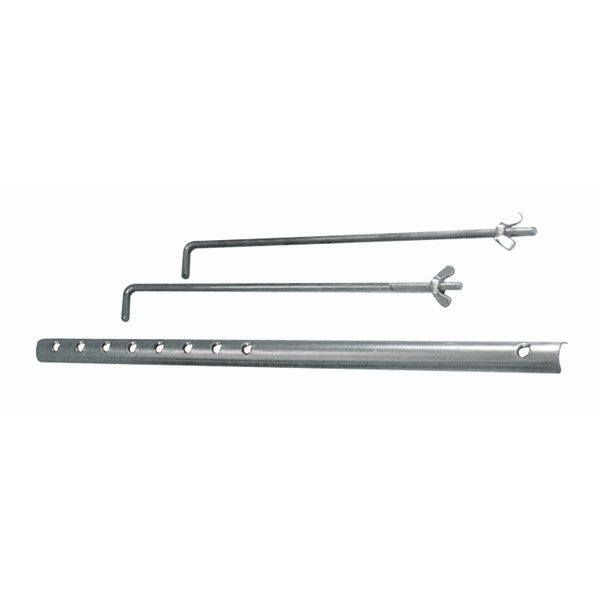

| Part | Primary role | Typical location | Incorrect assumption |
|---|---|---|---|
| Top clamp | Presses on reinforced battery shoulders. | Across the upper case. | Any bar can safely cross the lid. |
| Base clamp | Captures a moulded lower case ledge. | At one tray edge. | All case ledges share one profile. |
| J-bolt or tie rod | Links clamp to tray or body. | Beside the battery. | A longer generic hook is harmless. |
| Battery tray | Supports weight and locates the case. | Below the battery. | A cracked tray is cured by a new clamp. |
| Outer cover | Shields or thermally insulates the case. | Around or above the battery. | The cover automatically restrains movement. |
| Terminal cap | Prevents accidental positive contact. | Over a terminal and cable end. | It replaces the full battery cover. |
Vehicle packaging determines the retention design
Under-bonnet batteries face vibration, water and engine-bay temperature. Boot and cabin installations need controlled venting and strong protection from luggage or trim. Under-seat batteries may use shaped enclosures and remote disconnection points. Stop-start vehicles can add current sensors and complex cable routing around the holder.
Copying only the battery dimensions misses these surrounding constraints.
Battery case standards do not make every clamp universal
Many batteries use familiar European case sizes and lower retaining ledges, yet ledge position, height, terminal layout and tray access still vary. Commercial and leisure batteries may have different footprints or top-clamp provisions. The holder must match both the vehicle and the installed approved battery case.
Confirm that a previous replacement battery is itself correct before duplicating an improvised retention arrangement.
Fitment evidence should be read as a complete set
| Check | What to compare | Why it matters | Warning sign |
|---|---|---|---|
| Vehicle identity | VIN, build date, engine and options. | Locates battery position and design revision. | Catalogue lists multiple arrangements. |
| Original reference | Bracket or cover moulding/part number. | Separates visually similar pieces. | Number belongs to another battery location. |
| Fixing geometry | Hole spacing, hook shape and thread. | Ensures full engagement. | Fastener must be bent to reach. |
| Battery interface | Case ledge, shoulder and height. | Avoids point loading. | Clamp touches lid or cell cap. |
| Cover details | Clips, vents, cable exits and insulation. | Preserves enclosure function. | Cable must be trapped under edge. |
| Clearance | Bonnet, seat, trim and nearby metal. | Prevents shorts and abrasion. | Fresh rub or witness marks. |
Movement leaves useful physical evidence
Look for a polished tray, fretted paint, worn case corners, stretched vent pipe, chafed insulation or terminals tilted by cable load. A battery that rotates a few millimetres can fatigue a cable even when it does not appear obviously loose. Check the holder with steady hand pressure, never by levering against the terminals.
Record the movement direction because it often identifies the missing or incorrectly seated component.
Corrosion can weaken hidden load paths
Electrolyte mist and trapped moisture attack steel trays, bolts and captive nuts. Surface rust on a removable clamp differs from a perforated structural tray. Clean and assess the area using the battery and vehicle procedures; neutralising residues does not restore lost metal thickness or damaged threads.
Renew compromised load-bearing parts rather than applying paint over unstable corrosion.
Acid, gas and electrical energy require control
Lead-acid batteries can release corrosive electrolyte and explosive hydrogen, especially when damaged or overcharged. Remove ignition sources, ventilate the area and use suitable eye and skin protection. A metal tool bridging the positive post and vehicle body can carry enormous current and cause burns or fire.
Do not continue if the case is cracked, hot, hissing, strongly smelling, leaking or visibly swollen.
Battery technologies change charging, not the need for security
| Battery context | Installation consideration | Retention concern | Service action |
|---|---|---|---|
| Flooded lead-acid | May use an external vent arrangement. | Avoid pressure on caps or lid. | Keep vent path correct. |
| AGM | Often specified for stop-start duty. | Case and terminal layout must match. | Follow registration procedure. |
| EFB | Enhanced cycling specification. | Correct case support remains essential. | Use approved battery type. |
| Auxiliary battery | May sit in cabin, boot or electronics box. | Cover and venting can be safety-critical. | Identify all vehicle batteries. |
| 48-volt system | Higher DC voltage and controlled isolation. | Special enclosure and access rules. | Use model-specific instructions. |
| Hybrid/EV low-voltage battery | Can wake high-voltage contactors. | Retention work may affect system state. | Respect high-voltage boundaries. |
Battery covers manage several different hazards
A moulded cover may prevent dropped objects reaching terminals, keep road splash away, guide cooling air or hold thermal insulation around the battery. Its internal ribs and openings are deliberate. A cover that looks cosmetic can be necessary to preserve cable clearance and stop trim or a seat frame contacting the positive connection.
Never cut a cover to accommodate the wrong battery or cable routing.
Heat shields protect service life
Some covers use foam, fibre or a double wall to reduce radiant heat from an engine or exhaust component. Heat accelerates battery ageing and can distort an unsuitable case. Refit the original thermal barrier in the correct orientation, keeping it clear of belts, fans and hot surfaces.
Oil-soaked or crumbling insulation should be renewed after the leak source is corrected.
Preparation protects electronics and stored settings
Read the disconnection procedure before loosening anything. The vehicle may need a memory-support strategy, window or steering relearns, alarm precautions, battery-monitor reset or coding. Memory support itself must be correctly fused and must not defeat an isolation step needed for safe work.
Keep the key outside the detection range so automatic systems cannot wake unexpectedly.
Removal should not use cables as handles
Document the original arrangement
Photograph cable paths, vent tubes, insulators, cover clips and bracket orientation before dismantling.
Disconnect in the prescribed order
Follow vehicle instructions and insulate exposed positive connections against body contact.
Lift with suitable control
Use rated battery handles or lifting aids and keep the case upright where required.
The tray must be sound before a new holder is fitted
Remove loose debris and inspect the full support area, drain paths, captive threads and welded brackets. A holder tightened into a cracked plastic tray or a spinning nut cannot develop reliable restraint. Repair structural corrosion and replace damaged threaded components using an approved method.
Do not drill an unverified hole where wiring, fuel lines or structural features may lie beneath.
Clamp force must be controlled
Seat the battery fully against its locators, install the correct insulators and engage each hook or base clamp squarely. Tighten evenly to the stated torque. Excess force can distort the case, crack a ledge or damage internal plates; insufficient force allows fretting and impact.
A generic high torque is not appropriate for mixed plastic, lead and sheet-metal interfaces.
Vent and cable routing are part of completion
Reconnect any external vent to the correct port and blank the opposite port if the battery design requires it. Route cables with natural slack, away from sharp holder edges, and seat current sensors in their original orientation. Refit positive-terminal caps before the outer cover.
No cable should become taut when the engine rocks or a seat moves through its range.
Common shortcuts create repeat faults
Foam blocks compress, cable ties degrade, bungee cords stretch and timber can absorb electrolyte; none is an engineered battery restraint. Stacking washers on a wrong-length hook, bending a clamp or trapping a cable under the cover similarly hides a mismatch. Replace the missing system parts with the correct geometry.
Do not rely on battery weight to keep it in the tray.
Final checks include restraint and electrical condition
Confirm the case is fully seated and cannot move in any direction under firm hand pressure. Inspect terminal tightness by the specified method, cover every positive exposure, check venting and verify bonnet, seat or trim clearance. Start the vehicle only after tools and loose hardware are removed.
Then confirm charging-system behaviour, stored faults and any required battery registration or relearn.
UK roadworthiness includes battery security
The MOT inspection includes the security of the battery and considers leakage that could affect safety. That minimum test does not prove the correct clamp force, vent routing or electrical protection. An insecure, leaking or short-circuit risk should be corrected immediately rather than left until a test date.
After collision damage or heavy corrosion, inspect the surrounding structure as well as the removable holder.
Practical battery-holder FAQs
Q: Is a battery cover the same as a hold-down?
A: No. A cover usually shields; primary retention must come from the designed holder.
Q: Can a universal crossbar be used?
A: Only if explicitly approved for the vehicle and battery case with correct load points.
Q: Why does the battery keep moving after tightening?
A: Check the case size, tray locators, hook engagement and damaged threads.
Q: Can the terminals support a clamp?
A: Never. Terminals are electrical connections, not structural mounting points.
Q: Does AGM change the bracket required?
A: The specified case, ledge and vehicle installation determine the holder.
Q: Must a boot-mounted battery be vented?
A: Follow the vehicle and battery design; many enclosed installations use a dedicated vent.
Q: Can corrosion be painted over?
A: Only after residues are controlled and the remaining structure and threads are proven sound.
Q: How tight should the hold-down be?
A: Use the specified torque or procedure; overtightening can crack the case.
Q: Can a cracked cover be left off?
A: Not without confirming its terminal, heat, splash and enclosure functions are unnecessary.
Q: Why record battery replacement electronically?
A: Some energy-management systems require registration or adaptation for correct charging.
Q: What stops work immediately?
A: Heat, swelling, leakage, hissing, heavy gassing or a damaged high-energy connection.
Q: What proves a correct repair?
A: A sound tray, immovable battery, protected terminals, correct venting and verified vehicle operation.
