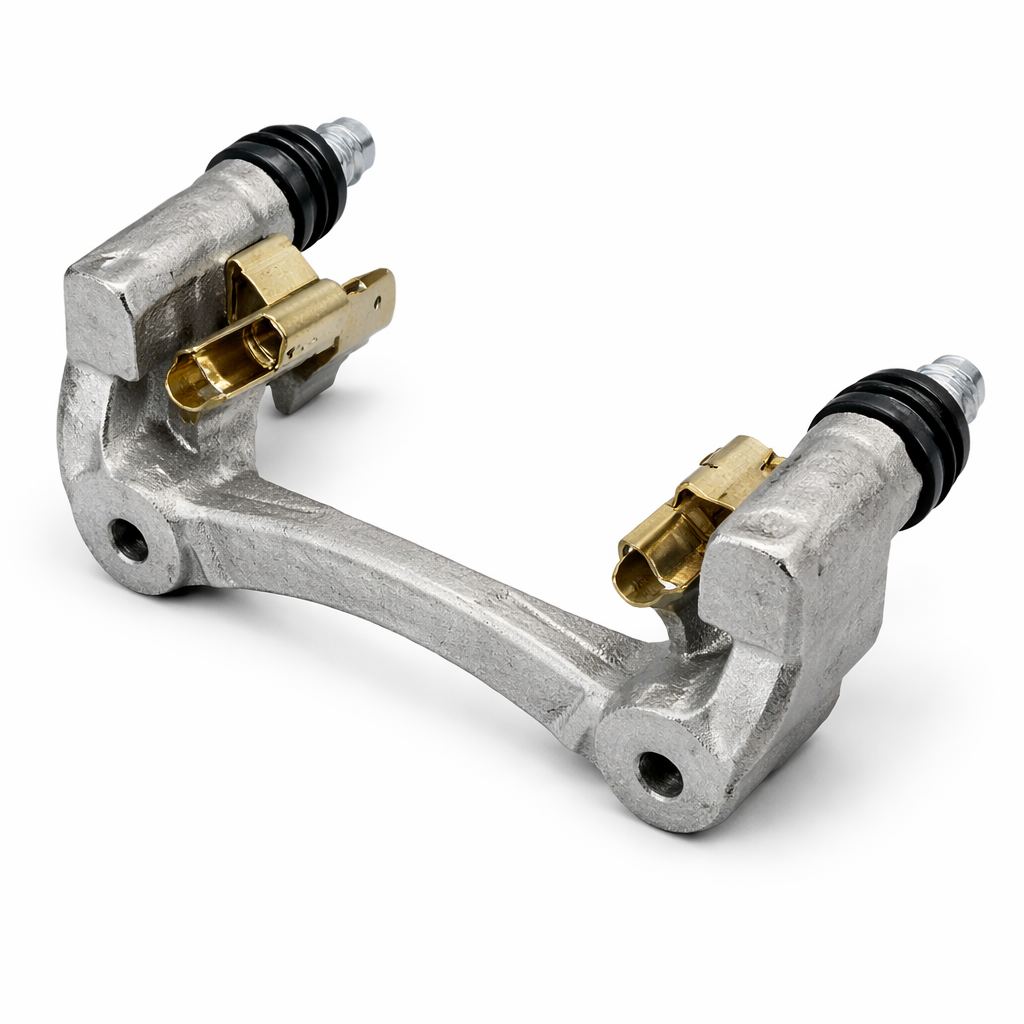

What a caliper carrier does
The carrier is both a structural bracket and a precision guide. It fixes the caliper's radial and lateral relationship to the disc, supports pad reaction loads and transmits brake torque into the suspension upright. In a floating system it also allows the hydraulic caliper body to move across guide pins so both pads clamp the disc.
Carrier stiffness and geometry affect pedal feel, pad contact and noise. Corrosion or wear that restricts movement can create as much braking trouble as a seized piston, while loose or damaged mounting threads can compromise the entire brake assembly.
How force passes through the carrier
- Hydraulic pressure pushes the caliper piston against the inboard pad.
- The caliper body reacts and slides on its guide pins.
- The outboard pad is pulled against the opposite disc face.
- Friction tries to carry both pads around with the rotating disc.
- Pad ears bear against machined abutments in the carrier.
- The carrier transfers torque through its mounting bolts into the knuckle.
- After release, seals and free guides permit slight pad clearance.
Carrier designs and applications
| Design | Typical arrangement | Key checks |
|---|---|---|
| Separate floating-caliper carrier | Bolted bracket with two removable guide pins. | Disc size, pin design, mounting offset and pad shape. |
| Integrated knuckle bracket | Pad supports or guide mounts formed into the upright. | Not normally replaced separately; inspect complete knuckle. |
| Large-disc carrier variant | Moves standard caliper farther from hub centre. | Radial height must match approved disc and caliper. |
| Heavy-duty commercial carrier | Substantial casting with large pins and pads. | Axle rating, wheel clearance and bolt specification. |
| Rear parking-brake carrier | Supports caliper around disc with drum or electronic handbrake features nearby. | Cable/motor clearance and backplate geometry. |
| Fixed-caliper adaptor bracket | Positions a rigid opposed-piston caliper. | Certified geometry, high-grade fasteners and alignment. |
Geometry and operating clearances
- Radial position: sets the pad's sweep on the disc.
- Lateral offset: centres the caliper over disc thickness.
- Bridge clearance: must accommodate new disc and pad dimensions.
- Pad abutment clearance: permits thermal movement without rattle.
- Guide alignment: keeps the sliding body parallel to the disc faces.
- Mount stiffness: resists deflection under brake torque.
- Wheel clearance: prevents contact through runout, heat growth and steering.
Grinding a carrier to clear an incorrect disc, pad or wheel removes engineered material and corrosion protection. Correct parts should align without forcing or improvised spacers.
Detailed components
Guide pins and bores
Pins allow controlled lateral motion while carrying caliper reaction loads. Some include rubber damping sleeves or different upper and lower profiles. Corroded pins, swollen sleeves or oval bores produce drag, noise and uneven wear.
Guide boots and caps
Flexible boots seal the pin cavity while accommodating movement. A twisted lip or incompatible grease admits water. Protective caps over pin bolts also need full engagement.
Pad abutments and clips
Pad ears slide on defined contact faces, often through stainless clips. Rust grows beneath the clips and lifts them inward. Removing scale without checking remaining carrier dimensions can leave excessive clearance or weakened material.
Mounting lugs and threads
The main lugs endure cyclic torque. Threads must be clean and full-depth; inserts or repairs are acceptable only when an approved engineering procedure permits them. Cracked lugs or distorted faces require replacement.
Materials, coatings and wear
| Part/material | Purpose | Concern |
|---|---|---|
| Ductile or grey cast iron | Provides stiffness, strength and stable geometry. | Road salt creates scale, pitting and possible section loss. |
| Aluminium alloy carrier | Reduces unsprung mass on selected designs. | Thread damage and galvanic corrosion need careful assessment. |
| Hardened/plated guide pin | Offers smooth, wear-resistant sliding support. | Plating loss and pits damage boots and cause sticking. |
| EPDM guide boot | Excludes water while tolerating brake temperatures. | Petroleum grease can swell or soften it. |
| Stainless abutment clip | Provides controlled pad contact and corrosion-resistant surface. | Rust underneath can clamp the pad. |
| Protective coating | Delays external corrosion. | Do not coat sliding faces, threads or bolt seats indiscriminately. |
Matching the correct carrier
| Check | What can differ | Evidence |
|---|---|---|
| Disc diameter | Radial caliper position. | Brake option data and measured disc. |
| Disc thickness | Bridge opening and pad clearance. | New/minimum thickness specification. |
| Caliper family | Guide spacing, pin threads and body interface. | Casting/part numbers and dimensions. |
| Knuckle mounting | Bolt centres, thread and lateral offset. | OE reference and technical drawing. |
| Axle/side | Shape may clear steering arm, hose or parking brake. | Catalogue handing and physical comparison. |
| Production split | Brake supplier or hardware revision. | VIN and build date. |
Lubricants, fasteners and specifications
Use only a guide-pin lubricant approved for the particular brake and compatible with its boots and sleeves. General petroleum grease, copper compound and anti-seize can alter rubber or pin damping. Pad contact points may require a different minimal lubricant, and friction surfaces must remain completely clean.
Carrier mounting bolts can be high-strength, thread-locked or torque-to-yield. Follow the specified replacement rule, thread preparation, torque and angle. Guide-pin bolts usually have a much lower torque and may need the pin held to prevent boot twist.
Inspection and diagnosis
- Compare pad wear and disc temperature across the axle.
- Support the caliper independently and remove pads without straining the hose.
- Check that each pin moves smoothly through its full service travel.
- Remove clips and inspect corrosion beneath them, not just the visible surface.
- Assess pad fit dry according to the brake instructions.
- Inspect boots, bores, threads, mounting faces and casting for cracks or distortion.
- Check the flexible hose and piston before attributing all drag to the carrier.
- After assembly, verify free rotation, pedal firmness and balanced braking.
Fault symptoms and urgency
| Symptom | Carrier-related possibility | Action |
|---|---|---|
| Pad seized in bracket | Rust beneath clip or distorted abutment. | Repair before heat damages disc, tyre or bearing. |
| Inner/outer wear difference | Restricted guide motion or pad support. | Inspect piston and hose as well as carrier. |
| Knock on direction change | Excess pad clearance, worn pin bore or loose bolt. | Check security immediately. |
| Caliper visibly off-centre | Wrong carrier, bent bracket or incorrect disc. | Do not drive until correct geometry is restored. |
| Damaged mounting thread | Overtightening, cross-threading or corrosion. | Use only an approved repair or replace the carrier/knuckle. |
| Cracked mounting lug | Impact, fatigue or abusive removal. | Replace; structural brake support is compromised. |
Service practice
Clean with methods that preserve dimensions. A wire brush can remove loose scale, but aggressive grinding can change pad clearance and bolt seating. Renew clips and boots when specified. Pins should enter the correct positions, because a damped pin or stepped design may be intentionally different.
Fit the carrier squarely against clean knuckle faces. Tighten main bolts with a calibrated method, then assemble pads and caliper without trapping boots. Pump the brake pedal before moving the vehicle and complete an appropriate bedding procedure after renewing friction components.
Common mistakes to avoid
- Ordering by caliper appearance while ignoring disc dimensions.
- Grinding pad ears or carrier faces excessively to create clearance.
- Leaving rust beneath new stainless abutment clips.
- Swapping different upper and lower guide pins.
- Using petroleum or copper grease inside rubber boots.
- Allowing the caliper to hang from its hose.
- Reusing damaged locking bolts without checking instructions.
- Repairing cracked structural lugs by casual welding.
- Painting bolt seats and sliding surfaces.
- Assuming a dragging brake always means a seized piston.
Upgrades, UK MOT and safety
Carrier adaptors used to fit larger brakes must be engineered for material strength, thread engagement, disc centring, wheel clearance and axle balance. Unverified spacers or redrilled brackets are unsafe. Brake modifications should retain legal operation of ABS and stability systems and be declared to the insurer.
MOT assessment includes brake security, condition, operation, imbalance and binding. A loose, cracked or badly corroded carrier can cause failure and may be dangerous. Because the bracket carries braking torque, suspect structural damage should prevent road use even if the vehicle has a current certificate.
Brake caliper carrier FAQs
Q: Is the carrier the same as the caliper?
A: No. The carrier is the structural bracket and guide; the caliper contains the hydraulic piston.
Q: Can a rusty carrier make brakes bind?
A: Yes. Rust beneath pad clips or in guide areas can prevent release.
Q: Are carriers handed left and right?
A: Some are common, while others differ for clearance or associated component routing.
Q: Can I reuse the old guide pins?
A: Only if their surface, dimensions and movement meet the brake manufacturer's criteria.
Q: Why does one pad wear faster?
A: Pin, pad-abutment, piston or hose restriction can create unequal application and release.
Q: Should pads slide freely in the carrier?
A: They need controlled free movement without excessive looseness; follow the brake specification.
Q: Can carrier threads be repaired?
A: Only with an approved engineering method for that structural location; otherwise replace the part.
Q: Which grease belongs on guide pins?
A: Use the brake-specific rubber-compatible lubricant stated for that design.
Q: Are carrier bolts reusable?
A: Check the vehicle procedure; some are locking or torque-to-yield and must be renewed.
Q: Can I paint a carrier?
A: Only while keeping coating off threads, seats, guides, boots and pad contact faces.
Q: Does a larger-disc conversion need another carrier?
A: Often yes, but every component must be an engineered matched system.
Q: Can a loose carrier cause knocking?
A: Yes, and it is a serious safety defect requiring immediate attention.
Q: Will a damaged carrier fail an MOT?
A: Insecurity, serious corrosion, binding or impaired braking can cause failure and may be dangerous.
