A kit renews the friction pair across one axle
When the driver applies the brake, hydraulic pressure moves caliper pistons and clamps pads against rotating discs. Friction converts vehicle kinetic energy into heat. The discs absorb and release that heat while the pad material maintains a controlled coefficient of friction over changing speed, pressure and temperature.

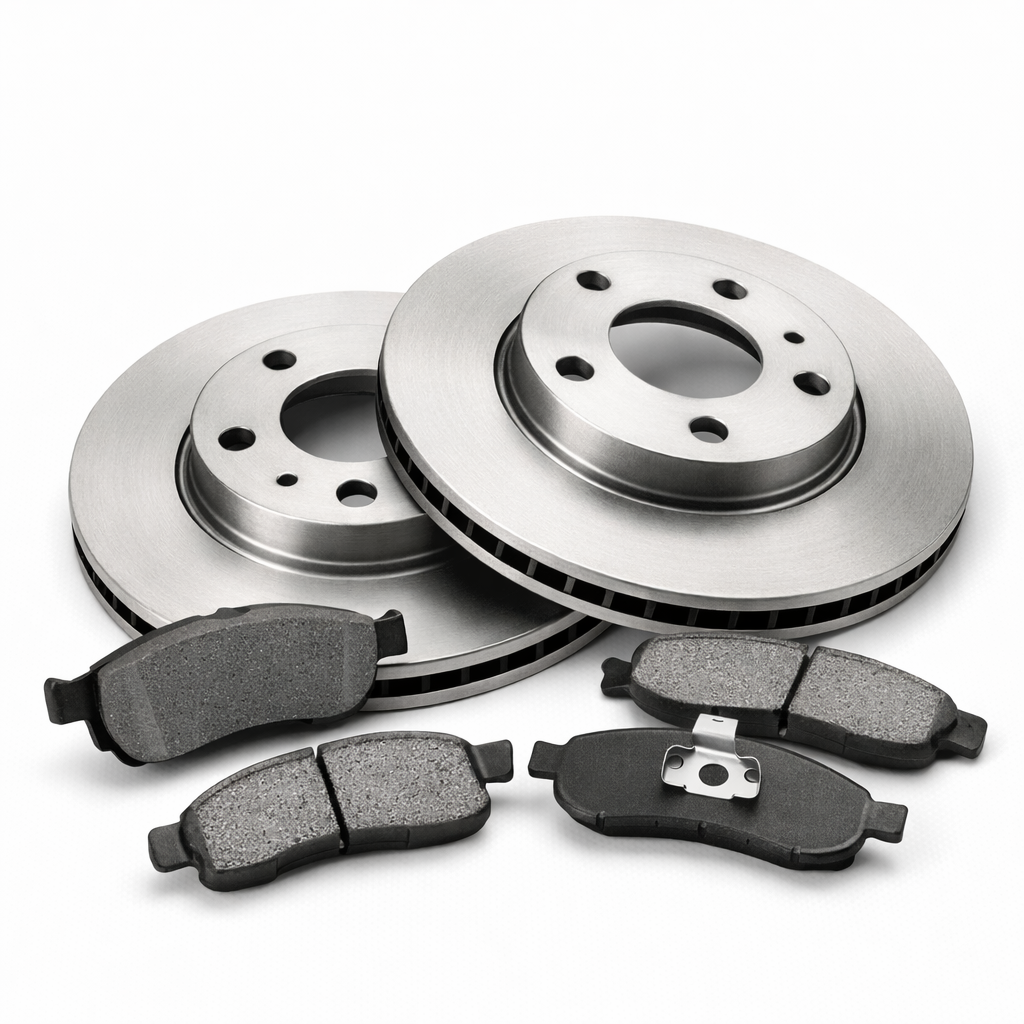

A pad-and-disc kit packages both parts of that interface. It does not make every other brake component serviceable, so inspection and measurement remain essential.
What a kit may contain
| Item | Typical quantity | Purpose | Do not assume |
|---|---|---|---|
| Brake discs | Two for one axle. | Provide rotating friction faces and thermal mass. | Hub bearings or retaining screws are included. |
| Brake pads | One axle set, normally four pads. | Clamp both disc faces through the calipers. | Every pad has the same inner/outer shape. |
| Wear sensor | None, one or more depending on kit. | Provides electrical wear indication where fitted. | The old sensor can always be reused. |
| Pad clips/shims | Application-specific. | Guide pads and control noise or movement. | Caliper carrier hardware is complete. |
| Disc coating | Full or non-friction-area protection. | Controls storage and service corrosion. | Every coating is treated the same before use. |
| Fasteners | Selected bolts or screws only when stated. | Replace specified single-use hardware. | All carrier and wheel bolts are supplied. |
Disc geometry determines fit and leverage
Diameter sets the radius at which the pads act and must match caliper position. Nominal thickness must fit the caliper and provide designed heat capacity. Overall height locates the friction ring laterally relative to the carrier. Centre bore, fixing pattern and disc hat shape locate it on the hub.
A disc can bolt to the hub yet place the ring several millimetres out of line. Compare every dimension and the vehicle’s brake-option data rather than relying on a photograph.
Solid, vented and directional discs
Solid and conventional vented designs
A solid disc uses one friction plate. A vented disc has internal vanes between two faces to move cooling air. Thickness and caliper width are different, so the two constructions are not interchangeable.
Directional vane and surface orientation
Some internal vanes, slots or drill patterns are handed. Follow left/right markings and rotation arrows. Cosmetic pattern judgement is unreliable because surface grooves and internal cooling direction do not always appear to agree.
Pad shape and friction formulation
Pad backing plates must match piston contact, carrier abutments, spring clips and wear-sensor location. Inner and outer pads may differ. Friction formulations balance cold response, high-temperature stability, noise, disc wear and dust; a matched axle set should not be mixed with unrelated pads on the opposite side.
ECE R90 or other applicable approval information supports road-use suitability for relevant replacement friction products, but application fitment and correct installation still need confirmation.
Critical fitment checks
| Check | Possible variation | Risk if wrong |
|---|---|---|
| Axle | Front or rear, sometimes different rear packages. | Completely different size and parking-brake arrangement. |
| Brake option | Standard, sport, heavy-duty or manufacturer code. | Wrong caliper, diameter or pad profile. |
| Disc dimensions | Diameter, thickness, height, centre bore and PCD. | Misalignment, interference or low thermal capacity. |
| Disc construction | Solid, vented, directional or hub-integrated. | Caliper mismatch and cooling error. |
| Caliper system | Different suppliers on the same model. | Pad ears and piston features do not match. |
| Wear monitoring | Electrical sensor, mechanical indicator or software estimate. | Warning remains or no physical connection. |
| Parking brake | Caliper-integrated, drum-in-hat or electronic actuator. | Unsafe piston retraction and incomplete service. |
Inspect before dismantling
Road-test only when the vehicle is safe. Record vibration, pull, noise, pedal feel and warning status. Through the wheel, note corrosion and leakage, but remove components for proper measurement. Compare inner and outer pad wear on both sides.
Check brake-fluid condition and level, flexible hoses, hard lines, caliper boots, sliders, wheel-bearing play and suspension joints. Vibration under braking can come from hub runout, bearing movement or suspension compliance rather than disc material alone.
Disc and pad condition
| Observation | Likely significance | Required response | Urgency |
|---|---|---|---|
| Below minimum disc thickness | Reduced heat capacity and mechanical margin. | Replace both discs on the axle. | Immediate. |
| Deep scoring | Debris, worn pad or damaged friction interface. | Find cause and renew affected friction parts. | High. |
| Blue spots or heat cracks | Local overheating or severe thermal cycling. | Check caliper drag and driving duty. | High to immediate. |
| Heavy inner-face corrosion | Low pad contact, seized slider or shielding/water issue. | Repair caliper movement and replace as required. | Prompt. |
| Tapered pad wear | Slider, piston, carrier or alignment fault. | Correct cause before fitting kit. | High. |
| Oil or grease on pad | Seal leak or careless servicing. | Stop source and replace contaminated friction material. | Immediate. |
| Friction material separating | Corrosion, heat or bond failure. | Do not drive; replace axle set and inspect system. | Immediate. |
Disc thickness, variation and runout
Measure thickness at the specified radius in several positions, avoiding the unworn outer lip. Compare with the disc’s marked or published minimum. Disc-thickness variation can create changing clamp force and pedal pulsation.
Lateral runout is measured with the disc correctly secured to a clean hub. Rust flakes, burrs and wheel-bearing play can produce false or genuine runout. Marking disc-to-hub orientation can help diagnosis, but maximum correction methods must follow vehicle information.
Hub preparation is fundamental
Remove loose corrosion and contamination from the hub mating face without removing sound metal or changing its geometry. Clean the disc centre bore and mounting face. A tiny raised particle near the centre can create significant runout at the outer friction radius.
Check hub flange runout and bearing condition when readings remain excessive. Do not use thick anti-seize or grease between hub and disc unless explicitly specified; uneven compound can affect seating and contaminate brakes.
Caliper piston and slider service
Before retracting a piston, check reservoir level and decide whether displaced fluid should be controlled according to the service procedure. Opening a bleed nipple changes contamination and bleeding considerations. Never clamp a hose with an unsuitable tool.
Clean and inspect slider pins, boots and bores. Use only the specified rubber-compatible lubricant in the stated quantity. A torn boot or corroded pin should be renewed, not hidden with grease.
Electronic parking-brake systems
Rear calipers with electric actuators commonly need diagnostic service mode before piston retraction. Forcing or winding the piston without the correct process can damage the gear and actuator. Some systems require final calibration, pad-thickness entry or parking-brake applications after assembly.
Maintain battery voltage with approved support where instructed and keep hands clear when actuators run. Record fault codes before clearing them.
Safe removal and installation sequence
| Stage | Good practice | Failure prevented |
|---|---|---|
| Vehicle support | Level surface, correct lift points and rated stands/lift. | Crush injury. |
| Dust control | Approved brake cleaner and controlled capture. | Airborne harmful dust. |
| Caliper support | Hang from a strong point without hose load. | Internal hose damage. |
| Hub cleaning | Leave flat, dry and free from raised corrosion. | Disc runout. |
| Disc handling | Keep friction faces clean; follow coating instructions. | Contamination and uneven bedding. |
| Pad installation | Correct inner/outer position, clips and sensor route. | Binding, noise and warning faults. |
| Fastening | Specified new bolts, sequence and torque. | Loose caliper or distorted disc. |
Lubrication boundaries
Apply approved lubricant only to identified sliding or contact points. Keep it completely off pad friction material, disc faces, wheel-bolt seats and any dry-specified thread. General copper compound can be unsuitable for modern brake hardware, rubber and electronic systems.
Do not coat the whole pad back automatically. Shims and damping layers are engineered parts; excess compound traps dirt and can reach the friction surface.
Brake fluid and bleeding
A friction kit does not automatically require opening the hydraulic circuit. If a hose, caliper or bleed nipple is opened, use the specified fluid and bleeding order, including diagnostic operation of ABS valves where required. Never mix specifications merely because fluids look similar.
Brake fluid absorbs moisture and attacks paint. Keep containers sealed, clean spills immediately and dispose of old fluid through an appropriate route. A pedal that remains soft after controlled setup must be diagnosed before the vehicle moves.
Bedding pads and discs
Bedding establishes conforming contact and an even transfer layer while managing initial heat. Follow the kit maker’s sequence, which may require moderate stops separated by cooling travel. Avoid holding a very hot brake applied in one place because it can imprint uneven material.
New brakes can feel different initially but should not grind, pull strongly or overheat. Recheck for leaks, unusual temperature and warning lamps after the first controlled drive.
Upgrades and operating limits
Drilled, grooved, coated or higher-friction parts are not automatic upgrades. They can alter noise, wear, temperature behaviour and legal approval. A larger disc requires a complete engineered package including caliper position, wheel clearance, hydraulic balance and electronic calibration.
Use only components suitable for the vehicle’s mass, performance and road approval. Braking modifications can affect insurance and should be documented.
UK MOT and roadworthiness
The MOT assesses brake performance, imbalance and applicable component condition, but a pass does not guarantee that discs will remain above minimum thickness until the next test. Cracked, contaminated, insecure or excessively worn parts require repair when found.
Brake friction components should be renewed in axle sets and installed by someone competent. Never road-test a vehicle until pedal pressure is established and the workshop braking check is satisfactory.
Practical brake pad and disc kit FAQs
Q: Does one kit normally cover both sides of an axle?
A: Usually it contains two discs and one axle set of pads, but confirm the stated contents.
Q: Can pads be replaced without discs?
A: Yes when discs remain within specification and condition, although the full system must be measured and assessed.
Q: Why are there several disc sizes for one registration?
A: Manufacturers fit different brake options by engine, trim, axle load, build date or equipment code.
Q: Must brake discs be replaced in pairs?
A: Yes, renew both sides of the axle to maintain consistent condition and response.
Q: What causes new brakes to vibrate?
A: Hub contamination, runout, bearing play, uneven transfer or assembly error can create vibration.
Q: Should new coated discs be cleaned?
A: Follow the disc maker’s instructions because coating types differ.
Q: Can old pad wear sensors be reused?
A: Only when the vehicle and sensor design permit it and the sensor is undamaged.
Q: Does an electronic parking brake need service mode?
A: Many systems do; use the exact vehicle procedure before retracting rear pistons.
Q: Where should brake grease be applied?
A: Only at the specified sliding/contact points, never on pad or disc friction surfaces.
Q: Why is one pad thinner than the others?
A: A seized slider, piston, carrier or alignment problem may be causing unequal pressure.
Q: Can a caliper hang from its brake hose?
A: No. Support it separately to avoid hidden hose damage.
Q: How long do new brakes take to bed in?
A: Follow the product procedure; time and distance vary with material, vehicle and driving conditions.
Q: Is a soft pedal normal after fitting?
A: Initial controlled applications seat the pads, but a pedal that stays soft requires immediate diagnosis.
