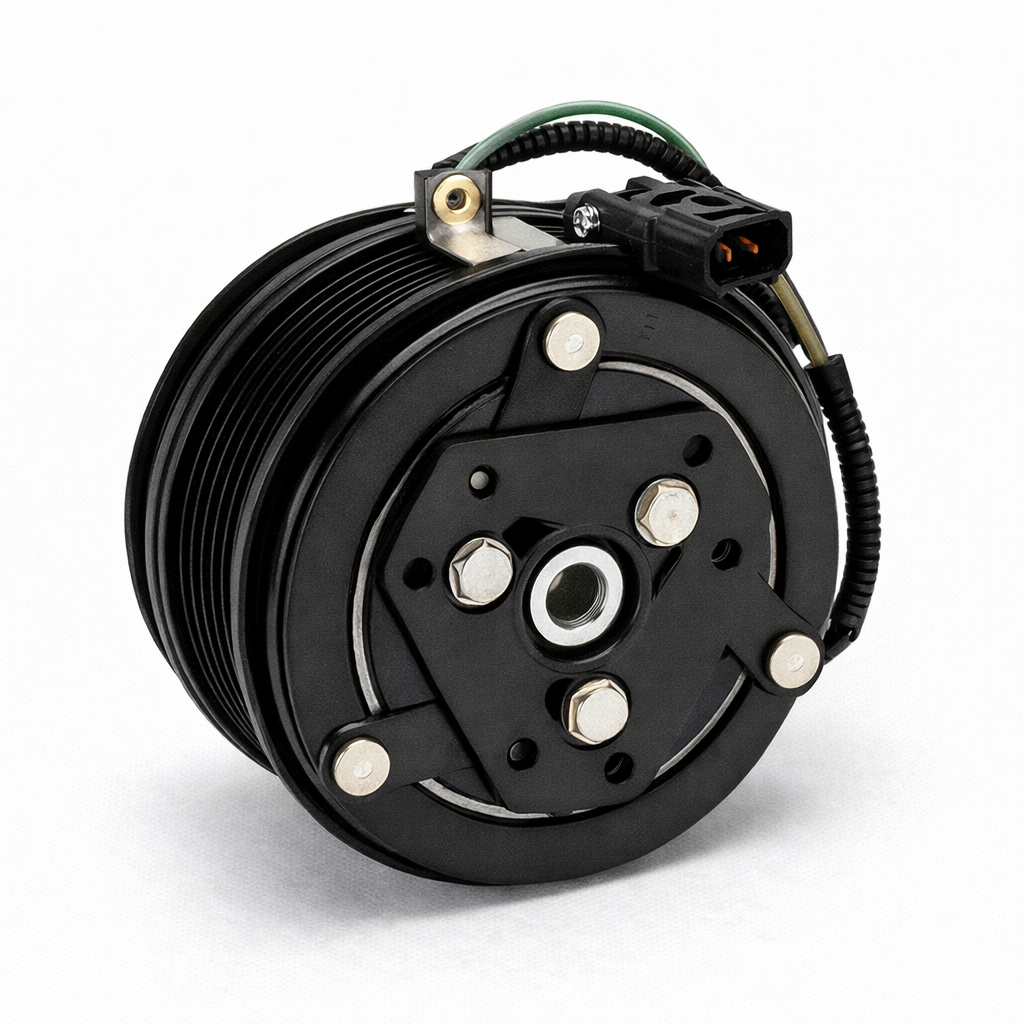

The clutch lets the belt pulley run independently
The auxiliary belt turns the compressor pulley whenever the engine runs. A bearing between pulley and compressor nose allows free rotation. The clutch armature is fixed to the compressor shaft and crosses a small air gap only when the stationary electromagnetic coil pulls it towards the rotating pulley.
Friction between armature and pulley then accelerates the compressor shaft. The joint must hold torque without continuous slip, yet release cleanly when command ends.
Engagement sequence
- The climate controller receives a cooling request.
- Pressure, temperature, engine-load and protection conditions are checked.
- A relay or electronic output supplies the clutch coil.
- The coil creates a magnetic field through the pulley and armature.
- The armature moves across the air gap and grips the pulley face.
- The hub drives the compressor shaft and refrigerant pressure changes.
- When current stops, spring action releases the armature.
Compressor drive arrangements
| Arrangement | How capacity is controlled | Clutch implication |
|---|---|---|
| Fixed-displacement clutch compressor | Clutch cycles to maintain evaporator conditions. | Engagement frequency and air gap are central. |
| Variable-displacement compressor with clutch | Clutch enables drive; internal valve varies stroke. | Cooling fault may be clutch or control-valve related. |
| Clutchless variable compressor | Shaft runs continuously; valve changes displacement. | No electromagnetic service clutch is fitted. |
| Overload decoupling pulley | Permanent drive includes a sacrificial torque link. | Broken link can leave pulley turning with shaft stopped. |
| Electric high-voltage compressor | Internal electric motor varies speed. | No belt clutch; high-voltage service rules apply. |
| Two-stage or specialised clutch | Application-specific pulley/coil mechanism. | Must match compressor and control calibration exactly. |
Clutch components
Armature plate and hub
The armature provides the friction face and attaches to the compressor shaft by spline, key or shaped interface. Flexible spring segments pull it away when current stops. Heat checking, distortion or worn splines require replacement.
Pulley and bearing
The pulley carries belt grooves and rotates continuously on a sealed bearing. Bearing roughness can create noise even with air conditioning off. A seized bearing can throw the auxiliary belt and affect charging, cooling or steering systems.
Electromagnetic coil
The fixed coil sits behind the pulley. Its resistance and turns create magnetic force at system voltage. Some coils include a thermal fuse or diode, making polarity and continuity interpretation application-specific.
Shims and air gap
Thin shims between shaft shoulder and hub establish released clearance. Too wide a gap prevents hot engagement; too narrow a gap causes drag and heat. Gap must be measured at several points because warped faces vary.
Snap rings and centre fastener
Snap rings locate pulley and coil against machined shoulders. Bevelled rings often have a specified direction. The centre fastener retains the hub but is not used to press it on against excessive resistance.
Fitment checks
| Check | Possible variation | Why it matters |
|---|---|---|
| Compressor reference | Manufacturer, family and nose revision. | Primary evidence for clutch geometry. |
| Pulley diameter | Drive ratio and belt path. | Changes compressor speed and belt alignment. |
| Groove count/profile | Rib number, pitch and offset. | Must match the auxiliary belt. |
| Hub interface | Spline, key, taper and shaft diameter. | Transmits torque without play. |
| Coil specification | Resistance, voltage, diode and connector. | Protects relay/controller and magnetic force. |
| Bearing | Inner/outer diameter and width. | Controls pulley support and alignment. |
| Kit contents | Complete clutch or separate hub, pulley and coil. | Prevents incomplete or mixed assemblies. |
| Serviceability | Approved separate repair or compressor-only supply. | Defines safe repair scope and tooling. |
Air gap and magnetic force
Magnetic attraction falls sharply as the gap increases. A worn friction face or misplaced shims can let a cold clutch engage but fail after heat expansion and coil-resistance change. Tapping the plate may make it engage momentarily, which supports a gap diagnosis but is not a repair.
Removing a shim to reduce gap is acceptable only within the compressor service procedure and where friction faces, springs and bearing remain serviceable. An excessively small gap causes continuous contact, polishing and heat. Measure with non-magnetic feeler gauges where specified and rotate the pulley to sample multiple positions.
Electrical control and interlocks
The controller may inhibit the clutch for low refrigerant pressure, excessive pressure, evaporator freeze risk, high coolant temperature, wide-open throttle, low battery voltage or engine faults. A missing voltage at the coil can therefore be a correct control decision.
Use scan data to compare AC request, clutch command, pressure and temperature inputs. Conventional systems may switch a relay, while some controllers drive the coil electronically. Do not bridge pressure switches or module outputs permanently; these are protection devices.
A coil can pass a basic resistance test yet develop an open circuit when hot. Measure current under command and check voltage drop across supply and earth paths. Diode-equipped coils show direction-dependent meter readings and can short if test polarity or replacement wiring is wrong.
Fault evidence
| Symptom | Possible clutch cause | Other checks |
|---|---|---|
| Pulley turns, hub stationary with command | No coil force, wide gap or broken hub. | Controller command, pressure interlock and voltage. |
| Engages cold, releases hot | Wide gap or heat-sensitive coil. | Supply voltage and compressor pressure/load. |
| Squeal/smoke on engagement | Clutch slip or compressor seizure. | Stop immediately; inspect belt and compressor shaft. |
| Noise with AC off | Pulley bearing or belt drive. | Idlers, tensioner, alternator and crank pulley. |
| Rapid clutch cycling | May overheat faces but often caused elsewhere. | Charge, pressure, freeze sensor and control logic. |
| Clutch never releases | Welded/dragging faces or continuous electrical command. | Relay contacts and control signal. |
| Centre hub does not rotate on clutchless unit | Failed overload link or compressor seizure. | Identify drive architecture before ordering. |
Diagnostic sequence
- Identify compressor type and whether a serviceable clutch exists.
- Record climate and engine faults, AC request and enabling inputs.
- Inspect belt, pulley alignment, friction faces and connector.
- With the engine safely off, check bearing feel and air gap.
- Under controlled operation, confirm clutch command and coil voltage.
- Measure current and voltage drop rather than relying on a click.
- Observe refrigerant pressures and cooling response after engagement.
- Check compressor shaft/load before fitting a new clutch.
- Find the cause of rapid cycling or excessive pressure.
Pulley-bearing diagnosis
A bearing can rumble continuously because the pulley turns whenever the belt moves. Removing the belt briefly for hand inspection is done only on a cool isolated engine and with belt routing recorded. Roughness, play, heat discolouration or grease leakage supports replacement.
Noise can travel through brackets, so compare tensioner, idlers, alternator, water pump and crank pulley. Running without the auxiliary belt may be permitted for only a few seconds on some engines and not at all on others if the water pump depends on it.
When clutch repair is unsuitable
Do not fit a clutch to a seized, rough or internally contaminated compressor. Heat from severe slip can damage the shaft seal and front bearing. A blue pulley, melted coil and burnt belt may be consequences of compressor overload rather than isolated clutch wear.
Complete compressor and system repair may be appropriate when shaft play, leakage, metal debris, abnormal torque, internal noise or non-serviceable design is present. Follow contamination guidance for condenser, receiver-drier, expansion device, flushing and oil balancing.
A clutchless compressor with a failed overload decoupler requires diagnosis of why torque rose. Replacing the link without addressing internal seizure can fail immediately.
Removal and installation
Isolate the vehicle and remove the belt according to its tensioner procedure. Some clutches can be serviced with the compressor installed and refrigerant circuit closed; others require compressor removal and therefore compliant refrigerant recovery.
Hold the hub with its dedicated tool and remove the centre fastener without loading the compressor internally. Record all shims. Use the correct puller on designated threads or slots—never lever against the coil or hammer the shaft.
Remove snap rings with eye protection and note bevel orientation. Support the pulley properly when pressing its bearing; force must not pass through bearing balls. Fit the coil locating pin and connector angle exactly, then seat every ring fully in a clean groove.
Setting and verifying air gap
Install the armature with the original starting shim stack and use the specified installer. Tightening the centre bolt must not substitute for a press tool if the hub binds. Torque the fastener while holding the hub, not the pulley belt.
Measure clearance around the circumference and adjust only with approved shims. Rotate by hand to confirm no contact. Refit the belt in every groove and check tensioner position and pulley alignment before starting.
Command engagement while observing safely. The plate should pull in cleanly without prolonged slip and release without drag. Verify refrigerant pressures, vent output and cycling strategy, because a repaired clutch does not establish that the rest of the AC system is healthy.
Common mistakes
- Ordering a clutch without the compressor manufacturer and reference.
- Assuming every rotating pulley hides an electromagnetic clutch.
- Condemning the clutch when pressure protection correctly inhibits it.
- Applying battery voltage to an electronically controlled output indiscriminately.
- Ignoring compressor seizure after a burnt or slipping clutch.
- Losing shims or setting the air gap at only one point.
- Hammering the hub onto the compressor shaft.
- Pressing pulley load through the bearing rolling elements.
- Installing snap rings backwards or incompletely seated.
- Running near exposed belts, fans and clutch faces.
UK environmental and safety requirements
If clutch work requires opening or removing a charged compressor, refrigerant must be recovered by competent personnel using compliant equipment. Deliberate venting is unacceptable. Refrigerant can cause cold burns, and R1234yf is mildly flammable.
Air-conditioning cooling itself is not generally a direct MOT item, but demisting, insecure components, belt damage and related warning conditions can affect safety. A seized pulley can throw a belt that also drives essential systems, so severe noise, smoke or overheating requires immediate shutdown.
Compressor clutch FAQs
Q: What does an AC compressor clutch do?
A: It connects the belt-driven pulley to the compressor shaft on command.
Q: Does every compressor have a clutch?
A: No. Many variable and electric compressors use other capacity controls.
Q: Why will the clutch not engage?
A: Check command, pressure interlocks, wiring, coil, air gap and compressor condition.
Q: Does 12 volts at the connector prove the clutch is good?
A: No. Current, earth drop, coil force and gap must also be assessed.
Q: Why does it engage only when cold?
A: A wide air gap or heat-sensitive coil is possible.
Q: Can the pulley bearing make noise with AC off?
A: Yes, because the pulley bearing rotates continuously with the belt.
Q: Can only the clutch be replaced?
A: Sometimes, if the compressor is sound and the design is serviceable.
Q: Must refrigerant be removed for clutch replacement?
A: Not if approved access keeps the compressor and circuit installed and closed.
Q: What sets the clutch air gap?
A: A specified stack of thin shims beneath the armature hub.
Q: Can a shim simply be removed to make it engage?
A: Only within the approved procedure after inspecting all clutch parts.
Q: Why did a new clutch burn?
A: Compressor seizure, excessive pressure, slip or incorrect gap may be responsible.
Q: Can the hub be hammered onto the shaft?
A: No. Use the specified puller and installer tools.
Q: Can clutch failure affect the MOT?
A: Indirectly through unsafe belt, demisting or component conditions.
