Exhaust temperature is both a control input and a protection limit
Combustion temperature changes with load, mixture, ignition or injection timing, boost and after-treatment operation. The exhaust stream carries that heat into the turbocharger and emissions system. Sensors allow the controller to estimate thermal state rather than relying only on a model.
The controller can reduce torque, enrich or adjust timing for component protection, and manage particulate-filter regeneration within a safe temperature window. A wrong reading can therefore affect both drivability and emissions.
How the measurement is used
- The probe reaches into the exhaust stream at a defined location.
- Its sensing element responds to gas and surrounding metal temperature.
- The sensor or controller converts that response into an electrical value.
- Software checks the value against other temperatures and operating state.
- Fuel, boost, ignition, EGR or regeneration control is adjusted.
- Protection strategies act if temperature approaches a calibrated limit.
- Diagnostic logic detects implausible, static or out-of-range behaviour.
Sensor technologies
| Technology | Operating principle | Diagnostic characteristic |
|---|---|---|
| Thermocouple | Dissimilar metals generate a small voltage related to temperature difference. | Polarity, low-level signal and reference-junction handling matter. |
| Platinum RTD | Element resistance rises predictably with temperature. | Resistance curve and lead compensation are application-specific. |
| NTC thermistor | Resistance generally falls as temperature rises. | Open and short values can appear as extreme temperatures. |
| PTC thermistor | Resistance rises with temperature. | Expected direction must be known before testing. |
| Integrated electronic sensor | Local electronics condition and transmit the signal. | Requires supply, earth and defined analogue/digital output. |
| Dual-function assembly | Temperature may share a housing or harness with another measurement. | Connector and controller strategy must match exactly. |
Locations in the exhaust system
Pre-turbocharger
A sensor in the exhaust manifold or turbine inlet monitors the highest engine-out thermal load. It helps protect the turbine, valves and catalyst but faces severe heat and vibration.
Post-turbo or pre-catalyst
This location observes temperature entering an oxidation or three-way catalyst. The drop across the turbine and heat generated by catalyst reactions influence the value.
Before and after a particulate filter
Paired sensors help manage regeneration and assess heat progression through the filter. Their values are interpreted with differential pressure, soot model, engine load and dosing strategy.
SCR and downstream locations
Selective-catalytic-reduction dosing and catalyst efficiency depend on an appropriate temperature window. Downstream sensors can also support plausibility and thermal monitoring.
Position numbering and fitment
| Check | Possible variation | Why it matters |
|---|---|---|
| Bank | Bank 1 or bank 2 on multi-bank engines. | Physically similar sensors may have different leads. |
| Position | Before turbo, before/after catalyst or DPF. | Temperature range and calibration differ. |
| Emissions standard | After-treatment layout and number of sensors. | One engine can change across model years. |
| Thread/probe | Diameter, pitch, reach and tip form. | Incorrect reach affects flow and can contact internals. |
| Electrical curve | Thermocouple, RTD, thermistor or smart output. | Wrong signal can look plausible but inaccurate. |
| Lead/connector | Length, key, terminal order and heat sleeve. | Routing and resistance are part of the design. |
| Part reference | Manufacturer supersession or position code. | More reliable than generic “sensor 1” wording. |
Temperature behaviour and plausibility
After an overnight cold soak, exhaust temperature sensors should usually be reasonably close to ambient and other cold sensors, allowing for location and controller resolution. A large offset before start suggests bias, wiring or reference faults. Exact agreement is not required.
During warm-up, upstream values usually respond first and most quickly. Under load, pre-turbo or engine-out temperature can rise sharply. During active filter regeneration, selected locations rise according to the dosing and catalyst sequence. A flat signal, impossible jump or sensor that lags its neighbours abnormally is useful evidence.
Temperature depends on gas flow as well as heat, so an idling sensor can cool even while nearby metal remains hot. Compare against known operating conditions rather than applying a universal figure. Manufacturer limits and waveform/data examples are authoritative.
Regeneration and after-treatment control
A particulate filter accumulates soot that must be oxidised. Passive regeneration occurs when normal exhaust conditions are suitable; active regeneration changes engine operation or adds fuel to raise temperature. Sensors help the controller reach an effective range without overheating the substrate.
A faulty reading may inhibit regeneration, causing soot loading to rise, or command unnecessary thermal events. Replacing a sensor does not automatically make an overloaded filter safe to regenerate. Check calculated soot, measured pressure, ash history, oil dilution and any faults that caused incomplete regenerations.
Forced regeneration can create extreme exhaust and floor temperatures. It belongs in a controlled area with clearance from flammable materials, suitable ventilation and diagnostic supervision. Do not perform it merely to extinguish a warning.

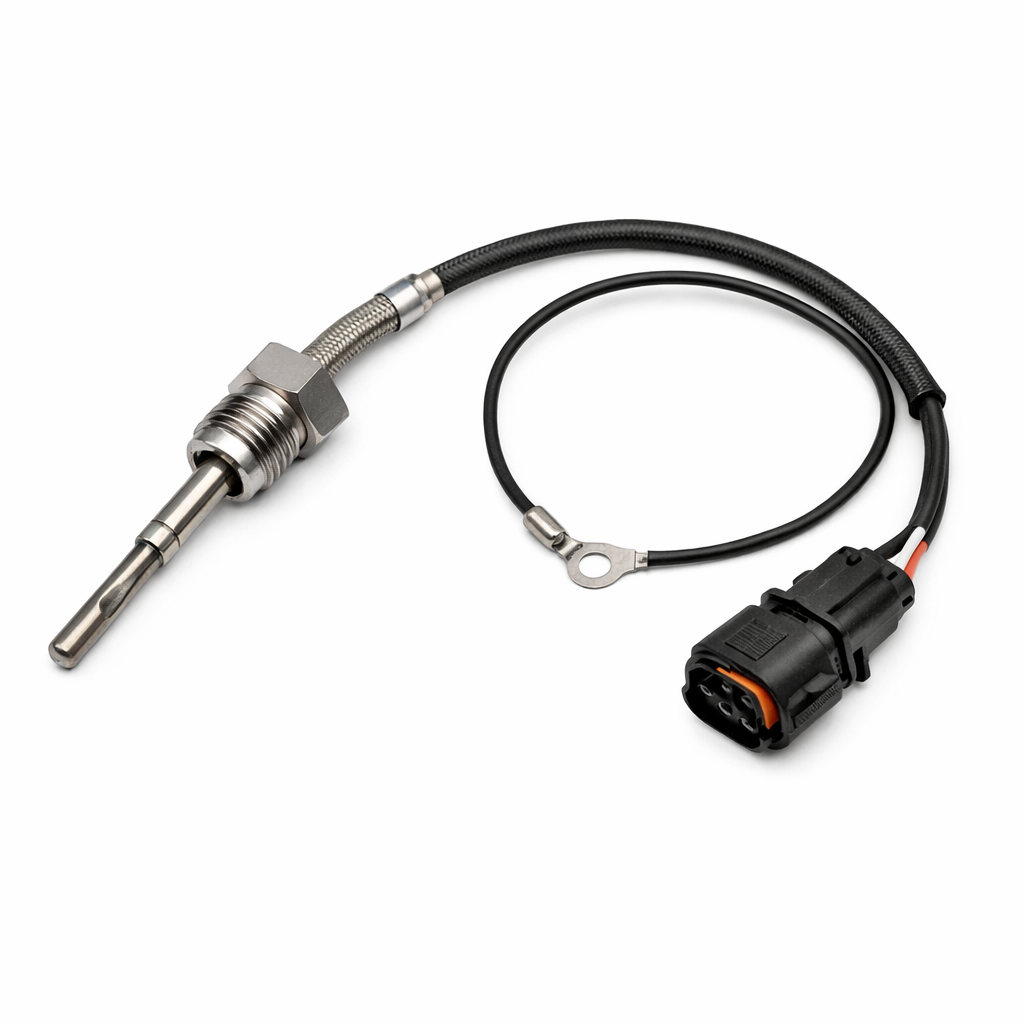

Sensor construction and thermal limits
The probe uses heat-resistant alloy and ceramic or mineral insulation to protect fine conductors. A welded or swaged body seals the element from exhaust gas. The cable transitions to lower-temperature insulation away from the pipe and often includes braided shielding or formed supports.
Excessive bending near the probe can fracture internal wires. Pulling the connector by the cable damages the strain relief. Missing heat shields and clips let the lead touch exhaust, driveshaft or underbody edges. A universal sensor requiring wire splicing may change resistance, polarity, shielding and sealing and should be used only where explicitly approved.
Diagnostic evidence
| Evidence | What it can reveal | Limitation |
|---|---|---|
| Cold-soak comparison | Large bias against ambient and peer sensors. | Allows normal sensor and location tolerance. |
| Live-data response | Rate, direction and range during controlled operation. | Scan data can be substituted or filtered in fail-safe. |
| Resistance test | Open/short and curve on suitable passive types. | Not valid for every powered or thermocouple sensor. |
| Voltage/signal test | Supply, earth and output for the defined design. | Needs correct high-impedance tools and diagram. |
| Harness voltage drop | Connector and wire resistance under relevant load. | Low-current signal circuits need careful technique. |
| Exhaust temperature measurement | Independent trend at accessible surfaces. | Surface and gas temperatures are not identical. |
| Related sensor comparison | Thermal progression across catalysts and filter. | Real reactions can legitimately raise downstream heat. |
Fault symptoms and causes
| Symptom/code family | Possible cause | Priority check |
|---|---|---|
| Open-circuit/extreme low value | Broken element, connector or harness. | Test end to end without damaging terminals. |
| Short/extreme high value | Shorted wiring, element or reference circuit. | Compare unplugged circuit behaviour to diagram. |
| Range/performance fault | Biased or slow sensor, genuine thermal issue. | Cold comparison and controlled temperature trend. |
| Temperature too high | Overfuelling, late combustion, regeneration or restriction. | Verify independently before blaming the sensor. |
| Regeneration inhibited | Temperature signal or another emissions fault. | Review all prerequisites and filter loading. |
| Reduced power | Controller protection for actual or reported heat. | Do not continue high-load driving. |
| Repeat sensor failure | Harness heat, wrong part, exhaust leak or true overtemperature. | Find the underlying thermal/electrical cause. |
A disciplined diagnostic sequence
- Record all codes, freeze-frame data and regeneration status.
- Identify the exact sensor bank and position from current diagrams.
- After cold soak, compare temperature values with ambient and peers.
- Inspect probe, exhaust leaks, connector, shielding and cable routing.
- Test the sensor according to its actual technology.
- Check wiring to the controller and shared reference circuits.
- Observe temperature response during safe controlled operation.
- Assess DPF load, differential pressure, fuelling and turbo condition.
- Correct genuine high-temperature causes before clearing protection faults.
Exhaust leaks and false interpretation
A leak upstream can introduce oxygen, alter flow and cool the local gas stream, while also affecting oxygen-sensor and turbocharger behaviour. Soot tracks around a sensor boss or flange provide evidence. Repair leaks and damaged threads before judging temperature plausibility.
A sensor not fully seated can expose the wrong length of probe or leak at its thread. An excessively protruding replacement may change response or be struck by internal flow structures. Match reach and seating face exactly.
Safe removal
Allow the exhaust to cool fully and support the vehicle on rated equipment. Sensors can seize through heat cycling and corrosion. Clean exposed threads, apply suitable penetrant while cold and use the correct deep socket or slotted sensor tool that supports the hex.
Control force to avoid twisting a thin pipe, catalyst shell or welded boss. Heat may be an approved workshop method on a removed or safely prepared component, but fuel, underbody coatings and nearby wiring create fire risks. If the boss begins to tear, stop and plan a thread or exhaust repair.
Disconnect the lead first so it does not wind into a tight coil. Never use the cable to turn the sensor. A cut cable can permit a closed socket only when the old sensor is definitely being discarded and the correct service method supports it.
Installation and verification
Compare thread, seat, probe reach, connector, lead and heat protection. Some new sensors have a pre-coated thread; adding anti-seize changes torque and can contaminate the element. Use compound only if specified, in the stated location and amount.
Start the sensor by hand, seat it squarely and torque to current data. Route the lead through every original clip with slack for movement but no contact with exhaust, steering or driveshafts. Refit heat shields before powering the vehicle.
Clear codes after preserving evidence, monitor cold and warm values and confirm no exhaust leak. Check whether regeneration remains inhibited and carry out only the approved recovery procedure after filter condition is established.
Common mistakes
- Replacing the sensor number named by a generic code reader without locating it.
- Assuming every two-wire sensor uses the same resistance curve.
- Testing a thermocouple or smart sensor as a simple thermistor.
- Ignoring genuine overtemperature from fuelling or exhaust restriction.
- Forcing a seized probe until the welded boss tears out.
- Using universal splices in a heat-exposed low-level signal lead.
- Coating a pre-treated sensor heavily with anti-seize.
- Leaving the lead outside its heat clips and shields.
- Starting forced regeneration before checking filter loading and oil dilution.
- Clearing codes without confirming temperature plausibility.
UK MOT, emissions and safety implications
An exhaust-temperature sensor supports emissions control and component protection. A malfunction indicator, emissions fault, excessive smoke or modified/missing after-treatment can affect MOT assessment under current requirements. Removing or coding out the sensor is not a legitimate repair.
Exhaust and regeneration temperatures can ignite dry vegetation, spilled fluids and workshop materials. Do not park or regenerate over combustible surfaces. If the vehicle enters reduced-power mode or reports excessive exhaust temperature, avoid heavy load and arrange diagnosis.
Exhaust-gas temperature sensor FAQs
Q: What does an exhaust-temperature sensor do?
A: It reports exhaust heat for emissions control and component protection.
Q: How many sensors can a vehicle have?
A: Several may monitor locations around the turbo, catalysts and particulate filter.
Q: Does a temperature-sensor code prove the sensor failed?
A: No. Wiring, exhaust leaks and genuine thermal faults can set it.
Q: Are sensor 1 positions universal?
A: No. Confirm bank and physical location from vehicle-specific information.
Q: Can a bad sensor stop DPF regeneration?
A: Yes, because the controller may not be able to manage safe temperature.
Q: Can a sensor show a plausible but wrong value?
A: Yes. Bias and slow response require comparison testing.
Q: Should all cold sensors read exactly the same?
A: Not exactly, but a large unexplained difference is suspicious.
Q: Can resistance be measured on every sensor?
A: No. Identify the technology and approved test first.
Q: Should anti-seize be put on the thread?
A: Only where the sensor or vehicle instructions explicitly allow it.
Q: Can a seized sensor be forced out?
A: Excess force can destroy the boss or exhaust housing; use controlled methods.
Q: Can the wiring be repaired with a generic connector?
A: Use only an approved heat-resistant, electrically suitable repair.
Q: Is forced regeneration always needed after replacement?
A: No. First assess soot load, faults and manufacturer procedure.
Q: Can the fault affect the MOT?
A: Yes through warning-lamp, emissions or after-treatment outcomes.
