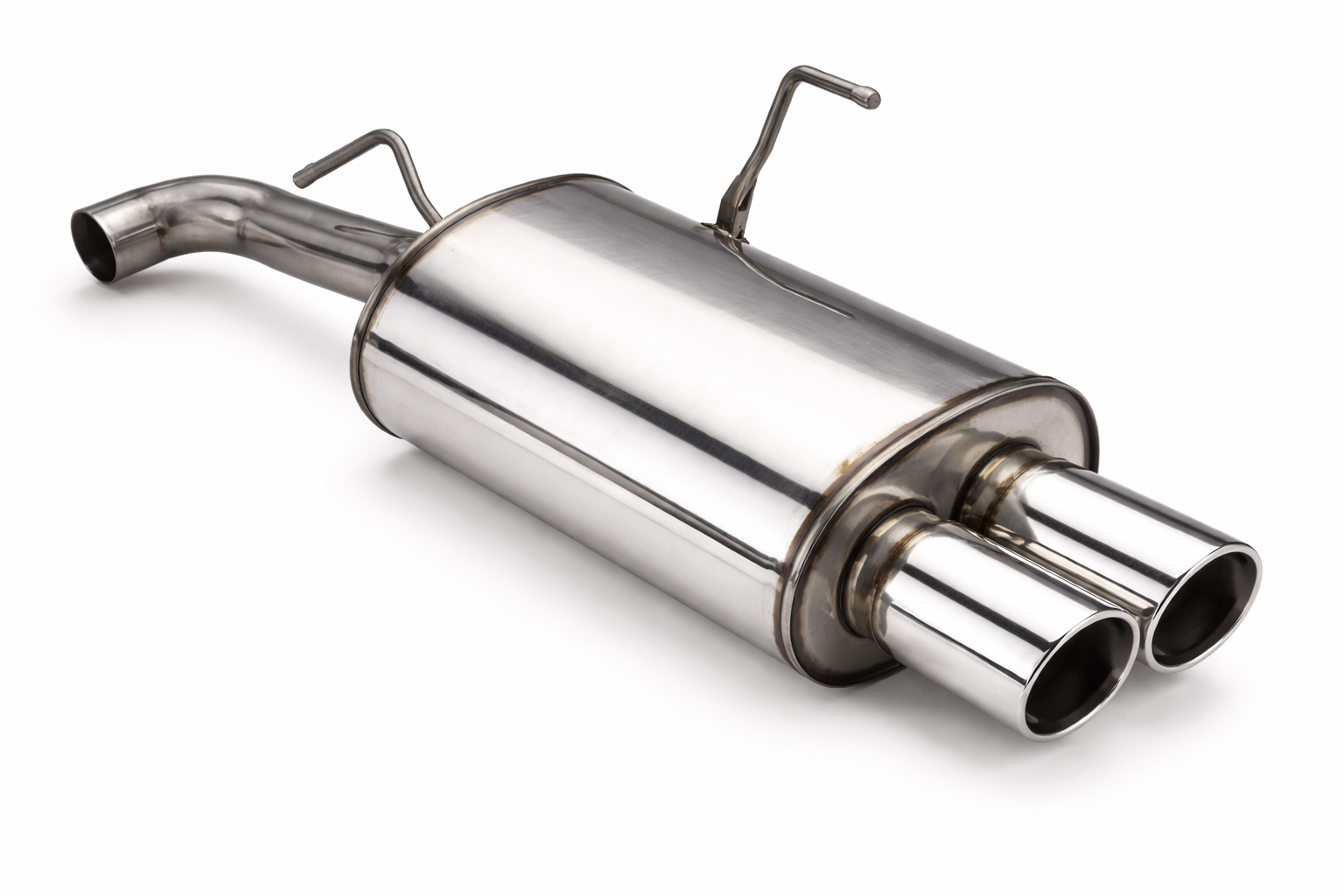

How a rear silencer controls exhaust noise
Each exhaust-valve opening releases a pressure pulse into the pipe. Without attenuation, those pulses emerge as harsh sound across a wide frequency range. A silencer reflects, combines and absorbs selected pressure waves so their acoustic energy is reduced before the tailpipe.
The design must work across idle, cruise and full engine load without creating excessive restriction. Its volume, tube lengths and chamber connections are tuned for a particular engine and exhaust layout.
Internal silencer technologies
| Feature | Acoustic action | Possible fault |
|---|---|---|
| Expansion chamber | Allows gas expansion and reflects pressure waves. | Internal partitions can crack or detach. |
| Perforated tube | Couples gas pulses into surrounding volume or packing. | Corrosion changes flow and sound. |
| Resonator passage | Targets a narrow frequency by phase cancellation. | Wrong replacement dimensions cause drone. |
| Absorption packing | Converts high-frequency sound into heat. | Material can settle, burn or escape. |
| Baffle | Redirects flow and divides chambers. | Loose baffle creates a metallic rattle. |
| Double casing | Reduces shell radiation and manages heat. | Outer corrosion may hide inner integrity or vice versa. |
Reactive and absorptive designs
Reactive attenuation
Chambers and tuned passages reflect waves so peaks and troughs partially cancel. This controls low-frequency booming efficiently but depends strongly on exact geometry.
Absorptive attenuation
A straight or gently routed perforated core is surrounded by heat-resistant fibre. It can support lower flow restriction while absorbing higher frequencies, but packing quality and retention matter.
Combined systems
Road-car silencers often combine both approaches to meet exterior-noise limits and cabin refinement targets across a broad speed range. “Straight-through” appearance does not reveal the full acoustic design.
Backpressure and engine operation
An engine does not need arbitrary backpressure; it needs an exhaust whose pressure-wave and flow behaviour matches its design. A collapsed baffle or blocked silencer can raise pressure, reduce power and increase exhaust temperature. An oversized empty box may create objectionable noise or lose beneficial pulse tuning without producing useful power.
Turbocharged engines are sensitive to restriction downstream of the turbine, while naturally aspirated systems use pipe velocity and wave timing. Treat the rear silencer as part of a complete calibrated system.
Exact fitment checks
| Check | Possible variation | Why it matters |
|---|---|---|
| Engine/output | Pipe bore and internal tuning. | Body style alone cannot select acoustic specification. |
| Body/wheelbase | Pipe length, casing space and tailpipe position. | Short and long chassis layouts differ. |
| Inlet joint | Flange, sleeve, socket or welded pipe. | Controls sealing and installation parts. |
| Hanger layout | Rod count, position and direction. | Supports weight without body contact. |
| Tailpipe | Single/twin, bumper exit and trim shape. | Must clear body and heat-sensitive parts. |
| Emissions system | Catalyst, GPF or DPF configuration. | Temperature and flow requirements vary. |
| Build date | Revised joint or mounting. | Observe production breaks. |
| Approval | Standard replacement or modified sound level. | Road legality and insurance may be affected. |
Condensation and corrosion
Combustion creates water vapour. During short journeys the rear box may not become hot enough to evaporate condensate, so acidic water collects at seams and low points. Corrosion can begin inside while paint still looks acceptable outside.
Drain holes are intentional on some designs and must not be blocked; drilling an unapproved hole changes corrosion protection and can create a leak. Road salt attacks the exterior, especially welds, clamps and hanger roots.
Materials and service life
Aluminised steel uses a protective coating over structural steel and offers economical corrosion resistance. Stainless grades can improve durability but vary widely in composition, welding and magnetic behaviour. A stainless outer shell does not guarantee stainless internal baffles.
Service life depends on journey length, salt exposure, fuel mixture, mounting stress and drainage more than material label alone. Repair rich running or oil burning that overheats and contaminates the system.
Fault patterns
| Symptom | Possible silencer fault | Other checks |
|---|---|---|
| Deep rumble | Perforated casing, seam or inlet neck. | Upstream joints and flex section. |
| Metal rattle | Loose baffle or broken hanger. | Heat shields, catalyst and stored objects. |
| Drone at one speed | Wrong acoustic specification or internal damage. | Mounting preload and exhaust modification. |
| Loss of power | Collapsed or blocked internal passage. | Catalyst/DPF restriction and engine controls. |
| Fumes near rear cabin | Leak or tailpipe misposition. | Tailgate seals and upstream system. |
| Box knocks body | Wrong hangers, alignment or mount stretch. | Engine mounts and impact damage. |
| Water drips | Normal condensate or perforation depending location. | Identify designed drain and corrosion. |
Inspecting a cold exhaust
Start with the system fully cold. Support it and examine casing seams, inlet neck, outlet, hanger welds, clamps and adjacent shields. Soot around a joint indicates leakage. Shake only by safe hand pressure to locate detached internals or excessive mount movement.
During a controlled running check, keep the area ventilated and avoid rotating parts. A smoke or low-pressure leak test must remain within exhaust-system limits. Never block the tailpipe for a prolonged period.
Hangers, rubber mounts and alignment
The rear silencer is heavy and expands as it heats. Rubber mounts isolate vibration while allowing length change. A stretched mount lets the tailpipe sag; a wrongly positioned rigid hanger transmits noise and can fatigue the inlet neck.
Align the complete exhaust before final tightening. Joints should not be pulled together by clamps or forced sideways to meet hangers. Check clearance around bumper, suspension, brake hoses, fuel tank and heat shields.
Joint types and sealing
Flanges may use a flat gasket, fire ring or spherical seal. Sleeve joints depend on overlap, round pipes and the specified clamp. Exhaust paste is only suitable where the procedure permits it and must not enter sensors or internal passages.
Old U-bolts crush pipe and make future separation difficult. Use the approved clamp design and torque. Replace corroded studs rather than relying on one fastener to distort a flange closed.
Removal and installation
- Let the exhaust cool completely and support the vehicle securely.
- Inspect the complete system and confirm the rear box is the noise source.
- Support the silencer at its centre of mass before releasing joints.
- Remove clamps or flange hardware without twisting upstream components.
- Release rubber mounts with an approved lubricant and tool where specified.
- Compare pipe bore, length, casing, hangers, joints and tailpipe.
- Renew gaskets, clamps, badly stretched mounts and single-use hardware.
- Assemble joints loosely and place every hanger in its neutral position.
- Align tailpipe and provide clearance throughout suspension movement.
- Tighten from the defined datum through the specified sequence.
- Run in ventilation, check leaks and listen for contact as the system warms.
- Recheck joint security and alignment after a heat cycle if instructed.
Common mistakes
- Selecting by tailpipe style while ignoring engine and chassis length.
- Replacing a rear box when the leak is at an upstream flex or flange.
- Suspending the silencer from one old stretched rubber mount.
- Forcing misaligned pipes together with a clamp.
- Applying excess paste that blocks passages or contaminates components.
- Welding near the fuel tank or electronics without a controlled procedure.
- Checking clearance only when cold.
- Working under a vehicle supported solely by its jack.
Repairs and modifications
A temporary external bandage cannot restore a split structural seam, detached baffle or corroded hanger neck. Any welded repair needs sound surrounding metal, correct material practice and safe removal from fuel and electrical hazards.
Sports silencers can change exterior noise, cabin drone, insurance status and approval. Retain emissions equipment and ensure the complete vehicle remains within UK construction, use and noise requirements.
UK MOT and safety relevance
The exhaust must be secure, not leak excessively and not produce clearly unreasonable noise. A seriously deteriorated, insecure or excessively noisy silencer can cause an MOT failure. Sharp projections and fumes entering the cabin are immediate safety concerns.
Carbon monoxide is colourless and can be fatal. Stop using a vehicle if occupants experience exhaust smell, headache or dizziness, ventilate and obtain urgent inspection.
Practical rear-silencer FAQs
Q: What does a rear exhaust silencer do?
A: It attenuates combustion pressure pulses and positions the final tailpipe.
Q: Is a silencer the same as a muffler?
A: Yes; “silencer” is the usual UK term.
Q: Why is water dripping from the exhaust?
A: Condensation can be normal, but leakage through corrosion needs inspection.
Q: Can a blocked silencer reduce power?
A: Yes, a collapsed internal passage can create excessive backpressure.
Q: Why does the exhaust rattle?
A: Check internal baffles, hangers, shields and body clearance.
Q: Can I repair a hole with exhaust paste?
A: Paste may seal approved joints, not restore a structurally corroded casing.
Q: Must rubber mounts be renewed?
A: Replace mounts that are cracked, stretched, hardened or oil-contaminated.
Q: Does a stainless silencer last forever?
A: No. Grade, welds, internals, salt and operating conditions still affect life.
Q: Will a sports silencer add power?
A: Not necessarily; the complete exhaust and engine calibration determine performance.
Q: Why does the new tailpipe touch the bumper?
A: Check application, hanger geometry, joint overlap and system alignment.
Q: Is exhaust noise dangerous?
A: It can signal a leak that also releases toxic fumes.
Q: Should clamps and gaskets be replaced?
A: Use new sealing and fastening parts wherever the fitting procedure specifies them.
Q: Can a bad rear silencer fail the MOT?
A: Yes, if insecure, excessively leaking, seriously deteriorated or unreasonably noisy.
