How coolant volume changes with temperature

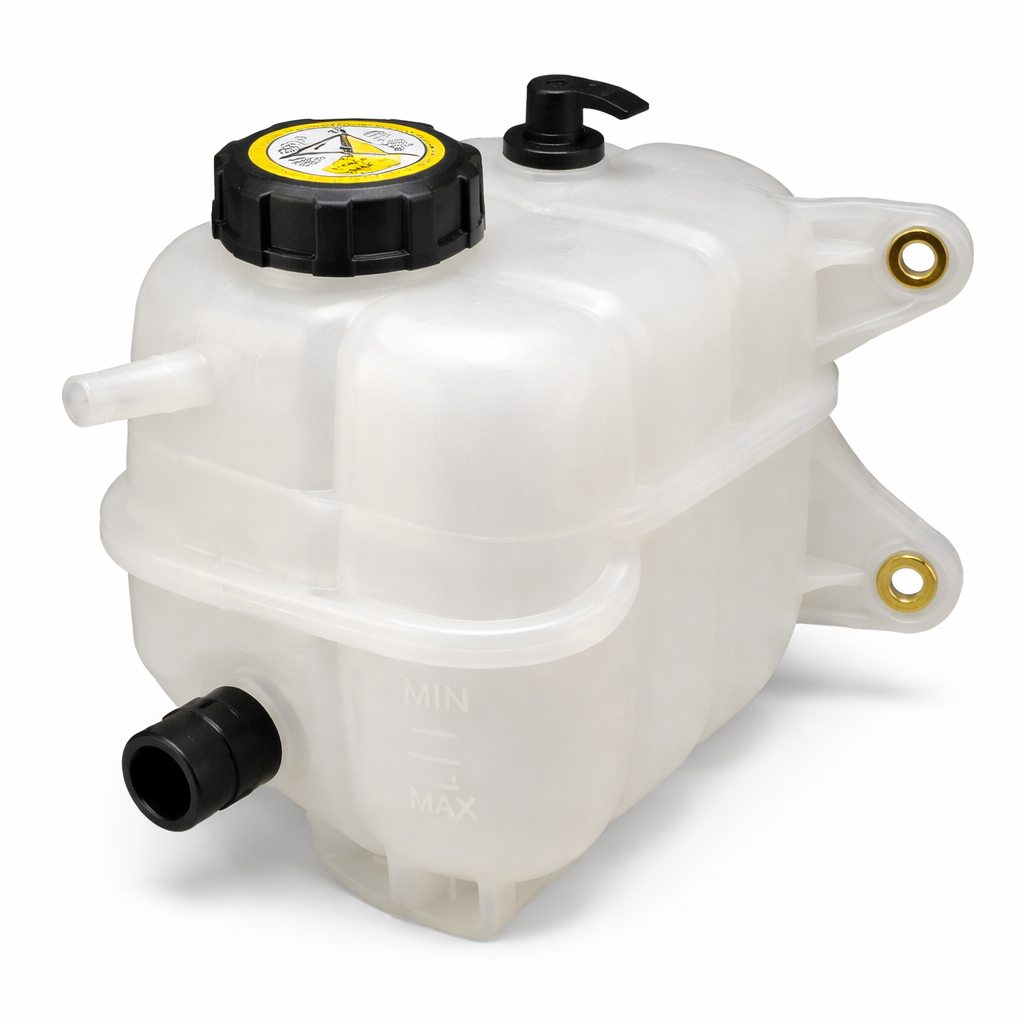

Coolant expands as it warms. A completely liquid-filled rigid system would generate destructive pressure, so the expansion tank contains a controlled air or vapour space above the cold level.
As coolant cools and contracts, it returns from the tank or draws back from an overflow bottle. Correct cold level preserves both expansion space and pump supply.
Pressurised and overflow tank designs
| Design | How it works | Service point |
|---|---|---|
| Pressurised expansion/degas tank | Forms part of circulating sealed system and carries pressure cap. | Tank, cap, hoses and seams see full system pressure. |
| Unpressurised overflow bottle | Receives coolant past radiator-cap valve and returns it on cooldown. | Radiator cap controls pressure; bottle cap is not equivalent. |
| Header tank | High fill point feeding pump inlet and collecting air. | Internal standpipes and height are important. |
| Multi-circuit reservoir | Separate chambers serve engine, charge-air or hybrid loops. | Do not cross-connect or mix coolant specifications. |
| Remote translucent tank | Level visible without opening hot circuit. | Use moulded cold marks on level ground. |
Degassing and bleed flow
Small return lines
Bleed hoses carry air and a continuous small coolant stream from high points into the tank. A blocked nipple can trap air and cause hot spots.
Internal standpipes
Moulded passages direct incoming bubbles above liquid or supply coolant below the surface. A lookalike tank without the correct internal route can perform poorly.
Tank height
Positioning the tank high in the circuit encourages air to migrate upward. Incorrect brackets or hose routing can compromise bleeding.
Pressure cap operation
System pressure raises coolant boiling point. The cap contains a calibrated pressure valve that vents at a defined limit, plus a vacuum valve that admits return flow or air as the system cools depending on design.
A cap rated too high can overstress hoses, radiator, heater core and tank. One rated too low can vent coolant early. Match pressure, sealing depth and neck profile exactly.
Exact fitment checks
| Check | Possible variation | Why it matters |
|---|---|---|
| Cooling circuit | Engine, hybrid, charge cooler or auxiliary heater. | Pressure and fluid can differ. |
| Tank shape/capacity | Body and equipment packaging. | Provides designed expansion volume. |
| Hose ports | Diameter, angle, bead and internal pipe. | Controls sealing, routing and degassing. |
| Cap neck | Thread/bayonet, depth and pressure rating. | Incorrect cap cannot regulate safely. |
| Level sensor | Float, reed switch or conductive probes. | Signal and connector must match. |
| Mounting | Tabs, rubber bushes and bracket position. | Prevents vibration cracks and maintains height. |
| Build date | Revised plastic, cap or return routing. | Follow production breaks. |
| Included parts | Cap, sensor, grommet, bracket or none. | Clarifies transfer and renewal needs. |
Plastic ageing and failure
Heat, oxygen, pressure cycles and coolant chemistry age moulded plastic. It can become yellow, opaque and brittle. Cracks often start at hose necks, welded seams, mounting tabs or the cap thread.
Polishing or bonding a pressurised crack is not a dependable repair. Replace a tank whose structure or sealing neck is damaged and correct any overpressure cause.
Level sensors
A float may carry a magnet past a reed switch; other designs use conductive probes or an external sensor. Sludge can trap a float, while old coolant deposits bridge probes.
Confirm actual cold level before electrical diagnosis. Test connector, wiring and scan data. Some sensors are separately replaceable with a new seal; others are moulded into the tank.
Correct coolant level
Check on level ground at the temperature stated, usually fully cold. The maximum line is not a target when hot. Overfilling removes expansion space and can force coolant past the cap.
A stable level may sit between marks after proper bleeding. Mark and monitor unexplained loss rather than repeatedly topping to the brim.
Fault patterns
| Observation | Possible tank/cap cause | Other checks |
|---|---|---|
| Dried coolant at seam | Hairline crack opens hot. | Pressure-test at specified pressure. |
| Wet around cap | Damaged neck, seal or wrong pressure cap. | Overheating and combustion pressure. |
| Tank collapses on cooling | Vacuum valve or return path blocked. | Hose routing and cap design. |
| Continuous bubbles | Degassing flow or combustion gas. | Differentiate normal return from gas leakage. |
| Low-level warning with correct level | Stuck sensor or circuit fault. | Connector, float and instrument logic. |
| No cabin heat/gurgling | Low level or trapped air. | Leak source, pump and bleeding. |
| Hose neck breaks | Brittle plastic or removal force. | Retrieve debris and replace aged hoses. |
Pressure testing
Fit a cooling-system tester with the exact adapter and apply only the specified pressure to a cold system. Inspect tank seams, necks, hoses, radiator, pump and heater circuit. Pressure that falls without an external leak may enter engine or cabin.
Test the cap separately for opening pressure and vacuum function where equipment permits. Do not compensate for a weak cap by fitting a higher rating.
Finding hot-only and intermittent leaks
A fine seam crack can remain dry when cold and open only as plastic expands. Look for crystalline coolant tracks below the seam, cap neck and lower hose ports. UV dye may help when it is approved for the exact coolant and used at the specified concentration.
After a controlled heat cycle, inspect from a safe distance without reaching into fans or belts. Cooling fans can start unexpectedly after shutdown. A mirror or camera can view the rear face; never place hands beside a hot pressurised tank to feel for moisture.
Combustion gas and overpressure
A head-gasket, cracked head or block fault can drive combustion gas into coolant, rapidly hardening hoses and expelling liquid. Continuous bubbles are not diagnosed from appearance alone because bleed return normally moves fluid.
Use chemical gas testing, pressure behaviour, cylinder leakage and engine-specific evidence. A new tank will fail again if abnormal pressure remains.
Removal and installation
- Let the engine cool fully and verify no residual pressure.
- Record cold level, leak evidence and hose routing.
- Drain enough coolant into a clean compatible container.
- Disconnect the level sensor and release harness clips.
- Use proper hose tools without levering against plastic necks.
- Remove mountings while supporting the tank.
- Inspect cap, hoses, clamps, brackets and coolant contamination.
- Compare capacity, ports, internal pipes, sensor and cap neck.
- Transfer only serviceable sensor/cap parts with new seals where specified.
- Install without hose strain and tighten plastic mountings lightly to torque.
- Refill with approved coolant and bleed by the exact method.
- Pressure-test, heat-cycle, cool and recheck level and leaks.
Coolant specification and cleanliness
Use the manufacturer approval, not colour. Incorrect inhibitor chemistry can attack metals and seals or form deposits that obscure the tank and trap sensors. Mix with the specified water quality and concentration.
Keep dirt from open hoses. If oil, rust or sealant contaminates the tank, investigate the source and clean the full circuit rather than transferring residue.
Common mistakes
- Opening the cap on a hot pressurised system.
- Fitting a cap by diameter while ignoring pressure and sealing depth.
- Overfilling above the cold maximum mark.
- Levering a stuck hose against a brittle neck.
- Using general glue on a pressurised crack.
- Swapping bleed and return hoses on a lookalike tank.
- Clearing a low-level warning without checking real coolant loss.
- Replacing the tank while ignoring combustion overpressure.
Hybrid and multi-loop systems
A hybrid may have separate engine, inverter, battery or charge-air cooling circuits. Their reservoirs can sit near high-voltage components and use different fluids or filling equipment.
Never cross-fill loops. Follow high-voltage isolation and electrically driven pump bleeding procedures, using diagnostic commands where required.
UK MOT and safety relevance
Coolant leakage and insecure components can affect roadworthiness, while loss can cause overheating, steam and impaired demisting. The expansion tank itself is not normally a standalone MOT item.
Coolant is poisonous to people and animals. Clean spills and dispose of used fluid through authorised routes. An MOT pass does not verify pressure-cap calibration.
Practical expansion-tank FAQs
Q: What does a coolant expansion tank do?
A: It accepts thermal expansion and often separates air from circulating coolant.
Q: Is it the same as an overflow bottle?
A: Not always; many expansion tanks are pressurised while overflow bottles are not.
Q: When should coolant level be checked?
A: At the specified temperature, usually fully cold on level ground.
Q: Can I open the cap when hot?
A: No. Pressurised coolant and steam can cause severe burns.
Q: Does cap pressure matter?
A: Yes. Use the exact opening pressure and neck design.
Q: Why is coolant bubbling in the tank?
A: Normal bleed flow, trapped air, boiling or combustion gas are possibilities.
Q: Can a cracked tank be glued?
A: A pressurised aged tank normally requires replacement, not adhesive patching.
Q: Why does the low-level warning stay on?
A: Check actual level, float/sensor, connector and wiring.
Q: Should the cap be replaced with the tank?
A: Test or renew it according to the application and kit contents.
Q: Why does a new tank leak?
A: Check hose strain, seals, cap, overpressure and exact port configuration.
Q: Can the tank be overfilled?
A: Yes, removing air space can force coolant out as it warms.
Q: Which coolant belongs in it?
A: Use the exact approved chemistry and mixture for that circuit.
Q: Can an expansion-tank fault affect the MOT?
A: Indirectly through leakage, overheating or insecure cooling components.
