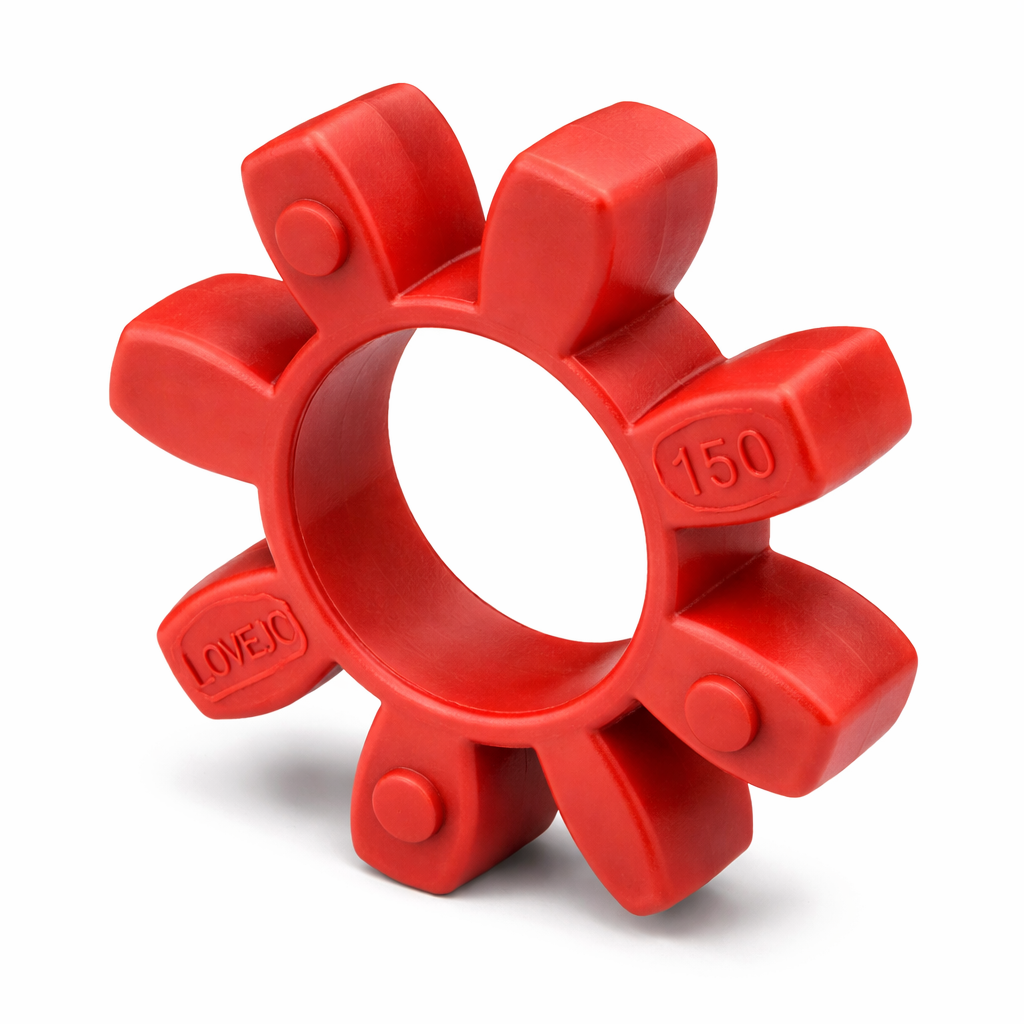

A coupling sleeve carries torque while controlling disturbance
Two hubs are fitted to separate shafts. The elastomeric sleeve engages both hub profiles, creating a resilient torque path between the driving and driven machines. Its deformation can absorb a short torque pulse and attenuate some vibration that a rigid connection would transmit directly.
Flexibility is finite. A sleeve is not a remedy for grossly misplaced shafts, failed bearings or a driven unit that is beginning to seize.
This is an auxiliary-drive coupling component
Sleeve-style couplings may connect an engine or motor to an accessory such as a pump, compressor or fan where the original equipment uses that coupling family. The present category should not be interpreted as a catalogue of propshaft joints, rubber driveshaft discs or wheel-end CV components.
Selection starts with identification of the complete machine and coupling, not with a visual guess based on the old rubber part.
Coupling families achieve flexibility in different ways
| Coupling form | Flexible member | Characteristic | Important boundary |
|---|---|---|---|
| Elastomeric sleeve | One shaped sleeve engaging two hubs. | Compact, resilient torque transfer. | Must match its exact hub series. |
| Jaw coupling | Spider between interleaved jaws. | Compression-loaded elastomer. | A spider is not interchangeable with a sleeve. |
| Tyre coupling | Bolted rubber annulus. | High visible flexibility. | Different flange and retention system. |
| Disc coupling | Metallic flexible plates. | Low backlash and no elastomer. | Different alignment and fatigue behaviour. |
| Gear coupling | Meshing crowned metal teeth. | High torque density. | Usually depends on specified lubrication. |
| Vehicle driveline joint | Flex disc, universal or CV elements. | Designed for a particular driveline geometry. | Not substituted by an accessory coupling sleeve. |
The sleeve, hubs and shafts operate as one system
The sleeve's internal or external profile engages accurately formed hub teeth. Hubs locate on shaft bores and may be retained by keys, tapers, clamping features or set screws. Bearings control shaft position, while machine mounts preserve the intended relationship between both centre lines.
Damage anywhere in this chain changes the load seen by the elastomer.
Elastomer properties set the working envelope
Compound stiffness affects torsional compliance, damping, tooth load and response to shock. Heat resistance, low-temperature flexibility and tolerance of oil, fuel mist, coolant, ozone or cleaning agents also vary. Colour alone does not identify a material grade.
Use the sleeve reference and technical data for the intended coupling rather than selecting a generic rubber by appearance.
Torque capacity includes more than steady running load
Starting, stopping, compressor pulsation, pump pressure changes and driven-unit jams can create peak torque far above the normal average. The coupling selection method may apply a service factor for duty cycle, shock level and hours of operation.
A higher-stiffness sleeve is not automatically an upgrade: it may transmit more shock to shafts and bearings or be unsuitable for the hubs.
Speed and temperature interact
Repeated elastomer deformation creates internal heat. High rotational speed, poor alignment, high ambient temperature and nearby exhaust or process heat can raise sleeve temperature further. Excess heat accelerates hardening and cracking; chemical swelling can instead soften the profile and reduce tooth retention.
All published speed and temperature limits apply only under the stated alignment and loading conditions.
Four alignment states require separate checks
| Condition | Description | Likely sleeve effect | Correct response |
|---|---|---|---|
| Angular offset | Shaft centre lines meet at an angle. | Cyclic edge loading and flexing. | Measure and correct to specified tolerance. |
| Parallel offset | Centre lines are parallel but displaced. | Unequal tooth loading and heat. | Move the machine or adjust mounts. |
| Axial position error | Hub separation is too narrow or wide. | Compression, stretch or hub contact. | Set the stated hub gap. |
| Soft foot | A machine foot does not sit evenly. | Alignment changes when bolts tighten. | Correct the mounting surface and shimming. |
| Dynamic movement | Loads or weak mounts shift the shafts in service. | Intermittent overload despite static alignment. | Inspect bearings, mounts and structure. |
Fitment evidence must agree across several dimensions
| Selection point | Reliable evidence | Why it controls fit | Risk if wrong |
|---|---|---|---|
| Coupling family and size | Equipment record, hub marking and parts data. | Defines the engagement geometry. | Sleeve will not seat or transmit load correctly. |
| Hub profile | Clean physical inspection and drawing. | Controls tooth contact. | Rapid stripping or backlash. |
| Sleeve dimensions | Specified length, diameters and profile. | Maintains engagement and clearance. | Binding or incomplete engagement. |
| Elastomer grade | Exact part specification. | Sets stiffness and environment resistance. | Heat, swelling or shock damage. |
| Torque and service factor | Machine power, speed and duty data. | Accounts for peak demand. | Overload fatigue or tooth tear. |
| Operating environment | Temperature and chemical exposure. | Determines material survival. | Premature hardening or softening. |
Visible wear patterns help locate the cause
Uniform ageing may reflect long heat and time exposure. Local tooth tearing suggests concentrated load or wrong engagement. Polished metal-to-metal marks indicate lost separation, while rubber dust can result from fretting against damaged hub teeth. A permanently twisted sleeve may have seen overload or a locked driven unit.
Photograph the installed position before dismantling and retain the failed element for diagnosis.
Symptoms need machine-level diagnosis
| Observation | Possible sleeve issue | Other system cause | Priority |
|---|---|---|---|
| New vibration | Uneven deformation or missing material. | Misalignment, bearing wear or imbalance. | Stop and inspect before continued load. |
| Drive chatter | Excess backlash or hardened elastomer. | Pulsating driver or loose hub. | Check the complete torque path. |
| Rubber debris | Tooth wear or rubbing. | Wrong gap or damaged hub profile. | Isolate promptly. |
| Loss of drive | Sleeve profile stripped or split. | Key, shaft or hub failure. | Immediate shutdown and isolation. |
| Hot coupling area | Excess flexing or material breakdown. | Bearing seizure or machine overload. | Do not touch; investigate after cooling. |
| Repeat short life | Wrong grade or size. | Uncorrected alignment or duty problem. | Reassess selection and installation. |
Guarding and isolation are essential controls
A slow-looking shaft can still catch gloves, hair, jewellery or clothing. Disconnect electrical, hydraulic, pneumatic and stored mechanical energy using the site's safe-isolation method. Confirm isolation by an approved test and control any shaft that gravity, pressure or another machine could rotate.
A removed guard must be stored safely and fully refitted before any powered trial.
Preparation preserves the original geometry
Record hub positions
Measure hub separation, shaft projection and any alignment reference before disturbing sound components. A paint mark is useful only as a record, not as a substitute for measurement.
Support the machines
Do not allow the driven shaft or accessory to hang from the coupling. Support parts at approved points and avoid side load on bearings.
Clean without attacking the elastomer
Remove debris from the metal hubs with an approved method. Keep aggressive solvent away from the replacement sleeve unless its compatibility is documented.
Hub condition determines whether a sleeve-only repair is valid
Inspect teeth for steps, burrs, corrosion and tapering; check hub bores, keys and fasteners for movement. A worn profile concentrates force on a smaller area of new elastomer. Cracked hubs or loose shaft fits demand the proper mechanical repair.
Do not file a damaged profile until an apparently new shape is produced; that alters the intended contact geometry.
Installation should not require violence
Position the hubs to their specified axial dimension, align the shafts and fit the sleeve in its prescribed orientation. Use only a stated assembly aid. Screwdrivers, punches and sharp hooks can create cuts that grow under cyclic load.
Where the design has a split or opening, follow the coupling instructions for its orientation and engagement sequence.
Lubrication rules are design-specific
Many elastomeric sleeve systems run dry. Grease can attract abrasive material, cause slip or attack an incompatible compound. Other coupling families may have a specified lubricant, but that does not make it suitable for this sleeve.
Never improvise with general-purpose grease, silicone spray or washing-up liquid.
Fastener control protects hubs and shafts
Clean and inspect threads, use the specified locking method and tighten in the required sequence. Torque values depend on fastener size, grade, surface condition and hub design. Reusing a damaged key or set screw can permit hub movement and destroy alignment.
Witness marks can support later inspection but do not replace a torque-controlled installation.
Verification progresses from static to loaded
First confirm complete engagement, correct separation, shaft freedom and tool removal. Refit the guard. Then perform a controlled no-load or low-load start if the machine procedure permits, observing from outside the hazard zone. Monitor vibration, unusual sound and bearing or coupling-area temperature.
Increase load only when the initial result is stable and keep within the equipment commissioning method.
Maintenance is based on condition and duty
Inspection frequency should reflect operating hours, starts, shock events, temperature, contamination and the consequence of lost drive. View the sleeve through a safe inspection provision only after isolation. Check mount security and alignment whenever related equipment is removed or a bearing is replaced.
Keeping a dated record of wear appearance and vibration can reveal a developing system fault before the sleeve fails.
Common mistakes shorten coupling life
- Choosing by outside diameter while ignoring hub profile and elastomer grade.
- Calling every flexible coupling a propshaft coupling.
- Replacing the sleeve around stepped or loose hubs.
- Aligning shafts before final mount bolts are tightened.
- Using the sleeve to pull misaligned machines together.
- Adding an unapproved lubricant or solvent.
- Running briefly with the guard removed to “have a look”.
Vehicle inspection relevance depends on the application
An accessory-drive coupling sleeve is not automatically a separately prescribed MOT test item. Nevertheless, a failed drive could affect a safety-relevant system, create loose rotating parts or leave leaked fluid and insecure equipment. The actual installation and affected function determine roadworthiness.
Do not continue using a machine or vehicle when loss of drive, severe vibration, overheating or insecure guarding is present.
Practical flexible-coupling-sleeve FAQs
Q: Is this sleeve a propshaft joint?
A: No assumption should be made; it is a sleeve-style elastomeric coupling component for a compatible auxiliary or machine drive.
Q: Can I match it by colour?
A: No. Colour does not reliably define compound, stiffness or load rating.
Q: What identifies the correct sleeve?
A: Coupling series, size, hub profile, dimensions, material grade and duty data must agree.
Q: How much misalignment can it absorb?
A: Only the amounts published for the exact coupling under its stated load and speed.
Q: Can a more rigid sleeve carry more torque?
A: It may alter ratings and shock transmission; use only an approved grade.
Q: Should the sleeve be greased?
A: Only if the exact coupling instructions specify a compatible assembly or running lubricant.
Q: Why did the new sleeve fail quickly?
A: Check hub wear, alignment, gap, bearings, mounts, overload and chemical or heat exposure.
Q: May worn hub teeth be reused?
A: Not when wear prevents correct load distribution; repair the whole coupling as required.
Q: Can I inspect it while the shaft turns?
A: Never by touch or with guarding removed; isolate before physical inspection.
Q: Does a split always mean overload?
A: No. Age, temperature, chemicals, wrong fit and misalignment can also split elastomer.
Q: What demands immediate shutdown?
A: Loss of drive, severe vibration, debris, hub contact, smoke or abnormal heat.
Q: What confirms a sound repair?
A: Correct part identity, alignment, hub gap, guarded operation and stable vibration and temperature under controlled load.
