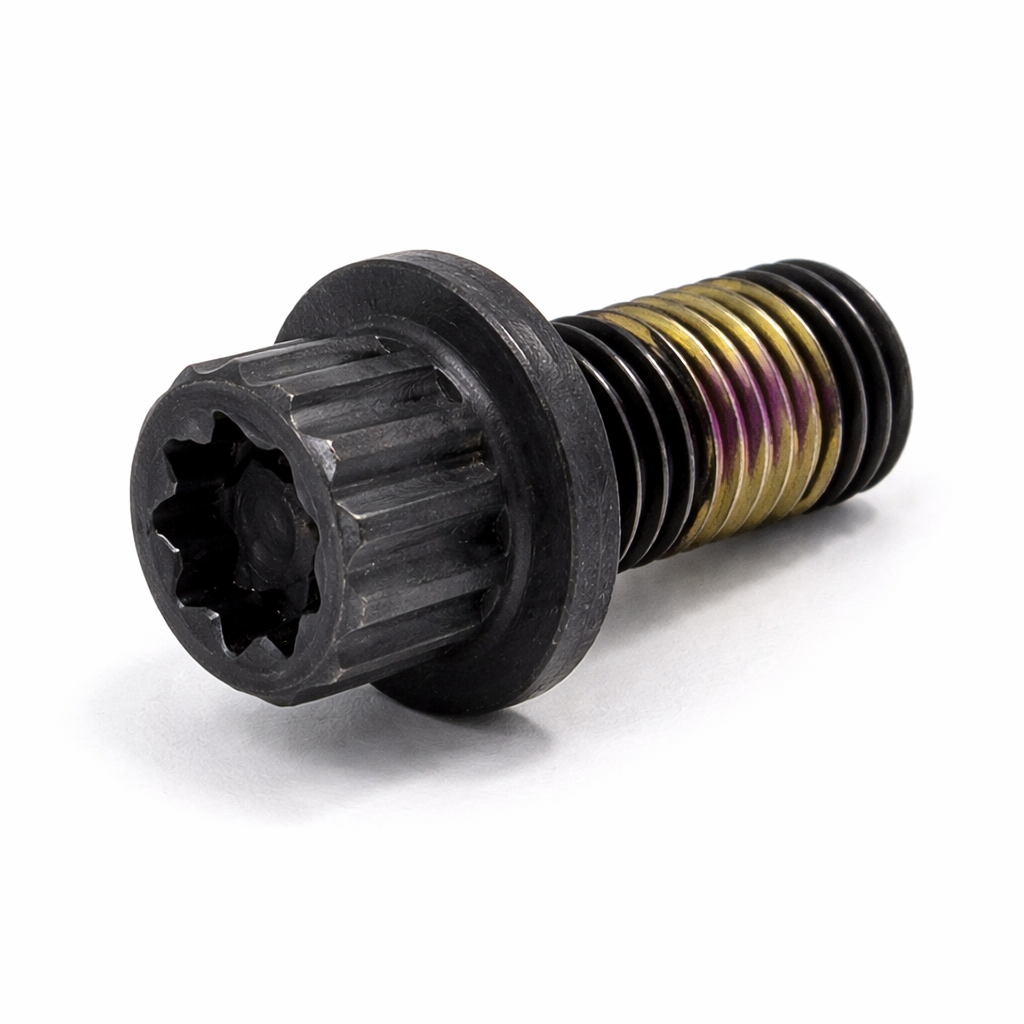

Flywheel bolts create a friction joint at the crankshaft flange
The bolt shanks are not intended to carry every engine torque pulse in simple shear. Correctly tensioned fasteners clamp clean flat faces together so friction transfers most operating torque. Dowels or location features establish position, but clamp load keeps the joint stable. Insufficient or uneven tension permits microscopic movement, fretting and eventual loosening or fracture.
Because a flywheel stores substantial rotational energy, a compromised joint is an immediate safety issue rather than a harmless vibration source.
Application identification must be exact
| Identifier | Why it matters | Evidence to use | Risk of guessing |
|---|---|---|---|
| VIN/production date | Separates mid-model engineering changes. | Vehicle data and parts catalogue. | Different bolt or flywheel revision. |
| Engine code | Defines crank flange and torque procedure. | Vehicle label/diagnostic and service data. | Same capacity engine may use different joint. |
| Transmission | Changes flywheel/flexplate arrangement. | Gearbox code and build specification. | Manual and automatic parts confused. |
| Flywheel type | Solid, dual-mass and conversion kits differ. | Exact installed/replacement part number. | Incorrect length or head clearance. |
| Bolt revision | Coating and tightening method can change. | Current technical bulletin/procedure. | Old torque used on new friction system. |
Dimensions and head geometry are functional
Thread pitch must engage the crank without binding. Length is normally assessed from the correct bearing face to the end, accounting for any integral flange or specified washer. Some heads are shallow to clear the clutch disc or damper, while others distribute load through a broad flange.
Compare new and removed bolts only as a diagnostic cross-check; the old set may itself be wrong or stretched. Confirm the specification independently.
Strength grade alone does not establish interchangeability
A higher marking does not make an arbitrary replacement safer. Material ductility, thread rolling, heat treatment, under-head radius, coating and engineered elongation all influence the joint. Torque-angle procedures depend on the exact bolt's elastic and plastic response.
Use a complete matched set when the procedure specifies it. Do not combine brands, revisions, used and new fasteners in one bolt circle.
Reusable, single-use and torque-to-yield fasteners
| Instruction type | Meaning | Required action | Unsafe shortcut |
|---|---|---|---|
| Always renew | Reuse is prohibited regardless of measurement. | Fit new correct bolts. | Reusing because threads look clean. |
| Torque plus angle | Controlled rotation follows seating torque. | Use exact stages and calibrated angle method. | Converting angle to an estimated final torque. |
| Measure-before-reuse | Service limit applies where explicitly provided. | Measure by the stated method and renew if outside. | Inventing a length limit from another engine. |
| Pre-coated bolt | Factory patch supplies specified friction/locking. | Keep patch clean and follow activation rules. | Adding another adhesive or lubricant. |
| Specified lubricated joint | Torque data assumes named oil/lubricant. | Apply exact type and location/quantity. | Oiling a joint whose data assumes dry threads. |
Thread friction determines achieved clamp load
Most applied torque is consumed at the threads and under the bolt head. Oil, solvent residue, anti-seize, plating and liquid threadlocker each change friction. At the same wrench reading, a lower-friction bolt can be overstretched, while corroded dry threads may achieve inadequate tension.
Prepare the threads exactly as the current vehicle procedure states. “Clean” does not automatically mean dry, and “new bolt” does not authorise extra compound.
Inspect the crankshaft and flywheel before assembly
Female threads
Look for pulled material, cross-threading, corrosion and trapped oil. Fluid in a blind hole can hydraulically crack the crank or give a false torque. Use only the approved cleaning or restorative method.
Mating faces and dowels
Remove burrs and old locking residue without hollowing the flange. Inspect dowels for looseness and fretting. The flywheel must sit fully flat before any bolt is used to draw it in.
Seals and leakage
Assess the rear crankshaft seal and gearbox input area. Oil on a clutch or bolt face changes friction and can require renewed friction components as well as leak repair.
Dual-mass flywheels need their own condition checks
A dual-mass unit contains springs, bearings and friction elements that manage torsional vibration. Inspect free movement, rock, grease leakage, heat marking and locking positions using its manufacturer limits. Do not wash one in solvent, dismantle it or clamp across the two masses.
A new bolt set does not make an out-of-limit damper serviceable. Conversely, rotational movement within the stated test range is not by itself proof of failure.
Removal requires support and positive locking
A manual-transmission flywheel is heavy and can fall as the final bolt is released. Support it with a suitable lifting arrangement and keep hands out of the drop path. Remove the gearbox using rated equipment and maintain engine support as specified.
Use the designated flywheel or crank holding tool. Locking through the starter aperture with a screwdriver can chip the ring gear, damage the housing and slip under high torque.
Preserve timing and crankshaft integrity
Some engines must not be rotated backwards or loaded against a timing pin while flywheel bolts are loosened. A timing alignment tool may locate the crank but not be rated as a torque reaction tool. Follow the service sequence and use separate holding equipment where required.
On engines with a position target in the flywheel, preserve specified orientation; an incorrect installation can cause a no-start or misleading sensor fault.
Controlled installation distributes clamp load
Position the flywheel on its dowel or index and keep it supported flat. Start all bolts several turns by hand. Snug in the stated diagonal or progressive sequence, then apply each torque stage with a calibrated wrench. Mark bolts for the angle stage only in a way that cannot contaminate or weaken the joint.
Use a stable viewing position for the angle gauge. If interrupted, record exactly which bolt and stage was completed; guessing can leave a mixed bolt circle.
Torque and angle tools must operate in their valid range
| Tool/control | Purpose | Good practice | Common error |
|---|---|---|---|
| Calibrated torque wrench | Applies seating and specified torque stages. | Select a range comfortably containing target. | Using it to loosen old bolts. |
| Angle gauge/electronic angle | Measures rotation after seating. | Zero at each specified stage and hold reaction arm. | Estimating angle by eye. |
| Flywheel locking tool | Reacts installation torque safely. | Attach at approved points. | Loading a timing pin or ring-gear tooth. |
| Thread chaser/cleaner | Removes residue where procedure allows. | Preserve original thread form and clean debris. | Cutting oversized threads with a tap. |
| Run-out indicator | Checks installed face/ring condition if specified. | Use correct datum and service limit. | Blaming every reading on the flywheel. |
Clutch installation must not disturb the completed joint
Clean only the friction face by the approved method. Align the clutch disc with the correct mandrel and tighten the pressure plate in stages. Check that pressure-plate bolts are not confused with crank bolts and that disc orientation preserves hub clearance.
Never lubricate the clutch lining. Replace an oil-soaked disc and correct the leak rather than attempting to burn contamination away.
Verification before and after starting
Rotate the assembly by hand through the permitted direction and confirm no bolt head, clutch hub or timing feature contacts. Check starter ring engagement, bellhousing cleanliness and every removed earth, sensor and shield. Operate the clutch and verify gearbox fluid level as applicable.
At first start, stop for abnormal metallic knock, severe vibration or scraping. A loose-flywheel symptom warrants immediate shutdown and investigation; continued running can destroy the crankshaft and housing.
Practical flywheel-bolt FAQs
Q: Can old flywheel bolts be reused?
A: Only when the current engine procedure explicitly permits reuse and every stated check passes.
Q: Are all bolts for one engine size the same?
A: No. Engine code, production date, transmission and flywheel revision can change them.
Q: Should threadlocker be added?
A: Only if the specified procedure requires that exact product and application.
Q: Why does bolt length matter?
A: Excess length can bottom out; insufficient length reduces thread engagement.
Q: Can torque angle be converted to a final torque?
A: No reliable universal conversion exists; apply the stated angle.
Q: Is a timing pin suitable for holding the crank?
A: Only if expressly rated for that torque reaction; normally a dedicated holding tool is used.
Q: Can the flywheel be pulled flat with the bolts?
A: No. It should seat correctly on clean faces and location features before tightening.
Q: What if a blind bolt hole contains oil?
A: Clean it by the approved method; trapped fluid can cause hydraulic damage or false torque.
Q: Do higher-grade bolts make a stronger repair?
A: Not unless they are the engineered specified part with correct geometry and friction.
Q: Can a leaking dual-mass flywheel be reused?
A: Inspect against its service limits; grease leakage commonly indicates a fault needing replacement.
Q: How should bolts be tightened?
A: By the specified stages and sequence with calibrated torque and angle equipment.
Q: What causes fretting at the flange?
A: Loss of clamp load, damaged faces or run-out can allow microscopic movement.
Q: What symptom demands immediate shutdown?
A: New severe vibration, metallic knocking or scraping after flywheel work.
