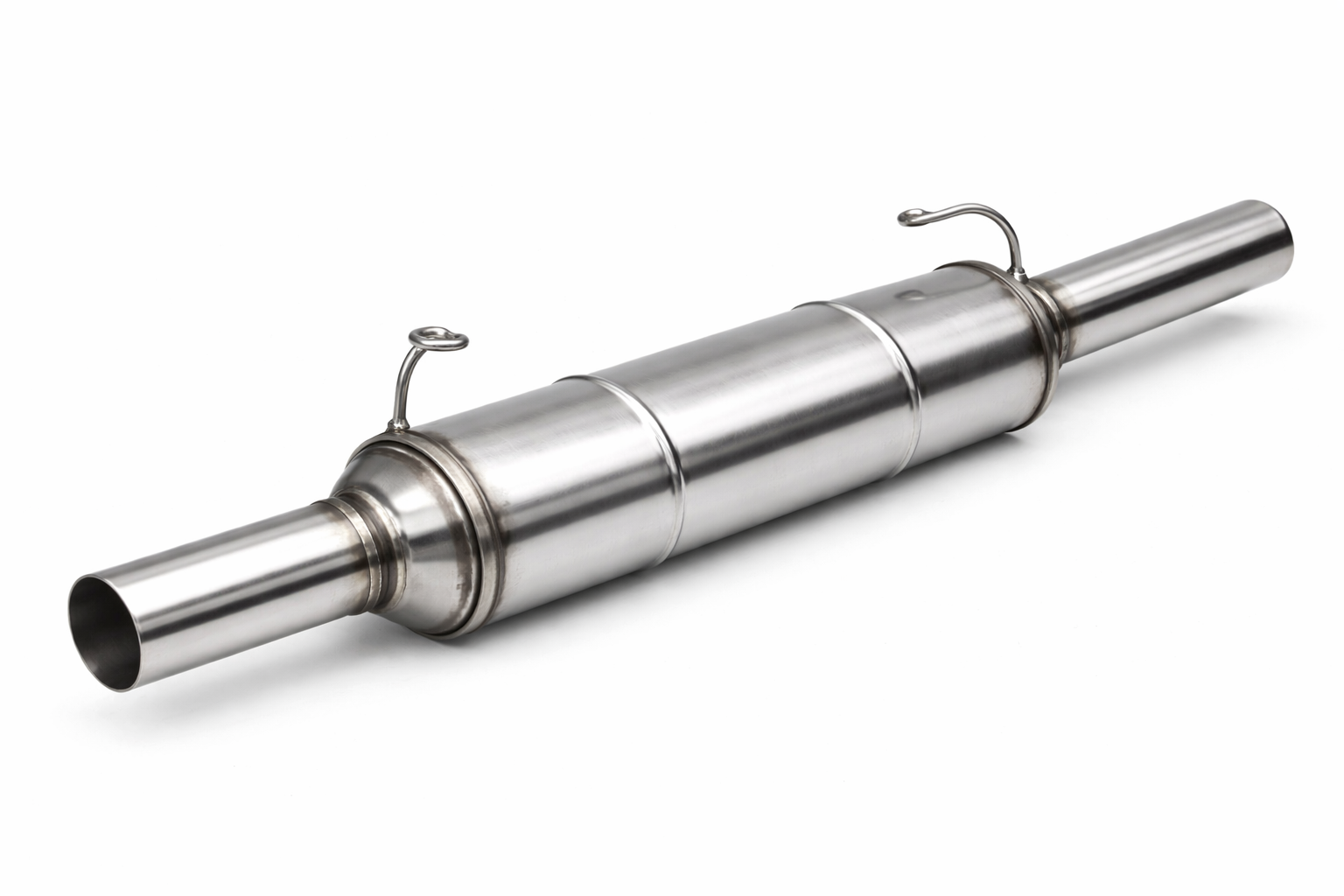

Why a vehicle may use a centre resonator
The exhaust contains pressure waves whose frequencies change with engine speed, cylinder count and load. A centre resonator targets frequencies that would otherwise excite the long underfloor pipe or cabin, while the rear silencer controls broader tailpipe noise.
Its position along the pipe is part of the tune. Moving the same volume forward or rearward changes the phase relationship and can create a new drone.
Common centre-section designs
| Design | Construction | Purpose |
|---|---|---|
| Expansion box | Pipe opens into a larger chamber and exits. | Reflects and reduces low-frequency pressure pulses. |
| Straight-through absorptive resonator | Perforated core with heat-resistant packing. | Reduces high-frequency harshness with modest restriction. |
| Helmholtz branch resonator | Closed side chamber connected by a neck. | Targets a narrow drone frequency. |
| Multi-chamber middle box | Baffles and passages combine reactive effects. | Broadens attenuation across engine speeds. |
| Integrated centre pipe | Box welded into long front/rear pipe section. | Controls length, joints and alignment as one part. |
| Combined emissions section | Resonator shares assembly with catalyst or filter. | Requires emissions-specific replacement and handling. |
Acoustic tuning principles
Wave reflection
A sudden area change reflects part of a pressure wave. Chamber dimensions determine which frequencies cancel and which pass.
Absorption
Fibrous packing around a perforated core turns acoustic motion into heat. Packing density, temperature resistance and retention are engineered.
Quarter-wave and branch tuning
A closed branch can produce an opposing wave at one troublesome frequency without carrying main gas flow. Its length cannot be shortened casually.
System interaction
Pipe length, catalyst, flex, rear silencer and tailpipe all influence the result. One component cannot be judged solely on bench appearance.
Fitment evidence
| Check | Possible variation | Why it matters |
|---|---|---|
| Engine/output | Pulse frequency, gas flow and bore. | Controls acoustic and pressure design. |
| Body/wheelbase | Underfloor length and hanger spacing. | Changes pipe geometry. |
| Emissions equipment | Catalyst, GPF, DPF and sensors. | Temperature, bosses and approval differ. |
| Joint type | Flange, sleeve, socket or cut-and-clamp. | Determines seals and installation method. |
| Pipe offset | Inlet/outlet centreline and rotation. | Controls floor and suspension clearance. |
| Hangers | Rod count, position and direction. | Prevents load on flex and rear box. |
| Sensor bosses | Temperature or oxygen sensor positions. | Wiring reach and control depend on them. |
| Build date | Revised section or approved supersession. | Observe production breaks. |
Flow restriction and backpressure
A sound resonator is designed to pass required gas flow. An impact can flatten the pipe; corrosion or detached baffles can obstruct it. Excess pressure reduces engine output and raises upstream temperature.
Measure pressure by the engine-specific method and compare other restrictions such as catalyst or particulate filter. Removing the resonator does not automatically increase useful performance and can introduce noise or affect approval.
Diagnosing cabin drone
Drone is a sustained low-frequency pressure sensation at a narrow engine-speed or road-load range. Record whether it follows engine rpm in different gears or road speed regardless of gear. The distinction separates exhaust acoustics from wheel, bearing and propshaft vibration.
Check for a wrong replacement section, missing branch resonator, collapsed packing, rigid body contact and hardened mounts. Smartphone sound readings can help reproduce the condition but are not a substitute for calibrated legal noise measurement. Restore the intended geometry before adding improvised weights or damping material.
Condensate and internal corrosion
Water from combustion condenses in the cooler underfloor and rear sections, especially on short journeys. Acidic moisture attacks seams and low internal surfaces. External salt and trapped mud corrode hangers and pipe necks.
Designed drain features must remain open. Do not drill holes without manufacturer instruction because location affects leakage, strength and noise.
Fault patterns
| Observation | Possible middle-box fault | Other checks |
|---|---|---|
| Drone at steady motorway speed | Wrong tune, missing packing or internal damage. | Rear box, mounts and exhaust modification. |
| Metal rattle under floor | Detached baffle or broken hanger. | Heat shields, catalyst and stored items. |
| Soot at seam/joint | Gas leakage. | Upstream flex and flange alignment. |
| Loss of high-load power | Collapsed internal passage or crushed pipe. | Catalyst/DPF and engine control. |
| Knock over bumps | Sagging mount or incorrect offset. | Suspension and floor clearance. |
| Fumes in cabin | Underfloor leak near body openings. | Door/tailgate seals and complete system. |
| Leak returns after repair | System preload or missing support. | Engine mounts, flex and hanger geometry. |
Cold inspection and leak testing
Inspect only after complete cooling. Look for soot, rust flakes, impact dents, split seams and cracked hanger welds. Support the section and move it gently to locate internal rattles without overloading the flex.
A smoke or low-pressure test must stay within exhaust limits. Running checks require ventilation and protection from hot or rotating components. Never seal the tailpipe for long.
Hangers and neutral alignment
The centre section carries its own mass and part of adjacent pipe load. Rubber mounts must sit near their neutral position cold so they can accommodate heat expansion. A stretched mount allows floor contact; a twisted mount transmits vibration.
Loosen relevant joints and align the complete system rather than pulling one hanger into place. Check flex pipe, rear-box tailpipe and all body clearances together.
Cut points and repair sections
Some original exhausts are installed as one long assembly, while service parts use a marked cut point and sleeve. Measure from the specified datum, cut squarely and deburr without reducing overlap.
A clamp needs sound round pipe. It cannot seal over deep corrosion, an old crushed U-bolt groove or a pipe cut too short. Protect nearby fuel, brake and electrical lines from saw and grinder debris.
Removal and installation
- Cool the exhaust and support the vehicle securely.
- Confirm the centre section is the fault source.
- Record joint insertion, hanger positions and clearances.
- Support adjacent catalyst/front pipe and rear exhaust independently.
- Disconnect sensors by their plugs if the section includes them.
- Release flanges, sleeves or the approved service cut without twisting the flex.
- Compare pipe length, offset, bore, hangers, bosses and acoustic box.
- Fit new clamps, gaskets, badly aged mounts and single-use fasteners.
- Assemble loosely from the defined front datum.
- Align hangers and floor clearance with no cold preload.
- Tighten in sequence, reconnect wiring and run in ventilation.
- Check leaks, hot expansion and noise after a full heat cycle.
Sensor and heat-shield considerations
Late exhausts can place oxygen or temperature sensors near the centre section. Support the sensor body, use the correct socket and protect harnesses from twist. Apply thread compound only when specified and never contaminate the sensing tip.
Restore all heat shields and air gaps around fuel tank, floor, cables and underbody battery. A quiet new box can still be unsafe if its shield was omitted.
Common mistakes
- Selecting by bore and box size while ignoring wheelbase and tuning.
- Removing the resonator to chase an unsupported power claim.
- Cutting at an unapproved point with insufficient sleeve overlap.
- Supporting a heavy section from the upstream flex pipe.
- Forcing hangers into place while joints remain tight.
- Reusing crushed clamps and leaking flange gaskets.
- Leaving off shields near the floor or fuel tank.
- Diagnosing an internal rattle without checking external shields.
Repairs and modified systems
A sound pipe may accept an approved welded repair after removal and safe preparation, but thin corrosion around a hole gives no durable foundation. Detached internals and crushed casings require replacement.
Resonator deletes and sports sections can raise exterior noise, cabin drone and insurance or approval concerns. Retain emissions controls and ensure the complete vehicle remains lawful.
UK MOT and safety relevance
The exhaust must be secure, not leak excessively and not be unreasonably noisy. A seriously deteriorated, insecure or leaking middle silencer can contribute to MOT failure.
Carbon monoxide is colourless and dangerous. Stop using a vehicle if fumes enter the cabin or occupants develop headache or dizziness.
Practical centre-silencer FAQs
Q: What does a centre exhaust silencer do?
A: It targets selected exhaust frequencies and reduces underfloor/cabin resonance.
Q: Is a middle box the same as a resonator?
A: Often, though internal designs and functions vary.
Q: Can removing it increase power?
A: Not automatically; it can mainly create noise and drone.
Q: Why does the exhaust drone at one speed?
A: Resonator tuning, internal damage, mounts or modifications can be responsible.
Q: Can a centre box block internally?
A: Yes, collapsed baffles or a crushed pipe can restrict flow.
Q: Why is water inside the exhaust?
A: Combustion produces condensate, especially on short journeys.
Q: Can a rattling baffle be repaired?
A: Replacement is normally required because the internal structure is sealed.
Q: Why is a new section supplied shorter?
A: It may be a service repair designed for a specified cut and sleeve joint.
Q: Should rubber hangers be replaced?
A: Replace stretched, cracked, hardened or contaminated mounts.
Q: Can exhaust paste seal a rust hole?
A: It cannot restore a structurally corroded pipe or casing.
Q: Does wheelbase affect the centre section?
A: Yes, it changes pipe length and support positions.
Q: Can an exhaust leak cause fumes inside?
A: Yes, underfloor leaks can enter through body openings.
Q: Can a bad middle silencer fail the MOT?
A: Yes, if insecure, seriously leaking, deteriorated or unreasonably noisy.
