Position lamps show presence and outline rather than illuminate the road
A front position lamp presents a low-intensity white signal, while the corresponding rear function is red. Clearance and outline-marker lamps help other road users judge the width or extremity of larger vehicles and trailers. Exact legal requirements depend on vehicle type, age, dimensions and lamp position.
The optical system includes the source, reflector or light guide, lens and mounting angle. Changing any of these can alter visibility even when the lamp appears bright close up.
Names describe different regulated functions
| Lamp description | Primary purpose | Typical colour/location | Selection warning |
|---|---|---|---|
| Front position/parking lamp | Shows vehicle presence and front width. | White at the front. | Do not confuse with DRL or headlamp. |
| Rear position lamp | Shows the rear presence. | Red at the rear. | May share a housing with stop lamp but has different intensity. |
| Clearance/outline marker | Indicates an outer extremity on a wide vehicle. | Application-dependent front/rear colours. | Handed orientation and stalk angle matter. |
| Side marker | Shows vehicle length from the side. | Usually amber, subject to application. | Not a substitute for a front position lamp. |
| Daytime running lamp | Improves daytime conspicuity. | White at the front. | Different intensity and switching requirements. |
Compatibility extends beyond shape and voltage
| Attribute | Why it matters | Check before fitting |
|---|---|---|
| Function and approval | Optics are assessed for a defined purpose. | Markings, application and installation instructions. |
| Nominal/working voltage | Cars, trucks and trailers may use different supplies. | Complete voltage range and polarity. |
| Mounting side and angle | Beam distribution assumes a defined orientation. | Left/right, top mark and mounting plane. |
| Connector or flying lead | Pinout and sealing must match. | Keying, cable length, grommet and earth method. |
| Light-source design | Bulb optics and integrated LEDs are not equivalent. | Specified bulb or complete LED module. |
| Monitoring electronics | Body controllers may check current and pulse the circuit. | Vehicle coding and diagnostic compatibility. |
Bulb, LED module and light-guide technology

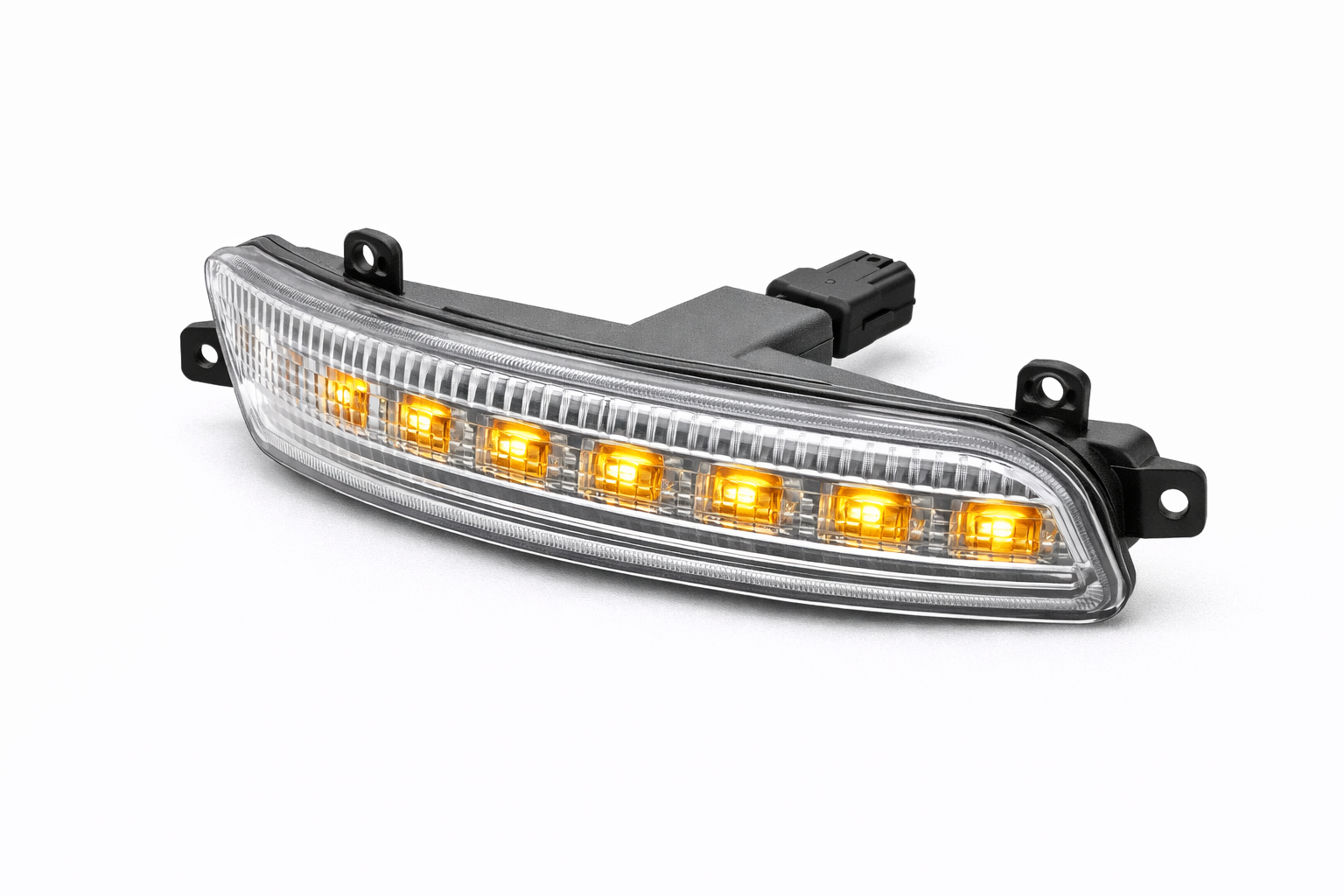

A replaceable filament bulb relies on a holder, contacts and reflector. Heat and vibration can oxidise contacts or blacken the bulb. An integrated LED uses semiconductor sources, a current regulator and sometimes a light guide to distribute output. It may last longer but is often replaced as a complete sealed unit when the driver or emitters fail.
Multiple LED points do not guarantee compliance when some are out. Assess the complete lamp against the applicable roadworthiness rules and manufacturer information.
Electrical diagnosis should be performed under load
| Symptom | Likely branches | Useful test | Repair caution |
|---|---|---|---|
| No light | Source, fuse, supply, earth, controller. | Loaded voltage and command state. | Do not bridge a protected output. |
| Dim/yellow output | Voltage drop, wrong bulb, heat damage. | Supply and earth drop with lamp on. | Clean/renew terminals, not just the lens. |
| Intermittent on bumps | Loose contact, fractured wire, poor ground. | Harness movement test while monitored. | Keep wiring clear of moving parts. |
| Warning despite lighting | Incorrect current, failed LED segment, coding. | Fault scan and specified load. | A resistor can create dangerous heat. |
| Repeated water entry | Crack, seal, vent or cable-entry fault. | Inspect whole housing and mounting distortion. | Do not block a designed pressure vent. |
Voltage drop reveals resistance that continuity can miss
A corroded connector may pass a tiny meter current yet lose most supply voltage when the lamp operates. Measure from battery positive to lamp positive and from lamp earth to battery negative under load, using the vehicle's wiring data for acceptable values.
On controller-driven circuits, diagnostic pulses can mislead a basic meter. Use an appropriate oscilloscope, test lamp or diagnostic routine without overloading the output.
Ground paths on trailers and commercial bodies
Some lamps earth through a dedicated conductor; others historically relied on a mounting surface. Paint, corrosion and dissimilar metals increase resistance. A shared poor earth can make one lamp back-feed through another, producing strange combinations when brakes or indicators operate.
Restore the intended earth with sealed terminals and corrosion protection that does not insulate the contact. Never use an air or brake pipe as an electrical return.
Water management and environmental sealing
A lamp heats in use and cools after switch-off, drawing air through its ventilation system. Proper vents equalise pressure while limiting water. A blocked vent, pinched gasket, cracked lens or cable pointing uphill into the housing can cause condensation or pooling.
A light mist can differ from free water, but repeated condensation needs investigation. Dry the connector, replace damaged seals and ensure the mounting face is flat.
Connector repair and wiring protection
Disconnect power according to vehicle instructions and preserve connector seals. Use terminals, wire cross-section and crimp tooling intended for the circuit. Twisted wires and household connectors do not survive vibration, salt and temperature cycles.
Support the loom close enough to prevent terminal strain, while allowing body movement. Protect it through metal with a grommet and keep splices out of direct spray where possible.
Source substitution can alter optics and heat
Replaceable filament sources
Fit the specified filament rating and base. Too much wattage can distort a holder or lens; too little can produce inadequate output. An LED replacement bulb inside a filament optic can change distribution, polarity, monitoring load and approval status.
Integrated LED modules
If a lamp was type-approved as a complete LED unit, renew or repair only in the supported manner. Do not paint a lens or add an untested coloured cover.
Mounting alignment and security
Position the lamp according to its top, horizontal or directional marks. Outline lamps on stalks may be handed because their front and rear lenses face different directions. Tightening a flexible body against an uneven panel can crack the housing and open its seal.
Use correct fasteners and isolation washers. Verify clearance throughout door, tipper-body, trailer and suspension movement.
Body-controller and multiplexed systems
Modern vehicles can switch position lamps with solid-state outputs and monitor open or short circuits. A replacement module may need parameterisation, while a fault can be stored even after visible function returns.
Read codes and live commands before replacing the controller. A shorted loom or water-filled lamp can damage a new unit if the root cause remains.
Fault urgency and safe use
A failed position lamp reduces conspicuity and may conceal the vehicle's width. Repair it promptly. If mandatory lighting is unreliable at night or in seriously reduced visibility, do not continue simply because the headlamps or hazards still work.
Secure loose stalk lamps immediately; a hanging unit can detach, expose live wiring or strike other road users.
Current UK MOT considerations
The current DVSA inspection manual assesses mandatory position lamps for matters including presence, operation, condition, security, colour and switching according to vehicle age and application. Multi-function units are judged by the function being tested, so a working stop or indicator element does not excuse a failed position element.
After repair, test all lamps, reflectors and tell-tales rather than only the changed unit. Trailer requirements and heavy-vehicle testing can differ; use the correct manual for that vehicle class.
Practical parking-and-position-light FAQs
Q: Is a parking light the same as a daytime running light?
A: No. They have different purposes, output and switching requirements even when combined in one housing.
Q: Can a 24-volt lamp be fitted to a 12-volt vehicle?
A: Only when its declared operating range and application cover the vehicle.
Q: Why is a lamp dim despite showing 12 volts?
A: Test voltage drop under load; a corroded feed or earth can collapse when current flows.
Q: Can I drill a condensation drain hole?
A: No. Find the failed seal, crack, vent or cable-entry problem and restore the intended design.
Q: Are outline marker lamps handed?
A: Many are; check left/right designation, lens colours and orientation marks.
Q: Can an LED bulb replace a filament bulb?
A: Only if the lamp, road-use approval and vehicle monitoring support that source.
Q: Why does the warning remain when the lamp works?
A: Current draw, an LED segment, stored fault or coding may still be wrong.
Q: Can a load resistor remove the warning?
A: It may create heat and does not prove optical or electrical compatibility; use the correct repair.
Q: Should grease be put on bulb contacts?
A: Use only a connector treatment specified for that contact system and keep it off optical surfaces.
Q: What causes several trailer lamps to glow together?
A: A high-resistance shared earth commonly causes back-feeding.
Q: Is a cracked but working lens acceptable?
A: It can admit water, alter colour/output and fail security or condition requirements, so replace it.
Q: Does a new LED unit need coding?
A: Some controller-managed systems require configuration or fault clearing.
Q: What completes the repair?
A: Correct colour and output, secure mounting, dry connectors, normal warnings and every lighting function checked.
